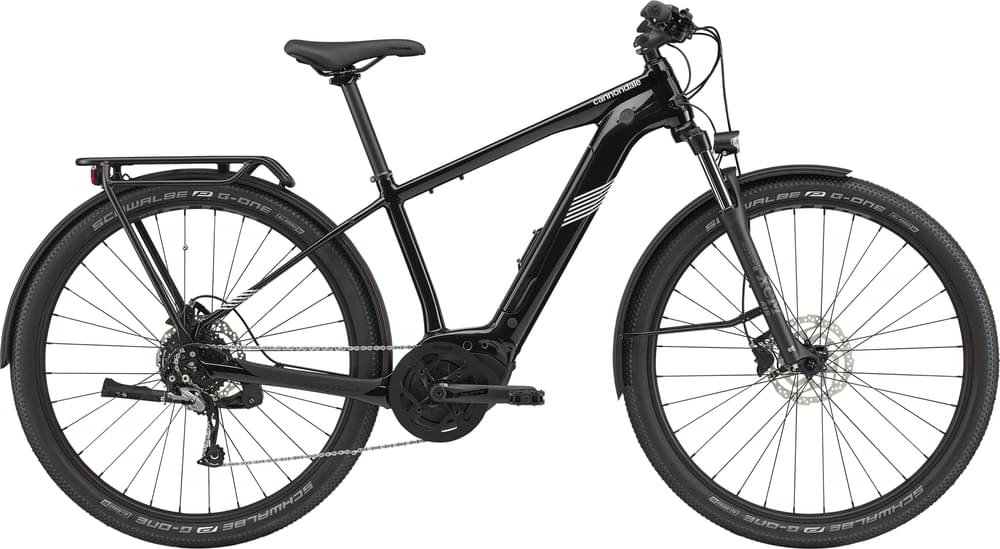

Cannondale Tesoro Neo X 3 2021
2021 E-bike
Estimate price |
3,350$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 100mm -
Fork SunTour XCM
-
Groupset Alivio, Acera -
Suspension Hardtail -
Motor Bosch 250W 63Nm mid-drive -
Battery Bosch PowerTube 500Wh -
Drivetrain 1 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
SmartForm C2 Alloy, removable downtube battery, SAVE, tapered headtube, internal cable routing, 148x12mm thru-axle, post mount disc, motor protection, rack/fendor mount, lock mount, Removable downtube battery, SAVE, Tapered headtube, Internal cable routing, 148x12mm thru-axle, Post mount disc, Si kickstand mount
Suspension Fork
SR Suntour XCM ATB, 100mm, Coil, 46mm offset
Drivetrain
Rear Derailleur
Shimano Alivio
Shift Levers
Shimano Acera, 9-speed
Cassette
Shimano HG200 11-36T, 9-speed
Crank
FSA Bosch E-Bike, 46T
Bottom Bracket
Bosch, press-fit
Chain
Shimano HG93, 9-speed
Pedals
Cannondale Platform
Wheels
Front Hub
Shimano TX55, QR
Rear Hub
Shimano MT400 12x148mm thru-axle
Rims
WTB STX i25 TCS, 32h, tubeless ready
Spokes
Stainless Steel, 14g
Tires
Schwalbe G-One Allround Performance, 29 x 2.25", RaceGuard, tubeless ready
Brakes
Brakes
Shimano MT200 hydraulic disc, 180/180mm RT10 rotors
Brake Levers
Shimano MT200 hydraulic disc
Cockpit
Stem
Cannondale Adjustable, A-headset, 31.8mm
Handlebar
Cannondale 3 Riser, 6061 Alloy, 15mm rise, 8° sweep, 4° rise, 740mm
Grips
Cannondale Ergo Fitness Dual Density, Lock-On
Headset
Integrated Sealed Bearing, Tapered
Seat
Saddle
Cannondale Ergo Touring
Seatpost
Cannondale 4, 6061 Alloy, 31.6
Motor & Battery
Motor
Bosch Performance Line Sport (28mph)
Battery
Bosch PowerTube 500Wh
Remote
Bosch Purion
Charger
Bosch 2A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.61 mm | 1.47 mm | 1.42 mm | 1.36 mm |
| Bottom Bracket Height | 315 mm | 315 mm | 315 mm | 315 mm |
| Front Center | 682 mm | 719 mm | 813 mm | 847 mm |
| Rake | 51 mm | 51 mm | 51 mm | 51 mm |
| Trail | 92 mm | 92 mm | 92 mm | 92 mm |
| Stack | 626 mm | 626 mm | 634 mm | 641 mm |
| Reach | 390 mm | 427 mm | 448 mm | 471 mm |
| Top Tube Length | 577 mm | 614 mm | 637 mm | 662 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 380 mm | 435 mm | 485 mm | 535 mm |
| Head Tube Angle | 68 ° | 68 ° | 68 ° | 68 ° |
| Head Tube Length | 128 mm | 128 mm | 136 mm | 144 mm |
| Chainstay Length | 476 mm | 476 mm | 476 mm | 476 mm |
| Wheelbase | 1152 mm | 1189 mm | 1213 mm | 1239 mm |
| Bottom Bracket Drop | 57 mm | 57 mm | 57 mm | 57 mm |
| Standover Height | 743 mm | 772 mm | 810 mm | 844 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
Tesoro Neo X 3 belongs to the Cannondale E Tesoro model. Cannondale launched 49 e-bikes of this model so far. You can easily view all of the Cannondale E Tesoro e-bikes models from 2021, here.
Model range prices
Cannondale Tesoro Neo SL EQ Remixte 2021 is the most economical model, with a starting price of 2653$. Cannondale Tesoro Neo X Speed 2021 on the other hand costs 6582$, and is the most expensive model.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Commuter e-bikes
If you want to purchase a solid Commuter e-bike, it is important to know that the average cost is 2569$. However, even if your budget is less than the average, you might still be able to get a top-quality Commuter e-bike. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 3350$. Doing a quick comparison, we notice that Tesoro Neo X 3 price is 30.4% higher than the average cost of a Commuter e-bike.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
Overview of components
Fork
The fork installed on this bike is the SunTour XCM model. The travel on this model is 100mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels size
The wheels on Tesoro Neo X 3 are the 29″ aluminum type. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, these wheels are not ideal for smaller people.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Tesoro Neo X 3 comes with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
Sizes
Cannondale Tesoro Neo X 3 e-bike has 4 sizes, in the range of 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, you can easily find one that suits you.
