Cannondale Tesoro Neo X 3 2023
2023 E-bike
Estimate price |
3,425$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 100mm -
Fork Suntour XCM
-
Groupset microSHIFT Marvo, FSA -
Suspension Hardtail -
Motor Bosch 250W 63Nm mid-drive -
Battery Bosch PowerTube, 500Wh -
Drivetrain 1 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
162cm - 172cm
MD
170cm - 184cm
LG
181cm - 190cm
XL
193cm - 203cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
SmartForm C2 Alloy, removable 500Wh downtube battery, tapered headtube, internal cable routing, 148x12mm thru-axle, post mount disc, motor protection, lock mount, rack/fender mount
Suspension Fork
SR Suntour XCM ATB, 100mm, Coil, 46mm offset
Drivetrain
Rear Derailleur
microSHIFT Marvo, short cage
Shift Levers
microSHIFT Marvo, short cage
Cassette
microSHIFT H-Series, 11-36, 9-speed
Crank
FSA Bosch E-Bike, 46T
Bottom Bracket
Bosch, press-fit
Chain
KMC X9, 9-speed
Pedals
Cannondale Platform
Wheels
Front Hub
Shimano TX55 QR
Rear Hub
Shimano MT400, 12x148mm thru-axle
Rims
WTB STX i25 TCS, 32h, tubeless ready
Spokes
Stainless Steel, 14g
Tires
Schwalbe G-One Allround Performance, 29x2.25", RaceGuard, tubeless ready
Brakes
Brakes
Shimano MT200 hydraulic disc, 180/180mm RT10 rotors
Brake Levers
Shimano MT200 hydraulic disc
Cockpit
Stem
Cannondale Adjustable, A-headset, 31.8mm
Handlebar
Cannondale 3 Riser, 6061 Alloy, 15mm rise, 8° sweep, 4° rise, 740mm
Grips
Cannondale Ergo Fitness Dual Density, Lock-On
Headset
Integrated Sealed Bearing, Tapered
Seat
Saddle
Cannondale Ergo Touring
Seatpost
Cannondale 4, 6061 Alloy, 31.6
Motor & Battery
Motor
Bosch Performance Line Sport (28 mph)
Battery
Bosch PowerTube, 500Wh
Charger
Bosch 2A
Fit data

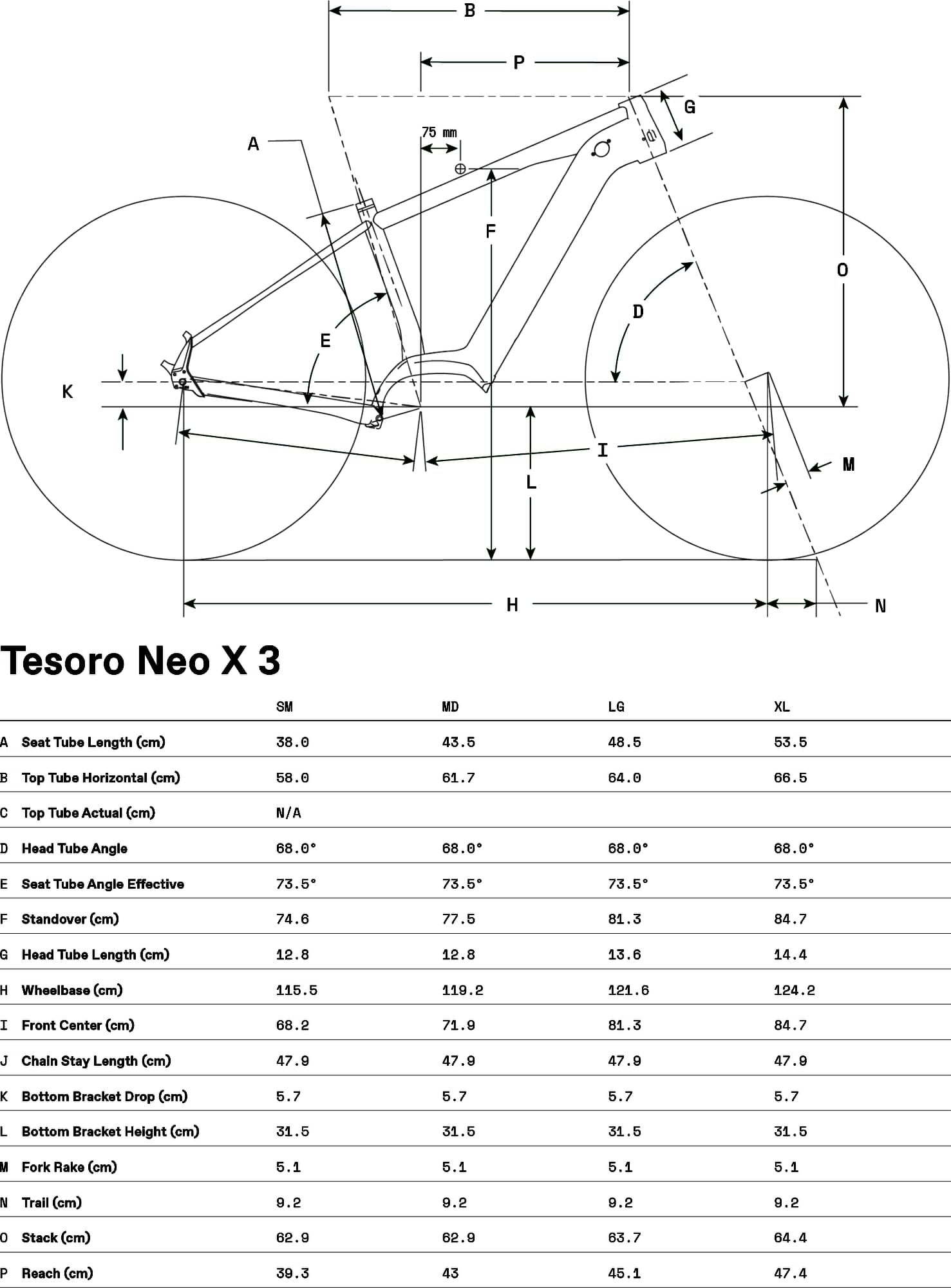

Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.61 mm | 1.47 mm | 1.42 mm | 1.36 mm |
| Bottom Bracket Height | 315 mm | 315 mm | 315 mm | 315 mm |
| Front Center | 682 mm | 719 mm | 813 mm | 847 mm |
| Rake | 51 mm | 51 mm | 51 mm | 51 mm |
| Trail | 92 mm | 92 mm | 92 mm | 92 mm |
| Stack | 626 mm | 626 mm | 634 mm | 641 mm |
| Reach | 390 mm | 427 mm | 448 mm | 471 mm |
| Top Tube Length | 577 mm | 614 mm | 637 mm | 662 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 380 mm | 435 mm | 485 mm | 535 mm |
| Head Tube Angle | 68 ° | 68 ° | 68 ° | 68 ° |
| Head Tube Length | 128 mm | 128 mm | 136 mm | 144 mm |
| Chainstay Length | 476 mm | 476 mm | 476 mm | 476 mm |
| Wheelbase | 1152 mm | 1189 mm | 1213 mm | 1239 mm |
| Bottom Bracket Drop | 57 mm | 57 mm | 57 mm | 57 mm |
| Standover Height | 743 mm | 772 mm | 810 mm | 844 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 162 cm | 170 cm | 181 cm | 193 cm |
| Rider Max Height | 172 cm | 184 cm | 190 cm | 203 cm |
About this model
Tesoro Neo X 3 is a Cannondale E Tesoro model. 49 e-bikes variations carry this model name so far. You can easily view all of the Cannondale E Tesoro e-bikes models from 2023, here.
Model range prices
Cannondale Tesoro Neo SL EQ Remixte 2023 is the most economical model, with a starting price of 2825$. Cannondale Tesoro Neo X 1 StepThru 2023 on the other hand costs 6082$, and is the most expensive model.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Commuter e-bikes average price
Our math shows that the average cost of a dependable Commuter e-bike is 2569$. However, even though the average price of a Commuter e-bike is lower, you might still be able to get a top-quality e-bike. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
When Cannondale released this model in 2023, its price was 3425$. In conclusion, this e-bike price is 33.32% higher than the price of the average Commuter e-bike.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
Overview of components
Fork
The Suntour XCM is included from the factory. It has a travel distance of 100mm. Bike forks are great for shock absorption and provide you with a smooth ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels
The wheels on Tesoro Neo X 3 are the 29″ aluminum type. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, 29″ wheels will make your e-bike react slower to obstacles you may encounter.
Brakes
When you want to stop the bike in time, the brakes are vital. The Tesoro Neo X 3 has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
Sizes
Tesoro Neo X 3 comes in 4 sizes, that range from 162 cm – 203 cm (5.31 ft – 6.66 ft). In conclusion, finding one for you shouldn’t be a problem.
