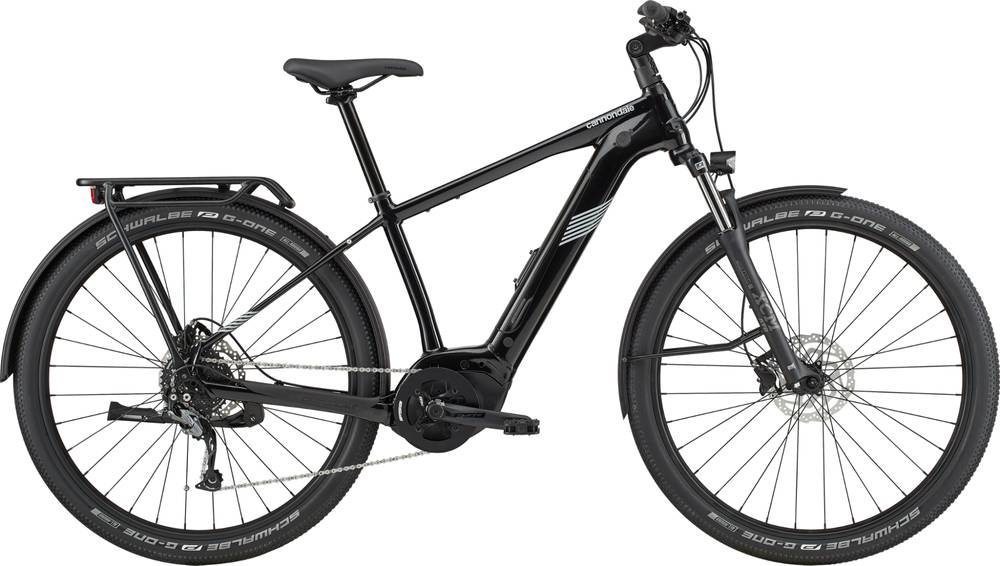

Cannondale Tesoro Neo X 3 SMU 2020
2020 E-bike
Estimate price |
3,200$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 100mm -
Fork SunTour XCM
-
Groupset Alivio, Acera -
Suspension Hardtail -
Motor Bosch -
Battery Bosch PowerTube 400Wh -
Drivetrain 1 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
SmartForm C2 Alloy, removable downtube battery, SAVE, tapered headtube, internal cable routing, 148x12mm thru-axle, post mount disc, motor protection, lock mount, Removable downtube battery, SAVE, Tapered headtube, Internal cable routing, 148x12mm thru-axle, Post mount disc, Si kickstand mount
Suspension Fork
SR Suntour XCM, 100mm, Coil, 46mm offset
Drivetrain
Rear Derailleur
Shimano Alivio
Shift Levers
Shimano Acera, 9-speed
Cassette
Shimano, 11-36, 9-speed
Crank
Bosch Gen3, 38T
Bottom Bracket
Bosch, press-fit
Chain
Shimano HG93, 9-speed
Pedals
Cannondale Platform
Wheels
Front Hub
Shimano QR
Rear Hub
(F) Shimano QR / (R) Shimano MT400 12x148
Rims
WTB STX i29 TCS, 32h, tubeless ready
Spokes
DT Swiss Champion
Tires
Schwalbe G-One Allround Performance, 29 x 2.25", RaceGuard, tubeless ready
Brakes
Brakes
Shimano MT200 hydro disc, 180/180mm RT10 rotors
Brake Levers
Shimano MT200 hydro disc
Cockpit
Stem
Cannondale Adjustable, A-headset, 31.8mm
Handlebar
Cannondale 3 Riser, 6061 Alloy, 15mm rise, 8° sweep, 4° rise, 740mm
Grips
Cannondale Ergo Fitness Dual Density, Lock-on
Headset
Integrated Sealed Bearing, Tapered
Seat
Saddle
Cannondale Ergo Touring
Seatpost
Cannondale 4, 6061 Alloy, 31.6 x 350mm
Motor & Battery
Motor
Bosch PowerTube 400Wh
Battery
Bosch PowerTube 400Wh
Remote
Bosch Purion
Charger
Bosch 2a
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.61 mm | 1.47 mm | 1.42 mm | 1.36 mm |
| Bottom Bracket Height | 315 mm | 315 mm | 315 mm | 315 mm |
| Front Center | 682 mm | 719 mm | 813 mm | 847 mm |
| Rake | 51 mm | 51 mm | 51 mm | 51 mm |
| Trail | 92 mm | 92 mm | 92 mm | 92 mm |
| Stack | 626 mm | 626 mm | 634 mm | 641 mm |
| Reach | 390 mm | 427 mm | 448 mm | 471 mm |
| Top Tube Length | 577 mm | 614 mm | 637 mm | 662 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 380 mm | 435 mm | 485 mm | 535 mm |
| Head Tube Angle | 68 ° | 68 ° | 68 ° | 68 ° |
| Head Tube Length | 128 mm | 128 mm | 136 mm | 144 mm |
| Chainstay Length | 476 mm | 476 mm | 476 mm | 476 mm |
| Wheelbase | 1152 mm | 1189 mm | 1213 mm | 1239 mm |
| Bottom Bracket Drop | 57 mm | 57 mm | 57 mm | 57 mm |
| Standover Height | 743 mm | 772 mm | 810 mm | 844 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
Tesoro Neo X 3 SMU belongs to the Cannondale E Tesoro model. 49 e-bikes variations carry this model name so far. Check out the entire range from 2020 of this model, by clicking this link.
Model range prices
Cannondale Tesoro Neo X 3 2020 is the most economical model, with a starting price of 3200$. Cannondale Tesoro Neo X 1 Remixte SMU 2020 on the other hand costs 4750$, and is the most expensive model.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Commuter e-bikes
If you want to purchase a solid Commuter e-bike, it is important to know that the average cost is 2569$. However, this doesn’t mean that if you spend less money on a Commuter e-bike, you couldn’t get a decent one. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
When Cannondale released this model in 2020, its price was 3200$. Comparing this to the average Commuter e-bike price, we see that the price is 24.56% higher.
Internal Cable Routing
Another thing to mention, is the internal cable routing of this bike. In conclusion, this helps you too, keep the bike cables in mint condition, and also it looks better. No more cables, surrounding the bike.
Tesoro Neo X 3 SMU components
Fork
The Tesoro Neo X 3 SMU comes factory-installed with the SunTour XCM fork. This has a travel range of 100mm. Bike forks are great for shock absorption and provide you with a smooth ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels
The Tesoro Neo X 3 SMU 2020 e-bike is equipped with 29″ aluminum wheels when leaving the factory. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, these wheels are not ideal for smaller people.
Brakes
Nothing is more important on a bike than its ability to brake properly. Cannondale Tesoro Neo X 3 SMU is equipped with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
Sizes
Cannondale Tesoro Neo X 3 SMU e-bike has 4 sizes, in the range of 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, finding one for you shouldn’t be a problem.
