Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset 105, FSA -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Topstone, SmartForm C2 Alloy, 142x12 thru-axle, tapered headtube, flat mount rear brake, internal cable routing
Suspension Fork
Cannondale Topstone Disc, Full Carbon, 1-1/4" to 1-1/8" tapered steerer, 55mm offset, flat mount, 12x100 thru axle
Rear Shock
N/A
Drivetrain
Rear Derailleur
Shimano 105 7000 GS
Front Derailleur
Shimano 105, 31.8 clamp
Shift Levers
Shimano 105, 2x11
Cassette
Shimano 105, 11-34, 11-speed
Crank
FSA Omega ME Alloy, 46/30
Bottom Bracket
FSA MegaExo
Chain
KMC X11EL, 11-speed
Pedals
Not Included
Wheels
Front Hub
Formula RX-512 12x100 front, RX-142 12x142 rear
Rear Hub
Formula RX-512 12x100 front, RX-142 12x142 rear
Rims
WTB ST i23 TCS, 28h, tubeless ready
Spokes
Stainless Steel, 14g
Tires
WTB Nano TCS, 700 x 40c, tubeless ready
Brakes
Brakes
Shimano 105 7070 hydro disc, 160/160mm RT56 rotors
Brake Levers
Shimano 105 7020 hydro disc
Cockpit
Stem
Cannondale C3, 6061 Alloy, 31.8, 7°
Handlebar
Cannondale C3, butted 6061 Alloy, 16 deg flare drop
Grips
Cannondale Grip Bar Tape w/Gel, 3.5mm
Headset
Topstone Si, 25mm Alloy top cap
Seat
Saddle
Fabric Scoop Radius Sport, steel rails
Seatpost
Cannondale C3, 6061 Alloy, 27.2 x 350mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.42 mm | 1.46 mm | 1.51 mm | 1.56 mm | 1.6 mm |
| Bottom Bracket Height | 284 mm | 284 mm | 284 mm | 284 mm | 284 mm |
| Front Center | 593 mm | 603 mm | 621 mm | 641 mm | 659 mm |
| Rake | 55 mm | 55 mm | 55 mm | 55 mm | 55 mm |
| Trail | 72 mm | 65 mm | 65 mm | 65 mm | 65 mm |
| Stack | 511 mm | 542 mm | 572 mm | 603 mm | 633 mm |
| Reach | 361 mm | 370 mm | 378 mm | 387 mm | 395 mm |
| Top Tube Length | 518 mm | 537 mm | 554 mm | 572 mm | 589 mm |
| Seat Tube Length | 410 mm | 458 mm | 505 mm | 553 mm | 600 mm |
| Head Tube Angle | 70 ° | 71 ° | 71 ° | 71 ° | 71 ° |
| Head Tube Length | 89 mm | 118 mm | 149 mm | 182 mm | 214 mm |
| Chainstay Length | 423 mm | 423 mm | 423 mm | 423 mm | 423 mm |
| Wheelbase | 1004 mm | 1015 mm | 1033 mm | 1053 mm | 1071 mm |
| Bottom Bracket Drop | 75 mm | 75 mm | 75 mm | 75 mm | 75 mm |
| Standover Height | 696 mm | 737 mm | 777 mm | 818 mm | 856 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
About this model

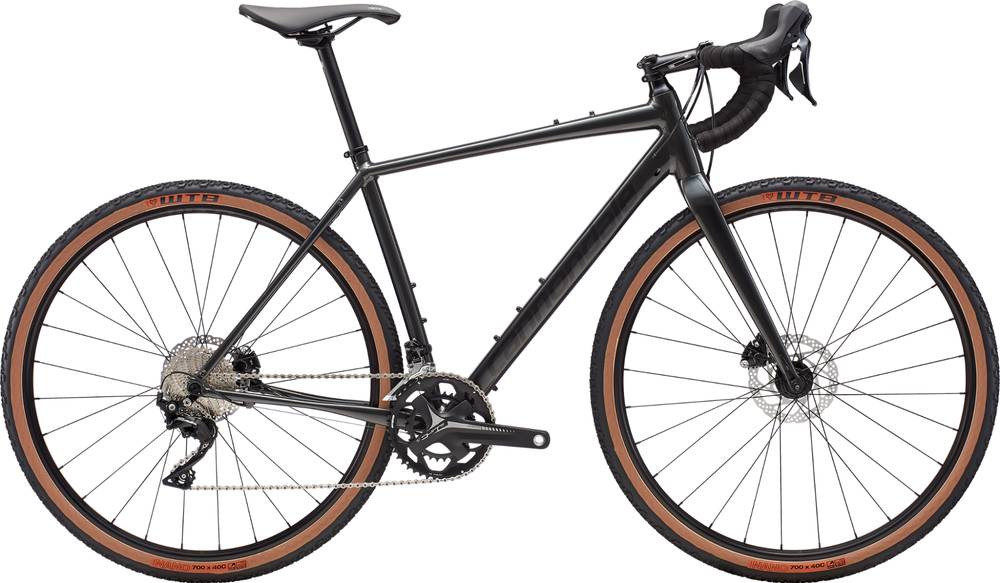

Topstone 105 belongs to the Cannondale Topstone model. Cannondale launched 110 bikes of this model so far. Check out the entire range from 2019 of this model, by clicking this link.
Model range prices
Cannondale Topstone Sora 2019 is the cheapest bike model and costs 1050$. Cannondale Topstone Apex 1 2019 is the most expensive one and costs 2100$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Gravel bikes average price
According to our math, the average price for a trustworthy Gravel bike is 2462$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Gravel bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Furthermore, this bike was made available in 2019 for 1750$. Comparing the average cost of a Gravel bike to this one, you will see that Topstone 105 price is 40.69% smaller.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
Topstone 105 components
Fork material
Topstone 105 has a carbon fork, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels
As for the wheels, Cannondale Topstone 105 2019, has a 700c aluminum model. These wheels are the most used kind for road bikes in general. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Nothing is more important on a bike than its ability to brake properly. Cannondale Topstone 105 is equipped with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
Sizes
Topstone 105 comes in 5 sizes, that range from 156 cm – 195 cm (5.12 ft – 6.4 ft). In conclusion, finding one for you shouldn’t be a problem.
