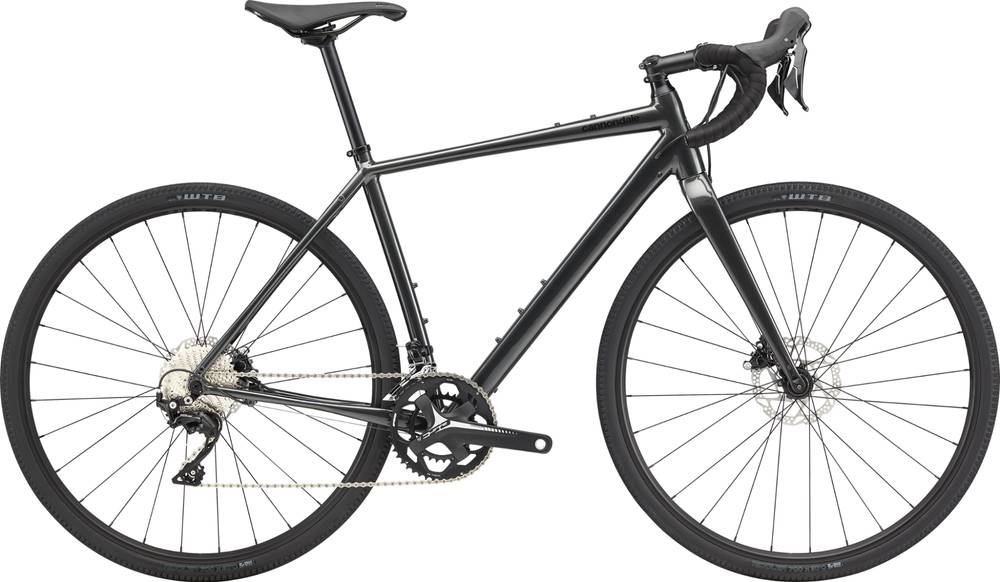

Cannondale Topstone 105 2020
2020 Road
Estimate price |
1,750$
Weight | 9.9 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset 105, FSA -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
SmartForm C2 Alloy, 142x12 thru-axle, tapered headtube, flat mount disc, StraightShot internal cable routing, multiple gear/bottle mounts, 142x12 thru-axle, Tapered headtube, Flat mount disc, StraightShot internal cable routing, Multiple gear/bottle mounts
Suspension Fork
Full Carbon, 1-1/8" to 1-1/4" steerer, 55mm OutFront offset, flat mount disc, internal routing, 12x100 thru axle
Rear Shock
none
Drivetrain
Rear Derailleur
Shimano 105 GS
Front Derailleur
Shimano 105, 31.8 clamp
Shift Levers
Shimano 105 hydro disc, 2x11
Cassette
Shimano 105, 11-34, 11-speed
Crank
FSA Omega ME alloy, 46/30
Bottom Bracket
FSA Omega
Chain
KMC X11, 11-speed
Pedals
Not Included
Wheels
Front Hub
Formula RX-512, 12x100 centerlock
Rear Hub
Formula RX-142, 12x142 centerlock
Rims
WTB ST i23 TCS, 28h, tubeless ready
Spokes
Stainless Steel, 14g
Tires
WTB Riddler TCS Light, 700 x 37c, tubeless ready
Brakes
Brakes
Shimano 105 hydro disc, 160/160mm RT56 rotors
Brake Levers
Shimano 105 hydro disc
Cockpit
Stem
Cannondale 3, 6061 alloy, 31.8, 7°
Handlebar
Cannondale 3, butted 6061 alloy, 16 deg flare drop
Grips
Cannondale Grip Bar Tape w/Gel, 3.5mm
Headset
Topstone Si, 25mm Alloy top cap
Seat
Saddle
Fabric Scoop Radius Sport, steel rails
Seatpost
Cannondale 3, 6061 Alloy, 27.2 x 350mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.42 mm | 1.46 mm | 1.51 mm | 1.56 mm | 1.6 mm |
| Bottom Bracket Height | 284 mm | 284 mm | 284 mm | 284 mm | 284 mm |
| Front Center | 593 mm | 603 mm | 621 mm | 641 mm | 659 mm |
| Rake | 55 mm | 55 mm | 55 mm | 55 mm | 55 mm |
| Trail | 72 mm | 65 mm | 65 mm | 65 mm | 65 mm |
| Stack | 511 mm | 542 mm | 572 mm | 603 mm | 633 mm |
| Reach | 361 mm | 370 mm | 378 mm | 387 mm | 395 mm |
| Top Tube Length | 518 mm | 537 mm | 554 mm | 572 mm | 589 mm |
| Seat Tube Angle | 73.1 ° | 73.1 ° | 73.1 ° | 73.1 ° | 73.1 ° |
| Seat Tube Length | 410 mm | 458 mm | 505 mm | 553 mm | 600 mm |
| Head Tube Angle | 70 ° | 71 ° | 71 ° | 71 ° | 71 ° |
| Head Tube Length | 89 mm | 118 mm | 149 mm | 182 mm | 214 mm |
| Chainstay Length | 423 mm | 423 mm | 423 mm | 423 mm | 423 mm |
| Wheelbase | 1004 mm | 1015 mm | 1033 mm | 1053 mm | 1071 mm |
| Bottom Bracket Drop | 75 mm | 75 mm | 75 mm | 75 mm | 75 mm |
| Standover Height | 696 mm | 737 mm | 777 mm | 818 mm | 856 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
About this model
Topstone 105 is part of the Cannondale Topstone model. Cannondale released 110 bikes variations of this model so far. Check out the entire range from 2020 of this model, by clicking this link.
Model range prices
Cannondale Topstone Sora 2020 is the most affordable bike of this model and has a price of 1250$. On the other hand, Cannondale Topstone Carbon Lefty 1 2020, is the most expensive and costs 7500$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Gravel bikes
Our math shows that the average cost of a dependable Gravel bike is 2462$. However, even though the average price of a Gravel bike is lower, you might still be able to get a top-quality bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Furthermore, this bike was made available in 2020 for 1750$. In conclusion, this bike price is 40.69% lower than the price of the average Gravel bike.
Average weight for Gravel bikes
The average weight for Gravel bikes is 8.13 kg (17.92 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
With a weight of 9.9 kg (21.83 lbs), Cannondale bike is much heavier than average. In conclusion, the average Gravel bike weighs 21.77% less than Topstone 105.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
Overview of components
Fork material
The fork is made out of carbon, so, it’s a great addition to the bike’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Wheels size
The Topstone 105 2020 bike is equipped with 700c aluminum wheels when leaving the factory. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Topstone 105 comes with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
Sizes
This bike is available in 5 sizes. They vary from 156 cm – 195 cm (5.12 ft – 6.4 ft). In short, it won’t be difficult to find the right one for you.
