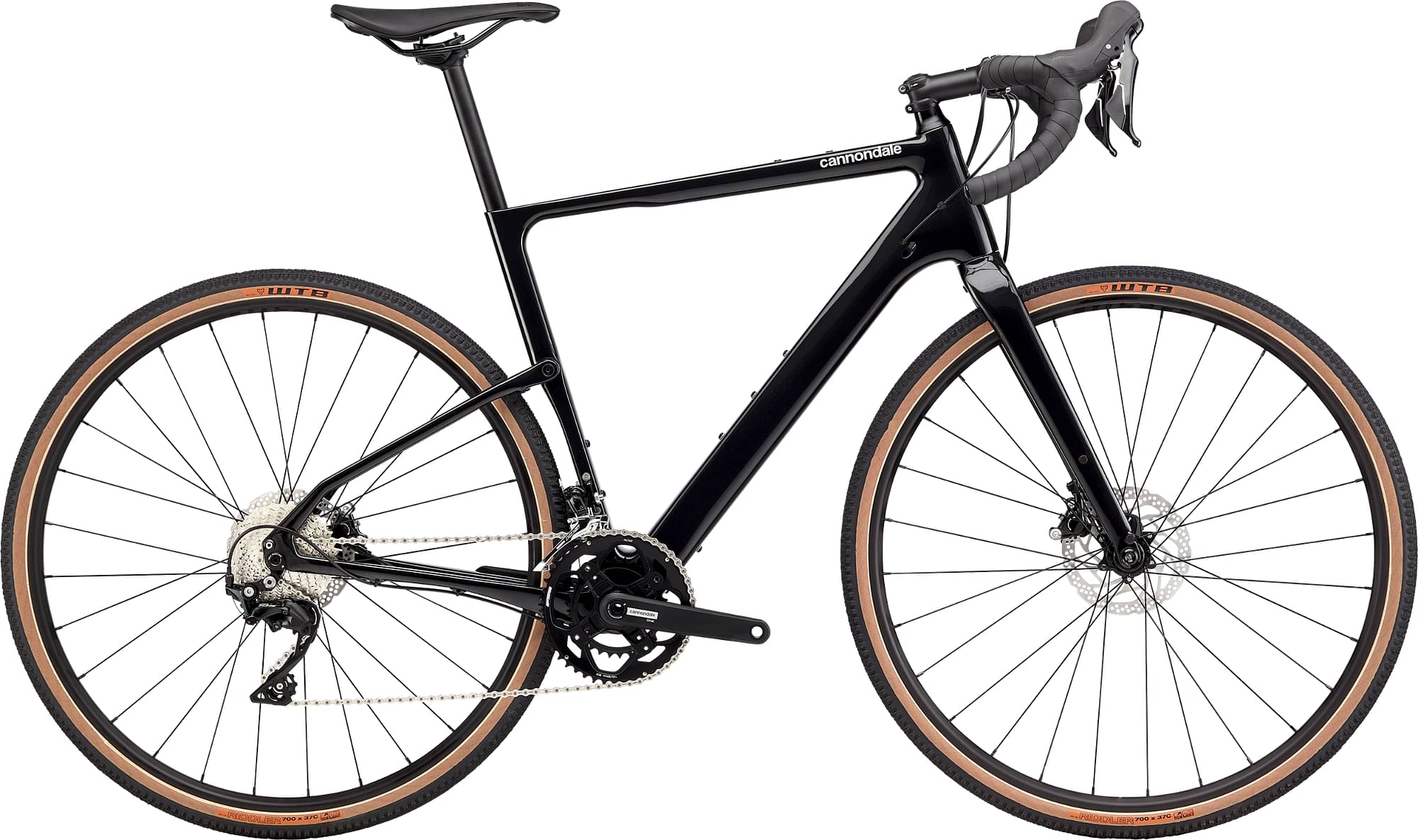

Cannondale Topstone Carbon 105 2023
2023 Road
Estimate price |
2,750$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset 105, FSA -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
152cm - 165cm
SM
162cm - 175cm
MD
170cm - 185cm
LG
180cm - 193cm
XL
190cm - 203cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
All-New, BallisTec Carbon, Kingpin suspension system, Proportional Response size-specific construction, Directline internal cable routing, BB30-83 Ai, 142x12 Speed Release thru-axle, flat-mount disc, removable fender bridge, multiple gear/bottle mounts, dropper post compatible
Suspension Fork
All-New, BallisTec Carbon, 55mm OutFront offset, SAVE, 1-1/8" to 1.5" steerer, integrated crown race, Directline internal routing, 12x100mm Speed Release thru-axle, flat mount disc, gear/rack/fender mounts
Drivetrain
Rear Derailleur
Shimano 105 GS
Front Derailleur
Shimano 105, braze-on
Shift Levers
Shimano 105 hydro disc, 2x11
Cassette
Shimano 105, 11-34, 11-speed
Crank
Cannondale 1, BB30a, FSA rings, 46/30
Bottom Bracket
Cannondale Alloy PressFit30
Chain
KMC X11, 11-speed
Pedals
Not Included
Wheels
Front Hub
Formula CL-712, 12x100 centerlock
Rear Hub
Formula RXC-400
Rims
WTB ST i23 TCS, 28h, tubeless ready
Spokes
Stainless Steel, 14g (Ai Offset Dish - rear)
Tires
WTB Riddler TCS Light, 700 x 37c, tubeless ready
Brakes
Brakes
Shimano 105 hydro disc, 160/160mm RT30 rotors
Brake Levers
Shimano 105 hydro disc
Cockpit
Stem
Cannondale 3, 6061 alloy, 31.8, 7°
Handlebar
Cannondale 3, butted 6061 alloy, 16 deg flare drop
Grips
Cannondale Grip Bar Tape w/Gel, 3.5mm
Headset
Integrated, 1.5" lower to 1-1/8" upper w/ reducer, 25mm Alloy top cap
Seat
Saddle
Fabric Scoop Shallow Sport, steel rails
Seatpost
Cannondale 3, 6061 alloy, 27.2 x 350mm
Fit data

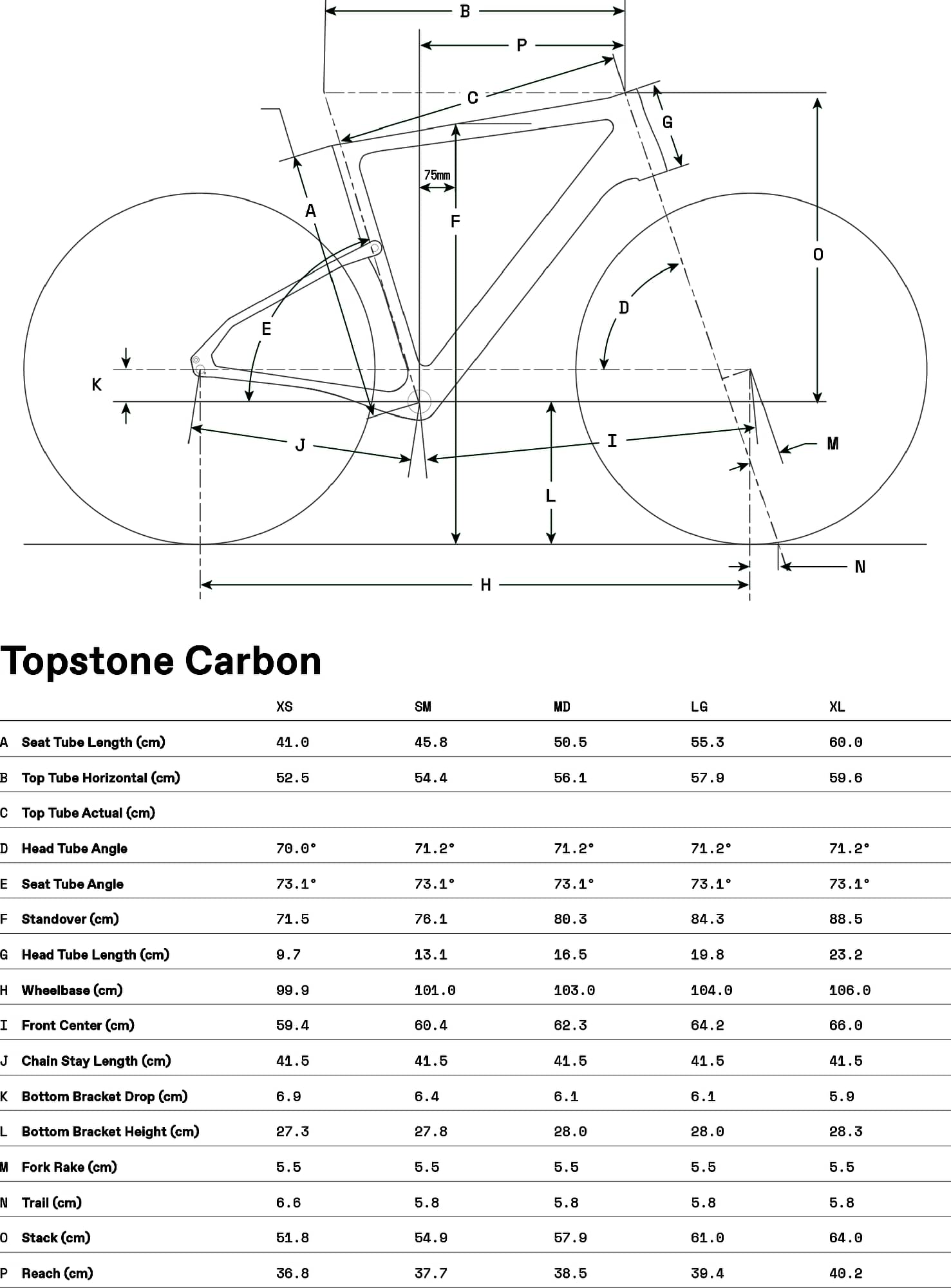

Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.42 mm | 1.46 mm | 1.51 mm | 1.56 mm | 1.6 mm |
| Bottom Bracket Height | 273 mm | 278 mm | 280 mm | 280 mm | 283 mm |
| Front Center | 594 mm | 604 mm | 623 mm | 642 mm | 660 mm |
| Rake | 55 mm | 55 mm | 55 mm | 55 mm | 55 mm |
| Trail | 66 mm | 58 mm | 58 mm | 58 mm | 58 mm |
| Stack | 511 mm | 542 mm | 572 mm | 603 mm | 633 mm |
| Reach | 361 mm | 370 mm | 378 mm | 387 mm | 395 mm |
| Top Tube Length | 518 mm | 537 mm | 554 mm | 572 mm | 589 mm |
| Seat Tube Angle | 73.1 ° | 73.1 ° | 73.1 ° | 73.1 ° | 73.1 ° |
| Seat Tube Length | 410 mm | 458 mm | 505 mm | 553 mm | 600 mm |
| Head Tube Angle | 70 ° | 71.2 ° | 71.2 ° | 71.2 ° | 71.2 ° |
| Head Tube Length | 97 mm | 131 mm | 165 mm | 198 mm | 232 mm |
| Chainstay Length | 408 mm | 408 mm | 408 mm | 408 mm | 408 mm |
| Wheelbase | 992 mm | 1003 mm | 1023 mm | 1033 mm | 1053 mm |
| Bottom Bracket Drop | 69 mm | 64 mm | 61 mm | 61 mm | 59 mm |
| Standover Height | 708 mm | 754 mm | 796 mm | 836 mm | 878 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 152 cm | 162 cm | 170 cm | 180 cm | 190 cm |
| Rider Max Height | 165 cm | 175 cm | 185 cm | 193 cm | 203 cm |
Model Overview
Topstone Carbon 105 belongs to the Cannondale Topstone model. There are 110 bikes that carry this model name. Check out the entire range from 2023 of this model, by clicking this link.
Model range prices
Cannondale Topstone 4 2023 is the most affordable bike of this model and has a price of 1375$. On the other hand, Cannondale Topstone Carbon Lefty 1 2023, is the most expensive and costs 8500$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Gravel bikes average price
If you want an acceptable Gravel bike you should know that the average price is 2462$. However, this doesn’t mean that if you spend less money on a Gravel bike, you couldn’t get a decent one. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
When Cannondale released this model in 2023, its price was 2750$. Comparing the average cost of a Gravel bike to this one, you will see that Topstone Carbon 105 price is 11.7% more expensive.
Internal Cable Routing
It’s also important to mention the internal cable routing that this bike has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
Overview of components
Fork material
The fork on this bike is made out of carbon, so, it’s a great addition to the bike’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Wheels size
As for the wheels, Cannondale Topstone Carbon 105 2023, has a 700c aluminum model. These wheels are the most used kind for road bikes in general. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Topstone Carbon 105 comes with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
Sizes
There are 5 sizes available for this model. Rider height can be anywhere between 152 cm – 203 cm (4.99 ft – 6.66 ft). In conclusion, finding one for you shouldn’t be a problem.
