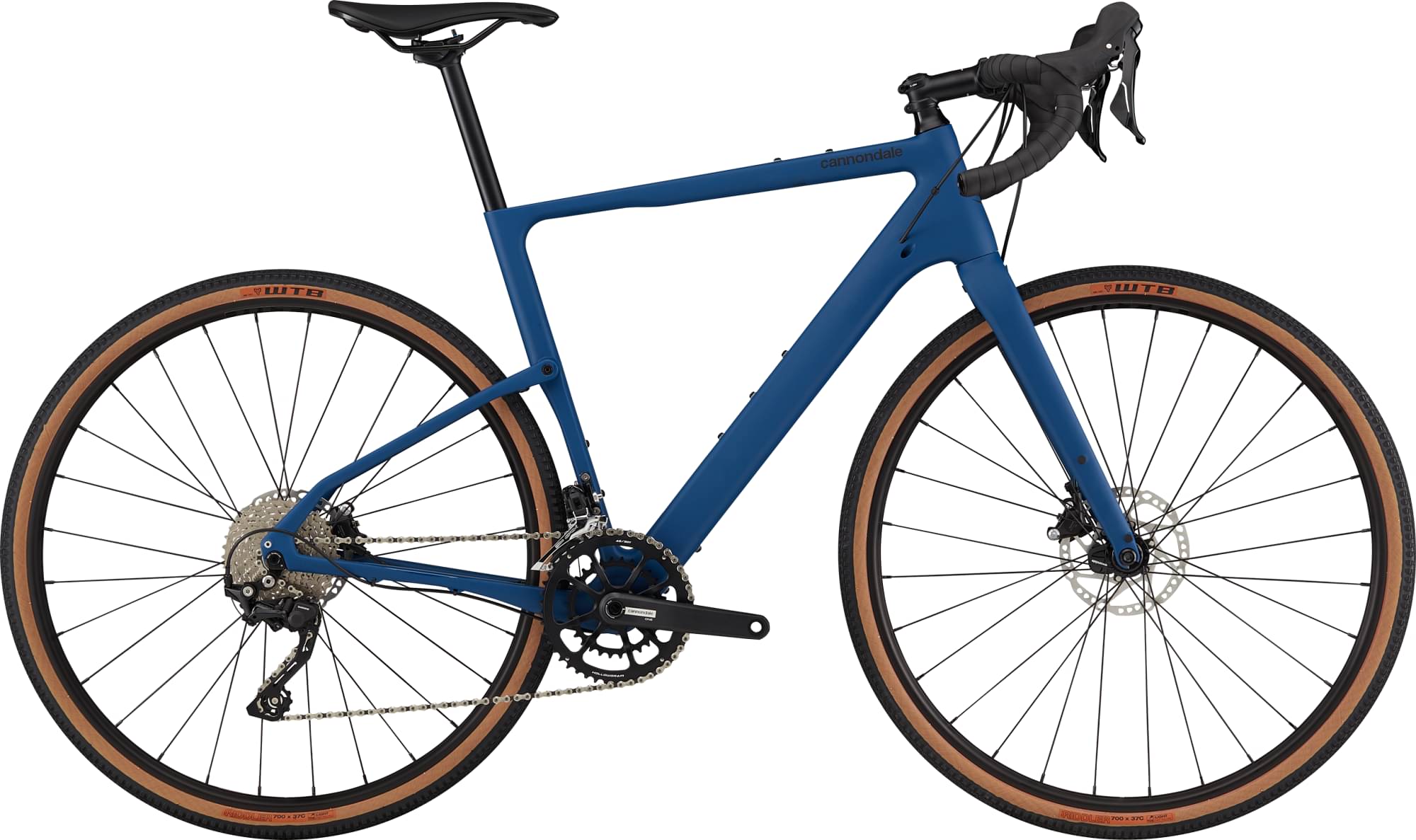

Cannondale Topstone Carbon 6 2022
2022 Road
Estimate price |
3,210$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset GRX 400 -
Suspension Rigid -
Drivetrain 2 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
152cm - 165cm
SM
162cm - 175cm
MD
170cm - 185cm
LG
180cm - 193cm
XL
190cm - 203cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
BallisTec Carbon Frame, Kingpin suspension system, 12x142 Speed Release Thru-axle, dropper post compatible, direct line cable routing
Suspension Fork
BallisTec Full Carbon, 1-1/8" to 1.5" steerer, 55mm OutFront offset, flat mount disc, internal routing, 12x100 speed release thru axle
Drivetrain
Rear Derailleur
Shimano GRX 400, Shadow RD+
Front Derailleur
Shimano GRX 400, braze-on
Shift Levers
Shimano GRX 400, 2x10-speed
Cassette
Shimano HG500, 11-36, 10-speed
Crank
Cannondale 1, BB30a w/ OPI SpideRing, 46/30
Bottom Bracket
Cannondale BB30
Chain
KMC X10, 10-speed
Pedals
Not included
Wheels
Front Hub
(F) Formula cartridge bearing, Centerlock, 12x100mm / (R) Formula cartridge bearing, Centerlock, 12x142mm
Rear Hub
(F) Formula cartridge bearing, Centerlock, 12x100mm / (R) Formula cartridge bearing, Centerlock, 12x142mm
Rims
WTB ST i23 TCS, 28h, tubeless ready
Spokes
Stainless Steel, 14g (Ai Offset Dish - Rear)
Tires
WTB Riddler TCS Light, 700 x 37c, tubeless ready
Brakes
Brakes
Shimano GRX 400 hydraulic disc, 160/160mm RT64 rotors
Brake Levers
Shimano GRX 400 hydraulic disc
Cockpit
Stem
Cannondale 3, 6061 Alloy, 31.8, 7°
Handlebar
Cannondale 3, butted 6061 alloy, 16 deg flare drop
Grips
Cannondale Bar Tape, 3.5mm
Headset
Integrated, 1.5" lower to 1-1/8" upper w/ reducer, 25mm Alloy top cap
Seat
Saddle
Fizik Aliante Delta, S-alloy rails
Seatpost
Cannondale 3, 6061 alloy, 27.2 x 350mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.42 mm | 1.46 mm | 1.51 mm | 1.56 mm | 1.6 mm |
| Bottom Bracket Height | 273 mm | 278 mm | 280 mm | 280 mm | 283 mm |
| Front Center | 594 mm | 604 mm | 623 mm | 642 mm | 660 mm |
| Rake | 55 mm | 55 mm | 55 mm | 55 mm | 55 mm |
| Trail | 66 mm | 58 mm | 58 mm | 58 mm | 58 mm |
| Stack | 511 mm | 542 mm | 572 mm | 603 mm | 633 mm |
| Reach | 361 mm | 370 mm | 378 mm | 387 mm | 395 mm |
| Top Tube Length | 518 mm | 537 mm | 554 mm | 572 mm | 589 mm |
| Seat Tube Angle | 73.1 ° | 73.1 ° | 73.1 ° | 73.1 ° | 73.1 ° |
| Seat Tube Length | 410 mm | 458 mm | 505 mm | 553 mm | 600 mm |
| Head Tube Angle | 70 ° | 71.2 ° | 71.2 ° | 71.2 ° | 71.2 ° |
| Head Tube Length | 97 mm | 131 mm | 165 mm | 198 mm | 232 mm |
| Chainstay Length | 408 mm | 408 mm | 408 mm | 408 mm | 408 mm |
| Wheelbase | 992 mm | 1003 mm | 1023 mm | 1033 mm | 1053 mm |
| Bottom Bracket Drop | 69 mm | 64 mm | 61 mm | 61 mm | 59 mm |
| Standover Height | 708 mm | 754 mm | 796 mm | 836 mm | 878 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 152 cm | 162 cm | 170 cm | 180 cm | 190 cm |
| Rider Max Height | 165 cm | 175 cm | 185 cm | 193 cm | 203 cm |
About this model
Topstone Carbon 6 is part of the Cannondale Topstone model. Cannondale launched 110 bikes of this model so far. Check out the entire range from 2022 of this model, by clicking this link.
Model range prices
Cannondale Topstone 4 2022 is the most affordable bike of this model and has a price of 1326$. On the other hand, Cannondale Topstone Carbon 1 Lefty 2022, is the most expensive and costs 9555$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Gravel bikes average price
If you want an acceptable Gravel bike you should know that the average price is 2462$. However, you could also get a good Gravel bike even if you pay a lower amount than the average price. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
This bike was released in 2022 and its price was 2972$. If we compare this with the average Gravel bike cost we notice that the price is 20.71% more expensive.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
Overview of components
Fork material
The fork on this bike is made out of carbon, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels
As for the wheels, Cannondale Topstone Carbon 6 2022, has a 700c aluminum model. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Topstone Carbon 6 comes with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
Sizes
This bike is available in 5 sizes. They vary from 152 cm – 203 cm (4.99 ft – 6.66 ft). In conclusion, finding one for you shouldn’t be a problem.
