Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Force eTap -
Suspension Rigid -
Drivetrain 2 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
152cm - 165cm
SM
162cm - 175cm
MD
170cm - 185cm
LG
180cm - 193cm
XL
190cm - 203cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
All-New, BallisTec Carbon, Kingpin suspension system, Proportional Response size-specific construction, Directline internal cable routing, BB30-83 Ai, 142x12 Speed Release thru-axle, flat-mount disc, removable fender bridge, multiple gear/bottle mounts, dropper post compatible
Suspension Fork
All-New, BallisTec Carbon, 55mm OutFront offset, SAVE, 1-1/8" to 1.5" steerer, integrated crown race, Directline internal routing, 12x100mm Speed Release thru-axle, flat mount disc, gear/rack/fender mounts
Drivetrain
Rear Derailleur
SRAM Force eTap AXS
Front Derailleur
SRAM Force eTap AXS, braze-on
Shift Levers
SRAM Force eTap AXS HRD, 2x12
Cassette
SRAM XG-1270, 10-33, 12-speed
Crank
SRAM Force eTap AXS, 46/33
Bottom Bracket
Cannondale Alloy BB30
Chain
SRAM Force eTap AXS, 12-speed
Pedals
Not Included
Wheels
Front Hub
HollowGram Sealed Bearing, straight pull, 12x100
Rear Hub
HollowGram 142x12
Rims
HollowGram 22 Carbon, 22mm deep, 25mm ID, tubeless ready
Spokes
HollowGram, double-butted straight pull (Ai Offset Dish - rear)
Tires
WTB Riddler TCS Light, 700 x 37c, tubeless ready
Brakes
Brakes
SRAM Force eTap AXS, 160/160mm Centerline, Centerlock rotors
Brake Levers
SRAM Force eTap AXS
Cockpit
Stem
All-New HollowGram SAVE, alloy, -6°
Handlebar
HollowGram SAVE Carbon, 400mm (S), 420mm (M-L)
Grips
Cannondale Grip Bar Tape w/Gel, 3.5mm
Headset
Integrated, 1.5" lower to 1-1/8" upper w/ reducer, 25mm Alloy top cap
Seat
Saddle
Fabric Scoop Shallow Race, titanium rails
Seatpost
SAVE Carbon, 27.2 x 350mm (XS-L), 400mm (XL)
Fit data

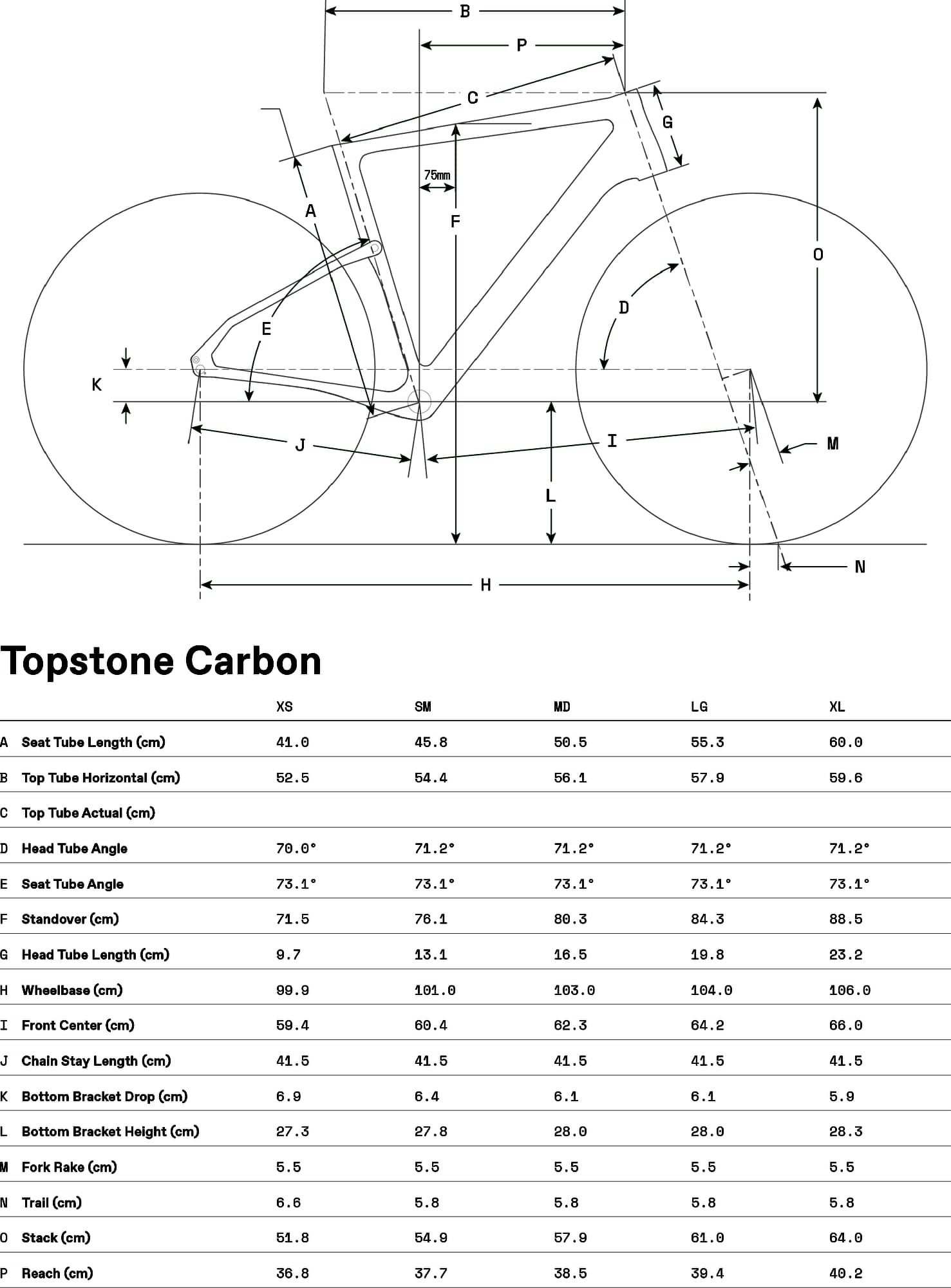

Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.42 mm | 1.46 mm | 1.51 mm | 1.56 mm | 1.6 mm |
| Bottom Bracket Height | 273 mm | 278 mm | 280 mm | 280 mm | 283 mm |
| Front Center | 594 mm | 604 mm | 623 mm | 642 mm | 660 mm |
| Rake | 55 mm | 55 mm | 55 mm | 55 mm | 55 mm |
| Trail | 66 mm | 58 mm | 58 mm | 58 mm | 58 mm |
| Stack | 511 mm | 542 mm | 572 mm | 603 mm | 633 mm |
| Reach | 361 mm | 370 mm | 378 mm | 387 mm | 395 mm |
| Top Tube Length | 518 mm | 537 mm | 554 mm | 572 mm | 589 mm |
| Seat Tube Angle | 73.1 ° | 73.1 ° | 73.1 ° | 73.1 ° | 73.1 ° |
| Seat Tube Length | 410 mm | 458 mm | 505 mm | 553 mm | 600 mm |
| Head Tube Angle | 70 ° | 71.2 ° | 71.2 ° | 71.2 ° | 71.2 ° |
| Head Tube Length | 97 mm | 131 mm | 165 mm | 198 mm | 232 mm |
| Chainstay Length | 408 mm | 408 mm | 408 mm | 408 mm | 408 mm |
| Wheelbase | 992 mm | 1003 mm | 1023 mm | 1033 mm | 1053 mm |
| Bottom Bracket Drop | 69 mm | 64 mm | 61 mm | 61 mm | 59 mm |
| Standover Height | 708 mm | 754 mm | 796 mm | 836 mm | 878 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 152 cm | 162 cm | 170 cm | 180 cm | 190 cm |
| Rider Max Height | 165 cm | 175 cm | 185 cm | 193 cm | 203 cm |
About this model
Topstone Carbon Force eTap AXS is a Cannondale Topstone model. There are 110 bikes that carry this model name. Check out the entire range from 2022 of this model, by clicking this link.
Model range prices
The most economical model, the Cannondale Topstone 4 2022 has a starting price of 1326$. Cannondale Topstone Carbon 1 Lefty 2022 on the other hand is the most expensive at 9555$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Gravel bikes average price
According to our math, the average price for a trustworthy Gravel bike is 2462$. However, even if your budget is less than the average, you might still be able to get a top-quality Gravel bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
Topstone Carbon Force eTap AXS components
Fork material
The fork on this bike is made out of carbon, so, it won’t add up to much weight to your bike. However, the price you have to pay for a carbon fork is considerably higher.
Wheels size
The Topstone Carbon Force eTap AXS 2022 bike is equipped with 700c carbon wheels when leaving the factory. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Nothing is more important on a bike than its ability to brake properly. Cannondale Topstone Carbon Force eTap AXS is equipped with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
Sizes
Topstone Carbon Force eTap AXS comes in 5 sizes, that range from 152 cm – 203 cm (4.99 ft – 6.66 ft). In conclusion, finding one for you shouldn’t be a problem.
