Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Ultegra -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
152cm - 165cm
SM
162cm - 175cm
MD
170cm - 185cm
LG
180cm - 193cm
XL
190cm - 203cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
All-New, BallisTec Carbon, Kingpin suspension system, Proportional Response size-specific construction, Directline internal cable routing, BB30-83 Ai, 142x12 Speed Release thru-axle, flat-mount disc, removable fender bridge, multiple gear/bottle mounts, dropper post compatible
Suspension Fork
All-New, BallisTec Carbon, 55mm OutFront offset, SAVE, 1-1/8" to 1.5" steerer, integrated crown race, Directline internal routing, 12x100mm Speed Release thru-axle, flat mount disc, gear/rack/fender mounts
Drivetrain
Rear Derailleur
Shimano Ultegra RX
Front Derailleur
Shimano Ultegra, braze-on
Shift Levers
Shimano Ultegra hydro disc, 2x11
Cassette
Shimano Ultegra, 11-34, 11-speed
Crank
HollowGram, BB30a w/ OPI SpideRing, 46/30
Bottom Bracket
Cannondale Alloy BB30
Chain
Shimano HG601 11-speed
Pedals
Not Included
Wheels
Front Hub
HollowGram Sealed Bearing, straight pull, 12x100
Rear Hub
HollowGram 142x12
Rims
HollowGram 22, 22mm deep, 25mm ID, tubeless ready
Spokes
Stainless steel, 14g
Tires
WTB Riddler TCS Light, 700 x 37c, tubeless ready
Brakes
Brakes
Shimano Ultegra hydro disc, 160/160mm RT54 rotors
Brake Levers
Shimano Ultegra hydro disc
Cockpit
Stem
Cannondale 2, 6061 alloy, 31.8, 6°
Handlebar
Cannondale 3, butted 6061 alloy, 16 deg flare drop
Grips
Cannondale Grip Bar Tape w/Gel, 3.5mm
Headset
Integrated, 1.5" lower to 1-1/8" upper w/ reducer, 25mm Alloy top cap
Seat
Saddle
Fabric Scoop Radius Sport, steel rails
Seatpost
SAVE Carbon, 27.2 x 350mm (44-56), 400mm (58-63)
Fit data

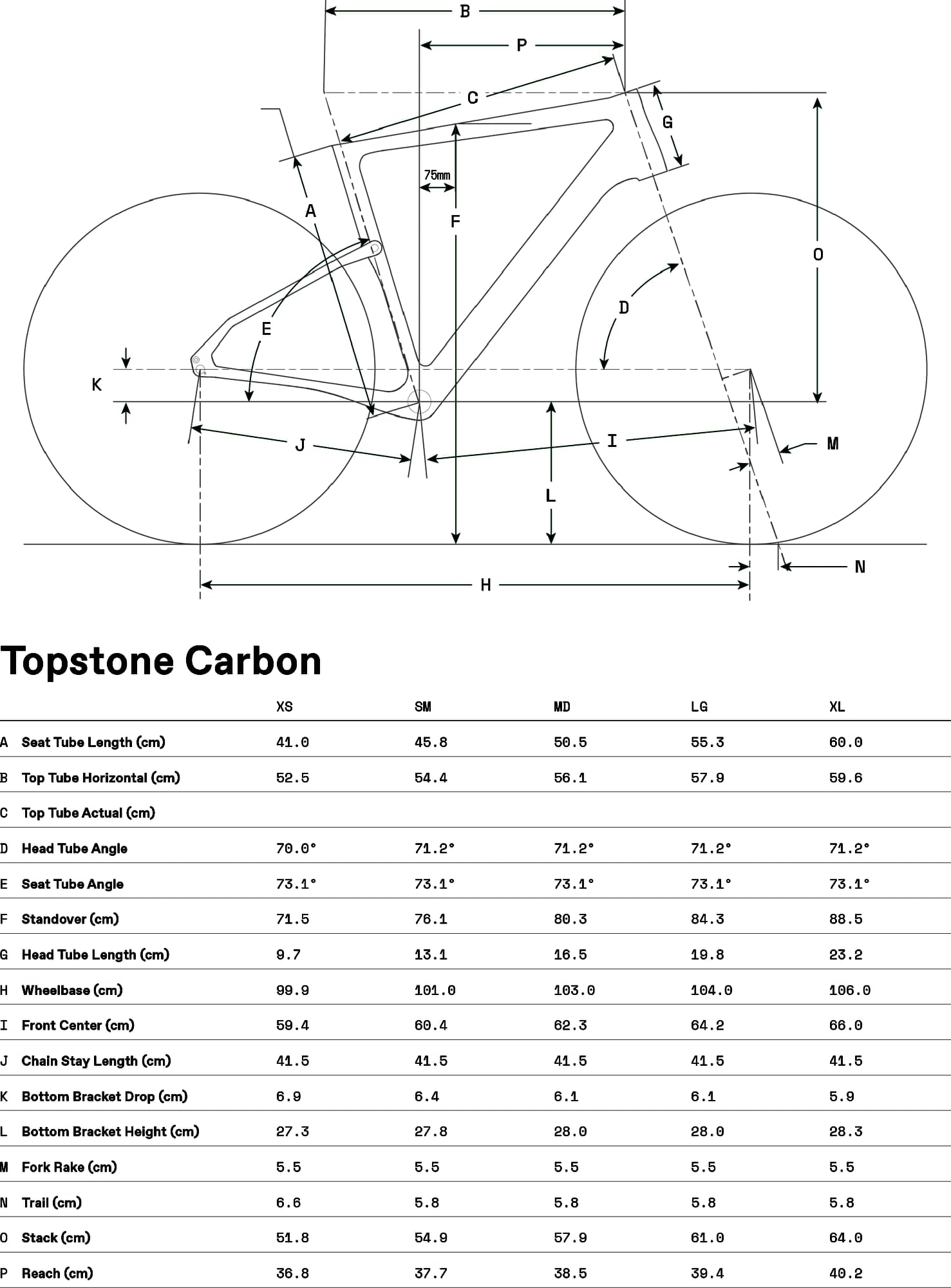

Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.42 mm | 1.46 mm | 1.51 mm | 1.56 mm | 1.6 mm |
| Bottom Bracket Height | 273 mm | 278 mm | 280 mm | 280 mm | 283 mm |
| Front Center | 594 mm | 604 mm | 623 mm | 642 mm | 660 mm |
| Rake | 55 mm | 55 mm | 55 mm | 55 mm | 55 mm |
| Trail | 66 mm | 58 mm | 58 mm | 58 mm | 58 mm |
| Stack | 511 mm | 542 mm | 572 mm | 603 mm | 633 mm |
| Reach | 361 mm | 370 mm | 378 mm | 387 mm | 395 mm |
| Top Tube Length | 518 mm | 537 mm | 554 mm | 572 mm | 589 mm |
| Seat Tube Angle | 73.1 ° | 73.1 ° | 73.1 ° | 73.1 ° | 73.1 ° |
| Seat Tube Length | 410 mm | 458 mm | 505 mm | 553 mm | 600 mm |
| Head Tube Angle | 70 ° | 71.2 ° | 71.2 ° | 71.2 ° | 71.2 ° |
| Head Tube Length | 97 mm | 131 mm | 165 mm | 198 mm | 232 mm |
| Chainstay Length | 408 mm | 408 mm | 408 mm | 408 mm | 408 mm |
| Wheelbase | 992 mm | 1003 mm | 1023 mm | 1033 mm | 1053 mm |
| Bottom Bracket Drop | 69 mm | 64 mm | 61 mm | 61 mm | 59 mm |
| Standover Height | 708 mm | 754 mm | 796 mm | 836 mm | 878 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 152 cm | 162 cm | 170 cm | 180 cm | 190 cm |
| Rider Max Height | 165 cm | 175 cm | 185 cm | 193 cm | 203 cm |

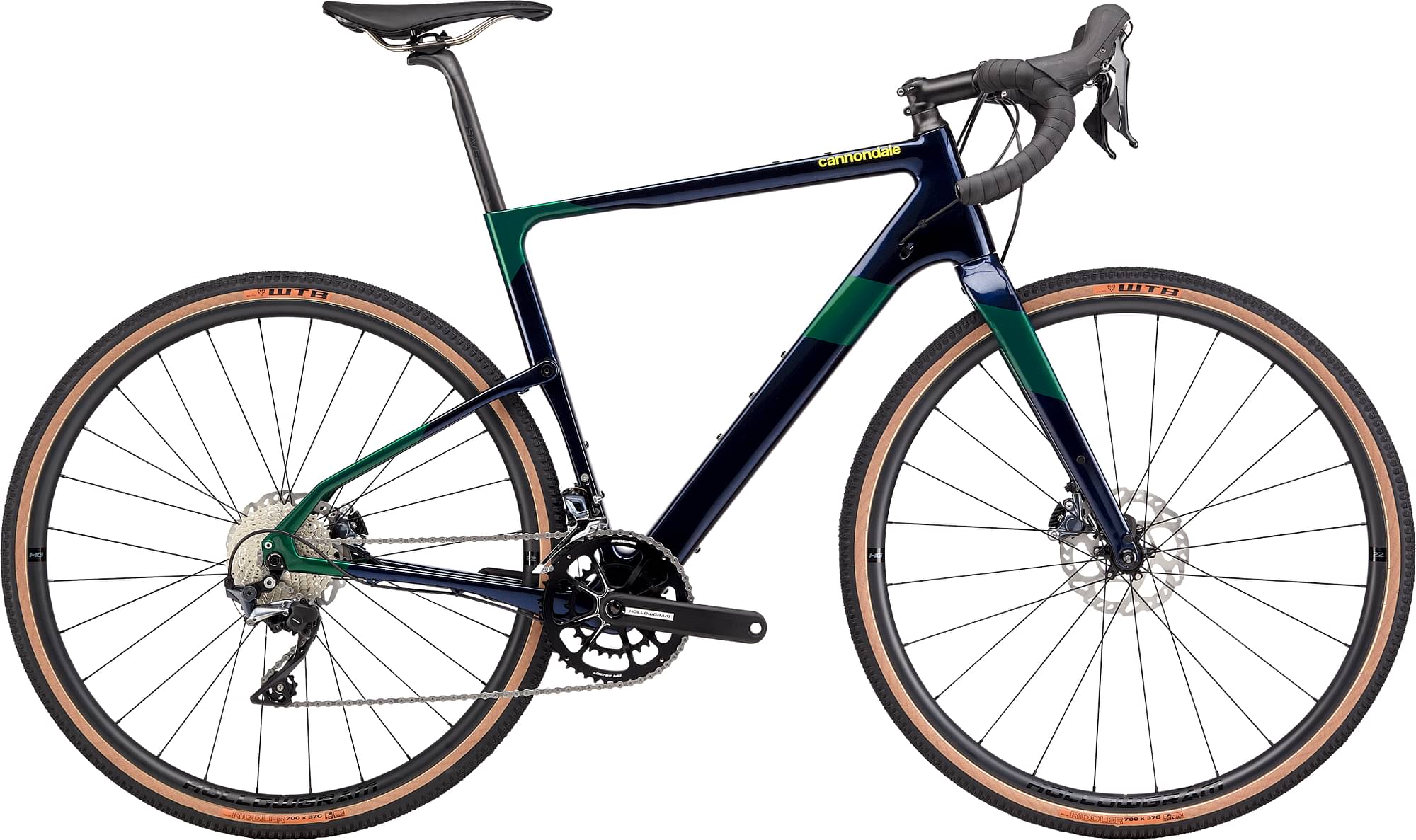

About this model
Topstone Carbon Ultegra RX completes the Cannondale Topstone model. 110 bikes variations carry this model name so far. You can easily view all of the Cannondale Topstone bikes models from 2023, here.
Model range prices
Cannondale Topstone 4 2023 is the most economical model, with a starting price of 1375$. Cannondale Topstone Carbon Lefty 1 2023 on the other hand costs 8500$, and is the most expensive model.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Gravel bikes average price
Our math shows that the average cost of a dependable Gravel bike is 2462$. However, even though the average price of a Gravel bike is lower, you might still be able to get a top-quality bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
Topstone Carbon Ultegra RX components
Fork material
When it comes to the fork, this bike has a carbon one, so, it won’t add up to much weight to your bike. However, the price you have to pay for a carbon fork is considerably higher.
Wheels size
The Topstone Carbon Ultegra RX 2023 bike is equipped with 700c carbon wheels when leaving the factory. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
For your safety, it is important to have quality breaks on your bike. Cannondale Topstone Carbon Ultegra RX has Hydraulic Disc brakes installed. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
Sizes
Topstone Carbon Ultegra RX comes in 5 sizes, that range from 152 cm – 203 cm (4.99 ft – 6.66 ft). In short, it won’t be difficult to find the right one for you.
