Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset GRX 800, FSA -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
147cm - 165cm
SM
160cm - 175cm
MD
170cm - 185cm
LG
177cm - 193cm
XL
182cm - 203cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Lightweight SmartForm C2 Alloy, 12x142 thru-axle, tapered headtube, BSA threaded BBm flat mount disc, StraightShot internal cable routing, multiple gear/bottle mounts
Suspension Fork
Topstone Carbon, 1-1/8" to 1.5" steerer, 55mm OutFront offset, flat mount disc, internal routing, 12x100 thru-axle, fender/gear mounts
Drivetrain
Rear Derailleur
Shimano GRX 810, Shadow RD+
Front Derailleur
Shimano GRX 800, braze-on
Shift Levers
Shimano GRX 800, 11-speed
Cassette
Shimano 105, 11-34, 11-speed
Crank
Shimano GRX 600, 46/30 (Europe/UK - FSA Gossamer Pro Modular AGX+, 46/30)
Bottom Bracket
Shimano BB-RS500
Chain
KMC X11, 11-speed
Pedals
Not included
Wheels
Front Hub
(F) Formula cartridge bearing, 12x100mm centerlock / (R) Formula cartridge bearing, 12x142mm centerlock
Rear Hub
(F) Formula cartridge bearing, 12x100mm centerlock / (R) Formula cartridge bearing, 12x142mm centerlock
Rims
WTB KOM Light i23 TCS, 28h, tubeless ready
Spokes
Stainless Steel, 14g
Tires
WTB Riddler TCS Light, 700x37c, tubeless ready (Europe/UK - Vittoria Terreno Dry, 700x35c, tubeless ready)
Brakes
Brakes
Shimano GRX 800 hydraulic disc, 160/160mm RT54 rotors
Brake Levers
Shimano GRX 800 hydraulic disc
Cockpit
Stem
Cannondale 3, 6061 Alloy, 31.8, 7°
Handlebar
Cannondale 3, butted 6061 Alloy, 16 deg flare drop
Grips
Cannondale Bar Tape, 3.5mm
Headset
Integrated, 1-1/8" - 1.5"
Seat
Saddle
Fizik Aliante Delta, S-alloy rails
Seatpost
Cannondale 3, 6061 Alloy, 27.2x350mm
Fit data

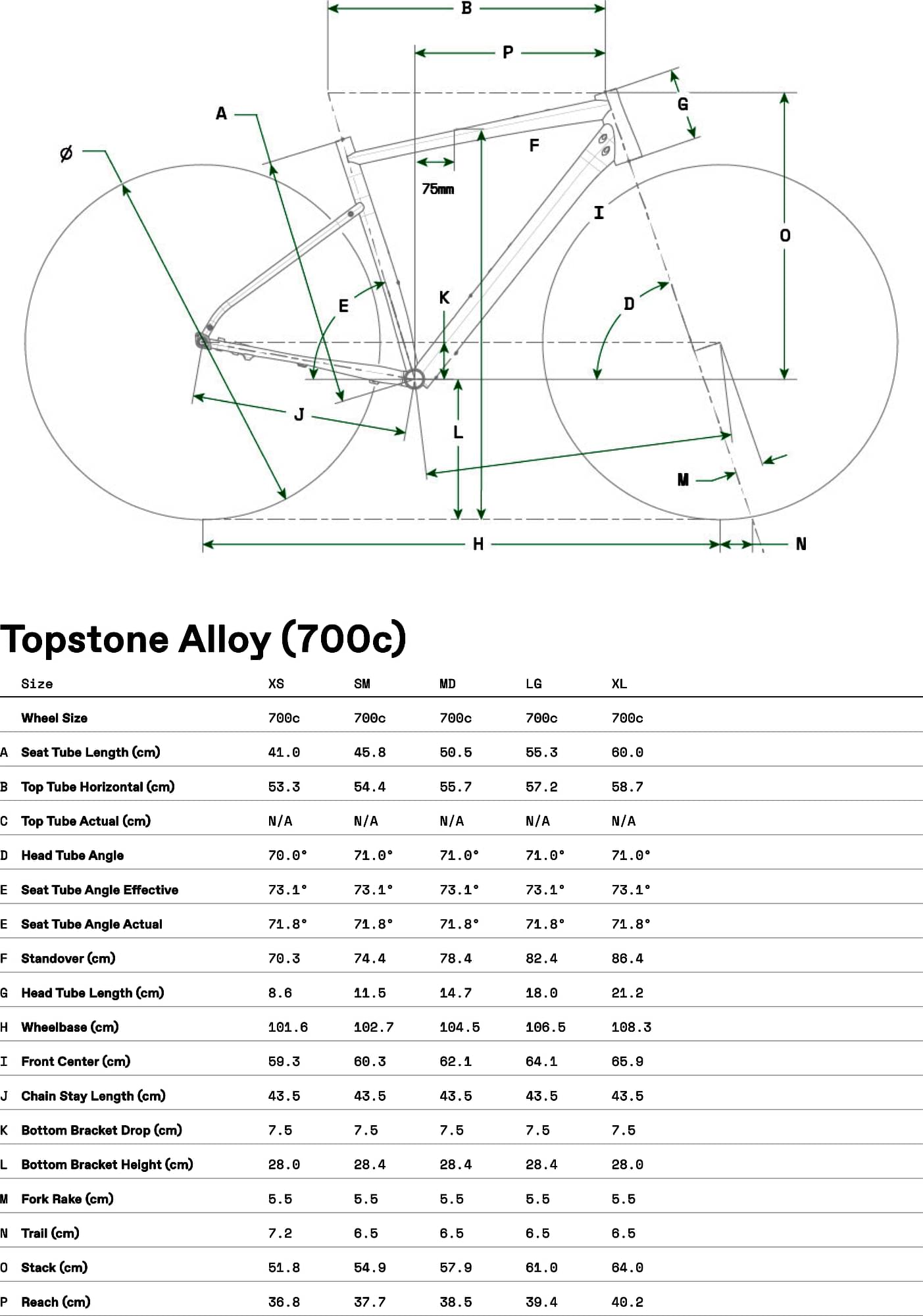

Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 147 cm | 160 cm | 170 cm | 177 cm | 182 cm |
| Rider Max Height | 165 cm | 175 cm | 185 cm | 193 cm | 203 cm |
About this model
Topstone LTD completes the Cannondale Topstone model. 110 bikes variations carry this model name so far. Take a sneak peek at all Cannondale Topstone bikes models from 2022, by clicking here.
Model range prices
Cannondale Topstone 4 2022 is the most economical model, with a starting price of 1326$. Cannondale Topstone Carbon 1 Lefty 2022 on the other hand costs 9555$, and is the most expensive model.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Gravel bikes
If you want an acceptable Gravel bike you should know that the average price is 2462$. However, even if your budget is less than the average, you might still be able to get a top-quality Gravel bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Furthermore, this bike was made available in 2022 for 3163$. Comparing the average cost of a Gravel bike to this one, you will see that Topstone LTD price is 28.47% more expensive.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
Topstone LTD components
Fork material
The fork is made out of carbon, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels size
The wheels on Topstone LTD are the 700c aluminum type. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
When you want to stop the bike in time, the brakes are vital. The Topstone LTD has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
Sizes
This bike is available in 5 sizes. They vary from 147 cm – 203 cm (4.82 ft – 6.66 ft). In conclusion, it won’t take much to find one that’s right for you.
