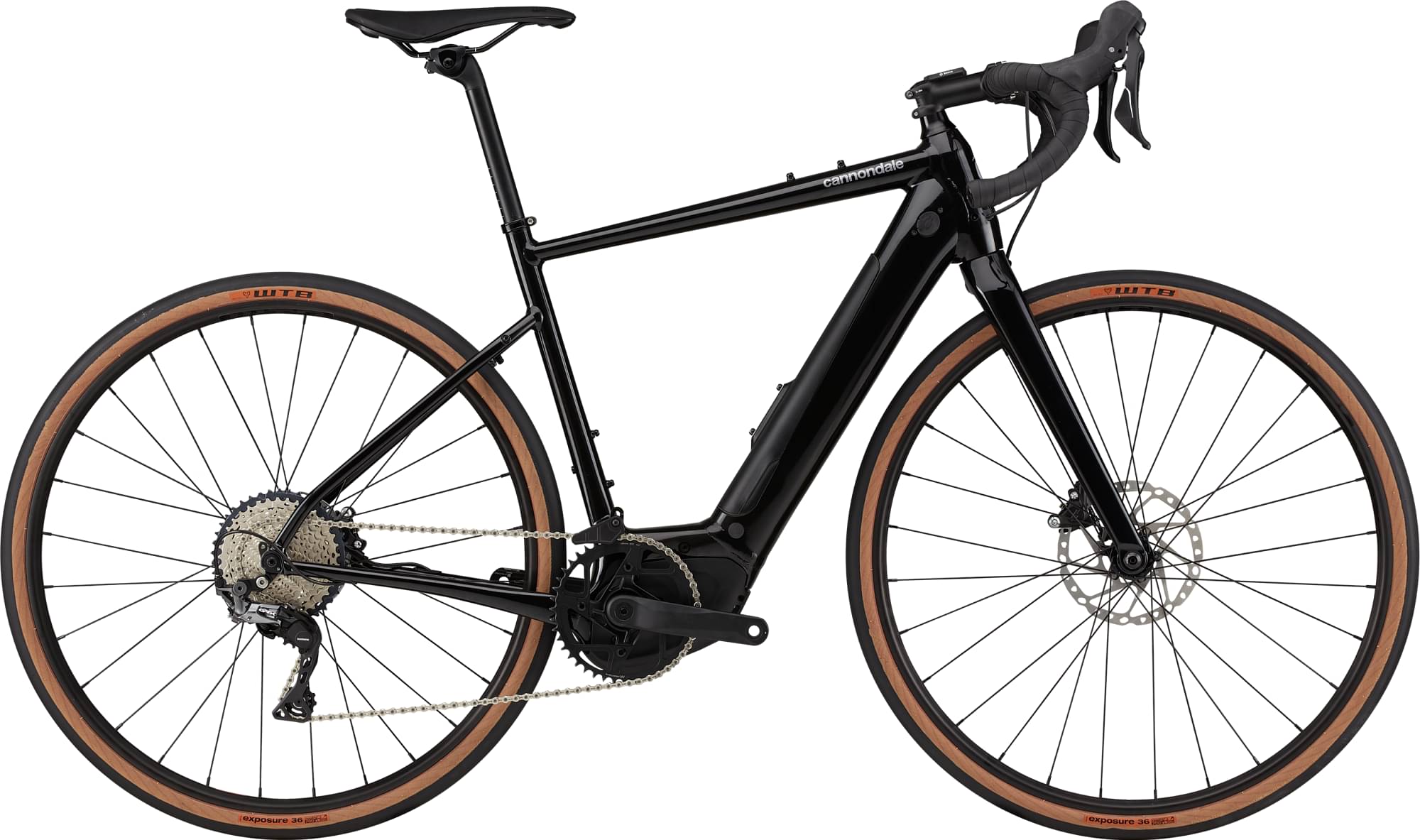

Cannondale Topstone Neo 5 2022
2022 E-bike
Estimate price |
5,550$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame aluminium -
Wheels 700c -
Groupset GRX 400, GRX 600 -
Suspension Rigid -
Motor Bosch 250W 63Nm mid-drive -
Battery Bosch PowerTube 500Wh -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
162cm - 175cm
MD
170cm - 185cm
LG
180cm - 193cm
XL
190cm - 203cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
SmartForm C1 Alloy Frame, 12x142 thru-axle, removable downtube battery, SAVE, Ai, Si kickstand mount, rack/fender mounts
Suspension Fork
Topstone Neo Carbon, 1-1/8" to 1.5" steerer, 55mm OutFront offset, flat mount disc, internal routing, 12x110 thru axle
Drivetrain
Rear Derailleur
Shimano GRX 400, Shadow RD+
Front Derailleur
Shimano GRX 400, braze-on
Shift Levers
Shimano GRX 600, 1x11
Cassette
Shimano SLX, 11-42, 11-speed
Crank
FSA Bosch E-Bike, FSA Megatooth, 42T
Bottom Bracket
Bosch, press-fit
Chain
KMC X10EL, 10-speed
Pedals
Not included
Wheels
Front Hub
Formula cartridge bearing, Centerlock, 12x110mm thru-axle
Rear Hub
Formula cartridge bearing, Centerlock, 12x142mm thru-axle
Rims
WTB ST TCS i23 28h, tubeless ready
Spokes
Stainless Steel, 14g
Tires
WTB Exposure, 700 x 36c, tubeless ready
Brakes
Brakes
Shimano GRX hydraulic disc, 180/160mm RT54 rotors
Brake Levers
Shimano GRX hydraulic disc
Cockpit
Stem
Cannondale 2, 6061 Alloy, 31.8, 7°
Handlebar
Cannondale 3, butted 6061 alloy, 16 deg flare drop
Grips
Cannondale Bar Tape, 3.5mm
Headset
Integrated, 1.5" lower to 1-1/8" upper, 25mm Alloy top cap
Seat
Saddle
Fizik Aliante Delta, S-alloy rails
Seatpost
Promax SP-2032, Alloy, 27.2
Motor & Battery
Motor
Bosch Performance Line Speed 250W (28mph)
Battery
Bosch PowerTube 500Wh
Remote
Bosch Purion
Charger
Bosch 4A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 162 cm | 170 cm | 180 cm | 190 cm |
| Rider Max Height | 175 cm | 185 cm | 193 cm | 203 cm |
Model Overview
Topstone Neo 5 is part of the Cannondale E Topstone model. There are 30 e-bikes that carry this model name. You can get a glimpse at all models from 2022, by clicking on this link.
Model range prices
Cannondale Topstone Neo SL 2 2022 is the most affordable e-bike of this model and has a price of 3290$. On the other hand, Cannondale Topstone Neo Carbon Lefty LE 2022, is the most expensive and costs 10617$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Gravel e-bikes average price
According to our calculations, the average cost of a Gravel e-bike that is reliable is 3642$. However, this doesn’t mean that if you spend less money on a Gravel e-bike, you couldn’t get a decent one. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
Furthermore, this bike was made available in 2022 for 5550$. If we compare this with the average Gravel e-bike cost we notice that the price is 52.39% higher.
Overview of components
Fork material
When it comes to the fork, this e-bike has a carbon one, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Wheels
When leaving the production line, the Topstone Neo 5 model has 700c aluminum wheels. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, these wheels don’t perform so well when passing over obstacles.
Brakes
When you want to stop the bike in time, the brakes are vital. The Topstone Neo 5 has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
Sizes
Topstone Neo 5 comes in 4 sizes, that range from 162 cm – 203 cm (5.31 ft – 6.66 ft). In short, it won’t be difficult to find the right one for you.
