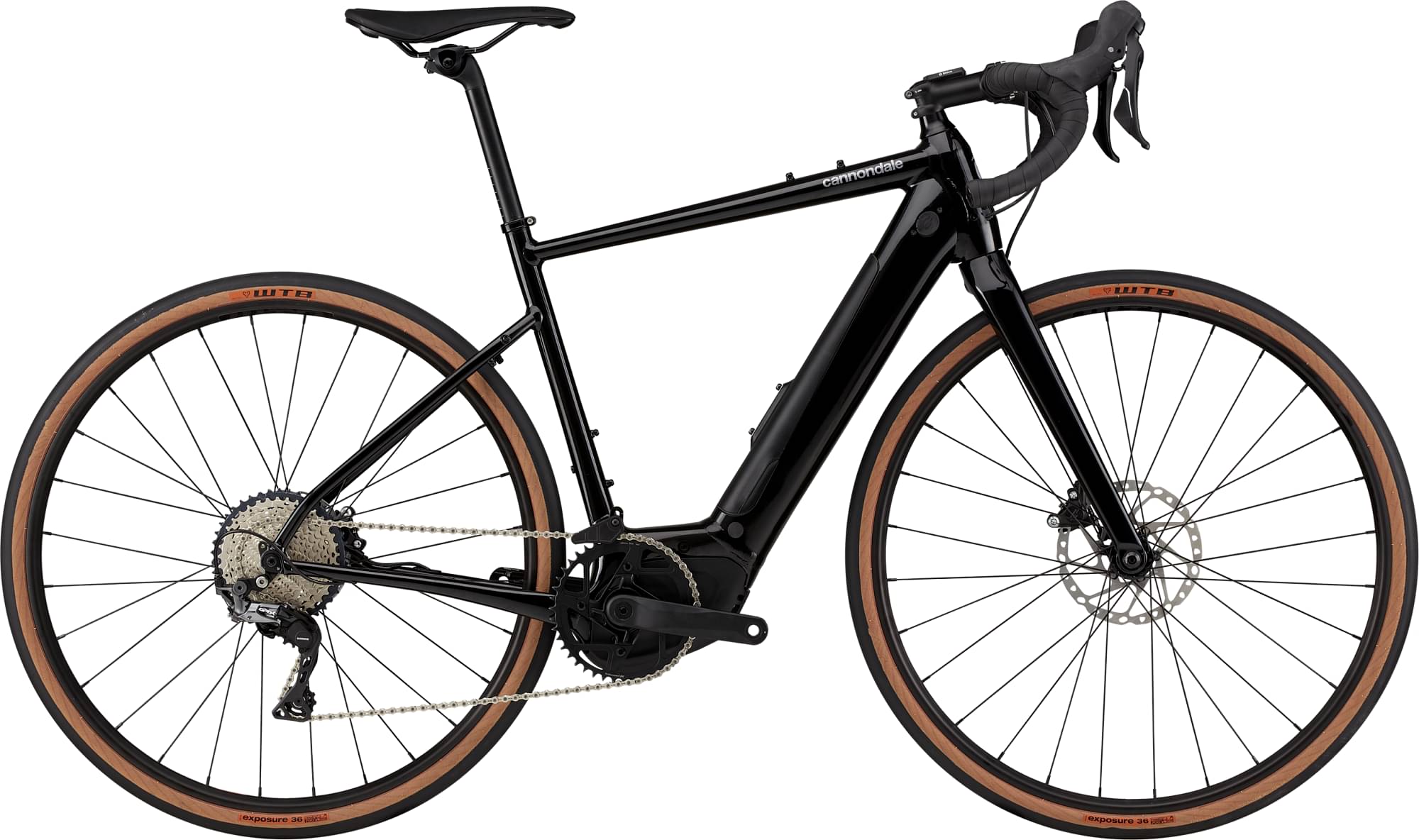

Cannondale Topstone Neo 5 2023
2023 E-bike
Estimate price |
5,550$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset GRX 400, GRX 600 -
Suspension Rigid -
Motor Bosch 250W 63Nm mid-drive -
Battery Bosch PowerTube, 500Wh -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
162cm - 175cm
MD
170cm - 185cm
LG
180cm - 193cm
XL
190cm - 203cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
SmartForm C1 Alloy Frame, 12x142 thru-axle, removable downtube battery, SAVE, Ai, Si kickstand mount, rack/fender mounts
Suspension Fork
Topstone Neo Carbon, 1-1/8" to 1.5" steerer, 55mm OutFront offset, flat mount disc, internal routing, 12x110 thru axle
Drivetrain
Rear Derailleur
Shimano GRX 400, Shadow RD+
Front Derailleur
Shimano GRX 400, braze-on
Shift Levers
Shimano GRX 600, 1x11
Cassette
Shimano SLX, 11-42, 11-speed
Crank
FSA Bosch E-Bike, FSA Megatooth, 42T
Bottom Bracket
Bosch, press-fit
Chain
KMC X10EL, 10-speed
Pedals
Not included
Wheels
Front Hub
Formula cartridge bearing, centerlock, 12x110mm thru-axle
Rear Hub
Formula cartridge bearing, centerlock, 12x142mm thru-axle
Rims
WTB ST TCS i23 28h, tubeless ready
Spokes
Stainless Steel, 14g
Tires
WTB Exposure, 700x36c, tubeless ready
Brakes
Brakes
Shimano GRX hydraulic disc, 180/160mm RT54 rotors
Brake Levers
Shimano GRX hydraulic disc
Cockpit
Stem
Cannondale 2, 6061 Alloy, 31.8, 7°
Handlebar
Cannondale 3, butted 6061 alloy, 16 deg flare drop
Grips
Cannondale Bar Tape, 3.5mm
Headset
Integrated, 1.5" lower to 1-1/8" upper, 25mm Alloy top cap
Seat
Saddle
Fizik Aliante Delta, S-alloy rails
Seatpost
Promax SP-2032, Alloy, 27.2
Motor & Battery
Motor
Bosch Performance Line Speed 250W (28mph)
Battery
Bosch PowerTube, 500Wh
Charger
Bosch 4A

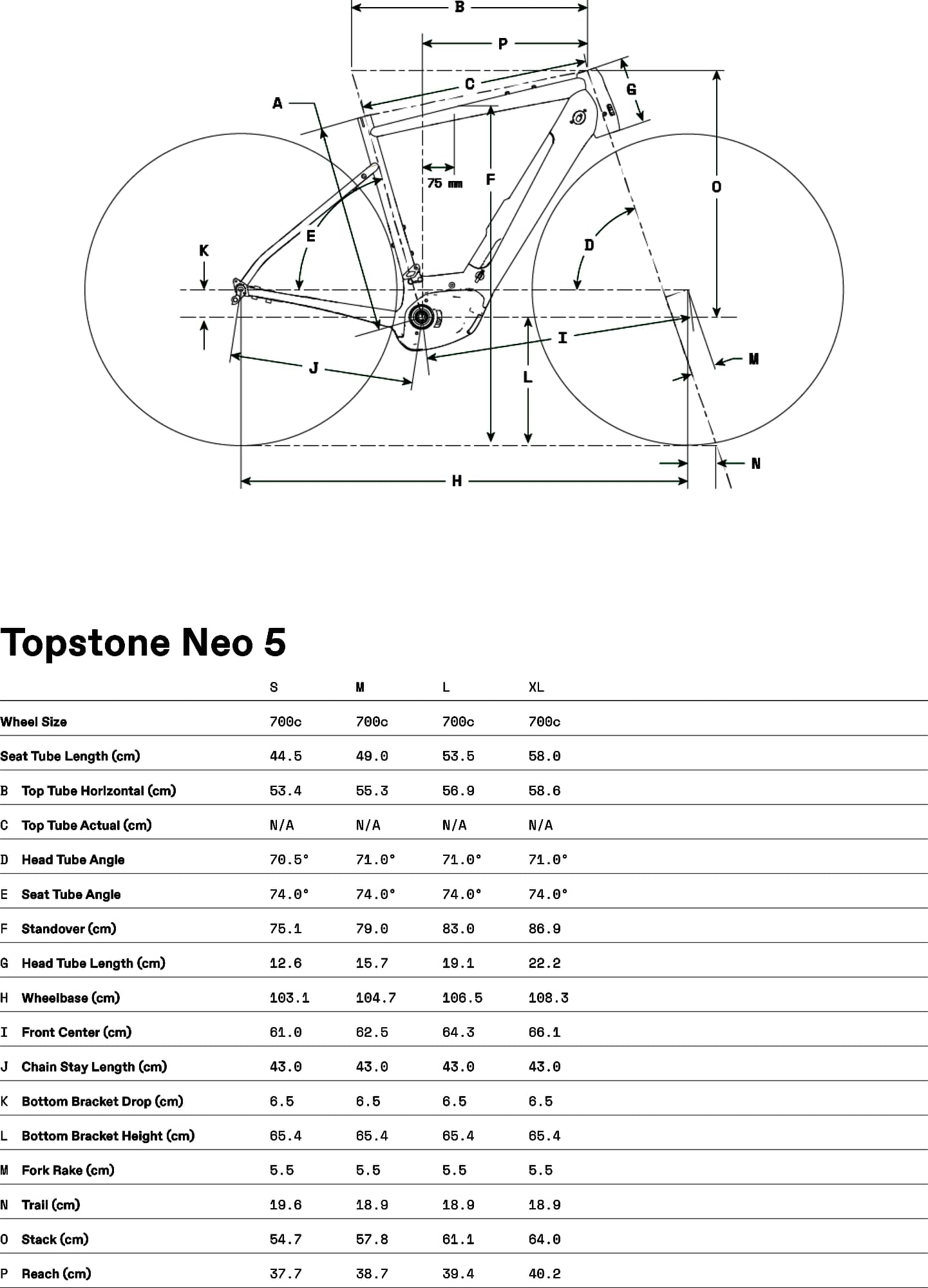

Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 162 cm | 170 cm | 180 cm | 190 cm |
| Rider Max Height | 175 cm | 185 cm | 193 cm | 203 cm |
About this model
Topstone Neo 5 belongs to the Cannondale E Topstone model. 30 e-bikes variations carry this model name so far. Take a sneak peek at all Cannondale E Topstone e-bikes models from 2023, by clicking here.
Model range prices
Cannondale Topstone Neo SL 2 2023 is the most economical model, with a starting price of 3625$. Cannondale Topstone Neo Carbon Lefty 1 2023 on the other hand costs 10948$, and is the most expensive model.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Gravel e-bikes
Our math shows that the average cost of a dependable Gravel e-bike is 3642$. However, even though the average price of a Gravel e-bike is lower, you might still be able to get a top-quality e-bike. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 5550$. Comparing this to the average Gravel e-bike price, we see that the price is 52.39% more expensive.
Overview of components
Fork material
Topstone Neo 5 has a carbon fork, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Wheels
When leaving the production line, the Topstone Neo 5 model has 700c aluminum wheels. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, these wheels don’t perform so well when passing over obstacles.
Brakes
When you want to stop the bike in time, the brakes are vital. The Topstone Neo 5 has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 162 cm – 203 cm (5.31 ft – 6.66 ft). In short, you can easily find one that suits you.
