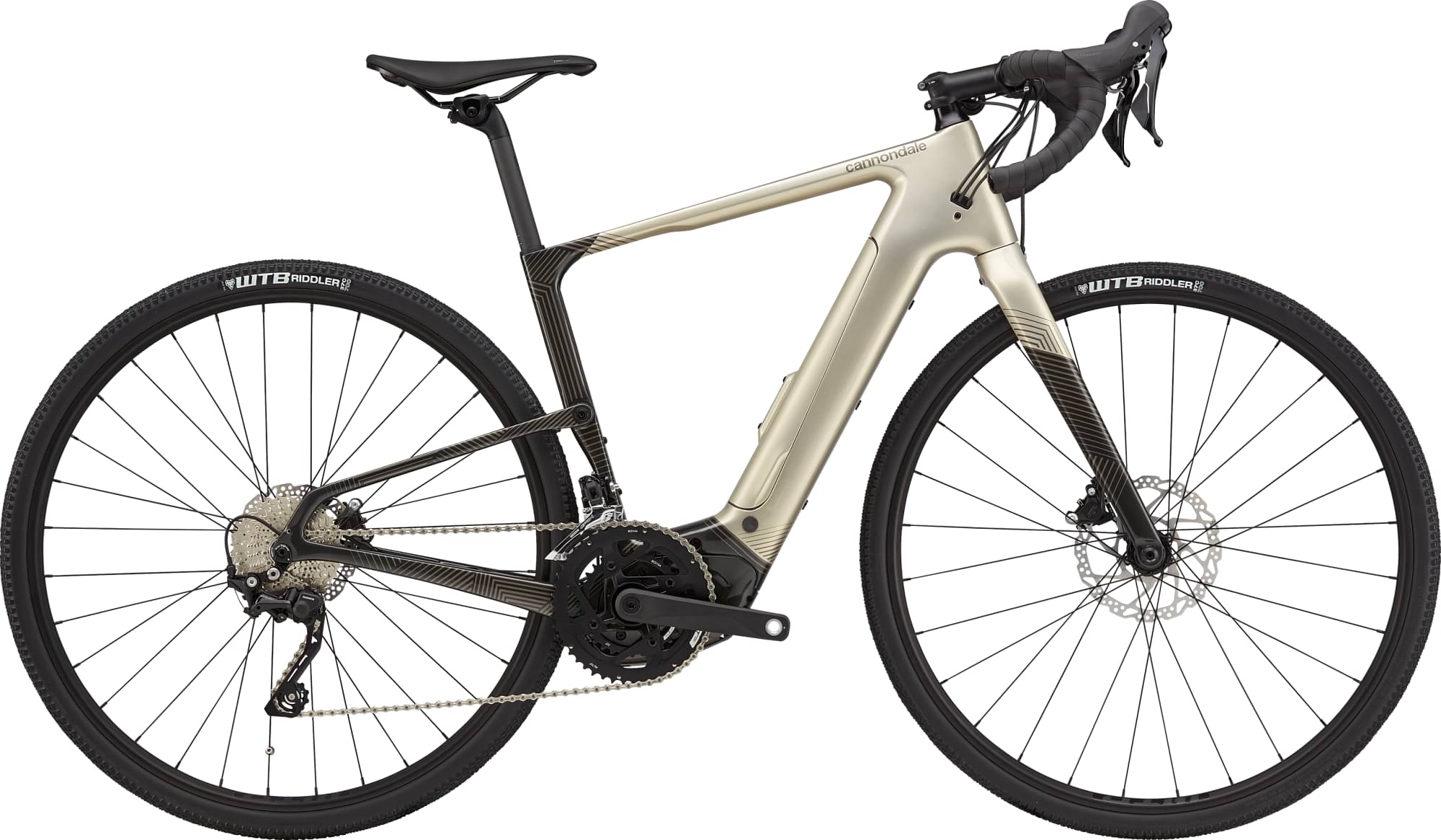

Cannondale Topstone Neo Carbon 4 2022
2022 E-bike
Estimate price |
5,504$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset GRX 400, FSA -
Suspension Rigid -
Motor Bosch 250W 85Nm mid-drive -
Battery Bosch PowerTube 500Wh -
Drivetrain 2 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
162cm - 175cm
MD
170cm - 185cm
LG
180cm - 193cm
XL
190cm - 203cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Topstone Neo Carbon Frame, removable downtube battery, Kingpin suspension system, 12x148 thru-axle, dropper post compatible
Suspension Fork
Topstone Neo Carbon, 1-1/8" to 1.5" steerer, 55mm OutFront offset, flat mount disc, internal routing, 12x110 thru axle
Drivetrain
Rear Derailleur
Shimano GRX 400, Shadow RD+
Front Derailleur
Shimano GRX 400, braze-on
Shift Levers
Shimano GRX 400, 2x10
Cassette
Shimano HG500, 11-34, 10-speed
Crank
FSA Bosch E-Bike, 48/32T
Bottom Bracket
Bosch, press-fit
Chain
KMC X10EL, 10-speed
Pedals
Not included
Wheels
Front Hub
Formula cartridge bearing, Centerlock, 12x110mm thru-axle
Rear Hub
Shimano MT400, Centerlock, 12x148mm thru-axle
Rims
WTB ST TCS i23 28h, tubeless ready
Spokes
Stainless Steel, 14g
Tires
WTB Riddler Comp, 700 x 37c
Brakes
Brakes
Shimano GRX hydraulic disc, 160/160mm RT54 rotors
Brake Levers
Shimano GRX hydraulic disc
Cockpit
Stem
Cannondale 2, 6061 Alloy, 31.8, 7°
Handlebar
Cannondale 3, butted 6061 alloy, 16 deg flare drop
Grips
Cannondale Bar Tape, 3.5mm
Headset
Integrated, 1.5" lower to 1-1/8" upper, 25mm Alloy top cap
Seat
Saddle
Fizik Aliante Delta, S-alloy rails
Seatpost
Promax SP-2032, Alloy, 27.2
Motor & Battery
Motor
Bosch Performance Line CX 250W
Battery
Bosch PowerTube 500Wh
Remote
Bosch Purion
Charger
Bosch 4A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 162 cm | 170 cm | 180 cm | 190 cm |
| Rider Max Height | 175 cm | 185 cm | 193 cm | 203 cm |
About this model
Topstone Neo Carbon 4 is a Cannondale E Topstone model. 30 e-bikes variations carry this model name so far. You can easily view all of the Cannondale E Topstone e-bikes models from 2022, here.
Model range prices
The most economical model, the Cannondale Topstone Neo SL 2 2022 has a starting price of 3290$. Cannondale Topstone Neo Carbon Lefty LE 2022 on the other hand is the most expensive at 10617$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Gravel e-bikes average price
According to our math, the average price for a trustworthy Gravel e-bike is 3642$. However, you could also get a good Gravel e-bike even if you pay a lower amount than the average price. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 5096$. Comparing the average cost of a Gravel e-bike to this one, you will see that Topstone Neo Carbon 4 price is 39.92% higher.
Overview of components
Fork material
The fork is made out of carbon, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Wheels
When it comes to wheels, the Topstone Neo Carbon 4 e-bike is equipped with the 700c aluminum model. These wheels are the most used kind for road bikes in general. However, these wheels don’t perform so well when passing over obstacles.
Brakes
When you want to stop the bike in time, the brakes are vital. The Topstone Neo Carbon 4 has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 162 cm – 203 cm (5.31 ft – 6.66 ft). In conclusion, it won’t take much to find one that’s right for you.
