Cannondale Topstone Neo Carbon 4 2023
2023 E-bike
Estimate price |
6,290$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset GRX 400, FSA -
Suspension Rigid -
Motor Bosch 250W 85Nm mid-drive -
Battery Bosch PowerTube, 500Wh -
Drivetrain 2 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
162cm - 175cm
MD
170cm - 185cm
LG
180cm - 193cm
XL
190cm - 203cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Topstone Neo Carbon Frame, removable downtube battery, Kingpin suspension system, 12x148 thru-axle, dropper post compatible
Suspension Fork
Topstone Neo Carbon, 1-1/8" to 1.5" steerer, 55mm OutFront offset, flat mount disc, internal routing, 12x110 thru axle
Drivetrain
Rear Derailleur
Shimano GRX 400, Shadow RD+
Front Derailleur
Shimano GRX 400, braze-on
Shift Levers
Shimano GRX 400, 2x10
Cassette
Shimano HG500, 11-34, 10-speed
Crank
FSA Bosch E-Bike, 48/32
Bottom Bracket
Bosch, press-fit
Chain
KMC X10EL, 10-speed
Pedals
Not included
Wheels
Front Hub
Formula cartridge bearing, centerlock, 12x110mm thru-axle
Rear Hub
Shimano MT400, Centerlock, 12x148mm thru-axle
Rims
WTB ST TCS i23 28h, tubeless ready
Spokes
Stainless Steel, 14g
Tires
WTB Riddler Comp, 700x37c
Brakes
Brakes
Shimano GRX hydraulic disc, 160/160mm RT54 rotors
Brake Levers
Shimano GRX hydraulic disc
Cockpit
Stem
Cannondale 2, 6061 Alloy, 31.8, 7°
Handlebar
Cannondale 3, butted 6061 alloy, 16 deg flare drop
Grips
Cannondale Bar Tape, 3.5mm
Headset
Integrated, 1.5" lower to 1-1/8" upper, 25mm Alloy top cap
Seat
Saddle
Fizik Aliante Delta, S-alloy rails
Seatpost
Promax SP-2032, Alloy, 27.2
Motor & Battery
Motor
Bosch Performance Line CX 250W
Battery
Bosch PowerTube, 500Wh
Charger
Bosch 4A
Fit data

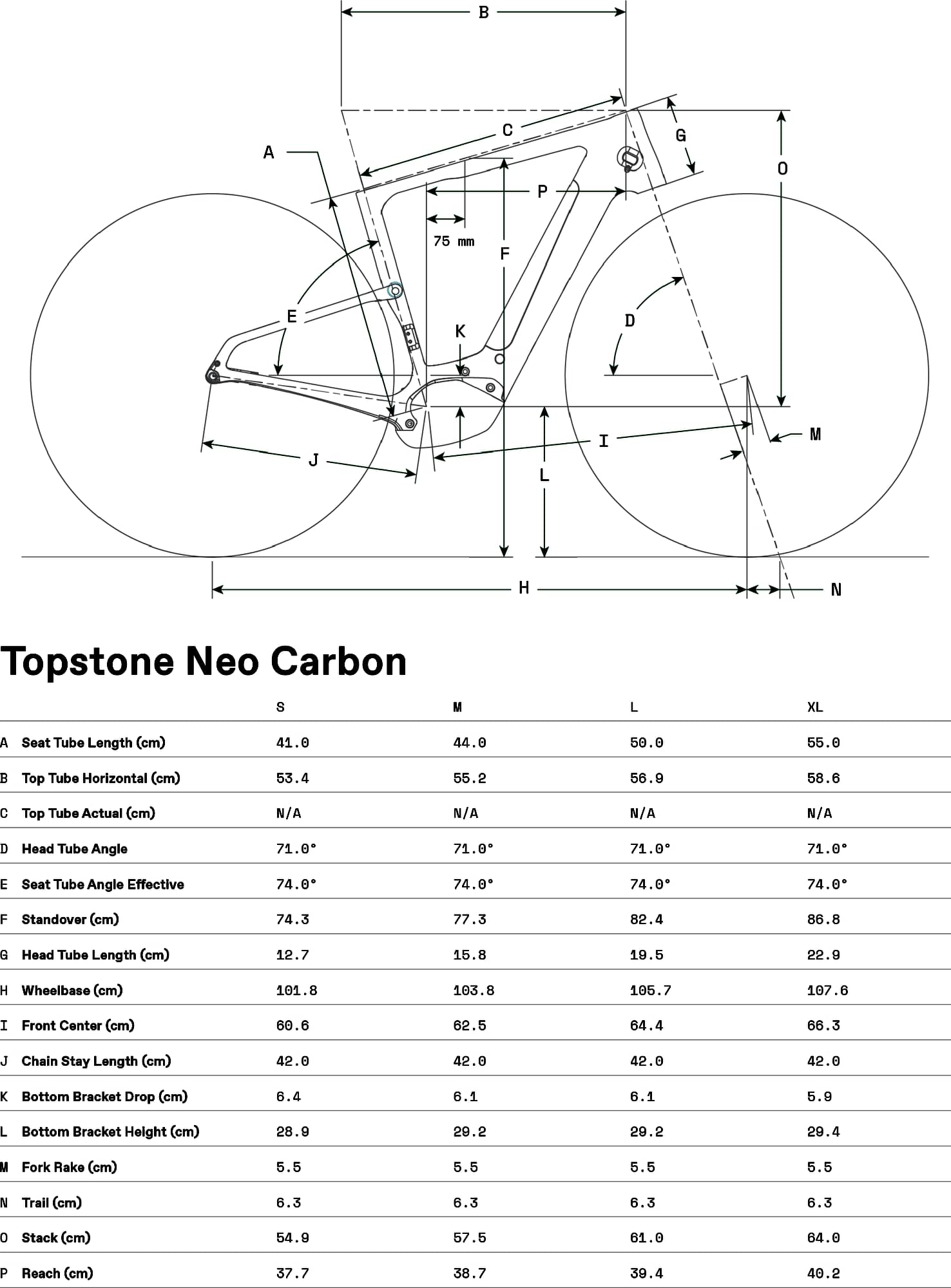

Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 162 cm | 170 cm | 180 cm | 190 cm |
| Rider Max Height | 175 cm | 185 cm | 193 cm | 203 cm |
Model Overview
Topstone Neo Carbon 4 belongs to the Cannondale E Topstone model. There are 30 e-bikes that carry this model name. Take a sneak peek at all Cannondale E Topstone e-bikes models from 2023, by clicking here.
Model range prices
Cannondale Topstone Neo SL 2 2023 is the most economical model, with a starting price of 3625$. Cannondale Topstone Neo Carbon Lefty 1 2023 on the other hand costs 10948$, and is the most expensive model.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Gravel e-bikes average price
Our math shows that the average cost of a dependable Gravel e-bike is 3642$. However, even though the average price of a Gravel e-bike is lower, you might still be able to get a top-quality e-bike. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
This e-bike was released in 2023 and its price was 5717$. Doing a quick comparison, we notice that Topstone Neo Carbon 4 price is 56.97% more expensive than the average cost of a Gravel e-bike.
Topstone Neo Carbon 4 components
Fork material
Topstone Neo Carbon 4 has a carbon fork, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels size
When leaving the production line, the Topstone Neo Carbon 4 model has 700c aluminum wheels. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Nothing is more important on a bike than its ability to brake properly. Cannondale Topstone Neo Carbon 4 is equipped with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
Sizes
Cannondale Topstone Neo Carbon 4 e-bike has 4 sizes, in the range of 162 cm – 203 cm (5.31 ft – 6.66 ft). In conclusion, it won’t take much to find one that’s right for you.
