Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset Tiagra, FSA -
Suspension Rigid -
Drivetrain 2 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
152cm - 165cm
SM
162cm - 175cm
MD
170cm - 185cm
LG
180cm - 193cm
XL
190cm - 203cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
SmartForm C2 Alloy, 142x12 thru-axle, tapered headtube, flat mount disc, StraightShot internal cable routing, multiple gear/bottle mounts
Suspension Fork
Full Carbon, 1-1/8" to 1-1/4" steerer, 55mm OutFront offset, flat mount disc, internal routing, 12x100 thru axle
Drivetrain
Rear Derailleur
Shimano Tiagra GS
Front Derailleur
Shimano Tiagra braze-on
Shift Levers
Shimano Tiagra hydro disc, 2x10
Cassette
Shimano HG500, 11-34, 10-speed
Crank
FSA Omega ME Alloy, 46/30
Bottom Bracket
FSA Cartridge
Chain
KMC X10, 10-speed
Pedals
Not Included
Wheels
Front Hub
Formula CL-712, 12x100 centerlock
Rear Hub
Formula RXC-400
Rims
WTB ST i23 TCS, 28h, tubeless ready
Spokes
Stainless steel, 14g
Tires
WTB Riddler TCS Light, 700 x 37c, tubeless ready
Brakes
Brakes
Shimano Tiagra hydro disc, 160/160mm RT54 rotors
Brake Levers
Shimano Tiagra hydro disc
Cockpit
Stem
Cannondale 3, 6061 alloy, 7°
Handlebar
Cannondale 3, butted 6061 alloy, 16 deg flare drop
Grips
Cannondale Grip Bar Tape w/Gel, 3.5mm
Headset
Topstone Si, 25mm Alloy top cap
Seat
Saddle
Fabric Scoop Radius Sport, steel rails
Seatpost
Cannondale C3, 6061 Alloy, 27.2 x 350mm (44-56), 400mm (58-63)
Fit data

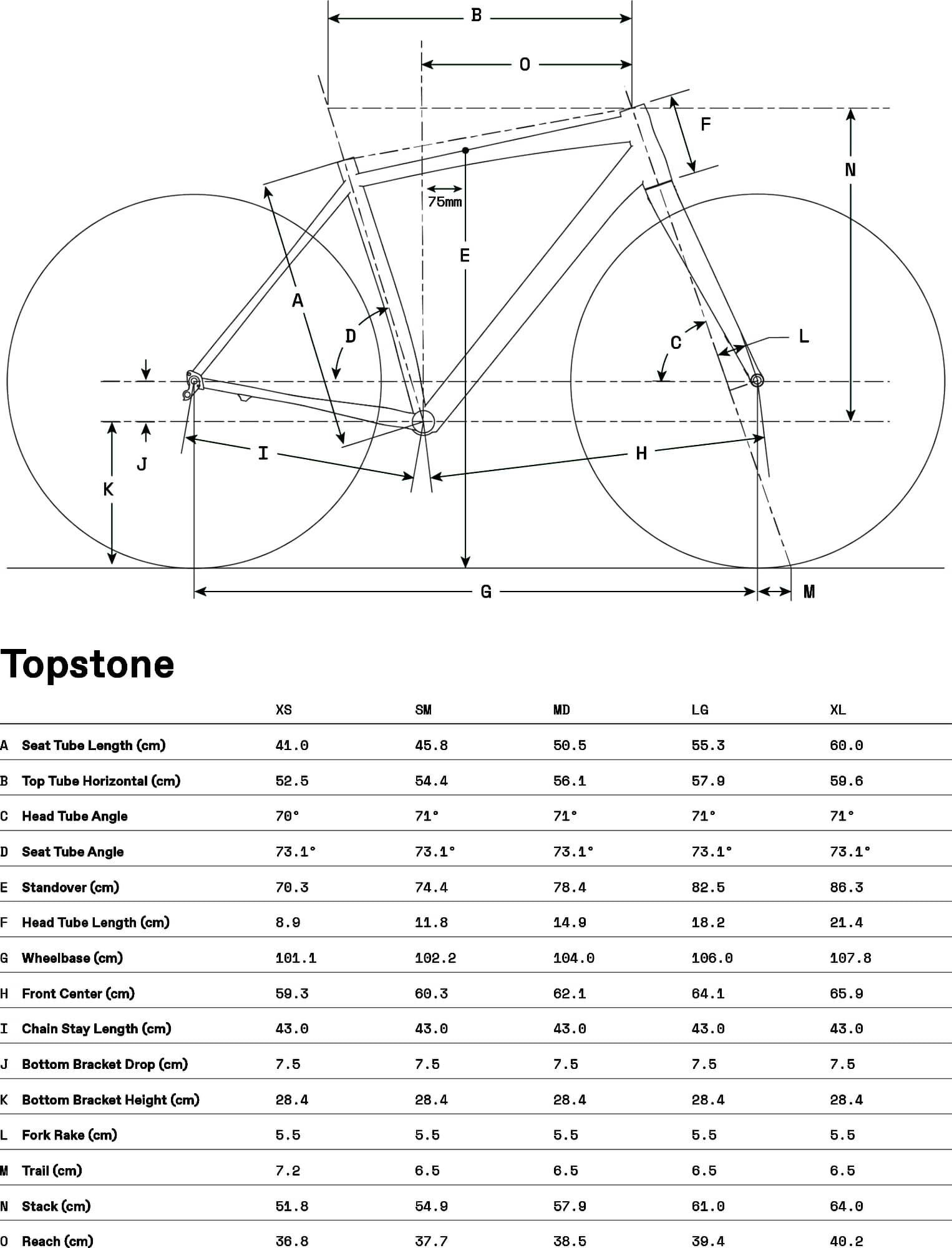

Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.42 mm | 1.46 mm | 1.51 mm | 1.56 mm | 1.6 mm |
| Bottom Bracket Height | 284 mm | 284 mm | 284 mm | 284 mm | 284 mm |
| Front Center | 593 mm | 603 mm | 621 mm | 641 mm | 659 mm |
| Rake | 55 mm | 55 mm | 55 mm | 55 mm | 55 mm |
| Trail | 72 mm | 65 mm | 65 mm | 65 mm | 65 mm |
| Stack | 511 mm | 542 mm | 572 mm | 603 mm | 633 mm |
| Reach | 361 mm | 370 mm | 378 mm | 387 mm | 395 mm |
| Top Tube Length | 518 mm | 537 mm | 554 mm | 572 mm | 589 mm |
| Seat Tube Angle | 73.1 ° | 73.1 ° | 73.1 ° | 73.1 ° | 73.1 ° |
| Seat Tube Length | 410 mm | 458 mm | 505 mm | 553 mm | 600 mm |
| Head Tube Angle | 70 ° | 71 ° | 71 ° | 71 ° | 71 ° |
| Head Tube Length | 89 mm | 118 mm | 149 mm | 182 mm | 214 mm |
| Chainstay Length | 423 mm | 423 mm | 423 mm | 423 mm | 423 mm |
| Wheelbase | 1004 mm | 1015 mm | 1033 mm | 1053 mm | 1071 mm |
| Bottom Bracket Drop | 75 mm | 75 mm | 75 mm | 75 mm | 75 mm |
| Standover Height | 696 mm | 737 mm | 777 mm | 818 mm | 856 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 152 cm | 162 cm | 170 cm | 180 cm | 190 cm |
| Rider Max Height | 165 cm | 175 cm | 185 cm | 193 cm | 203 cm |
Model Overview
Topstone Tiagra belongs to the Cannondale Topstone model. 110 bikes variations carry this model name so far. You can get a glimpse at all models from 2022, by clicking on this link.
Model range prices
Cannondale Topstone 4 2022 is the cheapest bike model and costs 1326$. Cannondale Topstone Carbon 1 Lefty 2022 is the most expensive one and costs 9555$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Gravel bikes
If you want an acceptable Gravel bike you should know that the average price is 2462$. However, you could also get a good Gravel bike even if you pay a lower amount than the average price. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Internal Cable Routing
It’s also important to mention the internal cable routing that this bike has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
Overview of components
Fork material
The fork is made out of carbon, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Wheels size
As for the wheels, Cannondale Topstone Tiagra 2022, has a 700c aluminum model. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, these wheels don’t perform so well when passing over obstacles.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Topstone Tiagra comes with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
Sizes
This bike is available in 5 sizes. They vary from 152 cm – 203 cm (4.99 ft – 6.66 ft). In short, it won’t be difficult to find the right one for you.
