Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset Tiagra, FSA -
Suspension Rigid -
Drivetrain 2 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
152cm - 165cm
SM
162cm - 175cm
MD
170cm - 185cm
LG
180cm - 193cm
XL
190cm - 203cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
SmartForm C2 Alloy, 142x12 thru-axle, tapered headtube, flat mount disc, StraightShot internal cable routing, multiple gear/bottle mounts
Suspension Fork
Full Carbon, 1-1/8" to 1-1/4" steerer, 55mm OutFront offset, flat mount disc, internal routing, 12x100 thru axle
Drivetrain
Rear Derailleur
Shimano Tiagra GS
Front Derailleur
Shimano Tiagra braze-on
Shift Levers
Shimano Tiagra hydro disc, 2x10
Cassette
Shimano HG500, 11-34, 10-speed
Crank
FSA Omega ME Alloy, 46/30
Bottom Bracket
FSA Cartridge
Chain
KMC X10, 10-speed
Pedals
Not Included
Wheels
Front Hub
Formula CL-712, 12x100 centerlock
Rear Hub
Formula RXC-400
Rims
WTB ST i23 TCS, 28h, tubeless ready
Spokes
Stainless steel, 14g
Tires
WTB Riddler TCS Light, 700 x 37c, tubeless ready
Brakes
Brakes
Shimano Tiagra hydro disc, 160/160mm RT54 rotors
Brake Levers
Shimano Tiagra hydro disc
Cockpit
Stem
Cannondale 3, 6061 alloy, 7°
Handlebar
Cannondale 3, butted 6061 alloy, 16 deg flare drop
Grips
Cannondale Grip Bar Tape w/Gel, 3.5mm
Headset
Topstone Si, 25mm Alloy top cap
Seat
Saddle
Fabric Scoop Radius Sport, steel rails
Seatpost
Cannondale C3, 6061 Alloy, 27.2 x 350mm (44-56), 400mm (58-63)
Fit data

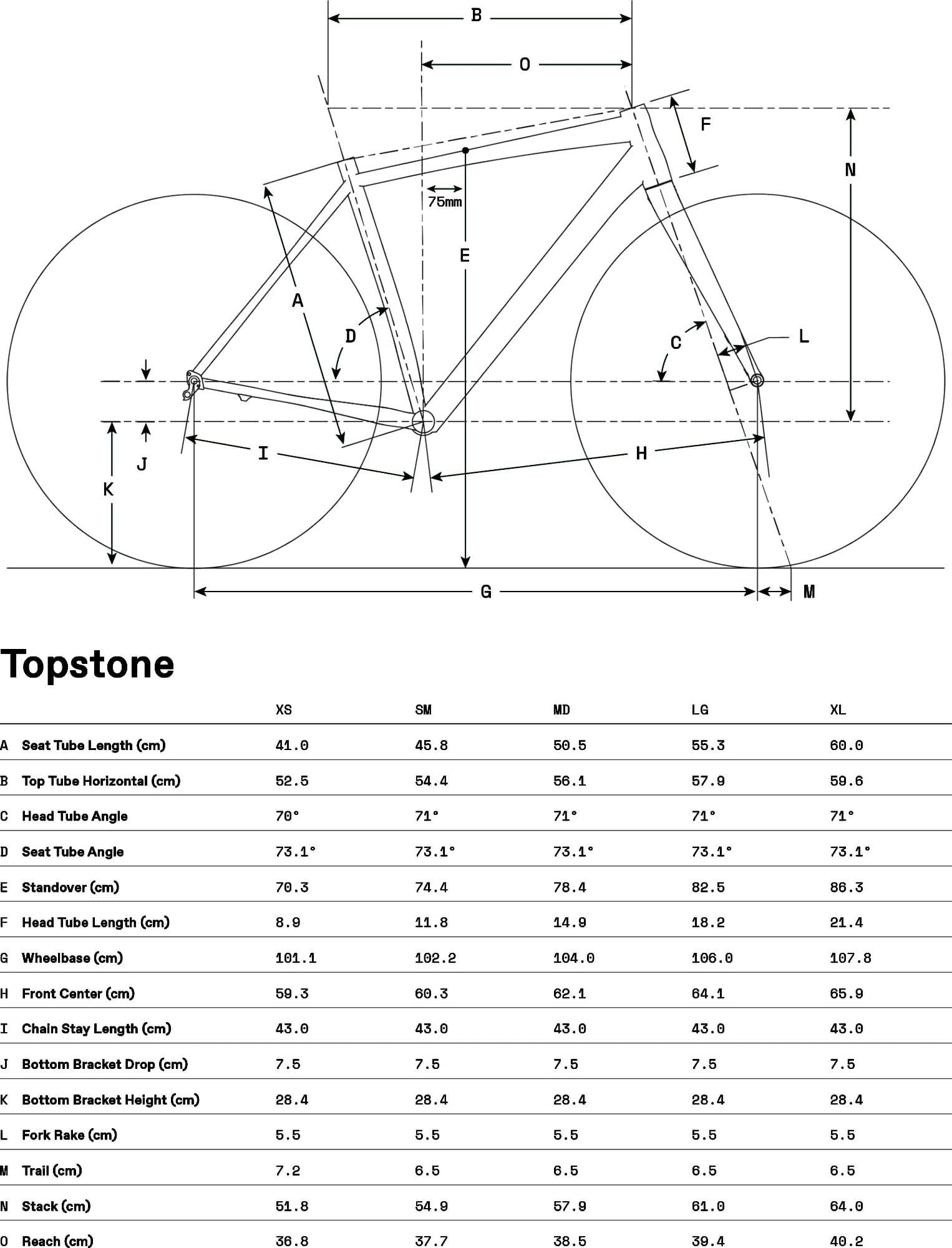

Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.42 mm | 1.46 mm | 1.51 mm | 1.56 mm | 1.6 mm |
| Bottom Bracket Height | 284 mm | 284 mm | 284 mm | 284 mm | 284 mm |
| Front Center | 593 mm | 603 mm | 621 mm | 641 mm | 659 mm |
| Rake | 55 mm | 55 mm | 55 mm | 55 mm | 55 mm |
| Trail | 72 mm | 65 mm | 65 mm | 65 mm | 65 mm |
| Stack | 511 mm | 542 mm | 572 mm | 603 mm | 633 mm |
| Reach | 361 mm | 370 mm | 378 mm | 387 mm | 395 mm |
| Top Tube Length | 518 mm | 537 mm | 554 mm | 572 mm | 589 mm |
| Seat Tube Angle | 73.1 ° | 73.1 ° | 73.1 ° | 73.1 ° | 73.1 ° |
| Seat Tube Length | 410 mm | 458 mm | 505 mm | 553 mm | 600 mm |
| Head Tube Angle | 70 ° | 71 ° | 71 ° | 71 ° | 71 ° |
| Head Tube Length | 89 mm | 118 mm | 149 mm | 182 mm | 214 mm |
| Chainstay Length | 423 mm | 423 mm | 423 mm | 423 mm | 423 mm |
| Wheelbase | 1004 mm | 1015 mm | 1033 mm | 1053 mm | 1071 mm |
| Bottom Bracket Drop | 75 mm | 75 mm | 75 mm | 75 mm | 75 mm |
| Standover Height | 696 mm | 737 mm | 777 mm | 818 mm | 856 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 152 cm | 162 cm | 170 cm | 180 cm | 190 cm |
| Rider Max Height | 165 cm | 175 cm | 185 cm | 193 cm | 203 cm |
About this model
Topstone Tiagra completes the Cannondale Topstone model. 110 bikes variations carry this model name so far. You can get a glimpse at all models from 2023, by clicking on this link.
Model range prices
The most economical model, the Cannondale Topstone 4 2023 has a starting price of 1375$. Cannondale Topstone Carbon Lefty 1 2023 on the other hand is the most expensive at 8500$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Gravel bikes average price
If you want an acceptable Gravel bike you should know that the average price is 2462$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Gravel bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
Overview of components
Fork material
Topstone Tiagra has a carbon fork, so, it’s a great addition to the bike’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Wheels
When leaving the production line, the Topstone Tiagra model has 700c aluminum wheels. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Nothing is more important on a bike than its ability to brake properly. Cannondale Topstone Tiagra is equipped with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
Sizes
This bike is available in 5 sizes. They vary from 152 cm – 203 cm (4.99 ft – 6.66 ft). In conclusion, finding one for you shouldn’t be a problem.
