Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 29" -
Travel Front 100mm -
Fork RockShox Reba
-
Groupset NX Eagle -
Suspension Hardtail -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
154cm - 164cm
MD
161cm - 172cm
LG
170cm - 184cm
XL
181cm - 190cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
SmartForm C2 Alloy, SAVE, Boost spacing, tapered 1-1/8" to 1.5" headtube, flat mount brake, StraightShot internal cable routing, BSA-73
Suspension Fork
RockShox Reba RL, 100mm, Stealth Solo Air, 15x110, tapered steerer, remote lockout, 42mm offset (27.5") 51mm offset (29")
Drivetrain
Rear Derailleur
SRAM NX Eagle
Shift Levers
SRAM NX Eagle, 12-speed
Cassette
SRAM PG-1210, SX Eagle, 11-50, 12-speed
Crank
SRAM NX Eagle, 30T
Bottom Bracket
Truvativ Power Spline
Chain
SRAM NX Eagle, 12-speed
Pedals
Cannondale Platform
Wheels
Front Hub
Shimano MT400 15x110
Rear Hub
Shimano MT200, Boost 141, QR
Rims
WTB STX i23 TCS, 32h, tubeless ready
Spokes
Stainless Steel, 14g
Tires
Schwalbe Rocket Rick, 27.5/29 x 2.25", K-Guard
Brakes
Brakes
Shimano MT500 hydro disc, 180/160mm RT54 rotors
Brake Levers
Shimano MT500 hydro disc
Cockpit
Stem
Cannondale 3 with Intellimount, alloy, 31.8mm clamp
Handlebar
Cannondale 3 Riser, 6061 Alloy, 15mm rise, 8° sweep, 4° rise, 760mm
Grips
Cannondale Locking Grips
Headset
Semi Integrated, 1-1/8" to 1-1/2"
Seat
Saddle
Cannondale Stage 3
Seatpost
Cannondale 3, 6061 Alloy, 31.6 x 350/400mm
Fit data

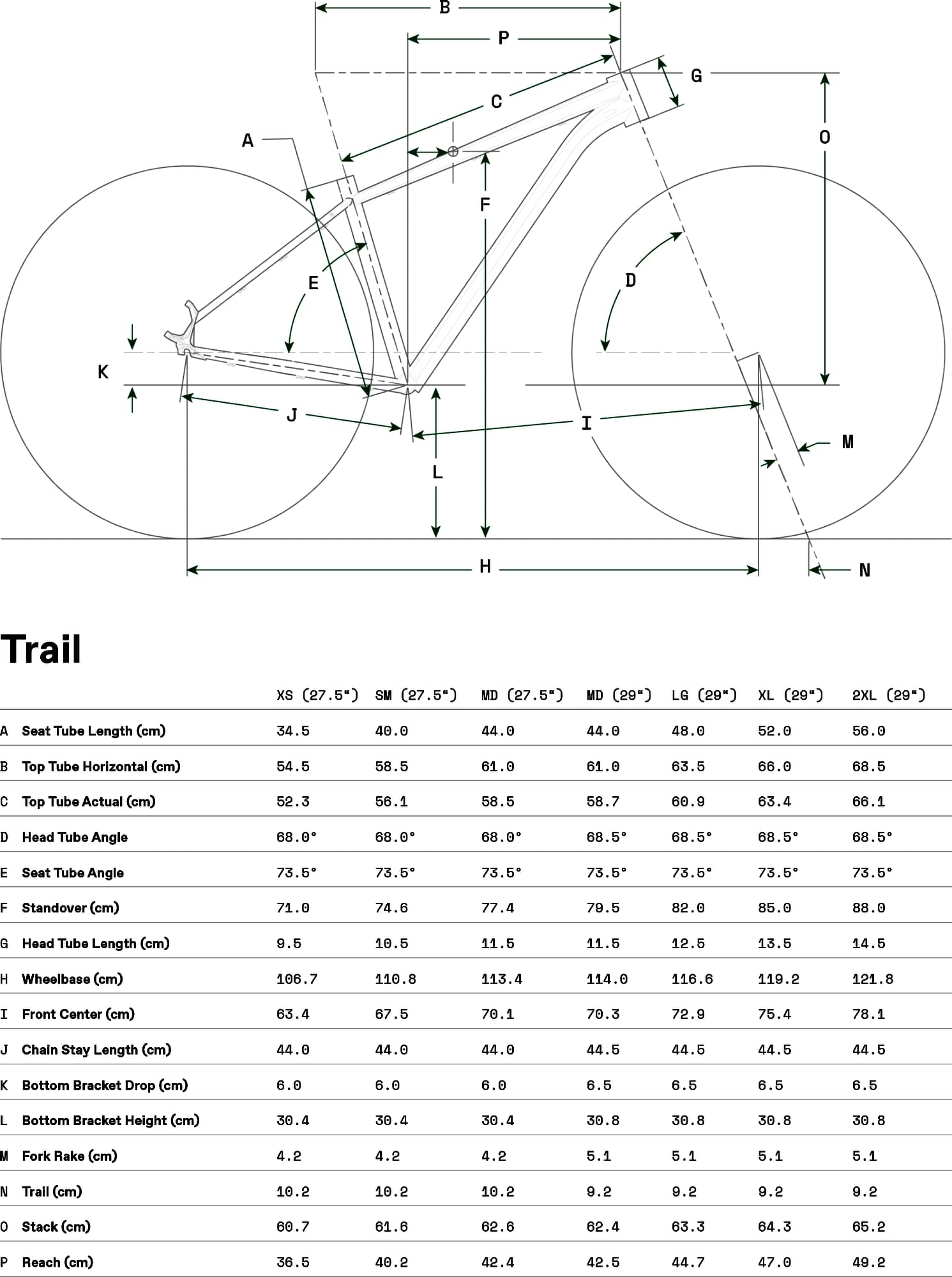

Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.532 mm | 1.468 mm | 1.416 mm | 1.368 mm |
| Bottom Bracket Height | 304 mm | 308 mm | 308 mm | 308 mm |
| Front Center | 675 mm | 703 mm | 729 mm | 754 mm |
| Rake | 42 mm | 51 mm | 51 mm | 51 mm |
| Trail | 102 mm | 92 mm | 92 mm | 92 mm |
| Stack | 616 mm | 624 mm | 633 mm | 643 mm |
| Reach | 402 mm | 425 mm | 447 mm | 470 mm |
| Top Tube Length | 585 mm | 610 mm | 635 mm | 660 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 400 mm | 440 mm | 480 mm | 520 mm |
| Head Tube Angle | 68 ° | 68.5 ° | 68.5 ° | 68.5 ° |
| Head Tube Length | 105 mm | 115 mm | 125 mm | 135 mm |
| Chainstay Length | 440 mm | 445 mm | 445 mm | 445 mm |
| Wheelbase | 1108 mm | 1140 mm | 1166 mm | 1192 mm |
| Bottom Bracket Drop | 60 mm | 65 mm | 65 mm | 65 mm |
| Standover Height | 746 mm | 795 mm | 820 mm | 850 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 154 cm | 161 cm | 170 cm | 181 cm |
| Rider Max Height | 164 cm | 172 cm | 184 cm | 190 cm |
Model Overview
Trail 1 belongs to the Cannondale Trail model. There are 240 bikes that carry this model name. Check out the entire range from 2023 of this model, by clicking this link.
Model range prices
The most economical model, the Cannondale Kids Trail Balance Girl’s 2023 has a starting price of 225$. Cannondale Trail SE 1 2023 on the other hand is the most expensive at 2225$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Crosscountry bikes average price
According to our calculations, the average cost of a Crosscountry bike that is reliable is 1905$. However, this doesn’t mean that if you spend less money on a Crosscountry bike, you couldn’t get a decent one. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
Trail 1 components
Fork
The Trail 1 comes factory-installed with the RockShox Reba fork. This has a travel range of 100mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels size
The Trail 1 2023 bike is equipped with 29″ aluminum wheels when leaving the factory. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, 29″ wheels will make your bike react slower to obstacles you may encounter.
Brakes
When you want to stop the bike in time, the brakes are vital. The Trail 1 has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 154 cm – 190 cm (5.05 ft – 6.23 ft). In conclusion, you won’t have a problem finding one that suits you.
