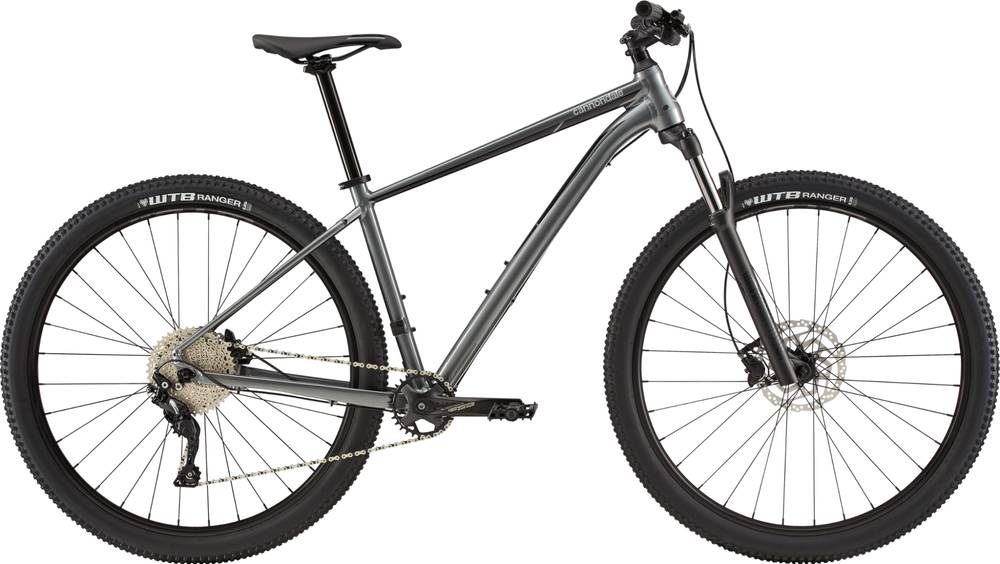

Cannondale Trail 4 2020
2020 Mountain
Estimate price |
1,000$
Weight | 14.3 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 29" / 29" -
Travel Front 100mm -
Fork RockShox
-
Groupset Deore, FSA -
Suspension Hardtail -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
158cm - 167cm
SM
165cm - 173cm
MD
169cm - 180cm
MD
169cm - 180cm
LG
177cm - 186cm
XL
183cm - 191cm
XXL
186cm - 194cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
SmartForm C2 Alloy, SAVE, Boost spacing, tapered 1-1/8" to 1.5" headtube, flat mount brake, StraightShot internal cable routing, BSA-73, SAVE, Boost spacing, Tapered 1-1/8" to 1.5" headtube, Flat mount brake, StraightShot internal cable routing, BSA-73
Suspension Fork
RockShox XC30 TK 29"/27.5", 100mm, rebound, 1-1/8", Coil, 42mm offset (27.5") 51mm offset (29")
Drivetrain
Rear Derailleur
Shimano Deore GS
Shift Levers
Shimano Deore, 10-speed
Cassette
Sunrace, 11-42, 10-speed
Crank
FSA Alpha Drive, 30T
Bottom Bracket
Sealed Cartridge
Chain
KMC X10, 10-speed
Pedals
Cannondale Platform
Wheels
Front Hub
Shimano MT200 15x110
Rear Hub
Shimano MT200, Boost 141, QR
Rims
WTB STX i23 TCS, 32h, tubeless ready
Spokes
Stainless Steel, 14g
Tires
WTB Ranger Comp, 27.5/29 x 2.25", DNA Compound
Brakes
Brakes
Shimano MT200 hydro disc, 180/160mm RT10 rotors
Brake Levers
Shimano MT200 hydro disc
Cockpit
Stem
6061 Alloy, 31.8, 6°
Handlebar
Cannondale 3 Riser, 6061 Alloy, 15mm rise, 8° sweep, 4° rise, 760mm
Grips
Cannondale Dual-Density
Headset
Semi Integrated, 1-1/8" reducer
Seat
Saddle
Cannondale Stage 3
Seatpost
Cannondale 3, 6061 Alloy, 31.6 x 350/400mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | MD | LG | XL | XXL |
|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.67 mm | 1.54 mm | 1.48 mm | 1.47 mm | 1.42 mm | 1.37 mm | 1.33 mm |
| Bottom Bracket Height | 304 mm | 304 mm | 304 mm | 308 mm | 308 mm | 308 mm | 308 mm |
| Front Center | 634 mm | 675 mm | 701 mm | 703 mm | 729 mm | 754 mm | 781 mm |
| Rake | 42 mm | 42 mm | 42 mm | 51 mm | 51 mm | 51 mm | 51 mm |
| Trail | 102 mm | 102 mm | 102 mm | 92 mm | 92 mm | 92 mm | 92 mm |
| Stack | 603 mm | 612 mm | 622 mm | 620 mm | 629 mm | 639 mm | 648 mm |
| Reach | 361 mm | 398 mm | 420 mm | 421 mm | 443 mm | 466 mm | 488 mm |
| Top Tube Length | 541 mm | 581 mm | 606 mm | 606 mm | 631 mm | 656 mm | 681 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 345 mm | 400 mm | 440 mm | 440 mm | 480 mm | 520 mm | 560 mm |
| Head Tube Angle | 68 ° | 68 ° | 68 ° | 68.5 ° | 68.5 ° | 68.5 ° | 68.5 ° |
| Head Tube Length | 95 mm | 105 mm | 115 mm | 115 mm | 125 mm | 135 mm | 145 mm |
| Chainstay Length | 436 mm | 436 mm | 436 mm | 441 mm | 441 mm | 441 mm | 441 mm |
| Wheelbase | 1063 mm | 1104 mm | 1130 mm | 1136 mm | 1162 mm | 1188 mm | 1214 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 65 mm | 65 mm | 65 mm | 65 mm |
| Standover Height | 706 mm | 742 mm | 770 mm | 791 mm | 816 mm | 846 mm | 876 mm |
| Wheels | 27" | 27" | 27" | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 165 cm | 169 cm | 169 cm | 177 cm | 183 cm | 186 cm |
| Rider Max Height | 167 cm | 173 cm | 180 cm | 180 cm | 186 cm | 191 cm | 194 cm |
Model Overview
Trail 4 belongs to the Cannondale Trail model. There are 240 bikes that carry this model name. Check out the entire range from 2020 of this model, by clicking this link.
Model range prices
Cannondale Kids Trail 12 Girl’s 2020 is the cheapest bike model and costs 230$. Cannondale Trail 1 2020 is the most expensive one and costs 1850$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Crosscountry bikes average price
According to our calculations, the average cost of a Crosscountry bike that is reliable is 1905$. However, you could also get a good Crosscountry bike even if you pay a lower amount than the average price. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
At the moment of the release date, Cannondale Trail 4 price was 1000$. Doing a quick comparison, we notice that Trail 4 price is 90.5% smaller than the average cost of a Crosscountry bike.
Average weight for Crosscountry bikes
On a deeper look, we notice that the average weight of a Crosscountry bike is 12.4 kg (27.34 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
much heavier than average, Trail 4 has a weight of 14.3 kg (31.53 lbs). In other words, this model is 15.32% heavier than the average Crosscountry bike.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
Trail 4 components
Fork
Cannondale Trail 4 2020 bike is equipped with the RockShox fork, and has 100mm travel. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels size
The wheels on Trail 4 are the 29″ aluminum type. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, 29″ wheels will make your bike react slower to obstacles you may encounter.
Brakes
For your safety, it is important to have quality breaks on your bike. Cannondale Trail 4 has Hydraulic Disc brakes installed. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
Sizes
There are 7 sizes available for this model. Rider height can be anywhere between 158 cm – 194 cm (5.18 ft – 6.36 ft). In conclusion, it won’t take much to find one that’s right for you.
