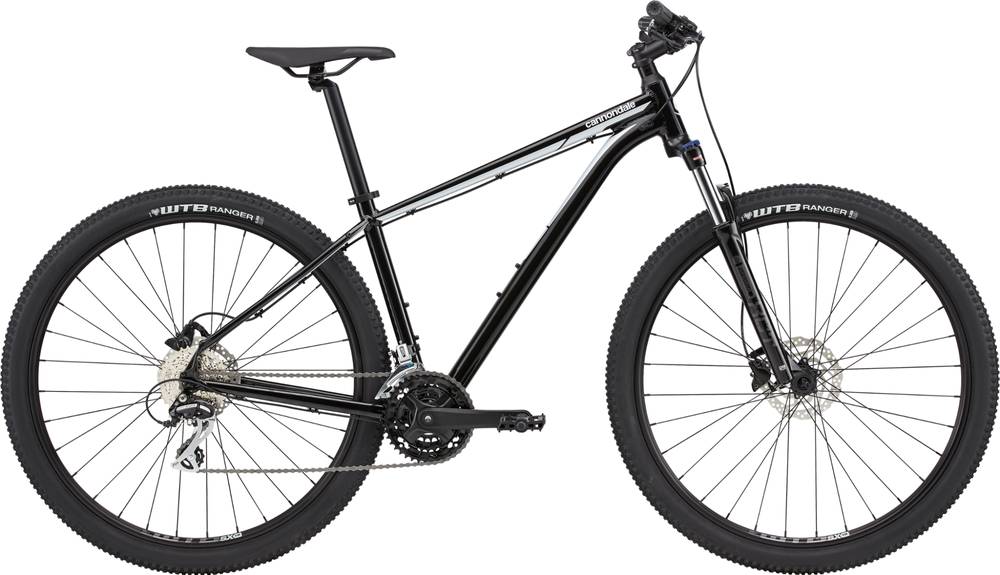

Cannondale Trail 6 2020
2020 Mountain
Estimate price |
650$
Weight | 14.8 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 27.5" / 29" -
Travel Front 100mm -
Fork SunTour XCT
-
Groupset Acera, Altus -
Suspension Hardtail -
Drivetrain 3 × 8 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
158cm - 167cm
SM
165cm - 173cm
MD
169cm - 180cm
LG
177cm - 186cm
XL
183cm - 191cm
XXL
186cm - 194cm
XS
158cm - 167cm
SM
165cm - 173cm
MD
169cm - 180cm
LG
177cm - 186cm
XL
183cm - 191cm
XXL
186cm - 194cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
All-New, SmartForm C3 Alloy, SAVE, 1-1/8" headtube, post mount disc, StraightShot internal cable routing, BSA-73, SAVE, 1-1/8" headtube, Post mount disc, StraightShot internal cable routing, BSA-73
Suspension Fork
SR Suntour XCT, 100mm, hydraulic lockout, Coil, 42mm offset (27.5") 46mm offset (29")
Drivetrain
Rear Derailleur
Shimano Acera
Front Derailleur
Shimano Altus, 34.9 clamp
Shift Levers
Shimano Altus, 3x8
Cassette
Sunrace, 11-34, 8-speed
Crank
Prowheel Forged Alloy, 42/32/22
Bottom Bracket
Sealed Cartridge
Chain
KMC X8, 8-speed
Pedals
Cannondale Platform
Wheels
Front Hub
Shimano QR
Rear Hub
Shimano QR
Rims
WTB SX19, 32h
Spokes
Stainless Steel, 14g
Tires
WTB Ranger Comp, 27.5/29 x 2.25", DNA Compound
Brakes
Brakes
Shimano MT200 hydro disc, 160/160mm RT10 rotors
Brake Levers
Shimano MT200 hydro disc
Cockpit
Stem
6061 Alloy, 31.8, 6°
Handlebar
Cannondale Riser, 6061 Alloy, 25mm rise, 8° sweep, 6° rise, 720mm
Grips
Cannondale Dual-Density
Headset
Semi Integrated, 1-1/8"
Seat
Saddle
Cannondale Stage 3
Seatpost
Cannondale 3, 6061 Alloy, 31.6 x 350/400mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL | XXL | XS | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.67 mm | 1.54 mm | 1.48 mm | 1.42 mm | 1.37 mm | 1.33 mm | 1.67 mm | 1.54 mm | 1.48 mm | 1.42 mm | 1.37 mm | 1.33 mm |
| Bottom Bracket Height | 304 mm | 304 mm | 304 mm | 308 mm | 308 mm | 308 mm | 304 mm | 304 mm | 304 mm | 308 mm | 308 mm | 308 mm |
| Front Center | 634 mm | 675 mm | 701 mm | 729 mm | 754 mm | 781 mm | 634 mm | 675 mm | 701 mm | 729 mm | 754 mm | 781 mm |
| Rake | 42 mm | 42 mm | 42 mm | 51 mm | 51 mm | 51 mm | 42 mm | 42 mm | 42 mm | 51 mm | 51 mm | 51 mm |
| Trail | 102 mm | 102 mm | 102 mm | 92 mm | 92 mm | 92 mm | 102 mm | 102 mm | 102 mm | 92 mm | 92 mm | 92 mm |
| Stack | 603 mm | 612 mm | 622 mm | 629 mm | 639 mm | 648 mm | 603 mm | 612 mm | 622 mm | 629 mm | 639 mm | 648 mm |
| Reach | 361 mm | 398 mm | 420 mm | 443 mm | 466 mm | 488 mm | 361 mm | 398 mm | 420 mm | 443 mm | 466 mm | 488 mm |
| Top Tube Length | 541 mm | 581 mm | 606 mm | 631 mm | 656 mm | 681 mm | 541 mm | 581 mm | 606 mm | 631 mm | 656 mm | 681 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 345 mm | 400 mm | 440 mm | 480 mm | 520 mm | 560 mm | 345 mm | 400 mm | 440 mm | 480 mm | 520 mm | 560 mm |
| Head Tube Angle | 68 ° | 68 ° | 68 ° | 68.5 ° | 68.5 ° | 68.5 ° | 68 ° | 68 ° | 68 ° | 68.5 ° | 68.5 ° | 68.5 ° |
| Head Tube Length | 95 mm | 105 mm | 115 mm | 125 mm | 135 mm | 145 mm | 95 mm | 105 mm | 115 mm | 125 mm | 135 mm | 145 mm |
| Chainstay Length | 436 mm | 436 mm | 436 mm | 441 mm | 441 mm | 441 mm | 436 mm | 436 mm | 436 mm | 441 mm | 441 mm | 441 mm |
| Wheelbase | 1063 mm | 1104 mm | 1130 mm | 1162 mm | 1188 mm | 1214 mm | 1063 mm | 1104 mm | 1130 mm | 1162 mm | 1188 mm | 1214 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 65 mm | 65 mm | 65 mm | 60 mm | 60 mm | 60 mm | 65 mm | 65 mm | 65 mm |
| Standover Height | 706 mm | 742 mm | 770 mm | 816 mm | 846 mm | 876 mm | 706 mm | 742 mm | 770 mm | 816 mm | 846 mm | 876 mm |
| Wheels | 27" | 27" | 29" | 29" | 29" | 29" | 27" | 27" | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 165 cm | 169 cm | 177 cm | 183 cm | 186 cm | 158 cm | 165 cm | 169 cm | 177 cm | 183 cm | 186 cm |
| Rider Max Height | 167 cm | 173 cm | 180 cm | 186 cm | 191 cm | 194 cm | 167 cm | 173 cm | 180 cm | 186 cm | 191 cm | 194 cm |
Model Overview
Trail 6 completes the Cannondale Trail model. 240 bikes variations carry this model name so far. Check out the entire range from 2020 of this model, by clicking this link.
Model range prices
Cannondale Kids Trail 12 Girl’s 2020 is the most economical model, with a starting price of 230$. Cannondale Trail 1 2020 on the other hand costs 1850$, and is the most expensive model.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Crosscountry bikes
If you want to purchase a solid Crosscountry bike, it is important to know that the average cost is 1905$. However, even if your budget is less than the average, you might still be able to get a top-quality Crosscountry bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
When Cannondale released this model in 2020, its price was 650$. In conclusion, this bike price is 193.08% lower than the price of the average Crosscountry bike.
Average weight for Crosscountry bikes
Crosscountry bikes have an average weight of 12.4 kg (27.34 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
Trail 6 weighs 14.8 kg (32.63 lbs) and is much heavier than the average. In other words, this model is 19.35% heavier than the average Crosscountry bike.
Internal Cable Routing
Another thing to mention, is the internal cable routing of this bike. In conclusion, this helps you too, keep the bike cables in mint condition, and also it looks better. No more cables, surrounding the bike.
Trail 6 components
Fork
The Trail 6 comes factory-installed with the SunTour XCT fork. This has a travel range of 100mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels size
As for the wheels, Cannondale Trail 6 2020, has a 27.5″ aluminum model. 27.5″ wheels will reach higher speeds than smaller-sized wheels. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
When you want to stop the bike in time, the brakes are vital. The Trail 6 has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
Sizes
This bike is available in 12 sizes. They vary from 158 cm – 194 cm (5.18 ft – 6.36 ft). In conclusion, it won’t take much to find one that’s right for you.
