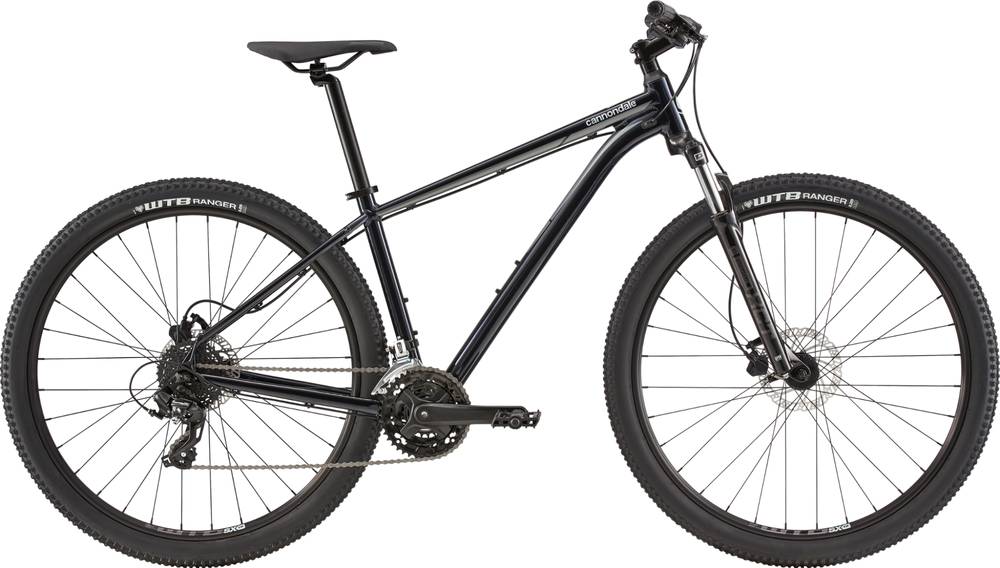

Cannondale Trail 7 2020
2020 Mountain
Estimate price |
560$
Weight | 14.9 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 27.5" / 29" -
Travel Front 100mm -
Fork SunTour XCT
-
Groupset Tourney, Altus -
Suspension Hardtail -
Drivetrain 3 × 8 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
158cm - 167cm
SM
165cm - 173cm
MD
169cm - 180cm
LG
177cm - 186cm
XL
183cm - 191cm
XXL
186cm - 194cm
XS
158cm - 167cm
SM
165cm - 173cm
MD
169cm - 180cm
LG
177cm - 186cm
XL
183cm - 191cm
XXL
186cm - 194cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
All-New, SmartForm C3 Alloy, SAVE, 1-1/8" headtube, post mount disc, StraightShot internal cable routing, BSA-73, SAVE, 1-1/8" headtube, Post mount disc, StraightShot internal cable routing, BSA-73
Suspension Fork
SR Suntour XCT DS, 100mm, Coil, 42mm offset (27.5") 46mm offset (29")
Drivetrain
Rear Derailleur
Shimano TX800
Front Derailleur
Shimano Altus, 34.9 clamp
Shift Levers
Shimano Altus Rapidfire Plus, 3x8
Cassette
Sunrace, 11-34, 8-speed
Crank
Prowheel Alloy, 42/32/22
Bottom Bracket
Sealed Cartridge
Chain
KMC Z72, 8-speed
Pedals
Cannondale Platform
Wheels
Front Hub
Sealed Alloy Disc, QR
Rear Hub
Sealed Alloy Disc, QR
Rims
WTB SX19, 32h
Spokes
Stainless Steel, 14g
Tires
WTB Ranger Comp, 27.5/29 x 2.25", DNA Compound
Brakes
Brakes
Tektro M275 hydro disc, 160/160mm rotors
Brake Levers
Tektro M275 hydro disc
Cockpit
Stem
6061 Alloy, 31.8, 8°
Handlebar
Cannondale Riser, 6061 Alloy, 25mm rise, 8° sweep, 6° rise, 720mm
Grips
Cannondale Dual-Density
Headset
Semi Integrated, 1-1/8"
Seat
Saddle
Cannondale Stage 2
Seatpost
Cannondale 3, 6061 Alloy, 31.6 x 350/400mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL | XXL | XS | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.67 mm | 1.54 mm | 1.48 mm | 1.42 mm | 1.37 mm | 1.33 mm | 1.67 mm | 1.54 mm | 1.48 mm | 1.42 mm | 1.37 mm | 1.33 mm |
| Bottom Bracket Height | 304 mm | 304 mm | 304 mm | 308 mm | 308 mm | 308 mm | 304 mm | 304 mm | 304 mm | 308 mm | 308 mm | 308 mm |
| Front Center | 634 mm | 675 mm | 701 mm | 729 mm | 754 mm | 781 mm | 634 mm | 675 mm | 701 mm | 729 mm | 754 mm | 781 mm |
| Rake | 42 mm | 42 mm | 42 mm | 51 mm | 51 mm | 51 mm | 42 mm | 42 mm | 42 mm | 51 mm | 51 mm | 51 mm |
| Trail | 102 mm | 102 mm | 102 mm | 92 mm | 92 mm | 92 mm | 102 mm | 102 mm | 102 mm | 92 mm | 92 mm | 92 mm |
| Stack | 603 mm | 612 mm | 622 mm | 629 mm | 639 mm | 648 mm | 603 mm | 612 mm | 622 mm | 629 mm | 639 mm | 648 mm |
| Reach | 361 mm | 398 mm | 420 mm | 443 mm | 466 mm | 488 mm | 361 mm | 398 mm | 420 mm | 443 mm | 466 mm | 488 mm |
| Top Tube Length | 541 mm | 581 mm | 606 mm | 631 mm | 656 mm | 681 mm | 541 mm | 581 mm | 606 mm | 631 mm | 656 mm | 681 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 345 mm | 400 mm | 440 mm | 480 mm | 520 mm | 560 mm | 345 mm | 400 mm | 440 mm | 480 mm | 520 mm | 560 mm |
| Head Tube Angle | 68 ° | 68 ° | 68 ° | 68.5 ° | 68.5 ° | 68.5 ° | 68 ° | 68 ° | 68 ° | 68.5 ° | 68.5 ° | 68.5 ° |
| Head Tube Length | 95 mm | 105 mm | 115 mm | 125 mm | 135 mm | 145 mm | 95 mm | 105 mm | 115 mm | 125 mm | 135 mm | 145 mm |
| Chainstay Length | 436 mm | 436 mm | 436 mm | 441 mm | 441 mm | 441 mm | 436 mm | 436 mm | 436 mm | 441 mm | 441 mm | 441 mm |
| Wheelbase | 1063 mm | 1104 mm | 1130 mm | 1162 mm | 1188 mm | 1214 mm | 1063 mm | 1104 mm | 1130 mm | 1162 mm | 1188 mm | 1214 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 65 mm | 65 mm | 65 mm | 60 mm | 60 mm | 60 mm | 65 mm | 65 mm | 65 mm |
| Standover Height | 706 mm | 742 mm | 770 mm | 816 mm | 846 mm | 876 mm | 706 mm | 742 mm | 770 mm | 816 mm | 846 mm | 876 mm |
| Wheels | 27" | 27" | 29" | 29" | 29" | 29" | 27" | 27" | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 165 cm | 169 cm | 177 cm | 183 cm | 186 cm | 158 cm | 165 cm | 169 cm | 177 cm | 183 cm | 186 cm |
| Rider Max Height | 167 cm | 173 cm | 180 cm | 186 cm | 191 cm | 194 cm | 167 cm | 173 cm | 180 cm | 186 cm | 191 cm | 194 cm |
Model Overview
Trail 7 completes the Cannondale Trail model. 240 bikes variations carry this model name so far. You can get a glimpse at all models from 2020, by clicking on this link.
Model range prices
Cannondale Kids Trail 12 Girl’s 2020 is the cheapest bike model and costs 230$. Cannondale Trail 1 2020 is the most expensive one and costs 1850$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Crosscountry bikes
Our math shows that the average cost of a dependable Crosscountry bike is 1905$. However, this doesn’t mean that if you spend less money on a Crosscountry bike, you couldn’t get a decent one. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 560$. Comparing this to the average Crosscountry bike price, we see that the price is 240.18% smaller.
Average weight for Crosscountry bikes
The average weight for Crosscountry bikes is 12.4 kg (27.34 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
much heavier than average, Trail 7 has a weight of 14.9 kg (32.85 lbs). To sum up, it’s 20.16% heavier than the average weight of Crosscountry bikes.
Internal Cable Routing
It’s also important to mention the internal cable routing that this bike has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
Trail 7 components
Fork
The SunTour XCT is included from the factory. It has a travel distance of 100mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels
The wheels on Trail 7 are the 27.5″ aluminum type. These wheels will provide you with more control over the bike. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
Nothing is more important on a bike than its ability to brake properly. Cannondale Trail 7 is equipped with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
Sizes
Trail 7 comes in 12 sizes, that range from 158 cm – 194 cm (5.18 ft – 6.36 ft). In conclusion, it won’t take much to find one that’s right for you.
