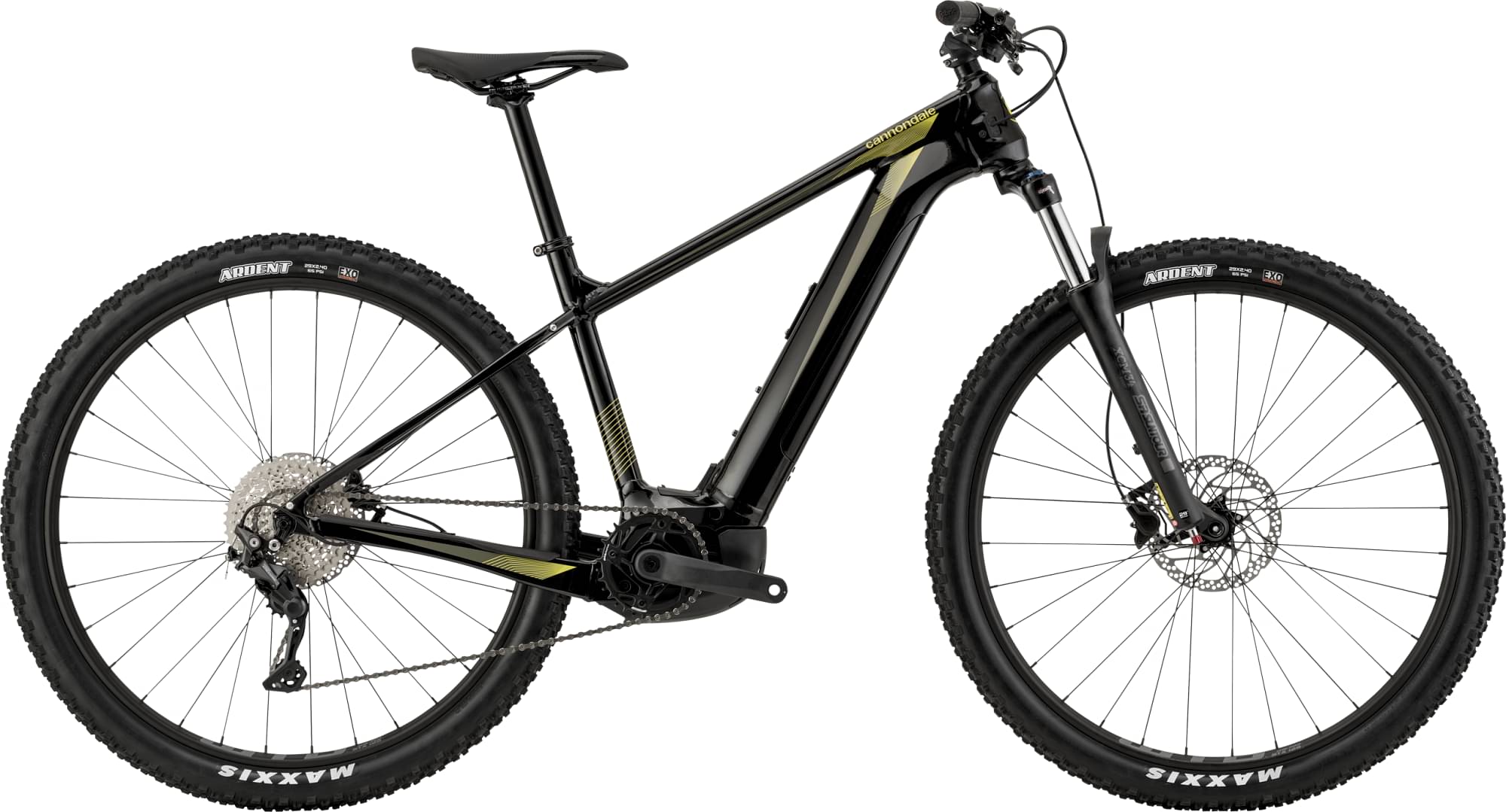

Cannondale Trail Neo 3 2023

2023 E-bike
Estimate price | 4,550$
E-bike
Open compare Use advisor
  • Cannondale Trail Neo 3 2023 - Black
  • Cannondale Trail Neo 3 2023 - cannondale-trail-neo-3-2023-1.jpeg

Bike details

Overview

Key information split into simple groups.

Bike summary

  • Category
  • Frame Aluminum
  • Wheels 29"
  • Travel Front 100mm
  • Fork Suntour XCM
  • Groupset Deore, FSA
  • Suspension Hardtail
  • Motor Bosch 250W 85Nm mid-drive
  • Battery Bosch PowerTube, 500Wh
  • Drivetrain 1 × 10
  • Brakes Hydraulic Disc
Sizing

Recommended size guide.

  • SM

    162cm - 172cm

  • MD

    170cm - 184cm

  • LG

    181cm - 190cm

  • XL

    193cm - 203cm

Parts list

Components

Main components, grouped by system.

Bike components

Frame

Frame

SmartForm C1 Alloy, Dual Battery ready, removable downtube battery, SAVE, tapered headtube, internal cable routing, Ai offset drivetrain, 148x12mm thru-axle, post mount disc, KickFlip hidden kickstand mount, skid plate, rack/fender mounts

Suspension Fork

SR Suntour XCM 34 Boost, 100mm, Coil, 46mm offset

Drivetrain

Rear Derailleur

Shimano Deore M4100

Shift Levers

Shimano Deore M4100, 10-speed

Cassette

Shimano Deore, 11-42, 10-speed

Crank

FSA Bosch E-Bike w/ custom Ai offset, 34T

Bottom Bracket

Cannondale AI, 83mm, press-fit

Chain

Shimano HG54, 10-Speed

Pedals

Not included

Wheels

Front Hub

Shimano MT400, 15x110mm thru-axle

Rear Hub

Shimano MT400, 12x148mm thru-axle

Rims

WTB STX i25 TCS, 32h, tubeless ready

Spokes

DT Swiss Champion

Tires

Maxxis Ardent, 27.5/29x2.4", Wire 60TPI Exo

Brakes

Brakes

Shimano MT200 hydraulic disc, 180mm RT10 rotors

Brake Levers

Shimano MT200 hydraulic disc

Cockpit

Stem

Cannondale 3, 6061 Alloy, 31.8, 0°

Handlebar

Cannondale 3 Riser, 6061 Alloy, 15mm rise, 8° sweep, 4° rise, 780mm

Grips

Fabric Funguy

Headset

Integrated Sealed Bearing, Tapered

Seat

Saddle

Cannondale Ergo XC

Seatpost

Cannondale 4, 6061 Alloy, 31.6x350mm

Motor & Battery

Motor

Bosch Performance Line CX

Battery

Bosch PowerTube, 500Wh

Charger

Bosch 2A

Fit data

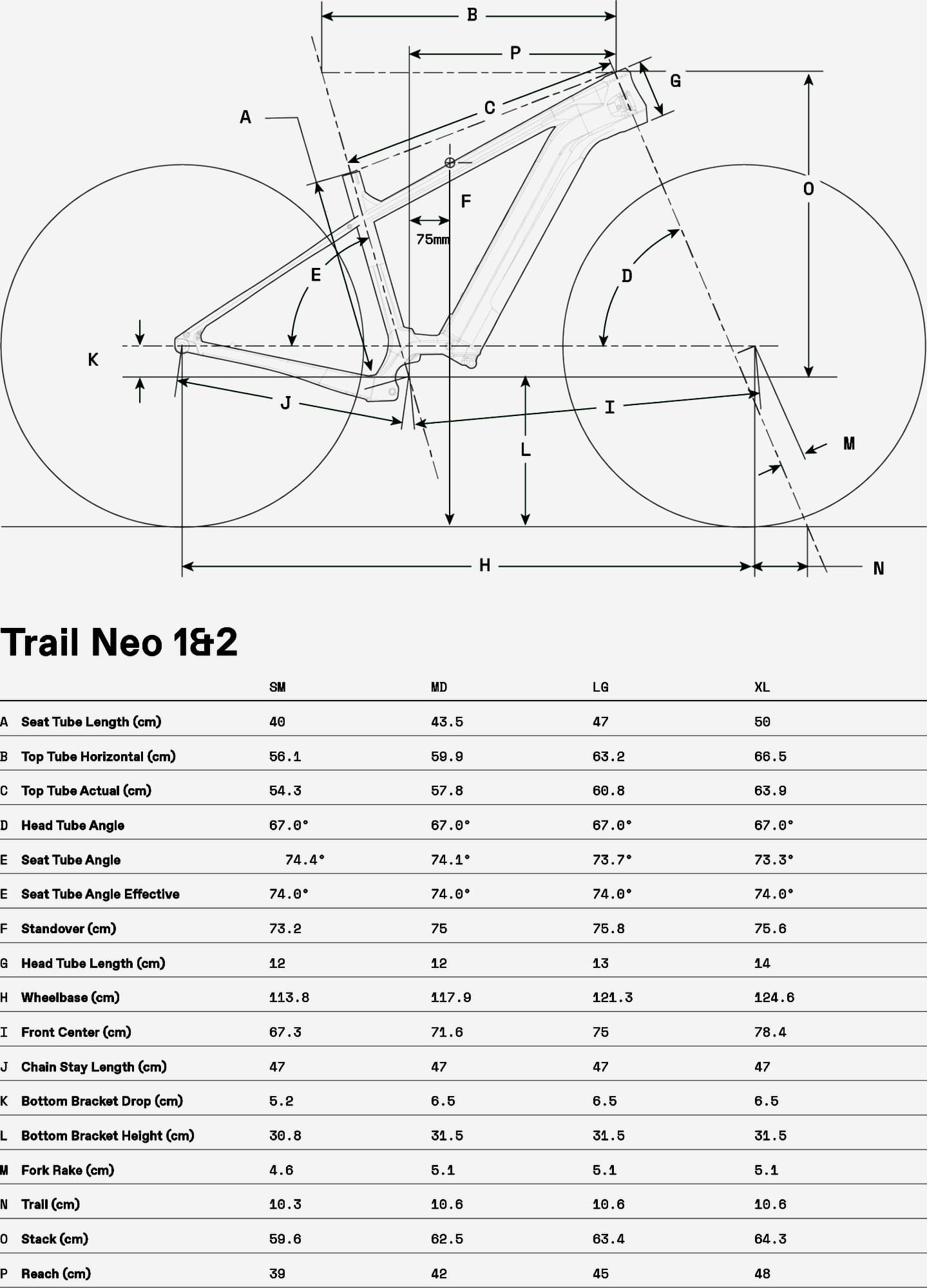

Geometry

Numbers for sizing and ride feel.

SizeSMMDLGXL
Wheels29"29"29"29"
Rider Min Height162 cm170 cm181 cm193 cm
Rider Max Height172 cm184 cm190 cm203 cm

Model Overview

Trail Neo 3 belongs to the Cannondale E Trail model. There are 21 e-bikes that carry this model name. You can easily view all of the Cannondale E Trail e-bikes models from 2023, here.

Model range prices

Cannondale Trail Neo 4 2023 is the most economical model, with a starting price of 3771$. Cannondale Trail Neo 1 2023 on the other hand costs 5231$, and is the most expensive model.

Safety

When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.

Average price for Crosscountry e-bikes

If you want an acceptable Crosscountry e-bike you should know that the average price is 2453$. However, you could also get a good Crosscountry e-bike even if you pay a lower amount than the average price. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.

At the moment of the release date, Cannondale Trail Neo 3 price was 4136$. Comparing this to the average Crosscountry e-bike price, we see that the price is 68.61% more expensive.

Internal Cable Routing

It’s also important to mention the internal cable routing that this e-bike has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.

Overview of components

Fork

This e-bike has the Suntour XCM fork installed. The fork’s travel is 100mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, you should always ensure you have a good fork when purchasing a bike.

Wheels size

The Trail Neo 3 2023 e-bike is equipped with 29″ aluminum wheels when leaving the factory. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.

Brakes

We ride faster and faster, so a good braking system is essential on a bike nowadays. The Trail Neo 3 comes with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.

Sizes

Trail Neo 3 comes in 4 sizes, that range from 162 cm – 203 cm (5.31 ft – 6.66 ft). In short, you can easily find one that suits you.
