Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 29" -
Travel Front 100mm -
Fork Suntour XCM
-
Groupset Acera, Altus -
Suspension Hardtail -
Drivetrain 2 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
137cm - 157cm
SM
154cm - 164cm
MD
161cm - 172cm
LG
170cm - 182cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
All-New, SmartForm C3 Alloy, SAVE, 1-1/8" headtube, post mount disc, StraightShot internal cable routing, BSA-73
Suspension Fork
SR Suntour XCM, 100mm, Coil, 42mm offset (27.5") 46mm offset (29")
Drivetrain
Rear Derailleur
Shimano Acera
Front Derailleur
Shimano Altus, 34.9 clamp
Shift Levers
Shimano Altus, 2x9
Cassette
Sunrace, 11-36, 9-speed
Crank
Shimano MT101, 36/22
Bottom Bracket
Sealed Cartridge
Chain
KMC X9, 9-speed
Pedals
Cannondale Platform
Wheels
Front Hub
Shimano QR
Rear Hub
Shimano QR
Rims
WTB SX19, 32h
Spokes
Stainless Steel, 14g
Tires
Schwalbe Rocket Rick, 27.5/29 x 2.25", K-Guard
Brakes
Brakes
Shimano MT200 hydro disc, 160/160mm RT10 rotors
Brake Levers
Shimano MT200 hydro disc
Cockpit
Stem
6061 Alloy, 31.8, 6°
Handlebar
Cannondale Riser, 6061 Alloy, 25mm rise, 8° sweep, 6° rise, 720mm
Grips
Cannondale Dual-Density
Headset
Semi Integrated, 1-1/8"
Seat
Saddle
Cannondale Stage 3 Women's Ergo
Seatpost
6061 Alloy, 31.6 x 350mm
Fit data

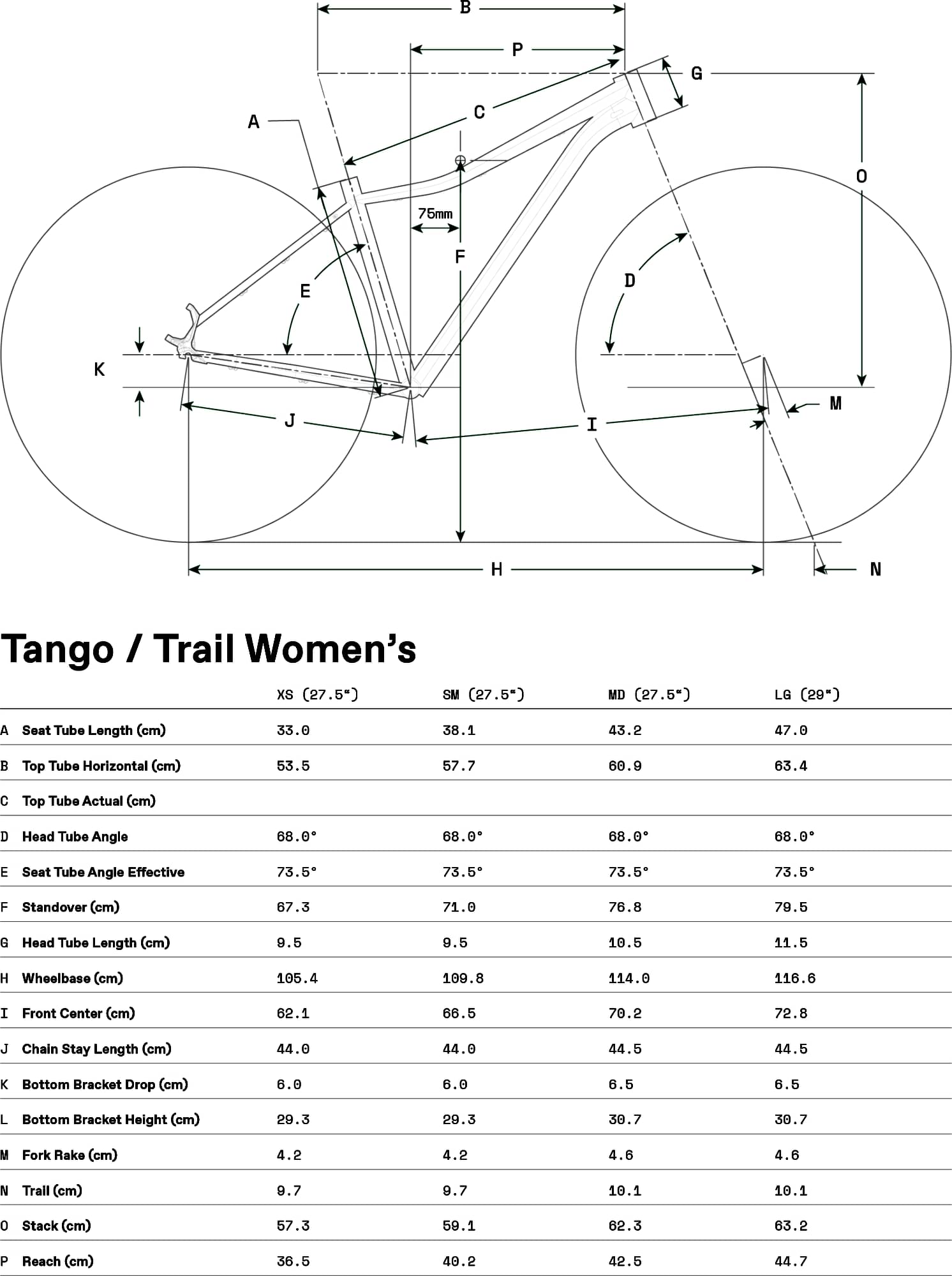

Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG |
|---|---|---|---|---|
| Stack Reach Ratio | 1.57 mm | mm | 1.466 mm | mm |
| Bottom Bracket Height | 293 mm | mm | 307 mm | mm |
| Front Center | 621 mm | mm | 702 mm | mm |
| Rake | 42 mm | mm | 46 mm | mm |
| Trail | 97 mm | mm | 101 mm | mm |
| Stack | 573 mm | mm | 623 mm | mm |
| Reach | 365 mm | mm | 425 mm | mm |
| Top Tube Length | 535 mm | mm | 609 mm | mm |
| Seat Tube Angle | 73.5 ° | ° | 73.5 ° | ° |
| Seat Tube Length | 330 mm | mm | 432 mm | mm |
| Head Tube Angle | 68 ° | ° | 68 ° | ° |
| Head Tube Length | 95 mm | mm | 105 mm | mm |
| Chainstay Length | 440 mm | mm | 445 mm | mm |
| Wheelbase | 1054 mm | mm | 1140 mm | mm |
| Bottom Bracket Drop | 60 mm | mm | 65 mm | mm |
| Standover Height | 673 mm | mm | 768 mm | mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 137 cm | 154 cm | 161 cm | 170 cm |
| Rider Max Height | 157 cm | 164 cm | 172 cm | 182 cm |
Model Overview
Trail Women’s 5 belongs to the Cannondale Trail model. There are 240 bikes that carry this model name. Take a sneak peek at all Cannondale Trail bikes models from 2020, by clicking here.
Model range prices
The most economical model, the Cannondale Kids Trail 12 Girl’s 2020 has a starting price of 230$. Cannondale Trail 1 2020 on the other hand is the most expensive at 1850$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Crosscountry bikes
According to our calculations, the average cost of a Crosscountry bike that is reliable is 1905$. However, you could also get a good Crosscountry bike even if you pay a lower amount than the average price. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Internal Cable Routing
It’s also important to mention the internal cable routing that this bike has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
Trail Women’s 5 components
Fork
The Suntour XCM is included from the factory. It has a travel distance of 100mm. Bike forks are great for shock absorption and provide you with a smooth ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels
When it comes to wheels, the Trail Women’s 5 bike is equipped with the 29″ aluminum model. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, these wheels are not ideal for smaller people.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
Sizes
This bike is available in 4 sizes. They vary from 137 cm – 182 cm (4.49 ft – 5.97 ft). In conclusion, you won’t have a problem finding one that suits you.
