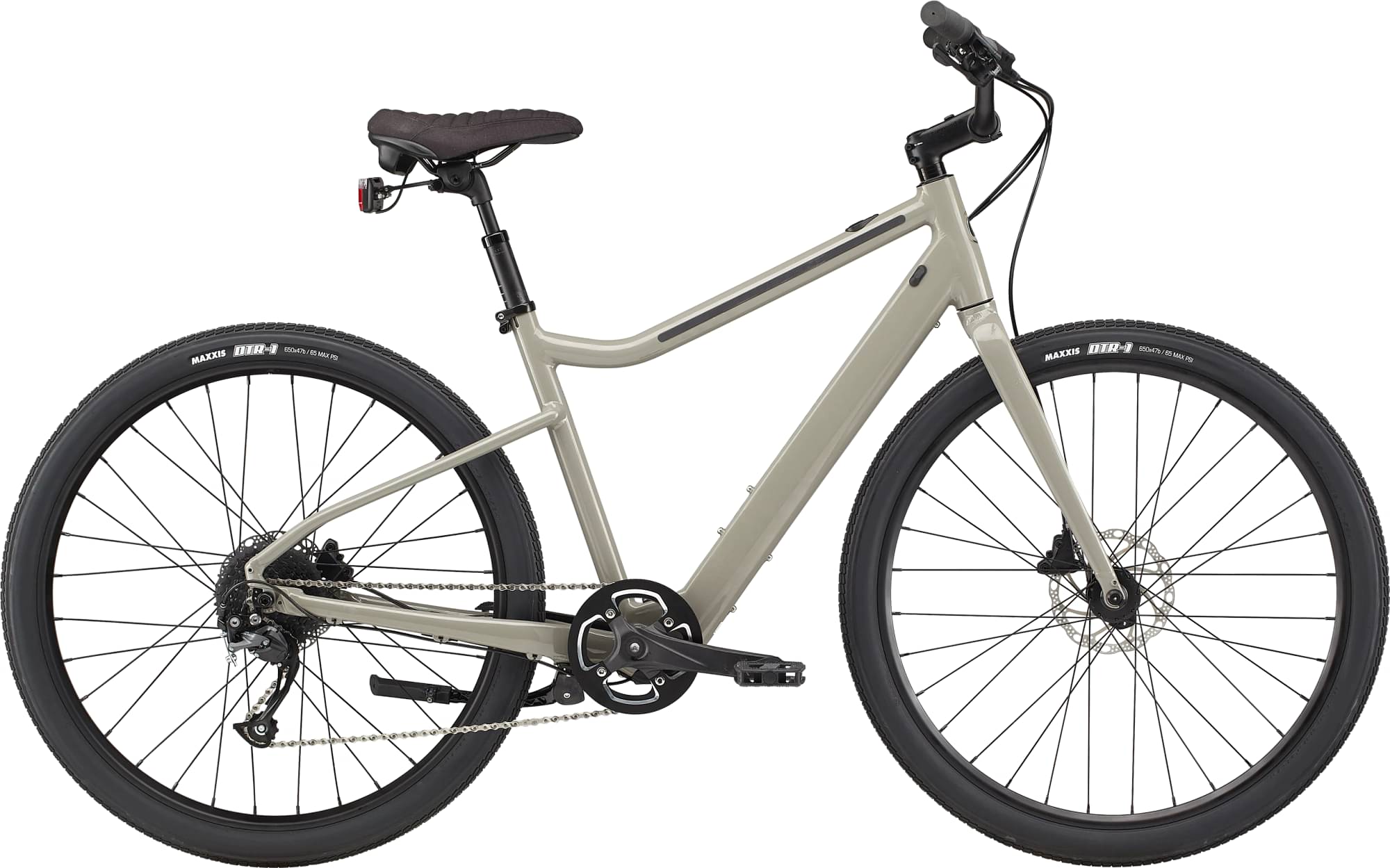

Cannondale Treadwell Neo 2022
2022 E-bike
Estimate price |
2,525$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame aluminium -
Groupset microSHIFT -
Suspension Rigid -
Motor MAHLE 250W 40Nm hub-drive -
Battery Mahle ebikemotion X35 250Wh -
Drivetrain 1 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
149cm - 167cm
MD
162cm - 182cm
LG
177cm - 182cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
SmartForm C3 Alloy, low standover Ride-Easy geometry, internal downtube battery, hidden cable routing, Urban Armor frame bumpers, flat mount disc, rack/fender mounts, kickstand mount
Suspension Fork
SmartForm C3 Alloy blades, 1-1/8" steerer, OutFront offset, flat mount disc, mid-blade rack/fender mounts
Drivetrain
Rear Derailleur
microSHIFT M45S
Shift Levers
microSHIFT M859, 9-speed
Cassette
microSHIFT, 11-36, 9-speed
Crank
Prowheel, 38T
Bottom Bracket
Cartridge, square taper
Chain
KMC E9T, 9-speed
Pedals
Cannondale Comfort
Wheels
Front Hub
Formula, QR
Rear Hub
Formula, QR
Rims
Cannondale Disc, double wall w/eyelet, 32h
Spokes
Stainless Steel, 13g
Tires
Maxxis DTR-1, 650b x 47c
Brakes
Brakes
Tektro HD-R280 hydraulic disc, 160/160mm rotors
Brake Levers
Tektro hydraulic disc
Cockpit
Stem
Cannondale 3 with Intellimount, alloy, 31.8mm clamp
Handlebar
Cannondale Cruise Control riser, 6061 alloy, 31.8mm, 15° back, 740mm
Grips
Cannondale Comfort
Headset
FSA, Alloy, 1-1/8" Ahead, semi-integrated
Seat
Saddle
Cannondale Treadwell, 170mm, steel rails
Seatpost
Promax Suspension Seatpost, 31.6, 40mm
Motor & Battery
Motor
Mahle ebikemotion X35 250W
Battery
Mahle ebikemotion X35 250Wh
Remote
Mahle ebikemotion iWoc ONE integrated controller, iWoc Trio, smartphone app with Intellimount stem
Charger
Mahle ebikemotion X35
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.49 mm | 1.52 mm | 1.56 mm |
| Bottom Bracket Height | 280 mm | 280 mm | 280 mm |
| Front Center | 601 mm | 618 mm | 639 mm |
| Rake | 55 mm | 55 mm | 55 mm |
| Trail | 63 mm | 60 mm | 60 mm |
| Stack | 554 mm | 584 mm | 614 mm |
| Reach | 372 mm | 383 mm | 394 mm |
| Top Tube Length | 561 mm | 583 mm | 604 mm |
| Seat Tube Angle | 71 ° | 71 ° | 71 ° |
| Seat Tube Length | 387 mm | 450 mm | 513 mm |
| Head Tube Angle | 70.5 ° | 71 ° | 71 ° |
| Head Tube Length | 135 mm | 165 mm | 196 mm |
| Chainstay Length | 464 mm | 464 mm | 464 mm |
| Wheelbase | 1058 mm | 1075 mm | 1096 mm |
| Bottom Bracket Drop | 64 mm | 64 mm | 64 mm |
| Standover Height | 669 mm | 713 mm | 751 mm |
| Wheels | 650 | 650 | 650 |
| Rider Min Height | 149 cm | 162 cm | 177 cm |
| Rider Max Height | 167 cm | 182 cm | 182 cm |
About this model
Treadwell Neo is a Cannondale E Treadwell model. There are 24 e-bikes that carry this model name. You can get a glimpse at all models from 2022, by clicking on this link.
Model range prices
Cannondale Treadwell Neo 2 2022 is the cheapest e-bike model and costs 1910$. Cannondale Treadwell Neo EQ Remixte 2022 is the most expensive one and costs 2760$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Hybrid e-bikes average price
According to our calculations, the average cost of a Hybrid e-bike that is reliable is 2480$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Hybrid e-bike. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
Furthermore, this bike was made available in 2022 for 2525$. In conclusion, this e-bike price is 1.81% higher than the price of the average Hybrid e-bike.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
Overview of components
Fork material
When it comes to the fork, this e-bike has an aluminum one, so there won’t be much extra weight added to the e-bike. However, they are not so stiff as carbon forks are.
Wheels
The Treadwell Neo 2022 e-bike is equipped with aluminum wheels when leaving the factory. The 650b wheels are very similar to 700c, with a slight difference in diameter. However, if speed is what you’re after, 700c wheels are a better fit.
Brakes
Nothing is more important on a bike than its ability to brake properly. Cannondale Treadwell Neo is equipped with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
Sizes
This e-bike is available in 3 sizes. They vary from 149 cm – 182 cm (4.89 ft – 5.97 ft). In conclusion, it won’t take much to find one that’s right for you.
