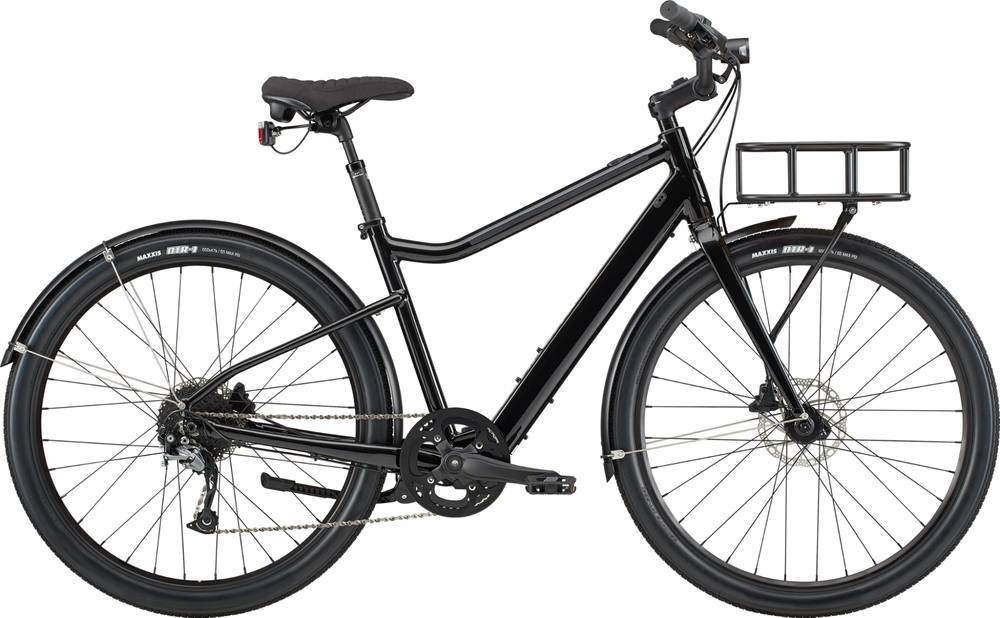

Cannondale Treadwell Neo EQ 2020
2020 E-bike
Estimate price |
2,750$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 650b -
Groupset Alivio, Acera -
Suspension Rigid -
Motor MAHLE 250W 40Nm hub-drive -
Battery MAHLE ebikemotion X35 250Wh -
Drivetrain 1 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
All-New, SmartForm C3 Alloy, low standover Ride-Easy geometry, internal downtube battery, hidden cable routing, Urban Armor frame bumpers, flat mount disc, rack/fender mounts, kickstand mount, Low standover Ride-Easy geometry, Internal downtube battery, Hidden cable routing, Urban Armor frame bumpers, Flat mount disc, Rack/fender mounts, Kickstand mount
Suspension Fork
All-New, SmartForm C3 Alloy blades, 1-1/8" steerer, OutFront offset, flat mount disc, mid-blade rack/fender mounts
Drivetrain
Rear Derailleur
Shimano Alivio
Shift Levers
Shimano Acera, 9-speed
Cassette
Sunrace, 11-36, 9-speed
Crank
Prowheel, 42T
Bottom Bracket
Cartridge Sealed
Chain
KMC E9T, 9-speed
Pedals
Cannondale Comfort
Wheels
Front Hub
Sealed Alloy Disc, 12x100
Rear Hub
MAHLE ebikemotion X35 250W
Rims
Shining, 32 hole
Spokes
Stainless Steel, 14g
Tires
Maxxis DTR-1, 650b x 47c
Brakes
Brakes
Tektro HD-R280 hydraulic disc, 160/140mm rotors
Brake Levers
Tektro hydro disc
Cockpit
Stem
Cannondale 3 with Intellimount, alloy, 31.8mm clamp
Handlebar
Cannondale Cruise Control riser, 6061 alloy, 31.8mm clamp, 15 degree backsweep, 740mm width
Grips
Cannondale Comfort
Headset
FSA, Alloy, 1-1/8" Ahead, semi-integrated
Seat
Saddle
Cannondale Treadwell, 170mm, steel rails
Seatpost
Promax Suspension Seatpost, 31.6, 40mm
Motor & Battery
Motor
MAHLE ebikemotion X35 250W
Battery
MAHLE ebikemotion X35 250Wh
Remote
MAHLE ebikemotion iWoc ONE
Charger
MAHLE ebikemotion X35
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.49 mm | 1.52 mm | 1.56 mm |
| Bottom Bracket Height | 280 mm | 280 mm | 280 mm |
| Front Center | 601 mm | 618 mm | 639 mm |
| Rake | 55 mm | 55 mm | 55 mm |
| Trail | 63 mm | 60 mm | 60 mm |
| Stack | 554 mm | 584 mm | 614 mm |
| Reach | 372 mm | 383 mm | 394 mm |
| Top Tube Length | 561 mm | 583 mm | 604 mm |
| Seat Tube Angle | 71 ° | 71 ° | 71 ° |
| Seat Tube Length | 387 mm | 450 mm | 513 mm |
| Head Tube Angle | 70.5 ° | 71 ° | 71 ° |
| Head Tube Length | 135 mm | 165 mm | 196 mm |
| Chainstay Length | 464 mm | 464 mm | 464 mm |
| Wheelbase | 1058 mm | 1075 mm | 1096 mm |
| Bottom Bracket Drop | 64 mm | 64 mm | 64 mm |
| Standover Height | 669 mm | 713 mm | 751 mm |
| Wheels | 650 | 650 | 650 |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
About this model
Treadwell Neo EQ is part of the Cannondale E Treadwell model. There are 24 e-bikes that carry this model name. Check out the entire range from 2020 of this model, by clicking this link.
Model range prices
Cannondale Treadwell Neo Remixte 2020 is the cheapest e-bike model and costs 1952$. Cannondale Treadwell Neo EQ 2020 is the most expensive one and costs 2750$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Hybrid e-bikes
If you want an acceptable Hybrid e-bike you should know that the average price is 2480$. However, even if your budget is less than the average, you might still be able to get a top-quality Hybrid e-bike. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
Furthermore, this bike was made available in 2020 for 2750$. In conclusion, this e-bike price is 10.89% more expensive than the price of the average Hybrid e-bike.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
Overview of components
Fork material
When it comes to the fork, this e-bike has an aluminum one, which is a lighter material. However, it is not as tough, nor durable as steel is.
Wheels size
When leaving the production line, the Treadwell Neo EQ model has aluminum wheels. The 650b wheels are very similar to 700c, with a slight difference in diameter. However, if speed is what you’re after, 700c wheels are a better fit.
Brakes
When you want to stop the bike in time, the brakes are vital. The Treadwell Neo EQ has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
Sizes
This e-bike is available in 3 sizes. They vary from 158 cm – 187 cm (5.18 ft – 6.14 ft). In short, it won’t be difficult to find the right one for you.
