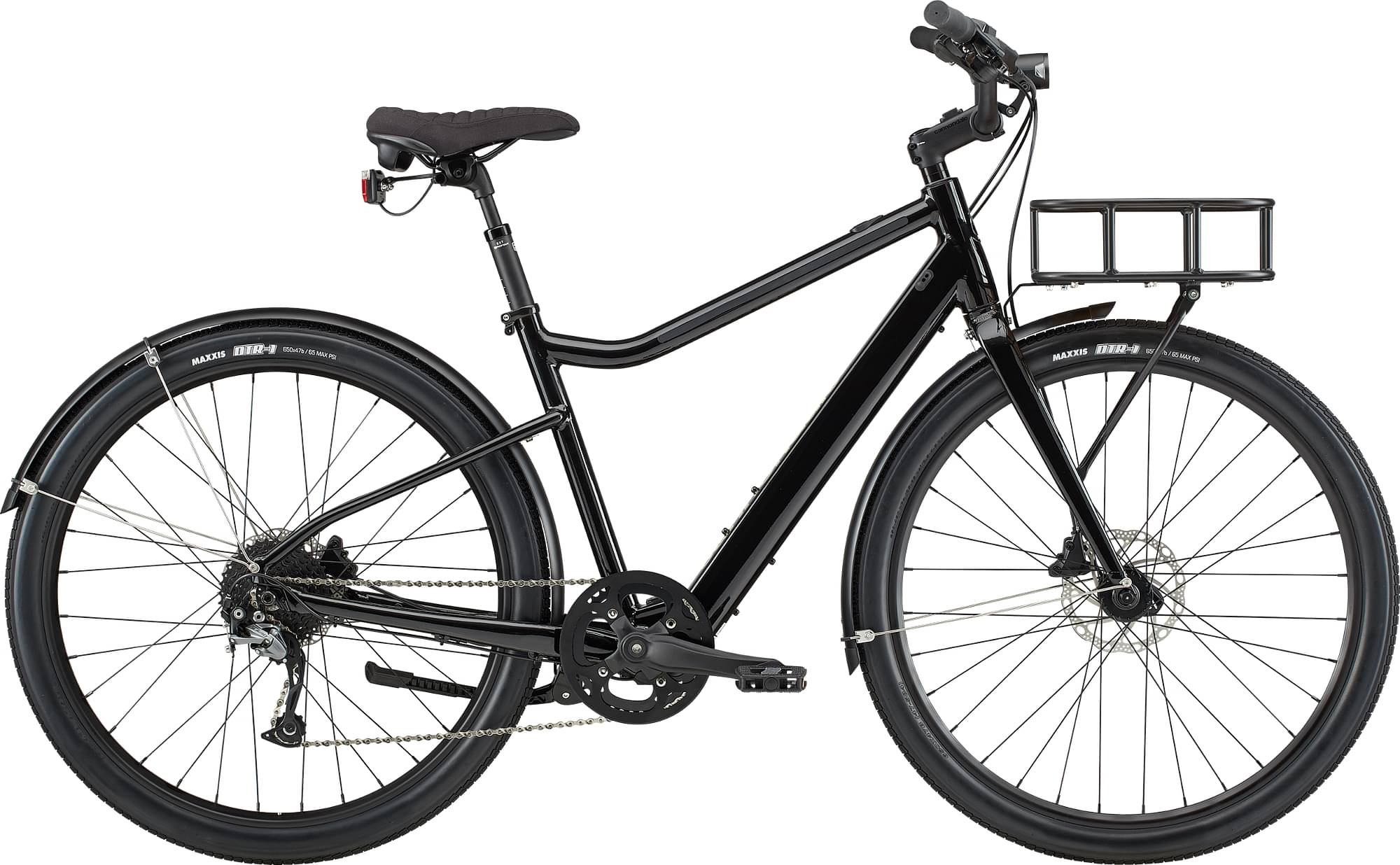

Cannondale Treadwell Neo EQ 2022
2022 E-bike
Estimate price |
2,981$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame aluminium -
Groupset microSHIFT -
Suspension Rigid -
Motor MAHLE 250W 40Nm hub-drive -
Battery Mahle ebikemotion X35 250Wh -
Drivetrain 1 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
149cm - 167cm
MD
162cm - 182cm
LG
177cm - 182cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
SmartForm C3 Alloy, low standover Ride-Easy geometry, internal downtube battery, hidden cable routing, Urban Armor frame bumpers, flat mount disc, rack/fender mounts, kickstand mount
Suspension Fork
SmartForm C3 Alloy blades, 1-1/8" steerer, OutFront offset, flat mount disc, mid-blade rack/fender mounts
Drivetrain
Rear Derailleur
microSHIFT M45S
Shift Levers
microSHIFT M859, 9-speed
Cassette
microSHIFT, 11-36, 9-speed
Crank
Prowheel, 38T
Bottom Bracket
Cartridge, sealed
Chain
KMC E9T, 9-speed
Pedals
Cannondale Comfort
Wheels
Front Hub
Sealed Alloy Disc, 12x100
Rear Hub
MAHLE ebikemotion X35 250W
Rims
Cannondale Disc, double wall w/eyelet, 32h
Spokes
Stainless Steel, 14g
Tires
Maxxis DTR-1, 650b x 47c
Brakes
Brakes
Tektro HD-R280 hydraulic disc, 160/140mm rotors
Brake Levers
Tektro hydraulic disc
Cockpit
Stem
Cannondale 3 with Intellimount with high direct light mount, Alloy, 31.8mm clamp
Handlebar
Cannondale Cruise Control riser, 6061 Alloy, 31.8mm, 15° back, 740mm
Grips
Cannondale Comfort
Headset
FSA, Alloy, 1-1/8" Ahead, semi-integrated
Seat
Saddle
Cannondale Treadwell, 170mm, steel rails
Seatpost
Promax Suspension Seatpost, 31.6, 40mm
Motor & Battery
Motor
Mahle ebikemotion X35 250W
Battery
Mahle ebikemotion X35 250Wh
Remote
Mahle ebikemotion iWoc ONE integrated controller, iWoc Trio, smartphone app with Intellimount stem
Charger
Mahle ebikemotion X35
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.49 mm | 1.52 mm | 1.56 mm |
| Bottom Bracket Height | 280 mm | 280 mm | 280 mm |
| Front Center | 601 mm | 618 mm | 639 mm |
| Rake | 55 mm | 55 mm | 55 mm |
| Trail | 63 mm | 60 mm | 60 mm |
| Stack | 554 mm | 584 mm | 614 mm |
| Reach | 372 mm | 383 mm | 394 mm |
| Top Tube Length | 561 mm | 583 mm | 604 mm |
| Seat Tube Angle | 71 ° | 71 ° | 71 ° |
| Seat Tube Length | 387 mm | 450 mm | 513 mm |
| Head Tube Angle | 70.5 ° | 71 ° | 71 ° |
| Head Tube Length | 135 mm | 165 mm | 196 mm |
| Chainstay Length | 464 mm | 464 mm | 464 mm |
| Wheelbase | 1058 mm | 1075 mm | 1096 mm |
| Bottom Bracket Drop | 64 mm | 64 mm | 64 mm |
| Standover Height | 669 mm | 713 mm | 751 mm |
| Wheels | 650 | 650 | 650 |
| Rider Min Height | 149 cm | 162 cm | 177 cm |
| Rider Max Height | 167 cm | 182 cm | 182 cm |
About this model
Treadwell Neo EQ is a Cannondale E Treadwell model. Cannondale launched 24 e-bikes of this model so far. You can get a glimpse at all models from 2022, by clicking on this link.
Model range prices
Cannondale Treadwell Neo 2 2022 is the most economical model, with a starting price of 1910$. Cannondale Treadwell Neo EQ Remixte 2022 on the other hand costs 2760$, and is the most expensive model.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Hybrid e-bikes average price
Our math shows that the average cost of a dependable Hybrid e-bike is 2480$. However, even though the average price of a Hybrid e-bike is lower, you might still be able to get a top-quality e-bike. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
This e-bike was released in 2022 and its price was 2760$. In conclusion, this e-bike price is 11.29% higher than the price of the average Hybrid e-bike.
Internal Cable Routing
It’s also important to mention the internal cable routing that this e-bike has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
Treadwell Neo EQ components
Fork material
The fork on this e-bike is made out of aluminum, so there won’t be much extra weight added to the e-bike. However, they are not so stiff as carbon forks are.
Wheels size
When it comes to wheels, the Treadwell Neo EQ e-bike is equipped with the aluminum model. 650b wheels make a great choice if you want to sacrifice speed for comfort. However, if you want higher speeds, you should look for a bike with 700c wheels.
Brakes
When you want to stop the bike in time, the brakes are vital. The Treadwell Neo EQ has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
Sizes
Treadwell Neo EQ comes in 3 sizes, that range from 149 cm – 182 cm (4.89 ft – 5.97 ft). In conclusion, it won’t take much to find one that’s right for you.
