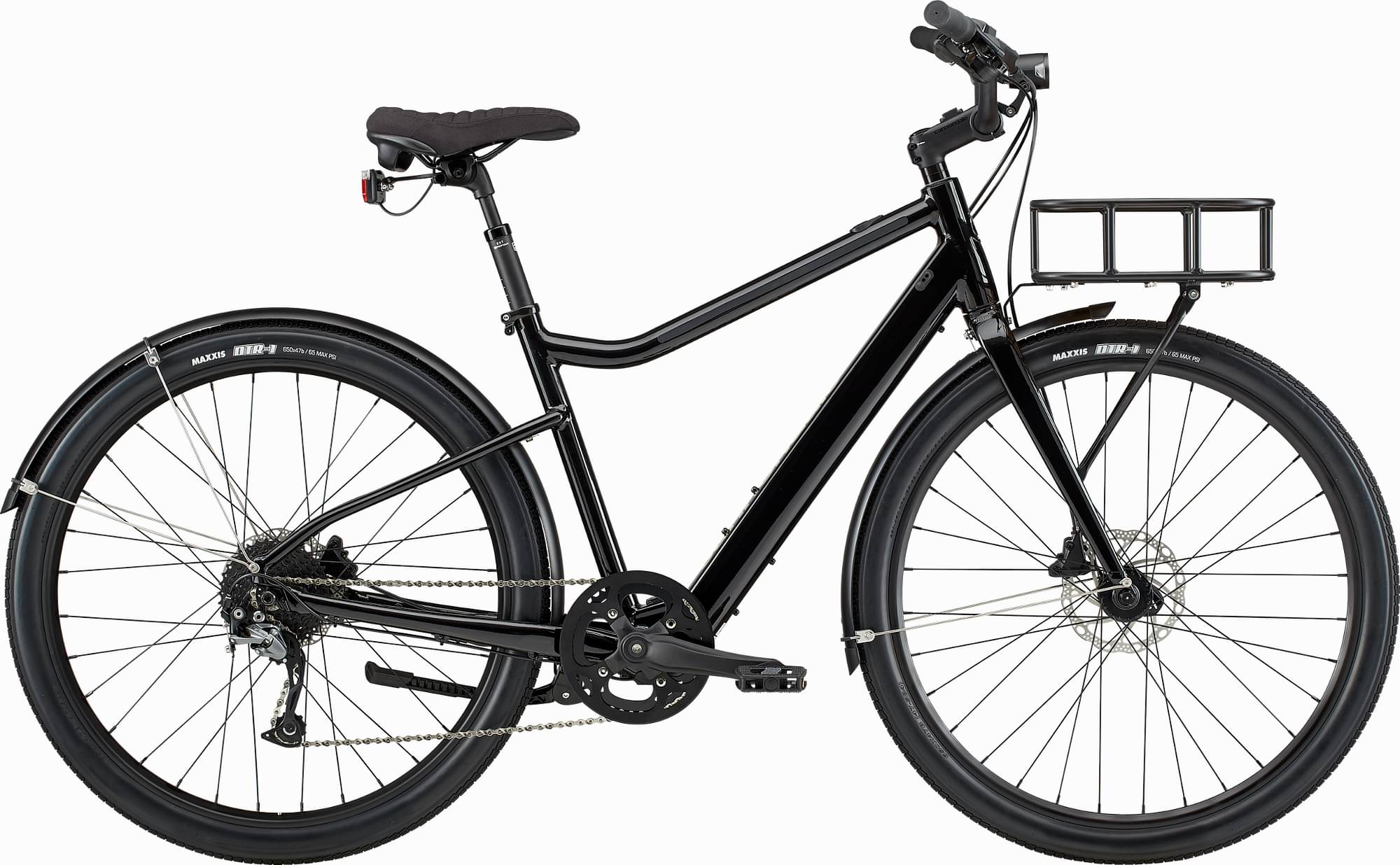

Cannondale Treadwell Neo EQ 2023
2023 E-bike
Estimate price |
3,212$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Groupset microSHIFT Marvo -
Suspension Rigid -
Motor MAHLE 250W hub-drive -
Battery Mahle X35, 250Wh -
Drivetrain 1 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
149cm - 167cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
SmartForm C3 Alloy, low standover Ride-Easy geometry, internal downtube battery, hidden cable routing, Urban Armor frame bumpers, flat mount disc, rack/fender mounts, kickstand mount
Suspension Fork
SmartForm C3 Alloy blades, 1-1/8" steerer, OutFront offset, flat mount disc, mid-blade rack/fender mounts
Drivetrain
Rear Derailleur
microSHIFT M45S
Shift Levers
microSHIFT M859, 9-speed
Cassette
microSHIFT, 11-36, 9-speed
Crank
Prowheel, 38T
Bottom Bracket
Cartridge, sealed
Chain
KMC E9T, 9-speed
Pedals
Cannondale Comfort
Wheels
Front Hub
Sealed Alloy Disc, 12x100mm
Rear Hub
Mahle X35 250W
Rims
Cannondale Disc, double wall w/eyelet, 32h
Spokes
Stainless Steel, 14g
Tires
Maxxis DTR-1, 650bx47c
Brakes
Brakes
Tektro HD-R280 hydraulic disc, 160/140mm rotors
Brake Levers
Tektro hydraulic disc
Cockpit
Stem
Cannondale 3 with Intellimount with high direct light mount, Alloy, 31.8mm clamp
Handlebar
Cannondale Cruise Control riser, 6061 Alloy, 31.8mm, 15° back, 740mm
Grips
Cannondale Comfort
Headset
FSA, Alloy, 1-1/8" Ahead, semi-integrated
Seat
Saddle
Cannondale Treadwell, 170mm, steel rails
Seatpost
Promax Suspension Seatpost, 31.6, 40mm
Motor & Battery
Motor
Mahle X35 250W
Battery
Mahle X35, 250Wh
Charger
Mahle X35
Fit data

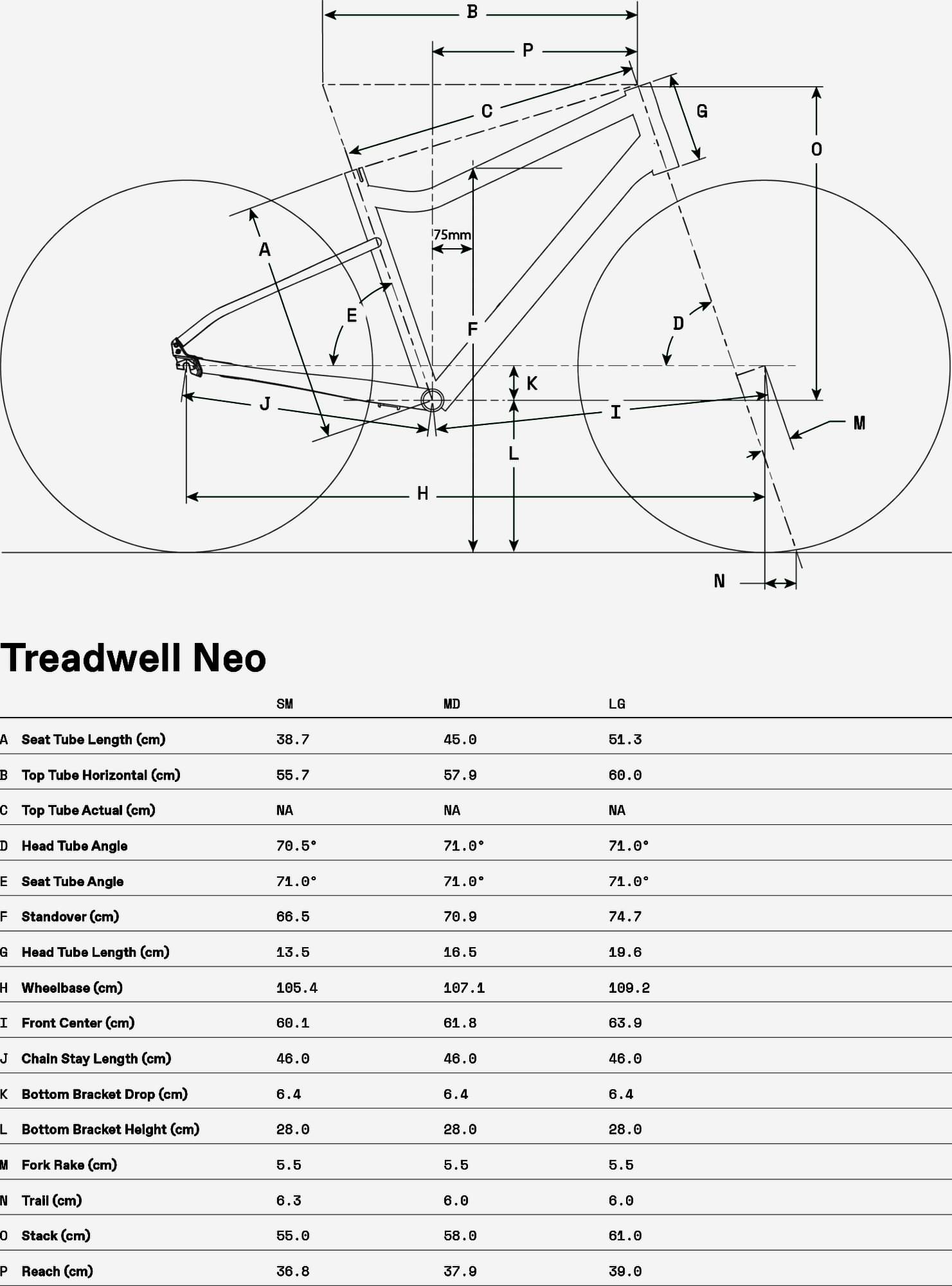

Geometry
Numbers for sizing and ride feel.
| Size | SM |
|---|---|
| Stack Reach Ratio | 1.49 mm |
| Bottom Bracket Height | 280 mm |
| Front Center | 601 mm |
| Rake | 55 mm |
| Trail | 63 mm |
| Stack | 554 mm |
| Reach | 372 mm |
| Top Tube Length | 561 mm |
| Seat Tube Angle | 71 ° |
| Seat Tube Length | 387 mm |
| Head Tube Angle | 70.5 ° |
| Head Tube Length | 135 mm |
| Chainstay Length | 464 mm |
| Wheelbase | 1058 mm |
| Bottom Bracket Drop | 64 mm |
| Standover Height | 669 mm |
| Wheels | 650 |
| Rider Min Height | 149 cm |
| Rider Max Height | 167 cm |
About this model
Treadwell Neo EQ belongs to the Cannondale E Treadwell model. 24 e-bikes variations carry this model name so far. Take a sneak peek at all Cannondale E Treadwell e-bikes models from 2023, by clicking here.
Model range prices
The most economical model, the Cannondale Treadwell Neo 2 Remixte 2023 has a starting price of 1925$. Cannondale Treadwell Neo EQ 2023 on the other hand is the most expensive at 2919$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Hybrid e-bikes
According to our math, the average price for a trustworthy Hybrid e-bike is 2480$. However, even though the average price of a Hybrid e-bike is lower, you might still be able to get a top-quality e-bike. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
Furthermore, this bike was made available in 2023 for 2919$. Comparing this to the average Hybrid e-bike price, we see that the price is 17.7% higher.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
Treadwell Neo EQ components
Fork material
The fork is made out of aluminum, which doesn’t add too much extra weight to the e-bike. However, it is not so stiff as steel or carbon forks are.
Wheels size
The Treadwell Neo EQ 2023 e-bike is equipped with aluminum wheels when leaving the factory. 650b wheels make a great choice if you want to sacrifice speed for comfort. However, they don’t perform so well when you go over bumps and obstacles.
Brakes
For your safety, it is important to have quality breaks on your bike. Cannondale Treadwell Neo EQ has Hydraulic Disc brakes installed. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
Sizes
Cannondale Treadwell Neo EQ 2023 is available in one size only. In short, make sure you double-check if it fits you.
