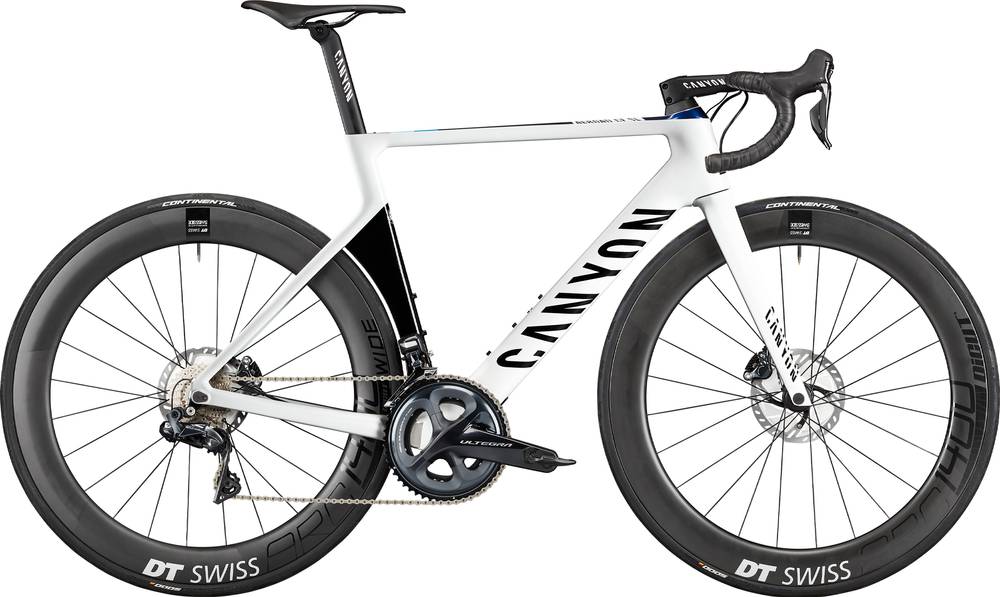

Canyon Aeroad CF SL Disc 8.0 AF 2020
2020 Road
Estimate price |
5,499$
Weight | 7.5 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Ultegra Di2 -
Suspension Rigid -
Drivetrain 2 × 11 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
165cm - 173cm
SM
171cm - 179cm
MD
177cm - 185cm
LG
183cm - 190cm
XL
188cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Canyon Aeroad CF SL Disc
Suspension Fork
Canyon FK0041 Disc
Drivetrain
Rear Derailleur
Shimano Ultegra Di2 R8050 SS
Front Derailleur
Shimano Ultegra Di2 R8050
Shift Levers
Shimano Ultegra Di2 R8070 2s | Shimano Ultegra Di2 R8070 11s
Cassette
Shimano Ultegra R8000 11-28 11s
Crank
Shimano Ultegra R8000 52/36
Bottom Bracket
Shimano Pressfit BB72
Pedals
None included
Wheels
Rims
DT Swiss ARC 1400 Dicut db, Rim Material: Carbon, Rim Height: 62 mm, Inner Width: 17 mm, Weight: 778 g | DT Swiss ARC 1400 dict Wide, Rim Material: Carbon, Rim Height: 62 mm, Inner Width: 17 mm, Weight: 895 g
Tires
Continental Grand Prix Attack 23 mm, Casing: Vectran Breaker, Compound: BlackChili, Technology: Foldable | Continental Grand Prix 5000 / Attack 25 mm, Aeroad & Speedmax: Continental Grand Prix Force, Ultimate: Continental Grand Prix 4000 S II
Brakes
Brake Levers
Shimano Ultegra Di2 R8070 2s | Shimano Ultegra Di2 R8070 11s
Disk Rotors
Shimano RT800, Disc Mount: Centerlock
Seat
Saddle
Selle Italia SLR
Seatpost
Canyon S27 Aero VCLS CF, Material: Carbon, Setback: -1 mm / 15 mm, Technology: VCLS | Fliphead
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XXS | XS | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.36 mm | 1.35 mm | 1.36 mm | 1.38 mm | 1.41 mm | 1.42 mm | 1.44 mm |
| Bottom Bracket Height | 266 mm | 266 mm | 266 mm | 266 mm | 266 mm | 266 mm | 266 mm |
| Front Center | 570 mm | 573 mm | 582 mm | 589 mm | 601 mm | 621 mm | 633 mm |
| Rake | 42 mm | 41 mm | 41 mm | 42 mm | 42 mm | 41 mm | 41 mm |
| Trail | 81 mm | 71 mm | 61 mm | 57 mm | 57 mm | 58 mm | 58 mm |
| Stack | 496 mm | 511 mm | 535 mm | 552 mm | 572 mm | 594 mm | 614 mm |
| Reach | 365 mm | 378 mm | 393 mm | 399 mm | 405 mm | 419 mm | 425 mm |
| Top Tube Length | 511 mm | 529 mm | 551 mm | 562 mm | 574 mm | 594 mm | 606 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73.25 ° | 73.25 ° | 73.25 ° | 73.25 ° |
| Seat Tube Length | 470 mm | 489 mm | 508 mm | 531 mm | 551 mm | 568 mm | 587 mm |
| Head Tube Angle | 69.5 ° | 71.2 ° | 72.75 ° | 73.25 ° | 73.25 ° | 73.25 ° | 73.25 ° |
| Head Tube Length | 100 mm | 110 mm | 130 mm | 146 mm | 167 mm | 190 mm | 210 mm |
| Chainstay Length | 417 mm | 417 mm | 417 mm | 417 mm | 417 mm | 417 mm | 417 mm |
| Wheelbase | 977 mm | 980 mm | 989 mm | 996 mm | 1008 mm | 1028 mm | 1040 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm |
| Standover Height | 742 mm | 742 mm | 783 mm | 800 mm | 820 mm | 842 mm | 863 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Max Height | 167 cm | 173 cm | 179 cm | 185 cm | 190 cm | 195 cm | cm |
About this model
Aeroad CF SL Disc 8.0 AF belongs to the Canyon Aeroad model. 92 bikes variations carry this model name so far. You can easily view all of the Canyon Aeroad bikes models from 2020, here.
Model range prices
Canyon Aeroad CF SL 7.0 2020 is the cheapest bike model and costs 2999$. Canyon Aeroad CF SLX Disc 9.0 SL 2020 is the most expensive one and costs 8500$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Aero bikes
If you want to purchase a solid Aero bike, it is important to know that the average cost is 4211$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Aero bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 5499$. Comparing the average cost of an Aero bike to this one, you will see that Aeroad CF SL Disc 8.0 AF price is 30.59% more expensive.
Aero bikes average weight
If we make a quick analysis of the average weight of an Aero bike, we get 7.34 kg (16.18 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
With a weight of 7.5 kg (16.53 lbs), Canyon bike is slightly heavier than average. In short, the average Aero bike weight is 2.18% lower than this one.
Aeroad CF SL Disc 8.0 AF components
Fork material
When it comes to the fork, this bike has a carbon one, so, it’s a great addition to the bike’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Wheels
As for the wheels, Canyon Aeroad CF SL Disc 8.0 AF 2020, has a 700c carbon model. These wheels are the most used kind for road bikes in general. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Nothing is more important on a bike than its ability to brake properly. Canyon Aeroad CF SL Disc 8.0 AF is equipped with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
