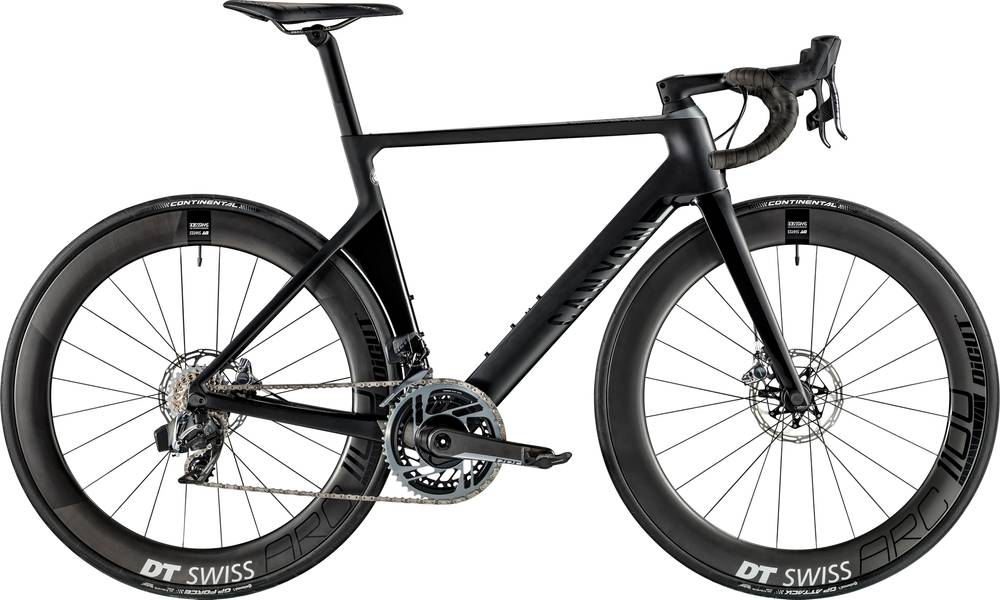

Canyon Aeroad CF SLX Disc 9.0 SL 2019
2019 Road
Estimate price |
8,500$
Weight | 7.2 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset RED eTAP -
Suspension Rigid -
Drivetrain 2 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XXS
157cm - 167cm
XS
165cm - 173cm
SM
171cm - 179cm
MD
177cm - 185cm
LG
183cm - 190cm
XL
188cm - 195cm
XXL
193cm - 204cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Canyon Aeroad CF SLX Disc, Material: Carbon, Axle Dimension: 12 x 142 mm, Brake Mount: Flat Mount
Suspension Fork
Canyon FK0041 CF SLX Disc, Material: Carbon, Steerer: 1 1/4", Axle Dimension: 12 x 100 mm, Brake Mount: Flat Mount
Drivetrain
Rear Derailleur
SRAM RED eTap AXS
Front Derailleur
SRAM RED eTap AXS
Shift Levers
SRAM RED eTap AXS HRD 2s | SRAM RED eTap AXS HRD 12s
Cassette
SRAM RED XG-1290 10-28 12s
Crank
SRAM RED D1, 50/37
Bottom Bracket
SRAM Pressfit RED DUB
Chain
SRAM Red eTap next gen
Pedals
None included
Wheels
Rims
DT Swiss ARC 1100 Dicut db, Rim Material: Carbon, Rim Height: 62 mm, Inner Width: 17 mm, Weight: 742 g | DT Swiss ARC 1100 Dicut db XD-R, Rim Material: Carbon, Rim Height: 62 mm, Inner Width: 17 mm, Weight: 867 g
Tires
Continental Grand Prix Attack 23 mm, Casing: Vectran Breaker, Compound: BlackChili, Technology: Foldable | Continental Grand Prix 5000 / Attack 25 mm, Aeroad & Speedmax: Continental Grand Prix Force, Ultimate: Continental Grand Prix 4000 S II
Brakes
Brake Levers
SRAM RED eTap AXS HRD 2s | SRAM RED eTap AXS HRD 12s
Disk Rotors
SRAM Centerline X Rounded Edges, Disc Mount: Centerlock
Cockpit
Headset
Canyon | Acros
Seat
Saddle
Fizik Arione R3
Seatpost
Canyon S27 VCLS CF Seatpost, Trident shape specific to Canyon Aeroad, Full carbon material, Allows for setback adjustments between 15 and -1 mm, 1 x S27 VCLS CF seatpost
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XXS | XS | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.36 mm | 1.35 mm | 1.36 mm | 1.38 mm | 1.41 mm | 1.42 mm | 1.44 mm |
| Bottom Bracket Height | 266 mm | 266 mm | 266 mm | 266 mm | 266 mm | 266 mm | 266 mm |
| Front Center | 570 mm | 573 mm | 582 mm | 589 mm | 601 mm | 621 mm | 633 mm |
| Rake | 42 mm | 41 mm | 42 mm | 42 mm | 42 mm | 42 mm | 42 mm |
| Trail | 81 mm | 71 mm | 60 mm | 57 mm | 57 mm | 57 mm | 57 mm |
| Stack | 496 mm | 511 mm | 535 mm | 552 mm | 572 mm | 594 mm | 614 mm |
| Reach | 365 mm | 378 mm | 393 mm | 399 mm | 405 mm | 419 mm | 425 mm |
| Top Tube Length | 511 mm | 529 mm | 551 mm | 562 mm | 574 mm | 594 mm | 606 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 470 mm | 489 mm | 508 mm | 531 mm | 551 mm | 568 mm | 587 mm |
| Head Tube Angle | 69.5 ° | 71.2 ° | 72.8 ° | 73.3 ° | 73.3 ° | 73.3 ° | 73.3 ° |
| Head Tube Length | 100 mm | 110 mm | 130 mm | 146 mm | 167 mm | 190 mm | 210 mm |
| Chainstay Length | 417 mm | 417 mm | 417 mm | 417 mm | 417 mm | 417 mm | 417 mm |
| Wheelbase | 977 mm | 980 mm | 989 mm | 996 mm | 1008 mm | 1028 mm | 1040 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm |
| Standover Height | 742 mm | 760 mm | 783 mm | 800 mm | 820 mm | 842 mm | 863 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 157 cm | 165 cm | 171 cm | 177 cm | 183 cm | 188 cm | 193 cm |
| Rider Max Height | 167 cm | 173 cm | 179 cm | 185 cm | 190 cm | 195 cm | 204 cm |
About this model
Aeroad CF SLX Disc 9.0 SL belongs to the Canyon Aeroad model. There are 92 bikes that carry this model name. Check out the entire range from 2019 of this model, by clicking this link.
Model range prices
The most economical model, the Canyon Aeroad CF SL 7 2019 has a starting price of 2791$. Canyon Aeroad CF SLX Disc 9.0 SL 2019 on the other hand is the most expensive at 8500$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Aero bikes average price
If you want to purchase a solid Aero bike, it is important to know that the average cost is 4211$. However, even though the average price of an Aero bike is lower, you might still be able to get a top-quality bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
At the moment of the release date, Canyon Aeroad CF SLX Disc 9.0 SL price was 8500$. In conclusion, this bike price is 101.85% higher than the price of the average Aero bike.
Average weight for Aero bikes
On a deeper look, we notice that the average weight of an Aero bike is 7.34 kg (16.18 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
Weighing 7.2 kg (15.87 lbs), the Aeroad CF SLX Disc 9.0 SL model is slightly lighter than average. In other words, this model is 1.94% lighter than the average Aero bike.
Aeroad CF SLX Disc 9.0 SL components
Fork material
Aeroad CF SLX Disc 9.0 SL has a carbon fork, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels size
When leaving the production line, the Aeroad CF SLX Disc 9.0 SL model has 700c carbon wheels. These wheels are the most used kind for road bikes in general. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Nothing is more important on a bike than its ability to brake properly. Canyon Aeroad CF SLX Disc 9.0 SL is equipped with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
Sizes
This bike is available in 7 sizes. They vary from 157 cm – 204 cm (5.15 ft – 6.69 ft). In conclusion, finding one for you shouldn’t be a problem.
