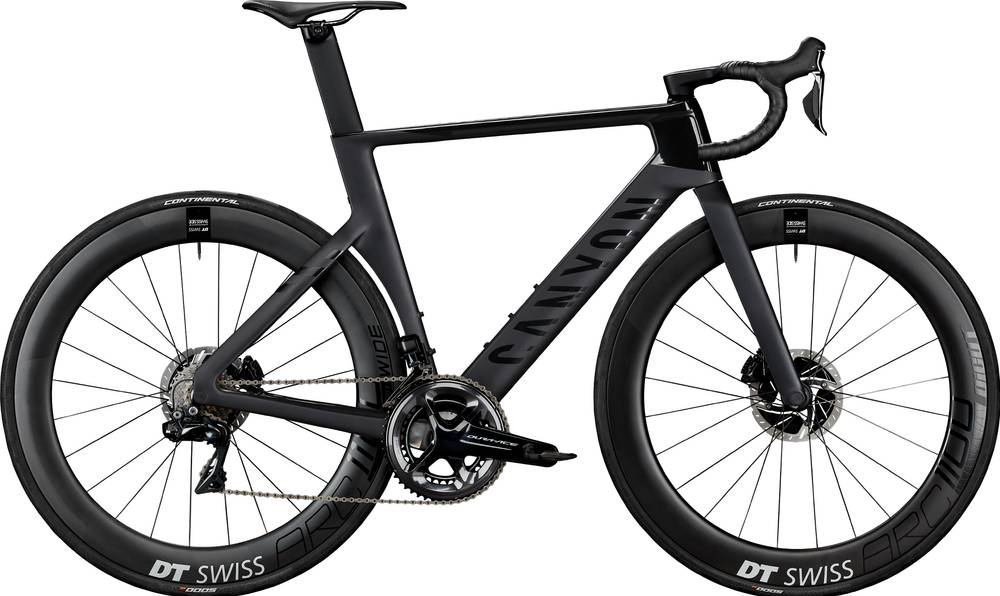

Canyon Aeroad CFR Disc Di2 2021
2021 Road
Estimate price |
9,000$
Weight | 7.26 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Dura-Ace Di2, 105 -
Suspension Rigid -
Drivetrain 2 × 11 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
165cm - 173cm
SM
171cm - 179cm
MD
177cm - 185cm
LG
183cm - 191cm
XL
189cm - 197cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Canyon Aeroad CFR Disc, Canyon Factory Racing R065 aero carbon frame, featuring ultra-rare Toray M40X carbon fibres. Shaped by extensive computational fluid dynamics analysis, validated in the wind tunnel. Fully internal routing, 12x142 mm through axle, flat-mount disc standard. Weight: 915 g
Suspension Fork
Canyon FK0060 CF Disc, All-new design, 12x120 mm through axle, flat-mount disc standard. CT scanner tested and approved. Weight: 425 g, Hub spacing: 12x100mm
Drivetrain
Rear Derailleur
Shimano Dura-Ace Di2 R9150, 11-speed, Short-cage 11-speed derailleur, max. cassette size: 30T, Shadow shifting technology. Weight: 205 g
Front Derailleur
Shimano Dura-Ace Di2 R9150, For 2x11 speed setups, with automatic trimming, braze-on mount. Weight: 105 g
Shift Levers
Shimano Dura Ace Di2 R9170, 11-speed, Left-hand electronic shifter, 2-by setup, reach adjustment. Weight: 160 g | Shimano Dura Ace Di2 R9170, 11-speed, Right-hand electronic shifter, 11-speed, reach adjustment. Weight: 160 g
Cassette
Shimano Dura-Ace R9100, 11-speed, 11-28, With mix of steel and titanium sprockets mounted on an ultralight aluminium spider for minimal weight. Gear range: 11-28T, weight: 180 g
Crank
Shimano Dura-Ace R9100 PM, 2x11-speed crankset with integrated dual-sided power meter and 52/36 gearing. With HollowTech II design for superlight construction. Weight: 670 g, *US size small comes with 170mm cranks
Bottom Bracket
Shimano Pressfit BB92, Pressfit BB86 standard, compatible with 24 mm axles, featuring Hollowtech 2 technology. Weight: 54 g
Chain
Shimano HG901 11-speed, High-end chain with complete SIL-TEC treatment on plates and roller, for increased durability and efficiency.
Pedals
None included
Wheels
Rims
DT Swiss ARC 1100 Dicut, Front wheel with 62mm-deep carbon rim. With DT Aerolite spokes, tubeless-ready | DT Swiss ARC 1100 Dicut, Rear wheel with 62mm-deep carbon rim. With DT Aerolite spokes, tubeless-ready
Tires
Continental Grand Prix 5000, 25 mm, Aeroad & Speedmax: Continental Grand Prix Force, Ultimate: Continental Grand Prix 4000 S II | Continental Grand Prix 5000 28 mm, Casing: Vectran Breaker, Compound: BlackChili, Technology: Foldable
Brakes
Brake Levers
Shimano Dura Ace Di2 R9170, 11-speed, Left-hand electronic shifter, 2-by setup, reach adjustment. Weight: 160 g | Shimano Dura Ace Di2 R9170, 11-speed, Right-hand electronic shifter, 11-speed, reach adjustment. Weight: 160 g
Disk Rotors
Shimano RT900, Centerlock brake rotor featuring Ice Freeza technology. Weight: 120 g
Seat
Saddle
Selle Italia SLR, Featuring lightweight manganese rails, durable Fibra-Tek covering
Seatpost
Canyon SP0046 Aero Seatpost, Aero-optimised carbon seatpost with new sleeve bearing that creates a seal and reduces seatpost and seat tube friction and prevents dirt from entering.
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XXS | XS | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.35 mm | 1.39 mm | 1.39 mm | 1.43 mm | 1.46 mm | 1.45 mm | 1.46 mm |
| Bottom Bracket Height | 264 mm | 264 mm | 266 mm | 266 mm | 266 mm | 266 mm | 266 mm |
| Front Center | 573 mm | 578 mm | 584 mm | 589 mm | 602 mm | 625 mm | 638 mm |
| Rake | 43 mm | 43 mm | 42 mm | 43 mm | 42 mm | 41 mm | 42 mm |
| Trail | 73 mm | 67 mm | 60 mm | 56 mm | 57 mm | 57 mm | 54 mm |
| Stack | 490 mm | 513 mm | 531 mm | 552 mm | 572 mm | 598 mm | 616 mm |
| Reach | 364 mm | 370 mm | 382 mm | 385 mm | 393 mm | 411 mm | 421 mm |
| Top Tube Length | 512 mm | 525 mm | 541 mm | 551 mm | 564 mm | 590 mm | 605 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 443 mm | 473 mm | 503 mm | 533 mm | 563 mm | 593 mm | 623 mm |
| Head Tube Angle | 70.5 ° | 71.5 ° | 72.75 ° | 73.25 ° | 73.25 ° | 73.5 ° | 73.75 ° |
| Head Tube Length | 89 mm | 109 mm | 126 mm | 147 mm | 167 mm | 193 mm | 211 mm |
| Chainstay Length | 402 mm | 402 mm | 402 mm | 402 mm | 402 mm | 402 mm | 402 mm |
| Wheelbase | 964 mm | 969 mm | 976 mm | 981 mm | 994 mm | 1017 mm | 1030 mm |
| Bottom Bracket Drop | 72 mm | 72 mm | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm |
| Standover Height | 725 mm | 751 mm | 777 mm | 802 mm | 826 mm | 852 mm | 876 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Max Height | 167 cm | 173 cm | 179 cm | 185 cm | 191 cm | 197 cm | cm |
Model Overview
Aeroad CFR Disc Di2 belongs to the Canyon Aeroad model. 92 bikes variations carry this model name so far. Take a sneak peek at all Canyon Aeroad bikes models from 2021, by clicking here.
Model range prices
Canyon Aeroad CF SL 7 2021 is the most economical model, with a starting price of 2972$. Canyon Aeroad CFR Disc EPS 2021 on the other hand costs 9555$, and is the most expensive model.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Aero bikes average price
According to our math, the average price for a trustworthy Aero bike is 4211$. However, this doesn’t mean that if you spend less money on an Aero bike, you couldn’t get a decent one. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
At the moment of the release date, Canyon Aeroad CFR Disc Di2 price was 9000$. Comparing this to the average Aero bike price, we see that the price is 113.73% more expensive.
Aero bikes average weight
If we make a quick analysis of the average weight of an Aero bike, we get 7.34 kg (16.18 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
Canyon Aeroad CFR Disc Di2 it’s weighing 7.26 kg (16.01 lbs). At this weight, is slightly lighter than average. To sum up, it’s 1.1% lighter than the average weight of Aero bikes.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
Overview of components
Fork material
The fork is made out of carbon, so, it’s a great addition to the bike’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Wheels
When leaving the production line, the Aeroad CFR Disc Di2 model has 700c carbon wheels. These wheels are the most used kind for road bikes in general. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Nothing is more important on a bike than its ability to brake properly. Canyon Aeroad CFR Disc Di2 is equipped with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
