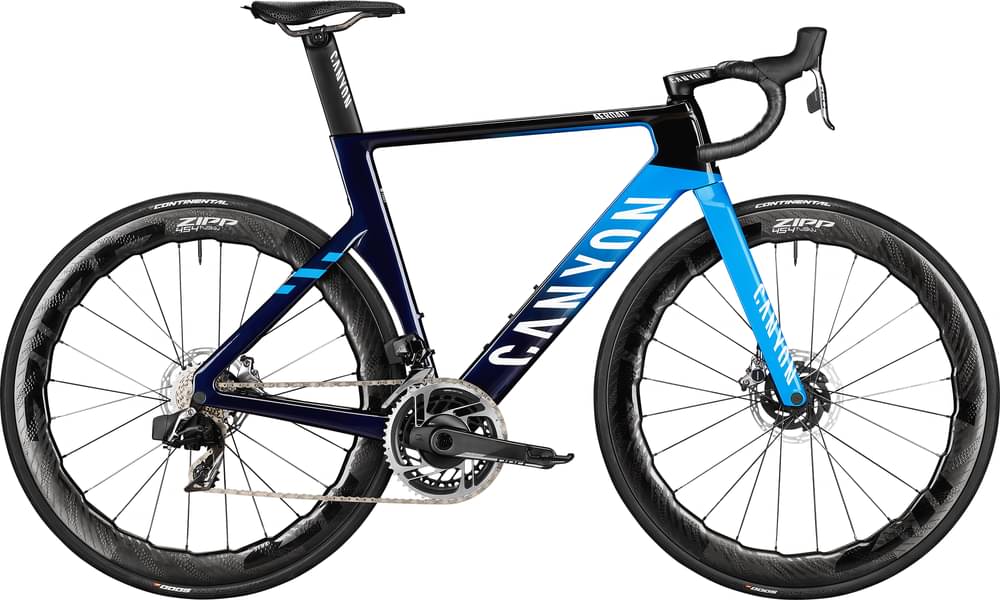

Canyon Aeroad CFR DISC eTap 2021
2021 Road
Estimate price |
10,321$
Weight | 7.3 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset RED eTAP -
Suspension Rigid -
Drivetrain 2 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
165cm - 173cm
SM
171cm - 179cm
MD
177cm - 185cm
LG
183cm - 191cm
XL
189cm - 197cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aeroad CFR DISC Di2, Canyon Factory Racing R065 aero carbon frame, featuring ultra-rare Toray M40X carbon fibres. Shaped by extensive computational fluid dynamics analysis, validated in the wind tunnel. Fully internal routing, 12x142 mm through axle, flat-mount disc standard. Weight: 915 g
Suspension Fork
Canyon FK0060 CF Disc, All-new design, 12x120 mm through axle, flat-mount disc standard. CT scanner tested and approved. Weight: 425 g
Drivetrain
Rear Derailleur
SRAM RED eTap AXS, 12-speed, 12-speed, wireless shifting, max cassette size: 33T. Weight: 277 g
Front Derailleur
SRAM RED eTap AXS, Wireless shifting, for 2x12 drivetrains, braze-on mount. Weight: 105 g
Shift Levers
SRAM RED eTap AXS HRD, 12-speed, Left-hand shifter, 12-speed, wireless shifting. With bite point and reach adjustment. Weight: 143 g | SRAM RED eTap AXS HRD, 12-speed, Right-hand shifter, 12-speed, wireless shifting. With bite point and reach adjustment. Weight: 143 g
Cassette
SRAM RED XG-1290, 12-speed, 10-28, Machined one-piece design for smoother, faster shifting and weight savings. Gear range: 10-28T, weight: 175 g
Crank
SRAM RED D1, Featuring integrated dual-sided power meter, 2x12-speed, gearing: 50/37. Bottom bracket: SRAM Pressfit RED DUB, weight: 616g
Bottom Bracket
SRAM Pressfit RED DUB, Pressfit BB86 road standard, compatible with SRAM DUB axles. Weight: 72 g
Chain
SRAM Red D1 12-speed
Pedals
None included
Wheels
Rims
ZIPP 454NSW Db, Top-end wheels. Featuring Sawtooth Technology, combining advanced ABLC dimple pattern with undulating rims for the highest performance in terms of aero efficiency and crosswind stability. Tubeless-ready. Rim height: 53/58 mm, inner width: 19 mm, weight: 860 g | ZIPP 454NSW Db, Top-end wheels. Featuring Sawtooth Technology, combining advanced ABLC dimple pattern with undulating rims for the highest performance in terms of aero efficiency and crosswind stability. Tubeless-ready. Rim height: 53/58 mm, inner width: 19 mm, driver: SRAM 12-speed XD-R road, weight: 955 g
Tires
Continental Grand Prix 5000, 25 mm, High-performance foldable clincher tyre made from high-grade BlackChili compound, with Vectran breaker for enhanced puncture protection. TPI: 330, weight: 225 g | Continental Grand Prix 5000, 28 mm, High-performance foldable clincher tyre made from high-grade BlackChili compound, with Vectran breaker for enhanced puncture protection. TPI: 330, weight: 240 g
Brakes
Brake Levers
SRAM RED eTap AXS HRD, 12-speed, Left-hand shifter, 12-speed, wireless shifting. With bite point and reach adjustment. Weight: 143 g | SRAM RED eTap AXS HRD, 12-speed, Right-hand shifter, 12-speed, wireless shifting. With bite point and reach adjustment. Weight: 143 g
Disk Rotors
SRAM Centerline X, Two-piece design centerlock brake rotor, rounded edges for easier wheel installs. Weight: 135 g
Seat
Saddle
Fizik Antares Versus R1, 3D printed saddle with tailored zonal cushioning. Width: 139mm, rail material: carbon (oval), weight: 174 g
Seatpost
Canyon SP0046 Aero Seatpost, Aero-optimised carbon seatpost with new sleeve bearing that creates a seal and reduces seatpost and seat tube friction and prevents dirt from entering.
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XXS | XS | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.35 mm | 1.39 mm | 1.39 mm | 1.43 mm | 1.46 mm | 1.45 mm | 1.46 mm |
| Bottom Bracket Height | 264 mm | 264 mm | 266 mm | 266 mm | 266 mm | 266 mm | 266 mm |
| Front Center | 573 mm | 585 mm | 577 mm | 589 mm | 602 mm | 625 mm | 638 mm |
| Rake | 43 mm | 49 mm | 36 mm | 43 mm | 42 mm | 41 mm | 42 mm |
| Trail | 73 mm | 61 mm | 66 mm | 56 mm | 57 mm | 57 mm | 54 mm |
| Stack | 490 mm | 513 mm | 531 mm | 552 mm | 572 mm | 598 mm | 616 mm |
| Reach | 364 mm | 370 mm | 382 mm | 385 mm | 393 mm | 411 mm | 421 mm |
| Top Tube Length | 512 mm | 525 mm | 541 mm | 551 mm | 564 mm | 590 mm | 605 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 443 mm | 473 mm | 503 mm | 533 mm | 563 mm | 593 mm | 623 mm |
| Head Tube Angle | 70.5 ° | 71.5 ° | 72.8 ° | 73.3 ° | 73.3 ° | 73.5 ° | 73.8 ° |
| Head Tube Length | 89 mm | 109 mm | 126 mm | 147 mm | 167 mm | 193 mm | 211 mm |
| Chainstay Length | 402 mm | 402 mm | 402 mm | 402 mm | 402 mm | 402 mm | 402 mm |
| Wheelbase | 964 mm | 976 mm | 969 mm | 981 mm | 994 mm | 1017 mm | 1030 mm |
| Bottom Bracket Drop | 72 mm | 72 mm | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm |
| Standover Height | 725 mm | 751 mm | 777 mm | 802 mm | 826 mm | 852 mm | 876 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Max Height | 167 cm | 173 cm | 179 cm | 185 cm | 191 cm | 197 cm | cm |
About this model
Aeroad CFR DISC eTap is a Canyon Aeroad model. 92 bikes variations carry this model name so far. Check out the entire range from 2021 of this model, by clicking this link.
Model range prices
Canyon Aeroad CF SL 7 2021 is the cheapest bike model and costs 2972$. Canyon Aeroad CFR Disc EPS 2021 is the most expensive one and costs 9555$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Aero bikes
According to our math, the average price for a trustworthy Aero bike is 4211$. However, even though the average price of an Aero bike is lower, you might still be able to get a top-quality bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Furthermore, this bike was made available in 2021 for 9555$. If we compare this with the average Aero bike cost we notice that the price is 126.91% higher.
Average weight for Aero bikes
Aero bikes weigh an average of 7.34 kg (16.18 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
Aeroad CFR DISC eTap weighs 7.3 kg (16.09 lbs) and is slightly lighter than the average. In conclusion, the average Aero bike weighs 0.55% more than Aeroad CFR DISC eTap.
Internal Cable Routing
Another thing to mention, is the internal cable routing of this bike. In conclusion, this helps you too, keep the bike cables in mint condition, and also it looks better. No more cables, surrounding the bike.
Aeroad CFR DISC eTap components
Fork material
Aeroad CFR DISC eTap has a carbon fork, so, it won’t add up to much weight to your bike. However, the price you have to pay for a carbon fork is considerably higher.
Wheels
The Aeroad CFR DISC eTap 2021 bike is equipped with 700c carbon wheels when leaving the factory. These wheels are the most used kind for road bikes in general. However, these wheels don’t perform so well when passing over obstacles.
Brakes
For your safety, it is important to have quality breaks on your bike. Canyon Aeroad CFR DISC eTap has Hydraulic Disc brakes installed. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
