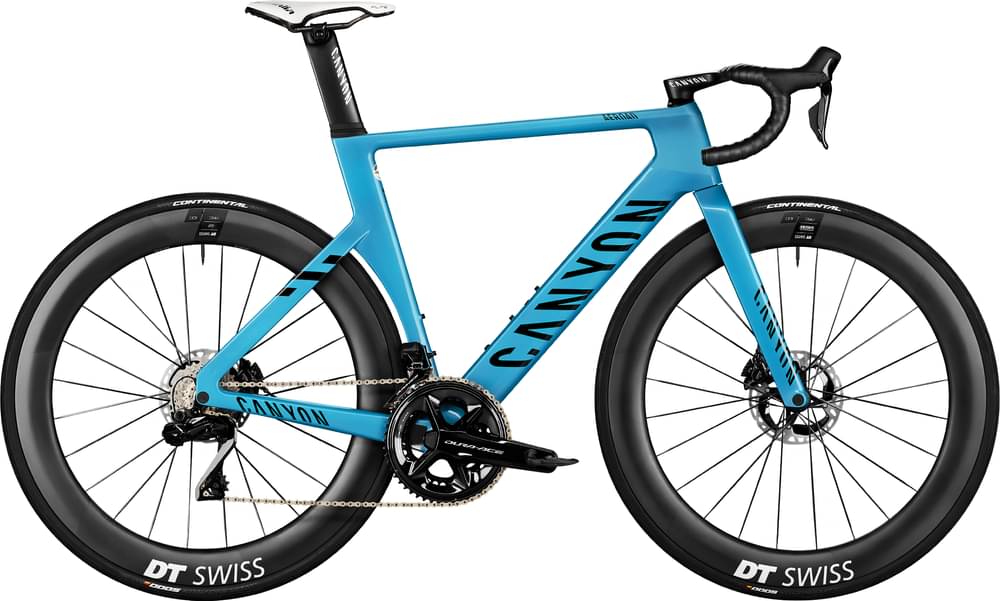

Canyon Aeroad CFR DISC MvdP 2022
2022 Road
Estimate price |
11,468$
Weight | 7.24 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Dura-Ace Di2 -
Suspension Rigid -
Drivetrain 2 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
165cm - 173cm
SM
171cm - 179cm
MD
177cm - 185cm
LG
183cm - 191cm
XL
189cm - 197cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Canyon Aeroad CFR Disc MVDP LTD, Canyon Factory Racing R065 aero carbon frame, with special MVDP artwork and ultra-rare Toray M40X carbon fibres. Shaped by extensive computational fluid dynamics analysis, validated in the wind tunnel. Fully internal routing, 12x142 mm through axle, flat-mount disc standard.
Suspension Fork
Canyon FK0060 CF Disc MVDP LTD, Aero design, special MVDP artwork. 12x120 mm through axle, flat-mount disc standard. CT scanner tested and approved. Weight: 425 g
Drivetrain
Rear Derailleur
Shimano Dura-Ace Di2 R9250, 12-speed, Pro-level semi-wireless rear derailleur. Incredible shifting speed: 58% faster. Max cassette size: 34T.
Front Derailleur
Shimano Dura-Ace Di2 R9250, Semi-wireless derailleur with world-class performance. 45% faster shifting. 33% smaller frontal area. Superlight: only 99g. Attachment type: braze-on.
Shift Levers
Shimano Dura Ace Di2 R9270, 2-speed, Pro-level left-hand electronic shifter. Wireless operation: no shift wires or ports. Unparalleled ergonomics refined with pro feedback. With lighter, smoother lever action and enhanced modulation. Battery life: up to 1.7 years (CR1632). | Shimano Dura-Ace Di2 R9270, 12-speed, Pro-level right-hand electronic shifter. Wireless operation: no shift wires or ports. Unparalleled ergonomics refined with pro feedback. With lighter, smoother lever action and enhanced modulation. Battery life: up to 1.7 years (CR1632).
Cassette
Shimano Dura-Ace R9200, 12-speed, 11-30, The latest generation of superlight Shimano cassettes. Gear range: 11-30T.
Crank
Shimano Dura-Ace Di2 R9200 PM, Pro-level crankset with optimal balance of stiffness, strength, weight, and performance. With integrated dual-sided power meter – waterproof, with rechargeable li-ion battery. Running time: 300 hours. Crank arm length: 172.5 mm. Gearing: 52/36T.
Bottom Bracket
Shimano Pressfit BB92, Pressfit BB86 standard, compatible with 24 mm axles, featuring Hollowtech 2 technology. Weight: 54 g
Pedals
None included
Wheels
Rims
DT Swiss ARC 1100 Dicut, Front wheel with Aero+ technology for stability, low drag, and all-round performance. With new DT Swiss aero spokes and SINC ceramic bearings. Tubeless-ready. Rim height: 62 mm, inner width: 20 mm, weight: 776 g | DT Swiss ARC 1100 Dicut, Rear wheel with Aero+ technology for stability, low drag, and all-round performance. With new DT Swiss aero spokes and SINC ceramic bearings. Tubeless-ready. Rim depth: 62 mm, inner width: 20 mm, driver: Shimano 11-speed road, weight: 900 g
Tires
Continental Grand Prix 5000, 25 mm, High-performance foldable clincher tyre made from high-grade BlackChili compound, with Vectran breaker for enhanced puncture protection. TPI: 330, weight: 225 g | Continental Grand Prix 5000, 28 mm, High-performance foldable clincher tyre made from high-grade BlackChili compound, with Vectran breaker for enhanced puncture protection. TPI: 330, weight: 240 g
Brakes
Brake Levers
Shimano Dura Ace Di2 R9270, 2-speed, Pro-level left-hand electronic shifter. Wireless operation: no shift wires or ports. Unparalleled ergonomics refined with pro feedback. With lighter, smoother lever action and enhanced modulation. Battery life: up to 1.7 years (CR1632). | Shimano Dura-Ace Di2 R9270, 12-speed, Pro-level right-hand electronic shifter. Wireless operation: no shift wires or ports. Unparalleled ergonomics refined with pro feedback. With lighter, smoother lever action and enhanced modulation. Battery life: up to 1.7 years (CR1632).
Disk Rotors
Shimano RT-MT900, Disc Mount: Centerlock
Seat
Saddle
Selle Italia Flite Boost Kit Carbonio Superflow MVDP Edt, Saddle designed in collaboration with Mathieu van der Poel. With special MVDP artwork & carbon rails.
Seatpost
Canyon SP0046 Aero Seatpost, Aero-optimised carbon seatpost with new sleeve bearing that creates a seal and reduces seatpost and seat tube friction and prevents dirt from entering.
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XXS | XS | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.35 mm | 1.39 mm | 1.39 mm | 1.43 mm | 1.46 mm | 1.45 mm | 1.46 mm |
| Bottom Bracket Height | 261 mm | 261 mm | 263 mm | 263 mm | 263 mm | 263 mm | 263 mm |
| Front Center | 574 mm | 579 mm | 585 mm | 590 mm | 603 mm | 626 mm | 639 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm | 43 mm | 43 mm | 43 mm |
| Trail | 72 mm | 66 mm | 58 mm | 55 mm | 56 mm | 55 mm | 53 mm |
| Stack | 490 mm | 513 mm | 531 mm | 552 mm | 572 mm | 598 mm | 616 mm |
| Reach | 364 mm | 370 mm | 382 mm | 385 mm | 393 mm | 411 mm | 421 mm |
| Top Tube Length | 512 mm | 525 mm | 541 mm | 551 mm | 564 mm | 590 mm | 605 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 443 mm | 473 mm | 503 mm | 533 mm | 563 mm | 593 mm | 623 mm |
| Head Tube Angle | 70.5 ° | 71.5 ° | 72.75 ° | 73.25 ° | 73.25 ° | 73.5 ° | 73.75 ° |
| Head Tube Length | 89 mm | 109 mm | 126 mm | 147 mm | 167 mm | 193 mm | 211 mm |
| Chainstay Length | 402 mm | 402 mm | 402 mm | 402 mm | 402 mm | 402 mm | 402 mm |
| Wheelbase | 964 mm | 969 mm | 976 mm | 981 mm | 994 mm | 1017 mm | 1030 mm |
| Bottom Bracket Drop | 75 mm | 75 mm | 73 mm | 73 mm | 73 mm | 73 mm | 73 mm |
| Standover Height | 725 mm | 751 mm | 777 mm | 802 mm | 826 mm | 852 mm | 876 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Max Height | 167 cm | 173 cm | 179 cm | 185 cm | 191 cm | 197 cm | cm |
About this model
Aeroad CFR DISC MvdP completes the Canyon Aeroad model. 92 bikes variations carry this model name so far. You can easily view all of the Canyon Aeroad bikes models from 2022, here.
Model range prices
Canyon Aeroad CF SL 7 WMN Disc 2022 is the cheapest bike model and costs 3609$. Canyon Aeroad CFR DISC MvdP 2022 is the most expensive one and costs 10617$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Aero bikes
According to our calculations, the average cost of an Aero bike that is reliable is 4211$. However, this doesn’t mean that if you spend less money on an Aero bike, you couldn’t get a decent one. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 10617$. If we compare this with the average Aero bike cost we notice that the price is 152.13% higher.
Aero bikes average weight
The average weight for Aero bikes is 7.34 kg (16.18 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
slightly lighter than average, Aeroad CFR DISC MvdP has a weight of 7.24 kg (15.96 lbs). In short, the average Aero bike weight is 1.38% higher than this one.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
Aeroad CFR DISC MvdP components
Fork material
Aeroad CFR DISC MvdP has a carbon fork, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels size
The Aeroad CFR DISC MvdP 2022 bike is equipped with 700c carbon wheels when leaving the factory. There is no doubt, that 700c wheels are very popular on all road bike models. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
