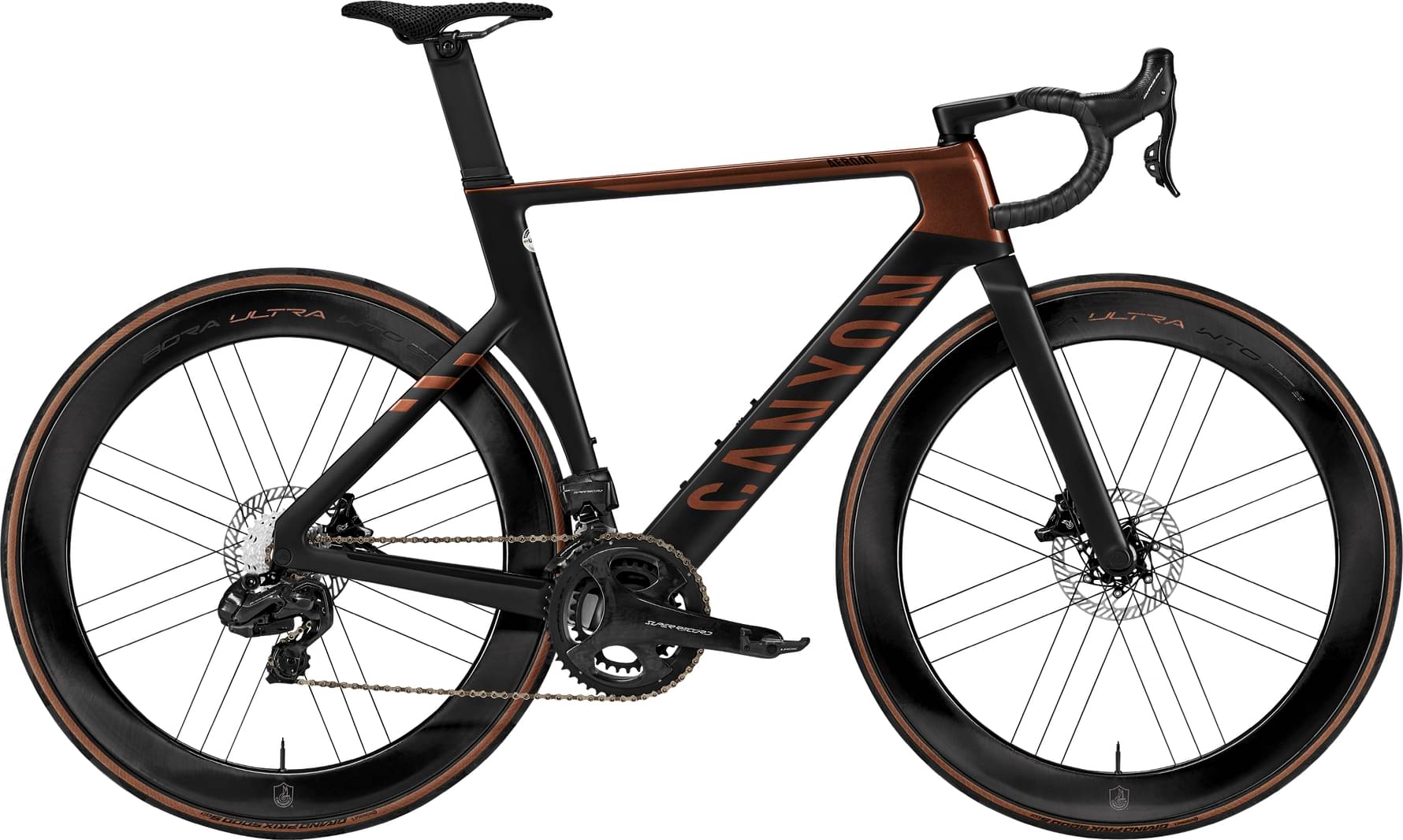

Canyon Aeroad CFR WRL 2023
2023 Road
Estimate price |
12,615$
Weight | 7.26 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Super Record Wireless -
Suspension Rigid -
Drivetrain 2 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
165cm - 173cm
SM
171cm - 179cm
MD
177cm - 185cm
LG
183cm - 191cm
XL
189cm - 197cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Canyon Aeroad CFR, Axle dimension: 12x142 mm, Material: Carbon (CFR)
Suspension Fork
Canyon FK0060 CF Disc, Aero design shaped using advanced CFD technology. Disc flat-mount disc standard. CT scanner tested and approved., Fork steer tube diameter: 1 1/8", Material: Carbon (CF), Weight: 330 g
Drivetrain
Rear Derailleur
Campagnolo Super Record WRL, 12-speed
Front Derailleur
Campagnolo Super Record WRL, 12-speed
Shift Levers
Campagnolo Super Record WRL, 2-speed | Campagnolo Super Record WRL, 12-speed
Cassette
Campagnolo Super Record, 12-speed, 10-27T, Number of sprockets: 12
Crank
Campagnolo Super Record Pro-Tech Carbon, Number of chainrings: 2
Bottom Bracket
Campagnolo Pro-Tech Pressfit, Bottom bracket standard: PF 86,5, Weight: 50 g
Chain
Campagnolo Super Record 12s | Campagnolo Super Record 12-speed Chain 114 Links
Pedals
None included
Wheels
Rims
Campagnolo Bora Ultra WTO, Axle dimension: 12x100 mm, Rotor mount: Center Lock, Rim height: 60 mm, Weight: 710 g | Campagnolo Bora Ultra WTO, Axle dimension: 12x142 mm, Rotor mount: Center Lock, Rim height: 60 mm, Weight: 820 g
Tires
Continental GP5000 S TR, Width: 25mm, Weight: 250 g | Continental GP 5000s TR, 28 mm, Width: 28mm, Weight: 275 g | Continental GP 5000S TR TL 28" Road Tyre 28mm | Continental GP 5000S TR TL 28" Road Tyre 25mm
Brakes
Brakes
Hydraulic Disc
Brake Levers
Campagnolo Super Record WRL, 2-speed | Campagnolo Super Record WRL, 12-speed
Seat
Saddle
Selle Italia SLR Boost 3D KIT Carbonio Superflow
Seatpost
Canyon SP0046 Aero Seatpost, Aero-optimised carbon seatpost with new sleeve bearing that creates a seal and reduces seatpost and seat tube friction and prevents dirt from entering., Clamp diameter: 27,2 mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XXS | XS | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.35 mm | 1.39 mm | 1.39 mm | 1.43 mm | 1.46 mm | 1.45 mm | 1.46 mm |
| Bottom Bracket Height | 261 mm | 261 mm | 263 mm | 263 mm | 263 mm | 263 mm | 263 mm |
| Front Center | 573 mm | 578 mm | 584 mm | 589 mm | 602 mm | 625 mm | 638 mm |
| Rake | 43 mm | 43 mm | 43 mm | 43 mm | 42 mm | 42 mm | 42 mm |
| Trail | 73 mm | 67 mm | 59 mm | 56 mm | 57 mm | 56 mm | 54 mm |
| Stack | 490 mm | 513 mm | 531 mm | 552 mm | 572 mm | 598 mm | 616 mm |
| Reach | 364 mm | 370 mm | 382 mm | 385 mm | 393 mm | 411 mm | 421 mm |
| Top Tube Length | 512 mm | 525 mm | 541 mm | 551 mm | 564 mm | 590 mm | 605 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 443 mm | 473 mm | 503 mm | 533 mm | 563 mm | 593 mm | 623 mm |
| Head Tube Angle | 70.5 ° | 71.5 ° | 72.75 ° | 73.25 ° | 73.25 ° | 73.5 ° | 73.75 ° |
| Head Tube Length | 86 mm | 106 mm | 123 mm | 144 mm | 164 mm | 190 mm | 208 mm |
| Chainstay Length | 402 mm | 402 mm | 402 mm | 402 mm | 402 mm | 402 mm | 402 mm |
| Wheelbase | 963 mm | 968 mm | 975 mm | 980 mm | 993 mm | 1016 mm | 1029 mm |
| Bottom Bracket Drop | 75 mm | 75 mm | 73 mm | 73 mm | 73 mm | 73 mm | 73 mm |
| Standover Height | 725 mm | 751 mm | 777 mm | 802 mm | 826 mm | 852 mm | 876 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Max Height | 167 cm | 173 cm | 179 cm | 185 cm | 191 cm | 197 cm | cm |
Model Overview
Aeroad CFR WRL is part of the Canyon Aeroad model. 92 bikes variations carry this model name so far. You can get a glimpse at all models from 2023, by clicking on this link.
Model range prices
Canyon Aeroad CF SL 7 Disc 2023 is the most affordable bike of this model and has a price of 3499$. On the other hand, Canyon Aeroad CFR WRL 2023, is the most expensive and costs 11679$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Aero bikes average price
If you want to purchase a solid Aero bike, it is important to know that the average cost is 4211$. However, you could also get a good Aero bike even if you pay a lower amount than the average price. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 11679$. Doing a quick comparison, we notice that Aeroad CFR WRL price is 177.35% more expensive than the average cost of an Aero bike.
Average weight for Aero bikes
Aero bikes have an average weight of 7.34 kg (16.18 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
Weighing 7.26 kg (16.01 lbs), the Aeroad CFR WRL model is slightly lighter than average. To sum up, it’s 1.1% lighter than the average weight of Aero bikes.
Overview of components
Fork material
The fork on this bike is made out of carbon, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels
The wheels on Aeroad CFR WRL are the 700c carbon type. There is no doubt, that 700c wheels are very popular on all road bike models. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
When you want to stop the bike in time, the brakes are vital. The Aeroad CFR WRL has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
