Canyon Commuter 5 WMN 2023
2023 Urban
Estimate price |
1,146$
Weight | 11.31 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Groupset Nexus, Gates CDN -
Suspension Rigid -
Drivetrain Belt Drive, Internally Geared Hub -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
157cm - 169cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame

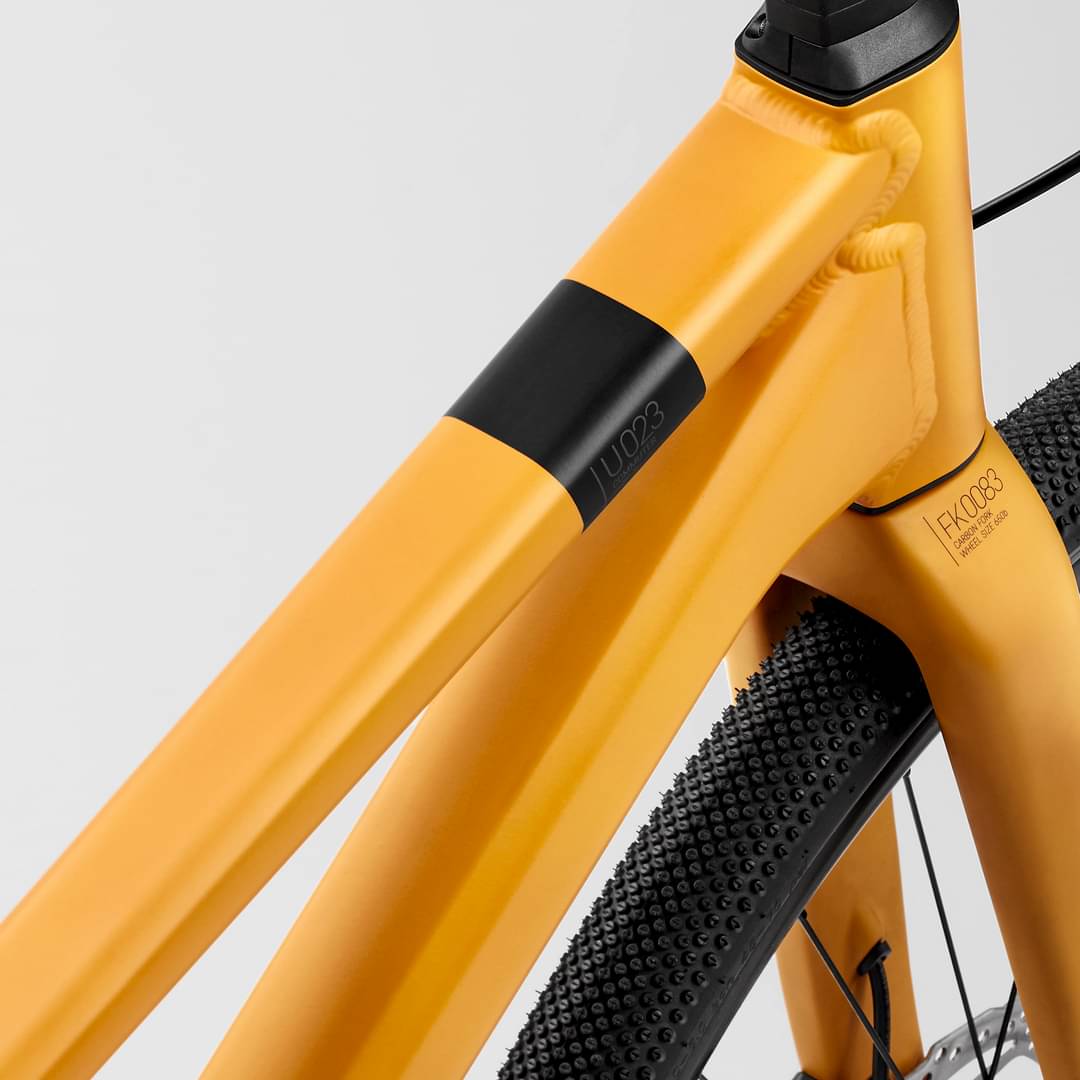

Canyon U023 Commuter Step-Through, A versatile, reliable aluminium urban bike designed for daily commuting. The easy-to-mount step through frame is equipped with features for comfort, efficiency, and practicality., Material: Aluminium (AL)
Suspension Fork
Canyon FK0083 CF Disc, Light, robust carbon fork., Fork steer tube diameter: 1 1/8", Material: Carbon (CF)
Drivetrain
Shift Levers
Shimano Nexus, 8s
Cassette
Gates CDN 24T, Number of sprockets: 1
Crank

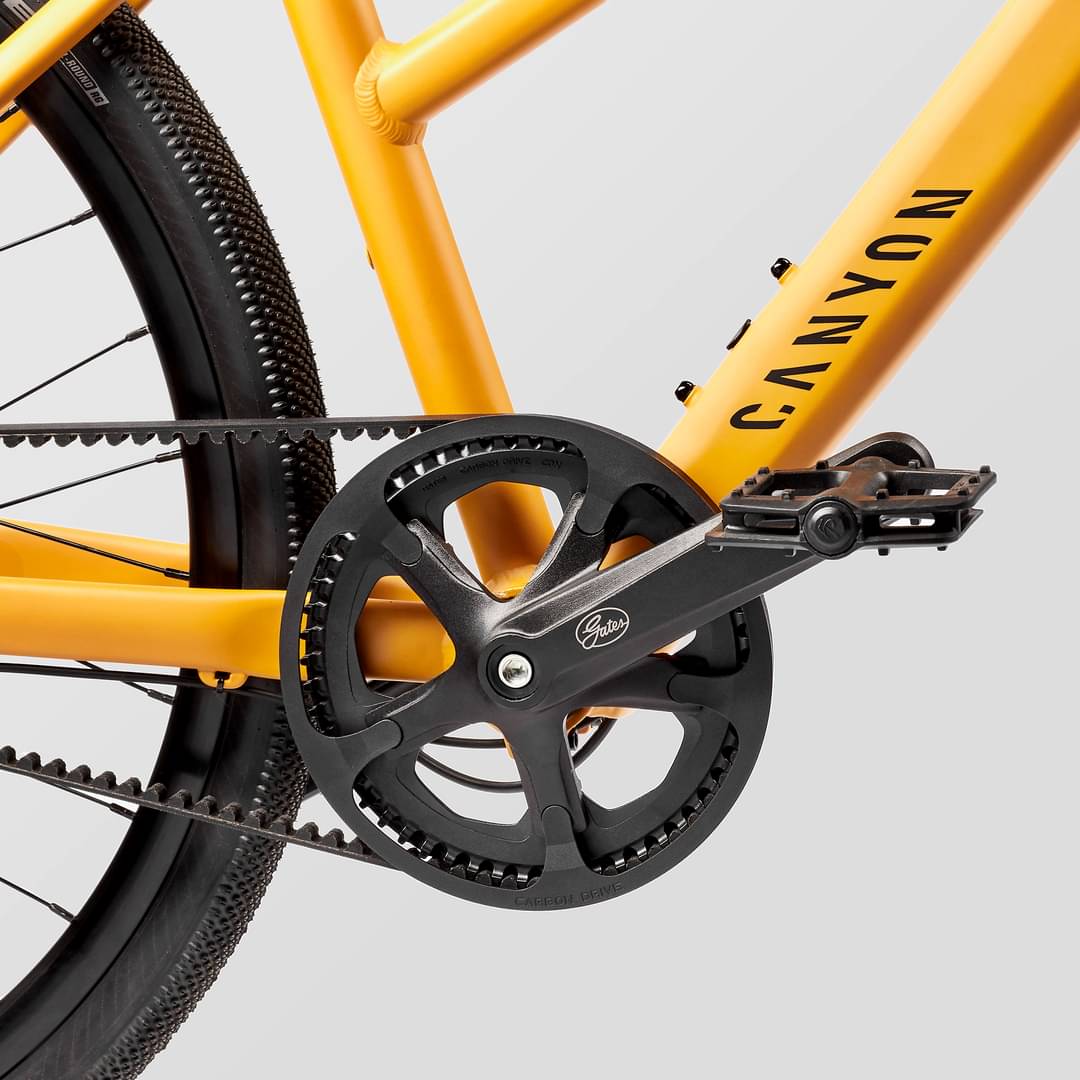

Gates CDN S150 55T, Number of chainrings: 1
Bottom Bracket
Thun BSA Zumba Jis
Chain
Gates CDN Belt
Wheels
Rims
Alexrims GX26P | Shimano TX505, Rotor mount: Center Lock, Wheelsize: 27.5"
Tires
Schwalbe G-One Allround 40mm, Width: 1.5" | Schwalbe G-One Allround Super Ground 27.5" & 28" Gravel Tyres
Brakes
Brakes
Shimano MT200 | Shimano MT200 / UR300?
Cockpit
Grips
Ergon GA30 Twist Shift
Seat
Saddle

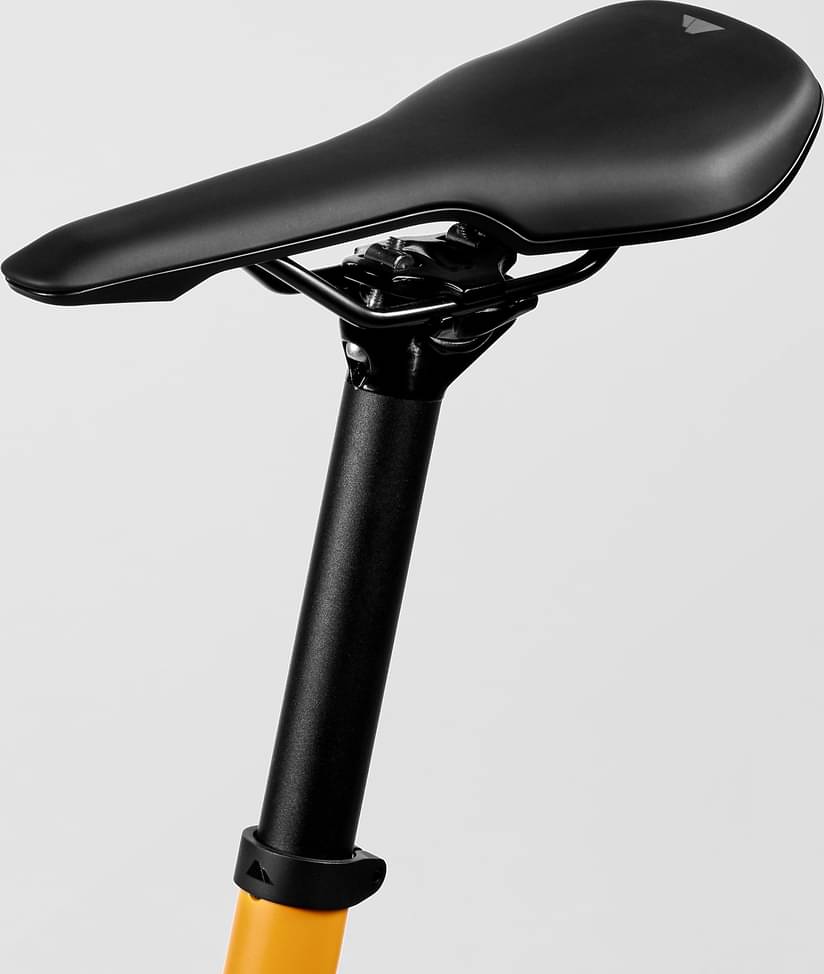

Canyon Sport Saddle EP1249
Seatpost
Iridium, Clamp diameter: 30,9 mm, Material: Aluminium (AL)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD |
|---|---|---|---|
| Stack Reach Ratio | 1.32 mm | 1.31 mm | 1.31 mm |
| Front Center | 591 mm | 614 mm | 636 mm |
| Rake | 41 mm | 41 mm | 42 mm |
| Trail | 67 mm | 67 mm | 66 mm |
| Stack | 526 mm | 545 mm | 564 mm |
| Reach | 398 mm | 415 mm | 430 mm |
| Top Tube Length | 552 mm | 574 mm | 595 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 390 mm | 400 mm | 440 mm |
| Head Tube Angle | 71.5 ° | 71.5 ° | 71.5 ° |
| Head Tube Length | 115 mm | 135 mm | 155 mm |
| Chainstay Length | 432 mm | 432 mm | 432 mm |
| Wheelbase | 1016 mm | 1039 mm | 1061 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm |
| Standover Height | 647 mm | 657 mm | 627 mm |
| Wheels | 650 | 650 | 650 |
| Rider Max Height | 159 cm | 169 cm | cm |
About this model
Commuter 5 WMN belongs to the Canyon Commuter model. 48 bikes variations carry this model name so far. Take a sneak peek at all Canyon Commuter bikes models from 2023, by clicking here.
Model range prices
Canyon Commuter 5 mid-step 2023 is the most affordable bike of this model and has a price of 1061$. On the other hand, Canyon Commuter 9 LTD 2023, is the most expensive and costs 2653$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Commuter bikes average price
If you want an acceptable Commuter bike you should know that the average price is 762$. However, you could also get a good Commuter bike even if you pay a lower amount than the average price. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
When Canyon released this model in 2023, its price was 1061$. If we compare this with the average Commuter bike cost we notice that the price is 39.24% higher.
Commuter bikes average weight
On a deeper look, we notice that the average weight of a Commuter bike is 14.29 kg (31.5 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
Weighing 11.31 kg (24.93 lbs), the Commuter 5 WMN model is much lighter than average. In short, the average Commuter bike weight is 26.35% higher than this one.
Commuter 5 WMN components
Fork material
When it comes to the fork, this bike has a carbon one, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels size
When leaving the production line, the Commuter 5 WMN model has aluminum wheels. The 650b wheels are very similar to 700c, with a slight difference in diameter. However, if you want higher speeds, you should look for a bike with 700c wheels.
Brakes
For your safety, it is important to have quality breaks on your bike. Canyon Commuter 5 WMN has Hydraulic Disc brakes installed. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
