Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 650b -
Groupset Nexus -
Suspension Rigid -
Drivetrain Belt Drive, IGH -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
150cm - 159cm
SM
157cm - 171cm
MD
169cm - 184cm
LG
182cm - 191cm
XL
189cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Canyon Commuter Performance, Material: Aluminium, Axle Dimension: 10 x 135 mm, Brake Mount: IS-Mount
Suspension Fork
Canyon FK0054 Disc, Material: Aluminium, Steerer: 1 1/8'', Axle Dimension: 9 x 100 mm, Brake Mount: Flat Mount
Drivetrain
Shift Levers
Shimano Nexus C6000 Revoshift 8s
Cassette
Gates CDX 24T
Crank
Gates CDN S150 55T, Chainring size: See ‘Geometry and dimensions’ below
Bottom Bracket
Thun BSA Zumba Jis
Chain
Gates CDN Belt
Wheels
Rims
Alexrims MD19 | Shimano Nexus 8s, Rim Material: Aluminium, Inner Width: 19 mm
Tires
Schwalbe Kojak 35 mm
Brakes
Brakes
Shimano MT201
Disk Rotors
Shimano RT54, Disc Mount: Centerlock
Cockpit
Grips
Canyon Bracelets
Seat
Saddle
Iridium Fitness
Seatpost
Iridium
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.39 mm | 1.38 mm | 1.4 mm | 1.4 mm | 1.4 mm |
| Stack | 536 mm | 554 mm | 577 mm | 609 mm | 644 mm |
| Reach | 387 mm | 401 mm | 413 mm | 434 mm | 461 mm |
| Top Tube Length | 546 mm | 565 mm | 584 mm | 615 mm | 652 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 365 mm | 400 mm | 440 mm | 485 mm | 535 mm |
| Head Tube Angle | 72 ° | 72 ° | 72 ° | 72 ° | 72 ° |
| Head Tube Length | 117 mm | 136 mm | 160 mm | 193 mm | 230 mm |
| Chainstay Length | 409 mm | 409 mm | 409 mm | 409 mm | 409 mm |
| Wheelbase | 996 mm | 1016 mm | 1035 mm | 1067 mm | 1105 mm |
| Wheels | 650 | 650 | 650 | 650 | 650 |
| Rider Min Height | 150 cm | 157 cm | 169 cm | 182 cm | 189 cm |
| Rider Max Height | 159 cm | 171 cm | 184 cm | 191 cm | 200 cm |
About this model

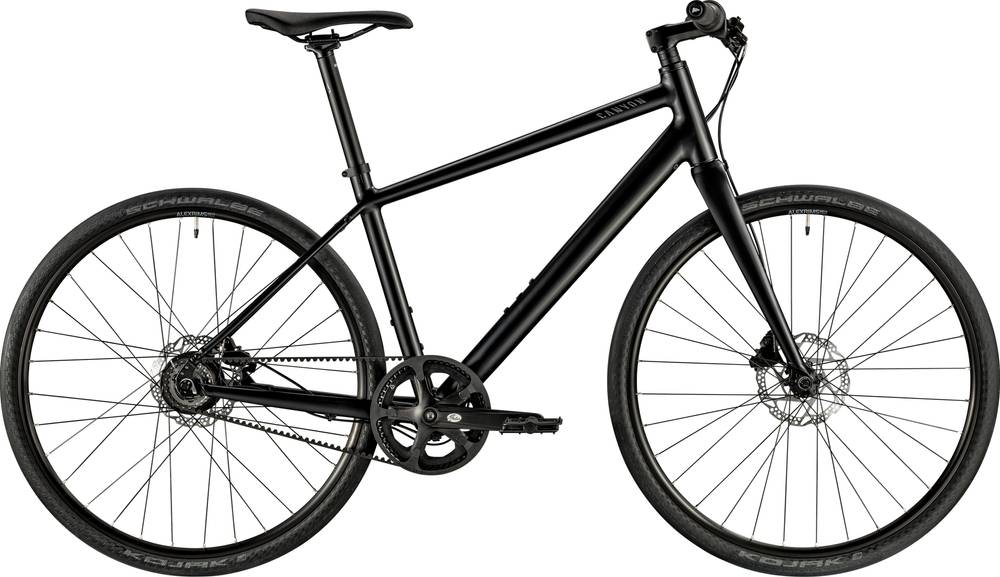

Commuter Sport 5.0 is a Canyon Commuter model. Canyon released 48 bikes variations of this model so far. Check out the entire range from 2019 of this model, by clicking this link.
Model range prices
Canyon Commuter 3.0 2019 is the most affordable bike of this model and has a price of 742$. On the other hand, Canyon Commuter 8.0 2019, is the most expensive and costs 2547$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Commuter bikes average price
If you want an acceptable Commuter bike you should know that the average price is 762$. However, this doesn’t mean that if you spend less money on a Commuter bike, you couldn’t get a decent one. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Furthermore, this bike was made available in 2019 for 901$. In conclusion, this bike price is 18.24% more expensive than the price of the average Commuter bike.
Overview of components
Fork material
Commuter Sport 5.0 has an aluminum fork, so there won’t be much extra weight added to the bike. However, they are not so stiff as carbon forks are.
Wheels
When leaving the production line, the Commuter Sport 5.0 model has aluminum wheels. The 650b wheels are very similar to 700c, with a slight difference in diameter. However, they don’t perform so well when you go over bumps and obstacles.
Brakes
For your safety, it is important to have quality breaks on your bike. Canyon Commuter Sport 5.0 has Hydraulic Disc brakes installed. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
Sizes
There are 5 sizes available for this model. Rider height can be anywhere between 150 cm – 200 cm (4.92 ft – 6.56 ft). In conclusion, finding one for you shouldn’t be a problem.
