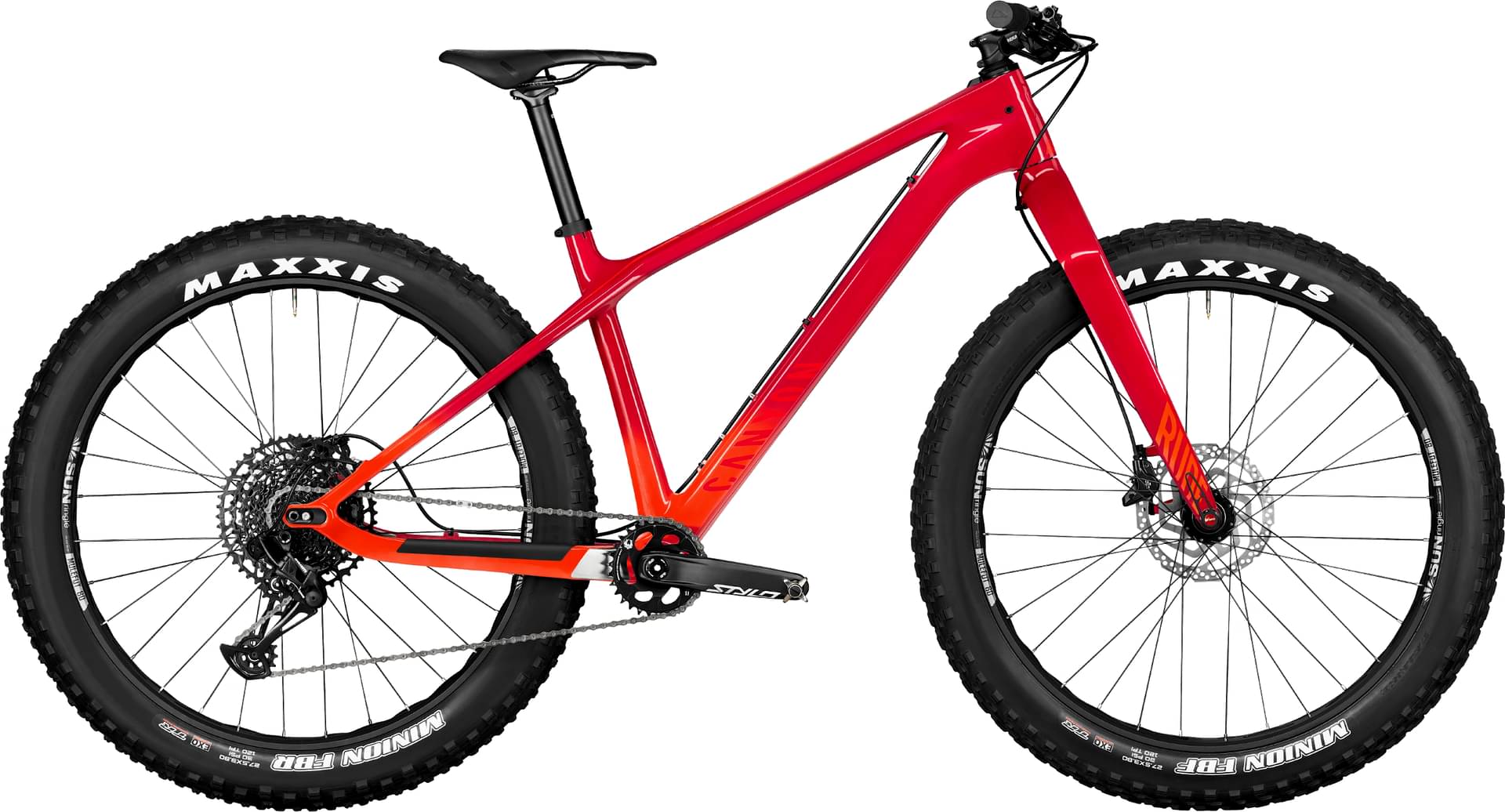

Canyon Dude CF 7 2023
2023 Mountain
Estimate price |
2,299$
Weight | 13.5 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 27.5" -
Groupset SX Eagle, Truvativ Stylo -
Suspension Rigid -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
170cm - 184cm
Parts list
Components
Main components, grouped by system.
Bike components

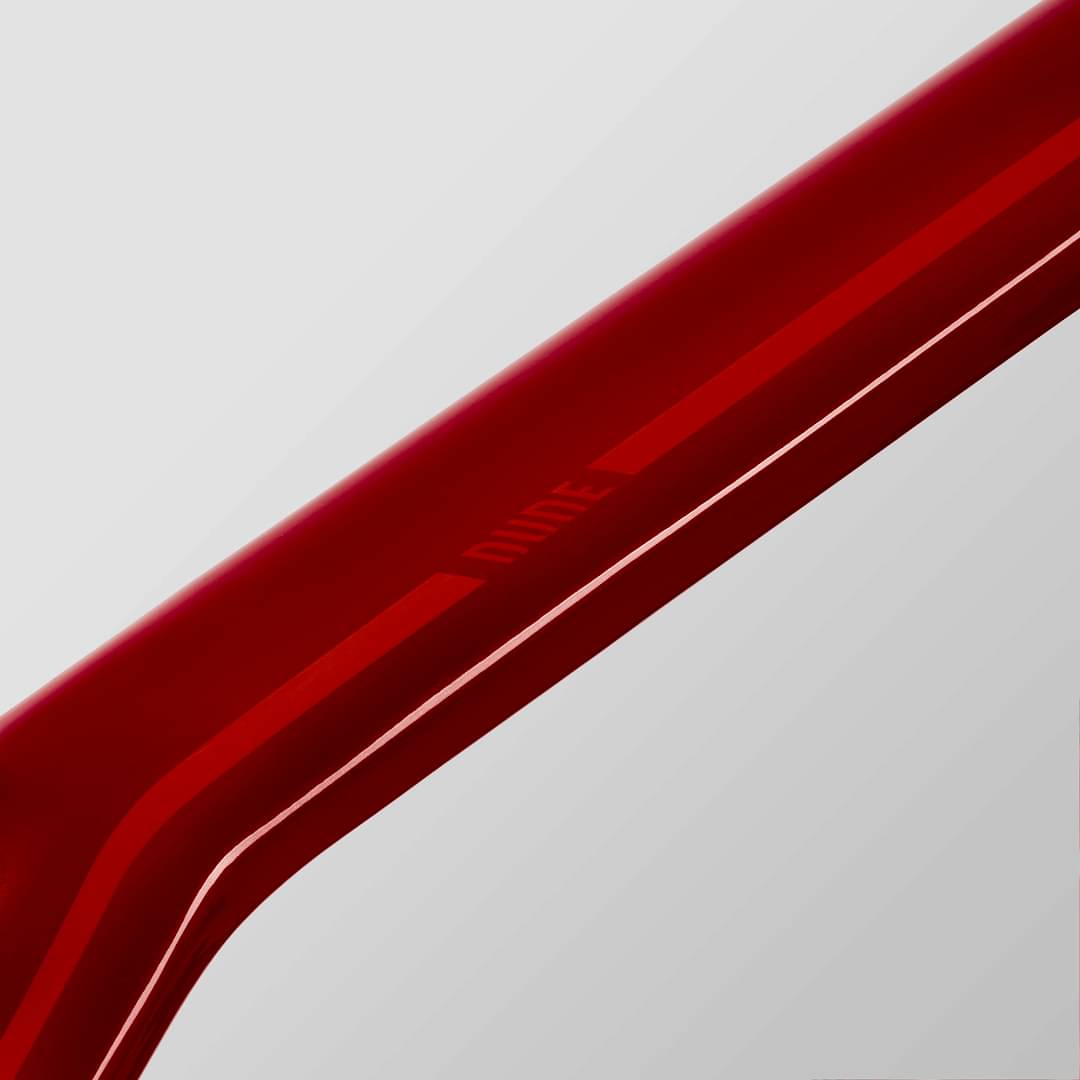

Frame
Frame
Canyon Dude CF, A lightweight carbon fibre fat bike with agile handling and huge tyre clearance for rolling over sand, snow, and rough terrain with ease and stability., Axle dimension: 12x197 mm, Material: Carbon (CF)
Suspension Fork
Canyon Rude CF, Developed by Canyon, the Rude CF carbon fork has enough clearance for huge 3.8” wide tyres. It’s extremely light and stiff, giving you precise handling and direct feedback off-road. Axle dimensions: 15x150 mm., Material: Carbon (CF), Weight: 500 g
Drivetrain

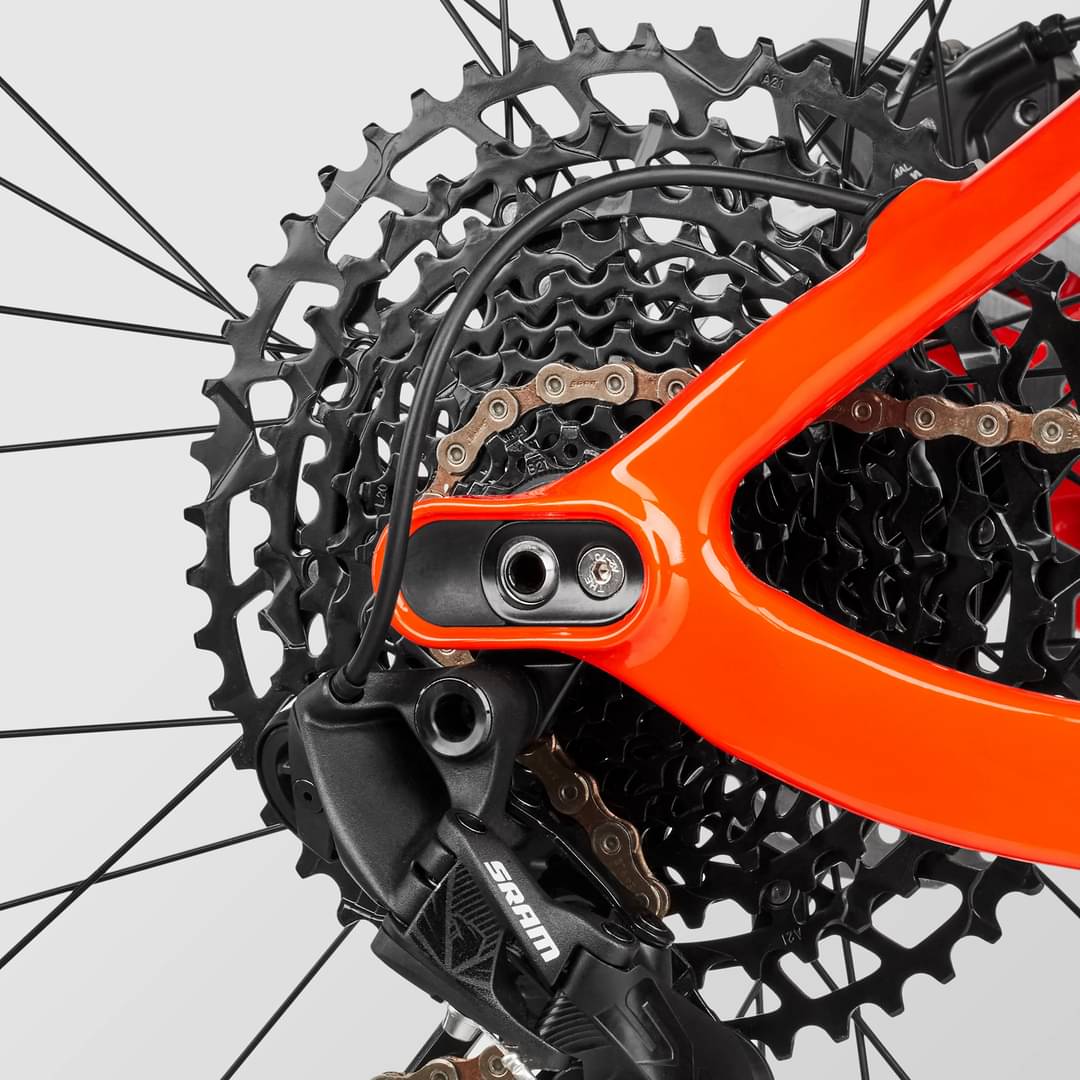

Rear Derailleur
SRAM SX Eagle 12s
Shift Levers
SRAM SX Eagle Trigger 12s
Cassette
SRAM PG-1210 Eagle 11-50 12s, Number of sprockets: 12

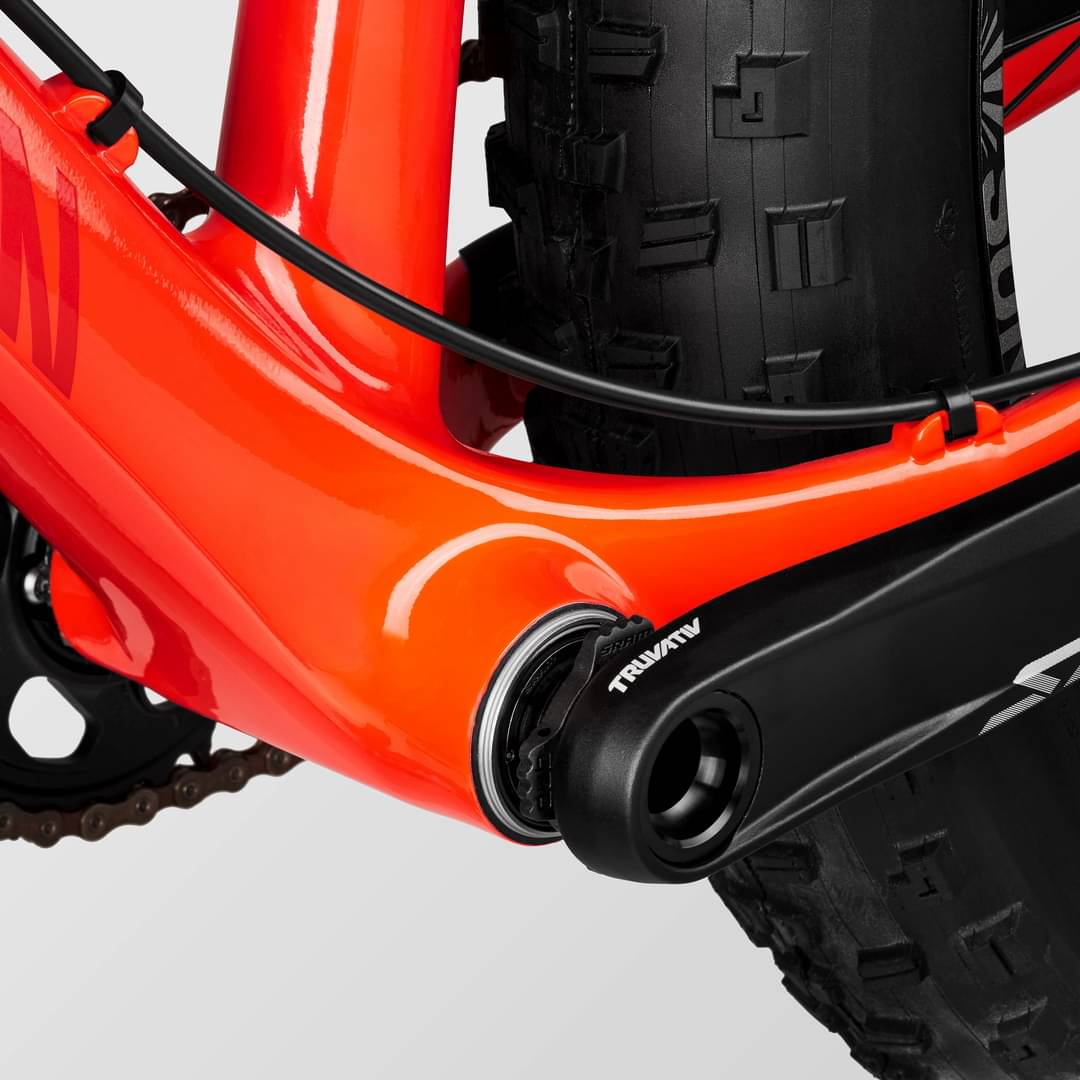

Crank
Truvativ Stylo 6K DUB 30T, Number of chainrings: 1
Bottom Bracket
SRAM Pressfit DUB, Bottom bracket standard: PF 121, Weight: 89 g
Chain
SRAM SX Eagle 12s
Pedals
None included
Wheels
Rims
Sun Ringle Mulefüt 80 SL, Axle dimension: 15x150 mm, Rotor mount: IS 6-bolt, Rim material: Aluminium, Weight: 1.30 kg | Sun Ringle Mulefüt 80 SL, Axle dimension: 12x197 mm, Rotor mount: IS 6-bolt, Rim material: Aluminium, Weight: 1.50 kg
Tires
MAXXIS Minion FBF 3.8", Width: 3.8" | MAXXIS Minion FBR 3.8", Width: 3.8"
Brakes
Brakes
Shimano MT410
Cockpit
Stem
Iridium, Fork steer tube diameter: 1 1/8", Clamping diameter: 31,8 mm
Handlebar
Iridium Flatbar, Material: Aluminium, Rise: 5mm, Width for S and XS frames: 740 mm
Grips
Canyon Lock-On
Seat
Saddle
Selle Italia X3, Gender: Unisex, Weight: 295 g
Seatpost
Iridium, Clamp diameter: 30,9 mm, Material: Aluminium (AL), Weight: 280 g
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.47 mm | 1.42 mm | 1.38 mm |
| Bottom Bracket Height | 288 mm | 288 mm | 288 mm |
| Front Center | 666 mm | 704 mm | 744 mm |
| Rake | 50 mm | 50 mm | 51 mm |
| Trail | 83 mm | 83 mm | 82 mm |
| Stack | 605 mm | 628 mm | 652 mm |
| Reach | 412 mm | 442 mm | 472 mm |
| Top Tube Length | 573 mm | 609 mm | 646 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 390 mm | 445 mm | 490 mm |
| Head Tube Angle | 69 ° | 69 ° | 69 ° |
| Head Tube Length | 94 mm | 119 mm | 144 mm |
| Chainstay Length | 446 mm | 446 mm | 446 mm |
| Wheelbase | 1103 mm | 1142 mm | 1182 mm |
| Bottom Bracket Drop | 67 mm | 67 mm | 67 mm |
| Standover Height | 776 mm | 801 mm | 808 mm |
| Wheels | 27" | 27" | 27" |
| Rider Max Height | 172 cm | 184 cm | cm |
Model Overview
Dude CF 7 completes the Canyon Dude model. 16 bikes variations carry this model name so far. You can easily view all of the Canyon Dude bikes models from 2023, here.
Model range prices
Canyon Dude CF 8 2023 is the cheapest bike model and costs 2123$. Canyon Dude CF 9 2023 is the most expensive one and costs 3184$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Fatbike bikes
If you want to purchase a solid Fatbike bike, it is important to know that the average cost is 1743$. However, this doesn’t mean that if you spend less money on a Fatbike bike, you couldn’t get a decent one. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Furthermore, this bike was made available in 2023 for 2299$. Comparing the average cost of a Fatbike bike to this one, you will see that Dude CF 7 price is 31.9% higher.
Fatbike bikes average weight
Fatbike bikes weigh an average of 13.2 kg (29.1 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
Dude CF 7 weighs 13.5 kg (29.76 lbs) and is slightly heavier than the average. In other words, this model is 2.27% heavier than the average Fatbike bike.
Overview of components
Fork material
The fork on this bike is made out of carbon, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Wheels size
When leaving the production line, the Dude CF 7 model has 27.5″ aluminum wheels. 27.5″ wheels are a mixture between 29″ wheels and 26″ wheels. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
For your safety, it is important to have quality breaks on your bike. Canyon Dude CF 7 has Hydraulic Disc brakes installed. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
