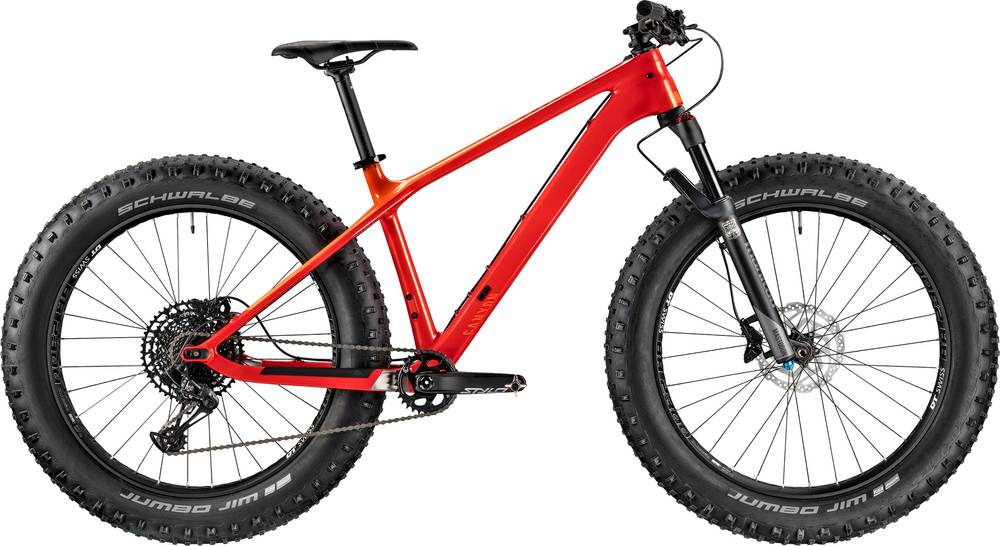

Canyon Dude CF 8.0 Trail 2020
2020 Mountain
Estimate price |
2,999$
Weight | 14.96 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 26" -
Travel Front 100mm -
Fork Manitou Mastodon Comp
-
Groupset NX Eagle, Truvativ Stylo -
Suspension Hardtail -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
170cm - 184cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Canyon Dude CF, Material: Carbon, Axle Dimension: 12 x 197 mm, Brake Mount: Post Mount
Suspension Fork
Manitou Mastodon Comp STD
Drivetrain
Rear Derailleur
SRAM NX Eagle, The NX Eagle rear derailleur delivers consistent shifts thanks, in part, to its robust steel/aluminum chassis.
Shift Levers
SRAM NX Eagle Trigger 12s
Cassette
SRAM PG-1230 Eagle 11-50 12s, SRAM's NX Eagle 11-50 cassette packs a wide, 454% gear range into a surprisingly affordable package.
Crank
Truvativ Stylo 6K DUB 30T
Bottom Bracket
SRAM Pressfit DUB
Chain
SRAM NX Eagle 12s
Pedals
None included
Wheels
Rims
DT Swiss BR 2300, Rim Material: Aluminium, Inner Width: 80 mm, Weight: 1048 g | DT Swiss BR 2300 SH11, Rim Material: Aluminium, Inner Width: 80 mm, Freewheel: 3 Pawl, Weight: 1260 g
Tires
Schwalbe Jumbo Jim
Brakes
Brakes
Shimano MT420 | Shimano MT401
Disk Rotors
Shimano RT10, Disc Mount: Centerlock
Cockpit
Stem
Race Face Ride
Handlebar
Race Face Ride Riserbar, Material: Aluminium, Rise: 10 mm
Grips
Canyon Lock-On Grips
Seat
Saddle
Selle Italia X-Base
Seatpost
Iridium
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.52 mm | 1.47 mm | 1.43 mm |
| Bottom Bracket Height | 283 mm | 283 mm | 283 mm |
| Front Center | 671 mm | 711 mm | 750 mm |
| Rake | 54 mm | 55 mm | 55 mm |
| Trail | 77 mm | 76 mm | 76 mm |
| Stack | 612 mm | 635 mm | 659 mm |
| Reach | 402 mm | 432 mm | 462 mm |
| Top Tube Length | 576 mm | 612 mm | 649 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 390 mm | 445 mm | 490 mm |
| Head Tube Angle | 68.5 ° | 68.5 ° | 68.5 ° |
| Head Tube Length | 95 mm | 120 mm | 145 mm |
| Chainstay Length | 446 mm | 446 mm | 446 mm |
| Wheelbase | 1110 mm | 1150 mm | 1189 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm |
| Front Travel | 100 mm | 100 mm | 100 mm |
| Wheels | 26" | 26" | 26" |
| Rider Max Height | 172 cm | 184 cm | cm |
About this model
Dude CF 8.0 Trail is part of the Canyon Dude model. 16 bikes variations carry this model name so far. You can get a glimpse at all models from 2020, by clicking on this link.
Model range prices
The most economical model, the Canyon Dude CF 8.0 2020 has a starting price of 2499$. Canyon Dude CF 8.0 Trail 2020 on the other hand is the most expensive at 2999$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Fatbike bikes average price
Our math shows that the average cost of a dependable Fatbike bike is 1743$. However, even if your budget is less than the average, you might still be able to get a top-quality Fatbike bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
At the moment of the release date, Canyon Dude CF 8.0 Trail price was 2999$. Doing a quick comparison, we notice that Dude CF 8.0 Trail price is 72.06% more expensive than the average cost of a Fatbike bike.
Average weight for Fatbike bikes
The average weight for Fatbike bikes is 13.2 kg (29.1 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
Dude CF 8.0 Trail weighs 14.96 kg (32.98 lbs) and is considerably heavier than the average. In other words, this model is 13.33% heavier than the average Fatbike bike.
Overview of components
Fork
The Dude CF 8.0 Trail comes factory-installed with the Manitou Mastodon Comp fork. This has a travel range of 100mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels
The Dude CF 8.0 Trail 2020 bike is equipped with 26″ aluminum wheels when leaving the factory. The 26″ wheels are lighter than the 27.5 or 29″ wheels. However, they are less forgiving when riding over obstacles such as bumps and roots.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Dude CF 8.0 Trail comes with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
