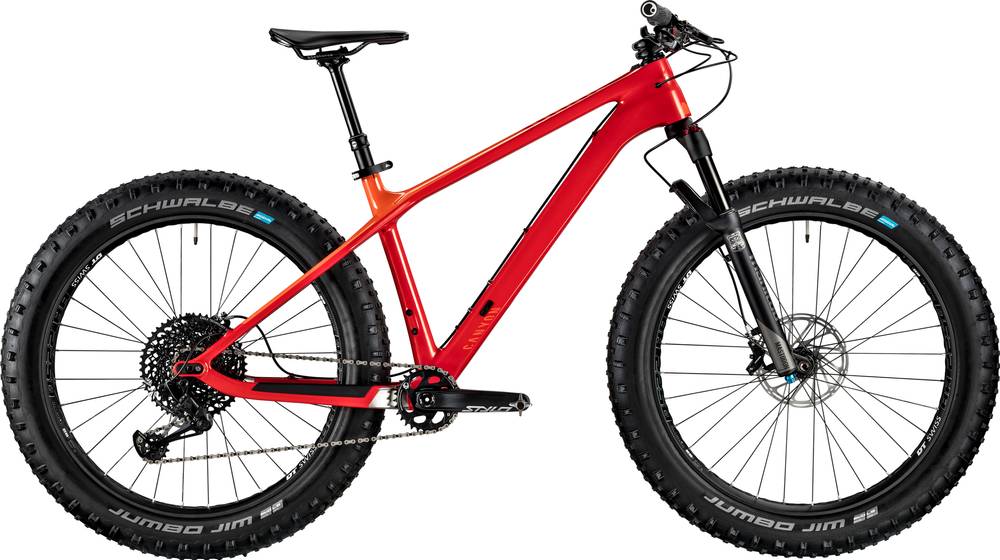

Canyon Dude CF 9.0 Trail 2019
2019 Mountain
Estimate price |
3,489$
Weight | 13.8 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 26" -
Travel Front 150mm -
Fork Manitou Mastodon Pro
-
Groupset GX Eagle, Truvativ Stylo -
Suspension Hardtail -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
170cm - 184cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Canyon Dude CF, Material: Carbon, Axle Dimension: 12 x 197 mm, Brake Mount: Post Mount
Suspension Fork
Manitou Mastodon Pro, Travel: 100 mm, Axle Dimension: 15 x 150 mm
Drivetrain
Rear Derailleur
SRAM GX Eagle
Shift Levers
SRAM GX Eagle Trigger 12s
Cassette
SRAM XG-1275 Eagle 10-50 12s
Crank
Truvativ Stylo 6K DUB 30T 30
Bottom Bracket
SRAM Pressfit DUB
Pedals
None included
Wheels
Rims
DT Swiss BR 2250 XD, Rim Material: Aluminium, Inner Width: 80 mm, Freewheel: Ratchet, Weight: 1180 g
Tires
Schwalbe Jumbo Jim 4.0'', Casing: Lite Skin, Compound: Addix Speedgrip, Technology: Tubeless Easy
Brakes
Brakes
SRAM Guide RSC
Disk Rotors
SRAM Centerline Rounded Edges, Disc Mount: 6-Hole
Cockpit
Stem
Canyon V12
Handlebar
Canyon H15 Riserbar, Material: Aluminium, Rise: 15 mm
Grips
Ergon GA20
Headset
Cane Creek 40 IPU
Seat
Saddle
Fizik Taiga
Seatpost
Iridium Dropper
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.52 mm | 1.47 mm | 1.43 mm |
| Bottom Bracket Height | 283 mm | 283 mm | 283 mm |
| Front Center | 672 mm | 672 mm | 672 mm |
| Rake | 55 mm | 19 mm | -18 mm |
| Trail | 76 mm | 115 mm | 154 mm |
| Stack | 612 mm | 635 mm | 659 mm |
| Reach | 402 mm | 432 mm | 462 mm |
| Top Tube Length | 576 mm | 612 mm | 649 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 390 mm | 445 mm | 490 mm |
| Head Tube Angle | 68.5 ° | 68.5 ° | 68.5 ° |
| Head Tube Length | 95 mm | 120 mm | 145 mm |
| Chainstay Length | 446 mm | 446 mm | 446 mm |
| Wheelbase | 1111 mm | 1111 mm | 1111 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm |
| Standover Height | 788 mm | 788 mm | 788 mm |
| Front Travel | 150 mm | 150 mm | 150 mm |
| Wheels | 26" | 26" | 26" |
| Rider Max Height | 172 cm | 184 cm | cm |
Model Overview
Dude CF 9.0 Trail is part of the Canyon Dude model. There are 16 bikes that carry this model name. Take a sneak peek at all Canyon Dude bikes models from 2019, by clicking here.
Model range prices
The most economical model, the Canyon Dude CF 8.0 2019 has a starting price of 2016$. Canyon Dude CF 9.0 Trail 2019 on the other hand is the most expensive at 3184$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Fatbike bikes
Our math shows that the average cost of a dependable Fatbike bike is 1743$. However, this doesn’t mean that if you spend less money on a Fatbike bike, you couldn’t get a decent one. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
At the moment of the release date, Canyon Dude CF 9.0 Trail price was 3184$. Comparing the average cost of a Fatbike bike to this one, you will see that Dude CF 9.0 Trail price is 82.67% more expensive.
Fatbike bikes average weight
Fatbike bikes weigh an average of 13.2 kg (29.1 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
With a weight of 13.8 kg (30.42 lbs), Canyon bike is slightly heavier than average. To sum up, it’s 4.55% heavier than the average weight of Fatbike bikes.
Overview of components
Fork
This bike has the Manitou Mastodon Pro fork installed. The fork’s travel is 150mm. Bike forks are great for shock absorption and provide you with a smooth ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels
As for the wheels, Canyon Dude CF 9.0 Trail 2019, has a 26″ aluminum model. Being a little smaller, these wheels will fit both small and tall riders. However, they provide less traction than 29″ wheels do.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
Dropper post
The Canyon model is also equipped with a dropper post. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
