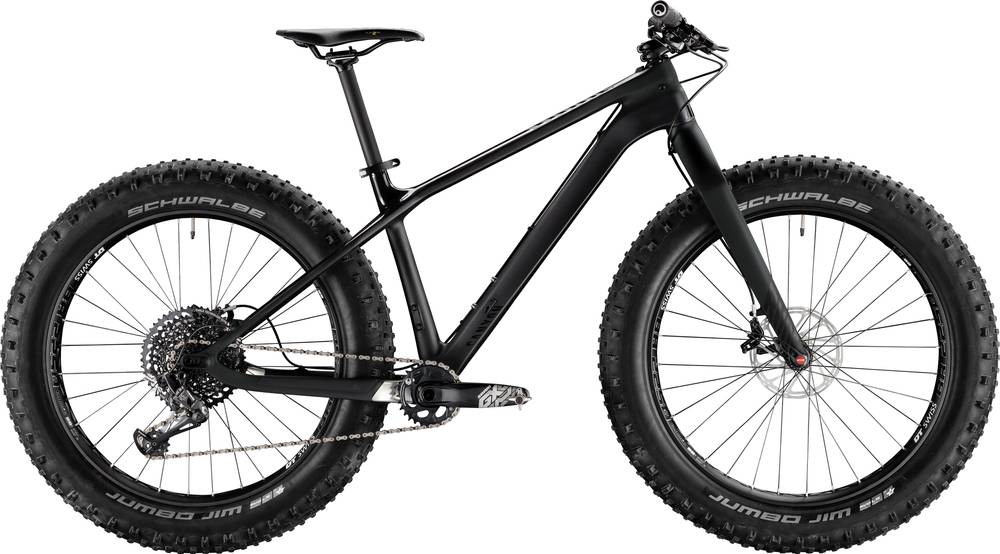

Canyon Dude CF 9.0 Unlimited 2018
2018 Mountain
Estimate price |
2,799$
Weight | 12.4 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 26" -
Groupset GX Eagle -
Suspension Rigid -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 172cm
MD
170cm - 184cm
LG
182cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Canyon Dude CF, Material: Carbon, Axle Dimension: 12 x 197 mm, Brake Mount: Post Mount
Suspension Fork
Canyon Rude CF, Material: Carbon, Steerer: 1 1/8" Taper, Axle Dimension: 15 x 150, Brake Mount: Post Mount
Drivetrain
Rear Derailleur
SRAM GX Eagle
Shift Levers
SRAM GX Eagle Trigger 12s
Cassette
SRAM XG-1275 Eagle 10-50 12s
Crank
SRAM GX Eagle 30T 30
Bottom Bracket
SRAM Pressfit GXP
Chain
SRAM GX Eagle
Pedals
None included
Wheels
Rims
DT Swiss BR 2250, Rim Material: Aluminium, Inner Width: 80 mm, Weight: 1048 g | DT Swiss BR 2250 XD, Rim Material: Aluminium, Inner Width: 80 mm, Freewheel: Ratchet, Weight: 1180 g
Tires
Schwalbe Jumbo Jim 4.0'', Casing: Lite Skin, Compound: Addix Speedgrip, Technology: Tubeless Easy
Brakes
Brakes
SRAM Guide R
Disk Rotors
RT SRAM Centerline 180 6h | RT SRAM Centerline 160 6h
Cockpit
Stem
Canyon V12, Angle: +/- 6°, 1 1/8" Stem clamp, In-house developed Canyon stem with new clamping concept for added security, Progressive and torsionally stiff design thanks to asymmetric wall thicknesses, Compliant with Canyon Category 4 testing standards
Handlebar
Canyon H15 Riserbar, Material: Aluminium, Rise: 15 mm
Grips
Ergon GA30
Headset
Cane Creek 40 IPU
Seat
Saddle
Fizik Tundra II
Seatpost
Canyon VCLS S29
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.52 mm | 1.47 mm | 1.43 mm |
| Bottom Bracket Height | 283 mm | 283 mm | 283 mm |
| Front Center | 672 mm | 672 mm | 672 mm |
| Rake | 55 mm | 19 mm | -18 mm |
| Trail | 76 mm | 115 mm | 154 mm |
| Stack | 612 mm | 635 mm | 659 mm |
| Reach | 402 mm | 432 mm | 462 mm |
| Top Tube Length | 576 mm | 612 mm | 649 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 390 mm | 445 mm | 490 mm |
| Head Tube Angle | 68.5 ° | 68.5 ° | 68.5 ° |
| Head Tube Length | 95 mm | 120 mm | 145 mm |
| Chainstay Length | 446 mm | 446 mm | 446 mm |
| Wheelbase | 1111 mm | 1111 mm | 1111 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm |
| Standover Height | 768 mm | 788 mm | 788 mm |
| Wheels | 26" | 26" | 26" |
| Rider Min Height | 158 cm | 170 cm | 182 cm |
| Rider Max Height | 172 cm | 184 cm | 187 cm |
About this model
Dude CF 9.0 Unlimited completes the Canyon Dude model. Canyon released 16 bikes variations of this model so far. Check out the entire range from 2018 of this model, by clicking this link.
Model range prices
Canyon Dude CF 8.0 2018 is the most economical model, with a starting price of 1999$. Canyon Dude CF 9.0 Unlimited 2018 on the other hand costs 2799$, and is the most expensive model.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Fatbike bikes
According to our calculations, the average cost of a Fatbike bike that is reliable is 1743$. However, even though the average price of a Fatbike bike is lower, you might still be able to get a top-quality bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Furthermore, this bike was made available in 2018 for 2799$. Doing a quick comparison, we notice that Dude CF 9.0 Unlimited price is 60.59% higher than the average cost of a Fatbike bike.
Fatbike bikes average weight
If we make a quick analysis of the average weight of a Fatbike bike, we get 13.2 kg (29.1 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
Dude CF 9.0 Unlimited weighs 12.4 kg (27.34 lbs) and is a bit lighter than the average. In other words, this model is 6.45% lighter than the average Fatbike bike.
Dude CF 9.0 Unlimited components
Fork material
Dude CF 9.0 Unlimited has a carbon fork, so, it won’t add up to much weight to your bike. However, the price you have to pay for a carbon fork is considerably higher.
Wheels size
When leaving the production line, the Dude CF 9.0 Unlimited model has 26″ aluminum wheels. These wheels give you great handling over your bike. However, they are less forgiving when riding over obstacles such as bumps and roots.
Brakes
When you want to stop the bike in time, the brakes are vital. The Dude CF 9.0 Unlimited has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
Sizes
This bike is available in 3 sizes. They vary from 158 cm – 187 cm (5.18 ft – 6.14 ft). In conclusion, finding one for you shouldn’t be a problem.
