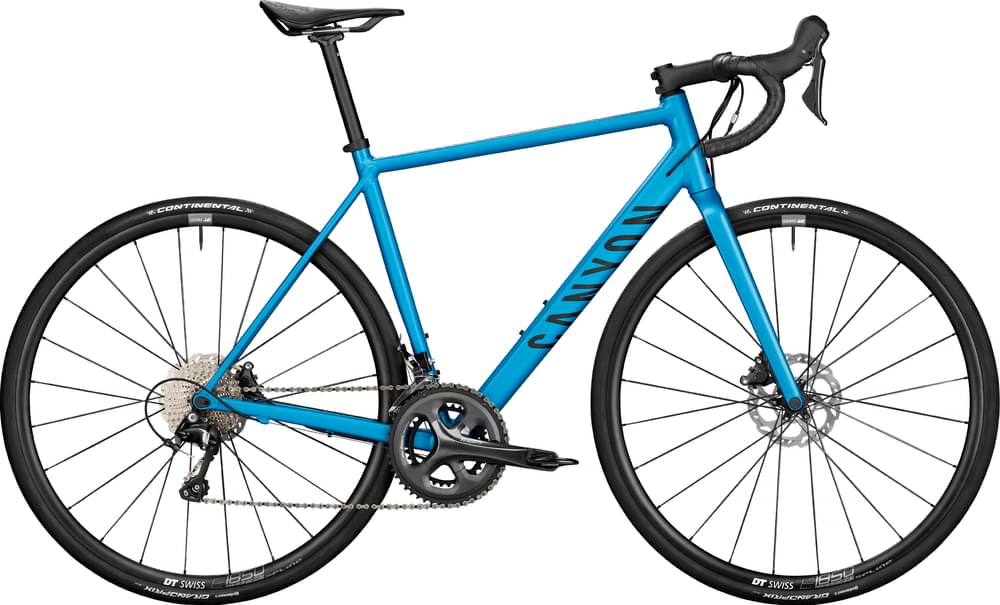

Canyon Endurace 6 Disc 2022
2022 Road
Estimate price |
1,490$
Weight | 9.2 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset Tiagra -
Suspension Rigid -
Drivetrain 2 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
165cm - 173cm
SM
171cm - 179cm
MD
177cm - 185cm
LG
183cm - 191cm
XL
189cm - 197cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Canyon Endurace AL Disc, Material: Aluminium 6061, Axle Dimension: 12 x 142 mm, Brake Mount: Flat Mount
Suspension Fork
Canyon FK0042 CF Disc, Material: Carbon, Steerer: 1 1/8", Axle Dimension: 12 x 100 mm, Brake Mount: Flat Mount
Drivetrain
Rear Derailleur
Shimano Tiagra 4700 GS, Rear derailleur for 10-speed shifting systems. Maximum cassette size: 34T.
Front Derailleur
Shimano Tiagra 4700, Braze-on front derailleur for 2x10 shifting systems.
Shift Levers
Shimano Tiagra R4720 2s, Ergonomic shift and brake levers. With reach adjust and redesigned internals for quicker, more intuitive shifting. | Shimano Tiagra R4720 10s, Ergonomic shift and brake levers. With reach adjust and redesigned internals for quicker, more intuitive shifting.
Cassette
Shimano HG500 11-34 10s, 11-34 tooth cassette
Crank
Shimano Tiagra 4700, Chainring size: See ‘Geometry and dimensions’ below
Bottom Bracket
Shimano BSA BB-R60, Threaded bottom bracket with Hollowtech II technology., Shell width: 68 mm.
Chain
KMC X10-93 10s, Durable half nickel plated chain.
Pedals
None included
Wheels
Rims
DT Swiss E 1850 Spline db, Rim Material: Aluminium, Rim Height: 23 mm, Inner Width: 20 mm, Weight: 759 g | DT Swiss E 1850 Spline db SH11, Rim Material: Aluminium, Rim Height: 23 mm, Inner Width: 20 mm, Weight: 896 g
Tires
Continental Grand Prix SL 28 mm, Casing: PolyX Breaker, Compound: BlackChili, Technology: Foldable, Weight: 275 g
Brakes
Brake Levers
Shimano Tiagra R4720 2s, Ergonomic shift and brake levers. With reach adjust and redesigned internals for quicker, more intuitive shifting. | Shimano Tiagra R4720 10s, Ergonomic shift and brake levers. With reach adjust and redesigned internals for quicker, more intuitive shifting.
Disk Rotors
Shimano RT70, Disc Mount: Centerlock
Cockpit
Stem
Canyon V15, High-grade aluminium stem, Clamp diameter: 31.8 mm, Head tube diameter: 1 1/8”, Weight: 148 g
Handlebar
Canyon H17 Ergobar AL, Material: Aluminium, Shape: Ergo, Reach: 70 mm, Drop: 130 mm
Seat
Saddle
Selle Italia Model X, Saddle with central cut-out and flexible wings for maximum comfort. Featuring durable Soft-Tek cover for maximum durability and scratch resistance. Rail material: manganese.
Seatpost
Iridium, Diameter: 27.2 mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XXS | XS | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.43 mm | 1.45 mm | 1.5 mm | 1.55 mm | 1.59 mm | 1.57 mm | 1.58 mm |
| Bottom Bracket Height | 261 mm | 261 mm | 263 mm | 263 mm | 263 mm | 263 mm | 263 mm |
| Front Center | 587 mm | 587 mm | 589 mm | 590 mm | 604 mm | 626 mm | 641 mm |
| Rake | 44 mm | 44 mm | 43 mm | 43 mm | 44 mm | 44 mm | 43 mm |
| Trail | 82 mm | 70 mm | 65 mm | 59 mm | 58 mm | 56 mm | 57 mm |
| Stack | 509 mm | 532 mm | 556 mm | 578 mm | 603 mm | 625 mm | 643 mm |
| Reach | 357 mm | 366 mm | 370 mm | 374 mm | 380 mm | 398 mm | 408 mm |
| Top Tube Length | 511 mm | 526 mm | 537 mm | 547 mm | 561 mm | 586 mm | 601 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 442 mm | 472 mm | 502 mm | 532 mm | 562 mm | 592 mm | 622 mm |
| Head Tube Angle | 69.2 ° | 71 ° | 72 ° | 73 ° | 73 ° | 73.25 ° | 73.25 ° |
| Head Tube Length | 107 mm | 124 mm | 148 mm | 167 mm | 193 mm | 215 mm | 234 mm |
| Chainstay Length | 406 mm | 406 mm | 406 mm | 406 mm | 406 mm | 406 mm | 406 mm |
| Wheelbase | 981 mm | 981 mm | 984 mm | 985 mm | 999 mm | 1021 mm | 1036 mm |
| Bottom Bracket Drop | 75 mm | 75 mm | 73 mm | 73 mm | 73 mm | 73 mm | 73 mm |
| Standover Height | 709 mm | 735 mm | 765 mm | 791 mm | 818 mm | 843 mm | 869 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Max Height | 167 cm | 173 cm | 179 cm | 185 cm | 191 cm | 197 cm | cm |
Model Overview
Endurace 6 Disc completes the Canyon Endurace model. Canyon launched 171 bikes of this model so far. Check out the entire range from 2022 of this model, by clicking this link.
Model range prices
Canyon Endurace 6 2022 is the cheapest bike model and costs 1061$. Canyon Endurace CF SLX 9 Disc eTap 2022 is the most expensive one and costs 8500$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Endurance bikes
If you want an acceptable Endurance bike you should know that the average price is 2346$. However, this doesn’t mean that if you spend less money on an Endurance bike, you couldn’t get a decent one. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Furthermore, this bike was made available in 2022 for 1379$. In conclusion, this bike price is 70.12% smaller than the price of the average Endurance bike.
Endurance bikes average weight
Endurance bikes weigh an average of 8.2 kg (18.08 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
Weighing 9.2 kg (20.28 lbs), the Endurace 6 Disc model is considerably heavier than average. To sum up, it’s 12.2% heavier than the average weight of Endurance bikes.
Endurace 6 Disc components
Fork material
The fork is made out of carbon, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels size
The wheels on Endurace 6 Disc are the 700c aluminum type. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, these wheels don’t perform so well when passing over obstacles.
Brakes
For your safety, it is important to have quality breaks on your bike. Canyon Endurace 6 Disc has Hydraulic Disc brakes installed. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
