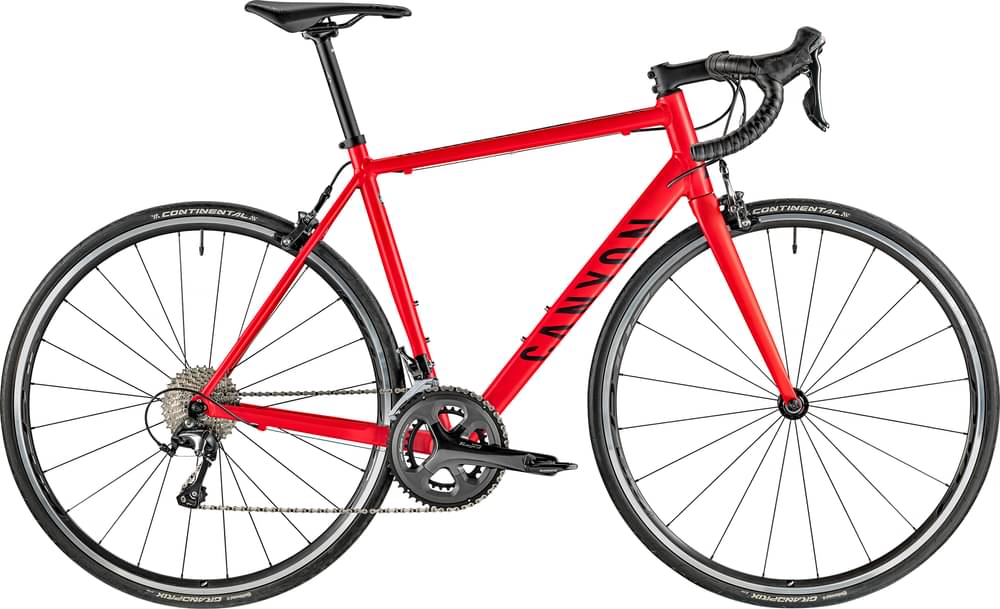

Canyon Endurace AL 6.0 2020
2020 Road
Estimate price |
1,146$
Weight | 8.58 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset Tiagra -
Suspension Rigid -
Drivetrain 2 × 10 -
Brakes Rim
Sizing
Recommended size guide.
SM
171cm - 178cm
MD
176cm - 183cm
LG
181cm - 188cm
XL
186cm - 193cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Canyon Endurace AL, Material: Aluminium 6061, Axle Dimension: 9 x 130 mm, Brake Mount: Rim Brake
Suspension Fork
Canyon F25 CF, Material: Carbon, Steerer: 1 1/8", Axle Dimension: 9 x 100 mm, Brake Mount: Rim Brake
Drivetrain
Rear Derailleur
Shimano Tiagra 4700 GS
Front Derailleur
Shimano Tiagra 4700
Shift Levers
Shimano Tiagra ST4700
Cassette
Shimano HG500 11-34 10s
Crank
Shimano Tiagra 4700, Chainring size: See ‘Geometry and dimensions’ below
Bottom Bracket
Shimano BSA BB-RS500
Chain
KMC X10-93 10s
Pedals
None included
Wheels
Rims
Fulcrum Racing 900 | Fulcrum Racing 900 SH11
Tires
Continental Grand Prix SL 25 mm, Casing: PolyX Breaker, Compound: BlackChili, Technology: Foldable, Weight: 245 g
Brakes
Brakes
Shimano Tiagra 4700
Brake Levers
Shimano Tiagra ST4700
Cockpit
Stem
Canyon V15
Handlebar
Canyon H28 Ergobar AL, Material: Aluminium, Shape: Ergo, Reach: 82 mm, Drop: 130 mm
Seat
Saddle
Selle Italia X3
Seatpost
Iridium
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.52 mm | 1.54 mm | 1.55 mm | 1.59 mm | 1.58 mm | 1.6 mm |
| Bottom Bracket Height | 266 mm | 266 mm | 266 mm | 266 mm | 266 mm | 266 mm |
| Front Center | 579 mm | 583 mm | 584 mm | 593 mm | 606 mm | 617 mm |
| Rake | 42 mm | 42 mm | 42 mm | 51 mm | 42 mm | 42 mm |
| Trail | 74 mm | 69 mm | 63 mm | 48 mm | 58 mm | 58 mm |
| Stack | 548 mm | 563 mm | 578 mm | 595 mm | 616 mm | 633 mm |
| Reach | 360 mm | 366 mm | 372 mm | 374 mm | 390 mm | 396 mm |
| Top Tube Length | 523 mm | 534 mm | 544 mm | 551 mm | 573 mm | 584 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 465 mm | 505 mm | 537 mm | 563 mm | 585 mm | 610 mm |
| Head Tube Angle | 70.8 ° | 71.5 ° | 72.5 ° | 73.3 ° | 73.3 ° | 73.3 ° |
| Head Tube Length | 150 mm | 163 mm | 175 mm | 190 mm | 212 mm | 230 mm |
| Chainstay Length | 412 mm | 412 mm | 412 mm | 412 mm | 412 mm | 412 mm |
| Wheelbase | 981 mm | 985 mm | 986 mm | 995 mm | 1008 mm | 1019 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm |
| Standover Height | 738 mm | 768 mm | 794 mm | 814 mm | 835 mm | 855 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Max Height | 173 cm | 178 cm | 183 cm | 188 cm | 193 cm | cm |
Model Overview
Endurace AL 6.0 is a Canyon Endurace model. 171 bikes variations carry this model name so far. Take a sneak peek at all Canyon Endurace bikes models from 2020, by clicking here.
Model range prices
Canyon Endurace WMN AL 6.0 2020 is the cheapest bike model and costs 1061$. Canyon Endurace CF SLX Disc 9.0 eTap 2020 is the most expensive one and costs 7999$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Endurance bikes
If you want an acceptable Endurance bike you should know that the average price is 2346$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Endurance bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
At the moment of the release date, Canyon Endurace AL 6.0 price was 1061$. Doing a quick comparison, we notice that Endurace AL 6.0 price is 121.11% smaller than the average cost of an Endurance bike.
Endurance bikes average weight
On a deeper look, we notice that the average weight of an Endurance bike is 8.2 kg (18.08 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
Weighing 8.58 kg (18.92 lbs), the Endurace AL 6.0 model is slightly heavier than average. To sum up, it’s 4.63% heavier than the average weight of Endurance bikes.
Overview of components
Fork material
The fork is made out of carbon, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Wheels size
When leaving the production line, the Endurace AL 6.0 model has 700c aluminum wheels. These wheels are the most used kind for road bikes in general. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Rim brakes. Rim brakes deliver an average performance overall. However, you could spend a little extra and get a bike that has hydraulic brakes.
