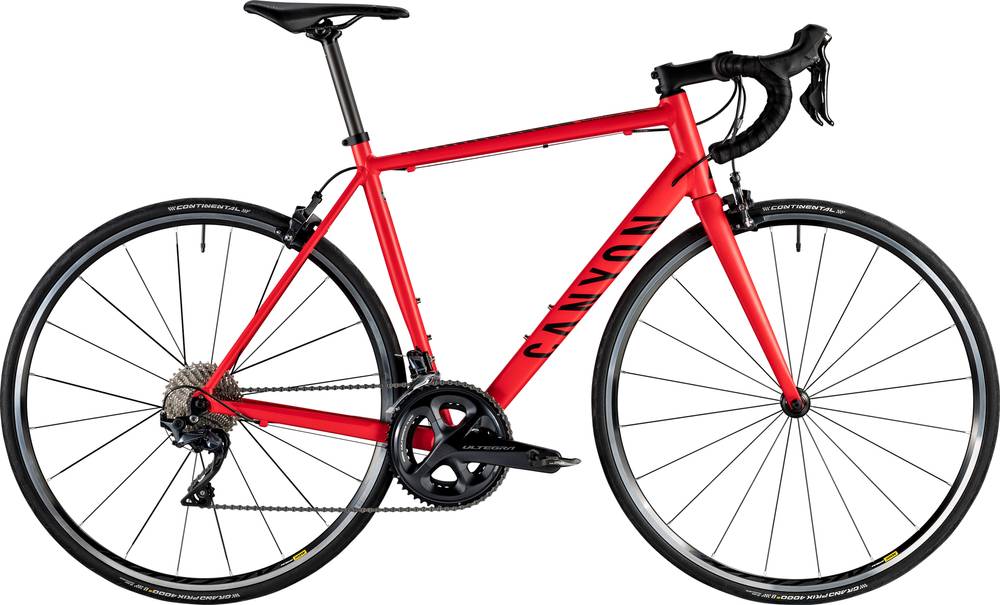

Canyon Endurace AL 8.0 2019
2019 Road
Estimate price |
1,318$
Weight | 8.2 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset Ultegra -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Rim
Sizing
Recommended size guide.
SM
171cm - 178cm
MD
176cm - 183cm
LG
181cm - 188cm
XL
186cm - 193cm
XXL
191cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Canyon Endurace AL, Material: Aluminium 6061, Axle Dimension: 9 x 130 mm, Brake Mount: Rim Brake
Suspension Fork
Canyon F25 CF, Material: Carbon, Steerer: 1 1/8", Axle Dimension: 9 x 100 mm, Brake Mount: Rim Brake
Drivetrain
Rear Derailleur
Shimano Ultegra R8000 SGS
Front Derailleur
Shimano Ultegra R8000
Shift Levers
Shimano Ultegra R8000 11s, Weight: 220 g
Cassette
Shimano Ultegra HG800 11-34 11s
Crank
Shimano Ultegra R8000 52/36
Bottom Bracket
Shimano BSA BB-R60
Chain
Shimano CN-HG601 11s
Pedals
None included
Wheels
Rims
Mavic Aksium SH11, Rim Material: Aluminium, Rim Height: 21 mm, Inner Width: 17 mm, Weight: 995 g
Tires
Continental 25 mm, Casing: Vectran Breaker, Compound: BlackChili, Technology: Foldable
Brakes
Brakes
Shimano Ultegra R8000
Brake Levers
Shimano Ultegra R8000 11s, Weight: 220 g
Cockpit
Stem
Canyon V15
Handlebar
Canyon H17 Ergobar AL, Material: Aluminium, Shape: Ergo, Reach: 70 mm, Drop: 130 mm
Seat
Saddle
Selle Italia X3
Seatpost
Canyon SP0042 VCLS CF, Material: Carbon, Setback: 8 mm, Technology: VCLS
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL | XXL | XXXL |
|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.52 mm | 1.54 mm | 1.55 mm | 1.59 mm | 1.58 mm | 1.6 mm | 1.58 mm |
| Bottom Bracket Height | 266 mm | 266 mm | 266 mm | 266 mm | 266 mm | 266 mm | 266 mm |
| Front Center | 579 mm | 583 mm | 584 mm | 593 mm | 606 mm | 617 mm | 639 mm |
| Rake | 42 mm | 46 mm | 42 mm | 51 mm | 42 mm | 42 mm | 41 mm |
| Trail | 74 mm | 62 mm | 63 mm | 49 mm | 58 mm | 58 mm | 59 mm |
| Stack | 548 mm | 563 mm | 578 mm | 595 mm | 616 mm | 633 mm | 651 mm |
| Reach | 360 mm | 366 mm | 372 mm | 374 mm | 390 mm | 396 mm | 413 mm |
| Top Tube Length | 523 mm | 534 mm | 544 mm | 551 mm | 573 mm | 584 mm | 607 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 465 mm | 505 mm | 537 mm | 563 mm | 585 mm | 610 mm | 635 mm |
| Head Tube Angle | 70.8 ° | 72 ° | 72.5 ° | 73.25 ° | 73.25 ° | 73.25 ° | 73.25 ° |
| Head Tube Length | 150 mm | 163 mm | 175 mm | 190 mm | 212 mm | 230 mm | 248 mm |
| Chainstay Length | 412 mm | 412 mm | 412 mm | 412 mm | 412 mm | 412 mm | 412 mm |
| Wheelbase | 981 mm | 985 mm | 986 mm | 995 mm | 1008 mm | 1019 mm | 1041 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm |
| Standover Height | 738 mm | 768 mm | 794 mm | 814 mm | 835 mm | 855 mm | 874 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Max Height | 173 cm | 178 cm | 183 cm | 188 cm | 193 cm | 198 cm | cm |
About this model
Endurace AL 8.0 belongs to the Canyon Endurace model. There are 171 bikes that carry this model name. You can get a glimpse at all models from 2019, by clicking on this link.
Model range prices
Canyon Endurace AL 6.0 2019 is the most affordable bike of this model and has a price of 848$. On the other hand, Canyon Endurace CF SLX Disc 9.0 Di2 2019, is the most expensive and costs 7000$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Endurance bikes
According to our math, the average price for a trustworthy Endurance bike is 2346$. However, this doesn’t mean that if you spend less money on an Endurance bike, you couldn’t get a decent one. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Furthermore, this bike was made available in 2019 for 1220$. In conclusion, this bike price is 92.3% lower than the price of the average Endurance bike.
Endurance bikes average weight
The average weight for Endurance bikes is 8.2 kg (18.08 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
equally heavier with average, Endurace AL 8.0 has a weight of 8.2 kg (18.08 lbs). In short, the average Endurance bike weight is 0% lower than this one.
Overview of components
Fork material
When it comes to the fork, this bike has a carbon one, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Wheels size
When leaving the production line, the Endurace AL 8.0 model has 700c aluminum wheels. There is no doubt, that 700c wheels are very popular on all road bike models. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Nothing is more important on a bike than its ability to brake properly. Canyon Endurace AL 8.0 is equipped with Rim brakes. Rim brakes are cheaper than hydraulic brakes, and also easier to maintain. However, they are not nearly as effective as hydraulic brakes are.
