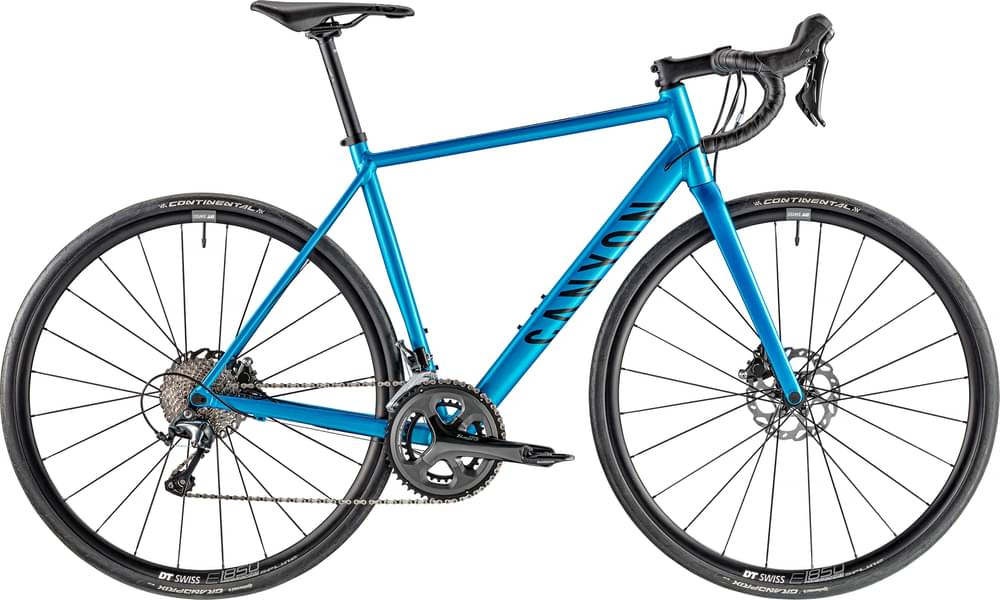

Canyon Endurace AL Disc 6.0 2021
2021 Road
Estimate price |
1,499$
Weight | 9.04 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset Tiagra -
Suspension Rigid -
Drivetrain 2 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
165cm - 173cm
SM
171cm - 179cm
MD
177cm - 185cm
LG
183cm - 191cm
XL
189cm - 197cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Canyon Endurace AL Disc, Material: Aluminium 6061, Axle Dimension: 12 x 142 mm, Brake Mount: Flat Mount
Suspension Fork
Canyon FK0042 CF Disc, Material: Carbon, Steerer: 1 1/8", Axle Dimension: 12 x 100 mm, Brake Mount: Flat Mount
Drivetrain
Rear Derailleur
Shimano Tiagra 4700 GS, Rear derailleur for 10-speed shifting systems. Maximum cassette size: 34T.
Front Derailleur
Shimano Tiagra 4700, Braze-on front derailleur for 2x10 shifting systems.
Shift Levers
Shimano Tiagra R4720 2s, Ergonomic shift and brake levers. With reach adjust and redesigned internals for quicker, more intuitive shifting. | Shimano Tiagra R4720 10s, Ergonomic shift and brake levers. With reach adjust and redesigned internals for quicker, more intuitive shifting.
Cassette
Shimano HG500 11-34 10s, 11-34 tooth cassette
Crank
Shimano Tiagra 4700, Chainring size: See ‘Geometry and dimensions’ below
Bottom Bracket
Shimano BSA BB-R60, Threaded bottom bracket with Hollowtech II technology., Shell width: 68 mm.
Chain
KMC X10-93 10s, Durable half nickel plated chain.
Pedals
None included
Wheels
Rims
DT Swiss E 1850 Spline db, Rim Material: Aluminium, Rim Height: 23 mm, Inner Width: 20 mm, Weight: 759 g | DT Swiss E 1850 Spline db SH11, Rim Material: Aluminium, Rim Height: 23 mm, Inner Width: 20 mm, Weight: 896 g
Tires
Continental Grand Prix SL 28 mm, Casing: PolyX Breaker, Compound: BlackChili, Technology: Foldable, Weight: 275 g
Brakes
Brake Levers
Shimano Tiagra R4720 2s, Ergonomic shift and brake levers. With reach adjust and redesigned internals for quicker, more intuitive shifting. | Shimano Tiagra R4720 10s, Ergonomic shift and brake levers. With reach adjust and redesigned internals for quicker, more intuitive shifting.
Disk Rotors
Shimano RT70, Disc Mount: Centerlock
Cockpit
Stem
Canyon V15, High-grade aluminium stem, Clamp diameter: 31.8 mm, Head tube diameter: 1 1/8”, Weight: 148 g
Handlebar
Canyon H17 Ergobar AL, Material: Aluminium, Shape: Ergo, Reach: 70 mm, Drop: 130 mm
Seat
Saddle
Selle Italia X3
Seatpost
Iridium, Diameter: 27.2 mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XXS | XS | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.43 mm | 1.45 mm | 1.5 mm | 1.55 mm | 1.59 mm | 1.57 mm | 1.58 mm |
| Bottom Bracket Height | 261 mm | 261 mm | 263 mm | 263 mm | 263 mm | 263 mm | 263 mm |
| Front Center | 587 mm | 587 mm | 589 mm | 590 mm | 604 mm | 626 mm | 641 mm |
| Rake | 44 mm | 44 mm | 43 mm | 43 mm | 44 mm | 44 mm | 44 mm |
| Trail | 82 mm | 70 mm | 65 mm | 59 mm | 58 mm | 56 mm | 56 mm |
| Stack | 509 mm | 532 mm | 556 mm | 578 mm | 603 mm | 625 mm | 643 mm |
| Reach | 357 mm | 366 mm | 370 mm | 374 mm | 380 mm | 398 mm | 408 mm |
| Top Tube Length | 511 mm | 526 mm | 537 mm | 547 mm | 561 mm | 586 mm | 601 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 442 mm | 472 mm | 502 mm | 532 mm | 562 mm | 592 mm | 622 mm |
| Head Tube Angle | 69.2 ° | 71 ° | 72 ° | 73 ° | 73 ° | 73.3 ° | 73.3 ° |
| Head Tube Length | 107 mm | 124 mm | 148 mm | 167 mm | 193 mm | 215 mm | 234 mm |
| Chainstay Length | 406 mm | 406 mm | 406 mm | 406 mm | 406 mm | 406 mm | 406 mm |
| Wheelbase | 981 mm | 981 mm | 984 mm | 985 mm | 999 mm | 1021 mm | 1036 mm |
| Bottom Bracket Drop | 75 mm | 75 mm | 73 mm | 73 mm | 73 mm | 73 mm | 73 mm |
| Standover Height | 709 mm | 735 mm | 765 mm | 791 mm | 818 mm | 843 mm | 869 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Max Height | 167 cm | 173 cm | 179 cm | 185 cm | 191 cm | 197 cm | cm |
Model Overview
Endurace AL Disc 6.0 belongs to the Canyon Endurace model. There are 171 bikes that carry this model name. You can easily view all of the Canyon Endurace bikes models from 2021, here.
Model range prices
Canyon Endurace 6 2021 is the most affordable bike of this model and has a price of 1061$. On the other hand, Canyon Endurace CF SLX 9 Disc eTap 2021, is the most expensive and costs 8500$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Endurance bikes
If you want to purchase a solid Endurance bike, it is important to know that the average cost is 2346$. However, even though the average price of an Endurance bike is lower, you might still be able to get a top-quality bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
At the moment of the release date, Canyon Endurace AL Disc 6.0 price was 1499$. Comparing this to the average Endurance bike price, we see that the price is 56.5% smaller.
Endurance bikes average weight
Endurance bikes weigh an average of 8.2 kg (18.08 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
Weighing 9.04 kg (19.93 lbs), the Endurace AL Disc 6.0 model is considerably heavier than average. In conclusion, the average Endurance bike weighs 10.24% less than Endurace AL Disc 6.0.
Overview of components
Fork material
When it comes to the fork, this bike has a carbon one, so, it’s a great addition to the bike’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Wheels
When leaving the production line, the Endurace AL Disc 6.0 model has 700c aluminum wheels. These wheels are the most used kind for road bikes in general. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Endurace AL Disc 6.0 comes with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
