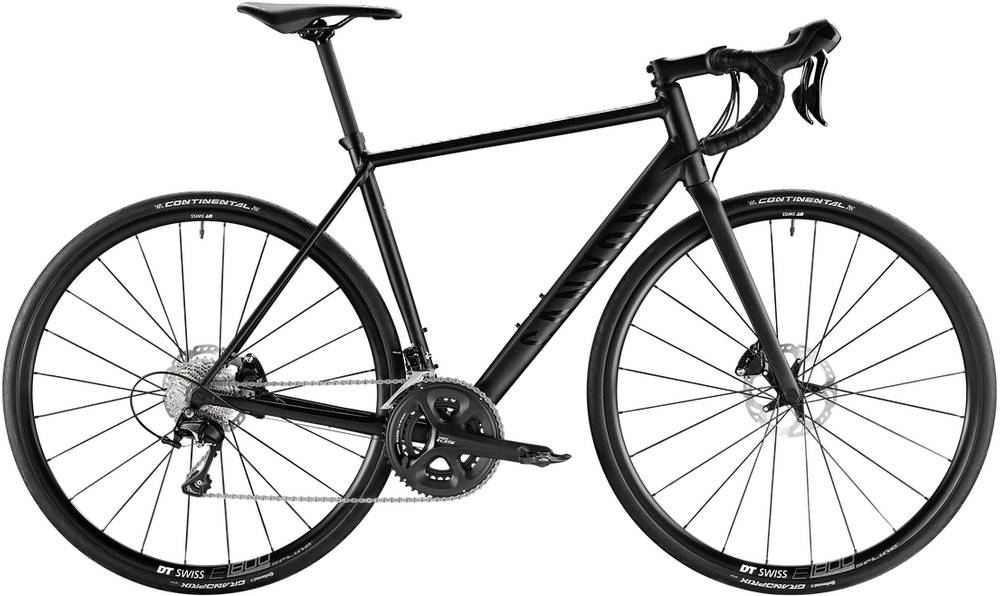

Canyon Endurace AL Disc 7.0 2018
2018 Road
Estimate price |
1,499$
Weight | 8.6 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset 105 -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XXS
157cm - 167cm
XS
165cm - 173cm
SM
171cm - 179cm
MD
177cm - 185cm
LG
183cm - 191cm
XL
188cm - 197cm
XXL
194cm - 204cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Canyon Endurace AL Disc, SPORT geometry: comfortable road bike geometry, short reach, high stack, Maximus Seat Tube: laterally stiff and comfortable, VCLS Stays: comfortable and lightweight, Flat mount - thru axle, Frame material: Aluminium, Weight: 1350 g (M)
Suspension Fork
Canyon One One Eight SL Disc, Carbon fibre fork, Flat Mount Discbrake, 1 1/8" shaft for optimum steering precision and stiffness when out of the saddle, Weight: 400g
Drivetrain
Rear Derailleur
Shimano 105, 11s, Quick and accurate shifting procedure thanks to a new spring mechanism, Broad gear range, SH RD-5800, 11-speed
Front Derailleur
Shimano 105, 11s, Quick and precise shifting procedures, SH FD-5800, 11-speed
Shift Levers
Shimano 105 Disc, 11s, Hydraulic shift/brake lever, Great brake force, Consistent braking performance in all weather conditions, Grip width adjustment, 11-speed, ST-RS505
Cassette
Shimano 105, 11s, HG-EV 11-Speed Cassette, Stainless steel sprockets, Range: 11-12-13-14-16-18-20-22-25-28-32T, SH CS-5800
Crank
Shimano 105, 11s, Optimised power transmission, Tried and tested four-arm design: stiffer and more lightweight, SH-FC-5800, 11-speed
Bottom Bracket
Shimano SH SM-BBR60, BSA, SH SM-BBR60
Chain
Shimano CN-HG600-11
Pedals
none included
Wheels
Rims
DT Swiss E 1800 Spline DB, Tubeless-ready rims, DT new aero spokes, DT Pro Lock nipples, Pawl System hubs, 12 mm Through Axle with RWS release system for both wheels, Width: 20 mm internal / 24 mm external, Profile: 23 mm, Weight: 1.655 g (700C); 1.577 g (650B)
Tires
Continental Grand Prix SL, Perfect combination of puncture protection, low rolling resistance, durability and grip, BlackChili Compound, Width: 28mm
Brakes
Brakes
Shimano 105 Disc, Flat mount, ST-BR 505, Shimano Centerlock disc RT-81S, 160 mm brake disk diameter, Framesize 2XS und 3XS 140 mm
Brake Levers
Shimano 105 Disc, 11s, Hydraulic shift/brake lever, Great brake force, Consistent braking performance in all weather conditions, Grip width adjustment, 11-speed, ST-RS505
Cockpit
Stem
Canyon V15, Angle: +/- 6°, 1 1/8" Stem clamp, In-house developed Canyon stem with new clamping concept for added security, Square profile design for extra torsional stiffness, Compliant with Canyon Category 2 testing standards
Handlebar
Canyon H17 Ergo AL, In-house developed Canyon aluminium ergonomic handlebars, Short reach and width-dependent drop facilitate a quick change of grip, Variable top handlebar diameter: Depending on the width of the handlebar, adapted to average palm size for a perfect ergonomic fit, Compliant with Canyon Category 2 Testing Standards
Headset
Tange IS22AE-SCT integrated
Seat
Saddle
Selle Italia X3 Canyon Edition
Seatpost
Canyon S23 VCLS CF (25 mm Setback), Length: 330 mm, Diameter: 27.2 mm, In-house developed Canyon seatpost with VCLS technology for extra comfort and stability, Setback: 25 mm, Compliant with Canyon Category 2 testing standards
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XXS | XS | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.43 mm | 1.45 mm | 1.5 mm | 1.55 mm | 1.59 mm | 1.57 mm | 1.58 mm |
| Stack | 509 mm | 532 mm | 556 mm | 578 mm | 603 mm | 625 mm | 643 mm |
| Reach | 357 mm | 366 mm | 370 mm | 374 mm | 380 mm | 398 mm | 408 mm |
| Top Tube Length | 511 mm | 526 mm | 537 mm | 547 mm | 561 mm | 586 mm | 601 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 442 mm | 472 mm | 502 mm | 532 mm | 562 mm | 592 mm | 622 mm |
| Head Tube Angle | 69.2 ° | 71 ° | 72 ° | 73 ° | 73 ° | 73.25 ° | 73.25 ° |
| Head Tube Length | 107 mm | 124 mm | 148 mm | 167 mm | 193 mm | 215 mm | 234 mm |
| Chainstay Length | 406 mm | 406 mm | 406 mm | 406 mm | 406 mm | 406 mm | 406 mm |
| Wheelbase | 981 mm | 981 mm | 984 mm | 985 mm | 999 mm | 1021 mm | 1036 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 157 cm | 165 cm | 171 cm | 177 cm | 183 cm | 188 cm | 194 cm |
| Rider Max Height | 167 cm | 173 cm | 179 cm | 185 cm | 191 cm | 197 cm | 204 cm |
About this model
Endurace AL Disc 7.0 is part of the Canyon Endurace model. 171 bikes variations carry this model name so far. Take a sneak peek at all Canyon Endurace bikes models from 2018, by clicking here.
Model range prices
The most economical model, the Canyon Endurace AL Disc 7.0 2018 has a starting price of 1499$. Canyon Endurace CF SLX Disc 9.0 SL 2018 on the other hand is the most expensive at 6499$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Endurance bikes
According to our math, the average price for a trustworthy Endurance bike is 2346$. However, even though the average price of an Endurance bike is lower, you might still be able to get a top-quality bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Furthermore, this bike was made available in 2018 for 1499$. Doing a quick comparison, we notice that Endurace AL Disc 7.0 price is 56.5% lower than the average cost of an Endurance bike.
Average weight for Endurance bikes
Endurance bikes weigh an average of 8.2 kg (18.08 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
Canyon Endurace AL Disc 7.0 it’s weighing 8.6 kg (18.96 lbs). At this weight, is slightly heavier than average. To sum up, it’s 4.88% heavier than the average weight of Endurance bikes.
Endurace AL Disc 7.0 components
Fork material
Endurace AL Disc 7.0 has a carbon fork, so, it won’t add up to much weight to your bike. However, the price you have to pay for a carbon fork is considerably higher.
Wheels size
As for the wheels, Canyon Endurace AL Disc 7.0 2018, has a 700c aluminum model. These wheels are the most used kind for road bikes in general. However, these wheels don’t perform so well when passing over obstacles.
Brakes
When you want to stop the bike in time, the brakes are vital. The Endurace AL Disc 7.0 has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
Sizes
This bike is available in 7 sizes. They vary from 157 cm – 204 cm (5.15 ft – 6.69 ft). In short, you can easily find one that suits you.
