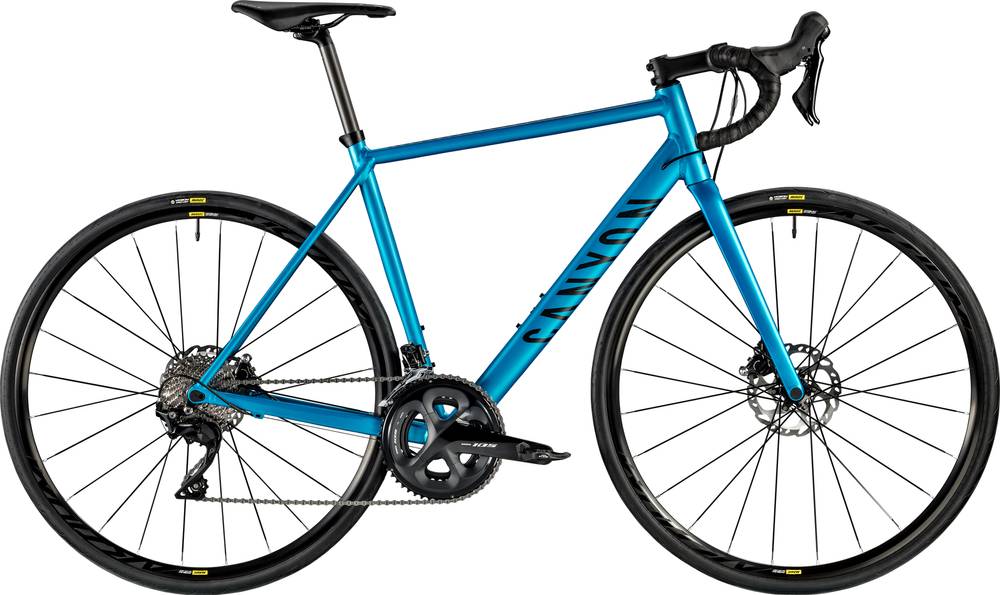

Canyon Endurace AL Disc 7.0 2019
2019 Road
Estimate price |
1,699$
Weight | 9.1 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset 105 -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XXS
157cm - 167cm
XS
165cm - 173cm
SM
171cm - 179cm
MD
176cm - 186cm
LG
184cm - 191cm
XL
189cm - 197cm
XXL
195cm - 204cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
aluminum
Drivetrain
Rear Derailleur
Shimano 105 R7000 GS
Front Derailleur
Shimano 105 R7000
Shift Levers
Shimano 105 R7020 2s, Weight: 305 g | Shimano 105 R7020 11s, Weight: 305 g
Cassette
Shimano HG700 11-34 11s
Crank
Shimano 105 R7000, 50/34
Bottom Bracket
Shimano BSA BB-R60
Chain
Shimano CN-HG601 11s
Pedals
None included
Wheels
Rims
Mavic Aksium Elite UST Disc, Rim Material: Aluminium, Rim Height: 22 mm, Inner Width: 19 mm, Tire: Yksion Pro UST 28 mm, Weight (w/o Tire): 825 g | Mavic Aksium Elite UST Disc SH11, Rim Material: Aluminium, Rim Height: 22 mm, Inner Width: 19 mm, Tire: Yksion Pro UST 28 mm, Weight (w/o Tire): 965 g
Tires
Mavic Yksion Elite Guard
Brakes
Brake Levers
Shimano 105 R7020 2s, Weight: 305 g | Shimano 105 R7020 11s, Weight: 305 g
Disk Rotors
Shimano RT70, Disc Mount: Centerlock
Cockpit
Stem
Canyon V15
Handlebar
Canyon H17 Ergobar AL, Material: Aluminium, Shape: Ergo, Reach: 70 mm, Drop: 130 mm
Headset
Acros AzX 214
Seat
Saddle
Selle Italia X3
Seatpost
Canyon SP0043 VCLS CF, Material: Carbon, Setback: 20 mm, Technology: VCLS
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XXS | XS | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.43 mm | 1.45 mm | 1.5 mm | 1.55 mm | 1.59 mm | 1.57 mm | 1.58 mm |
| Bottom Bracket Height | 261 mm | 261 mm | 263 mm | 263 mm | 263 mm | 263 mm | 263 mm |
| Front Center | 587 mm | 587 mm | 589 mm | 590 mm | 604 mm | 626 mm | 641 mm |
| Rake | 44 mm | 44 mm | 43 mm | 43 mm | 44 mm | 44 mm | 43 mm |
| Trail | 82 mm | 70 mm | 65 mm | 59 mm | 58 mm | 56 mm | 57 mm |
| Stack | 509 mm | 532 mm | 556 mm | 578 mm | 603 mm | 625 mm | 643 mm |
| Reach | 357 mm | 366 mm | 370 mm | 374 mm | 380 mm | 398 mm | 408 mm |
| Top Tube Length | 511 mm | 526 mm | 537 mm | 547 mm | 561 mm | 586 mm | 601 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 442 mm | 472 mm | 502 mm | 532 mm | 562 mm | 592 mm | 622 mm |
| Head Tube Angle | 69.2 ° | 71 ° | 72 ° | 73 ° | 73 ° | 73.25 ° | 73.25 ° |
| Head Tube Length | 107 mm | 124 mm | 148 mm | 167 mm | 193 mm | 215 mm | 234 mm |
| Chainstay Length | 406 mm | 406 mm | 406 mm | 406 mm | 406 mm | 406 mm | 406 mm |
| Wheelbase | 981 mm | 981 mm | 984 mm | 985 mm | 999 mm | 1021 mm | 1036 mm |
| Bottom Bracket Drop | 75 mm | 75 mm | 73 mm | 73 mm | 73 mm | 73 mm | 73 mm |
| Standover Height | 709 mm | 735 mm | 765 mm | 791 mm | 818 mm | 843 mm | 869 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 157 cm | 165 cm | 171 cm | 176 cm | 184 cm | 189 cm | 195 cm |
| Rider Max Height | 167 cm | 173 cm | 179 cm | 186 cm | 191 cm | 197 cm | 204 cm |
About this model
Endurace AL Disc 7.0 completes the Canyon Endurace model. There are 171 bikes that carry this model name. Check out the entire range from 2019 of this model, by clicking this link.
Model range prices
The most economical model, the Canyon Endurace AL 6.0 2019 has a starting price of 848$. Canyon Endurace CF SLX Disc 9.0 Di2 2019 on the other hand is the most expensive at 7000$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Endurance bikes average price
According to our math, the average price for a trustworthy Endurance bike is 2346$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Endurance bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
At the moment of the release date, Canyon Endurace AL Disc 7.0 price was 1699$. If we compare this with the average Endurance bike cost we notice that the price is 38.08% smaller.
Average weight for Endurance bikes
On a deeper look, we notice that the average weight of an Endurance bike is 8.2 kg (18.08 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
Canyon Endurace AL Disc 7.0 it’s weighing 9.1 kg (20.06 lbs). At this weight, is considerably heavier than average. To sum up, it’s 10.98% heavier than the average weight of Endurance bikes.
Overview of components
Fork material
When it comes to the fork, this bike has a carbon one, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Wheels
When leaving the production line, the Endurace AL Disc 7.0 model has 700c aluminum wheels. These wheels are the most used kind for road bikes in general. However, these wheels don’t perform so well when passing over obstacles.
Brakes
When you want to stop the bike in time, the brakes are vital. The Endurace AL Disc 7.0 has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
Sizes
Endurace AL Disc 7.0 comes in 7 sizes, that range from 157 cm – 204 cm (5.15 ft – 6.69 ft). In short, you can easily find one that suits you.
