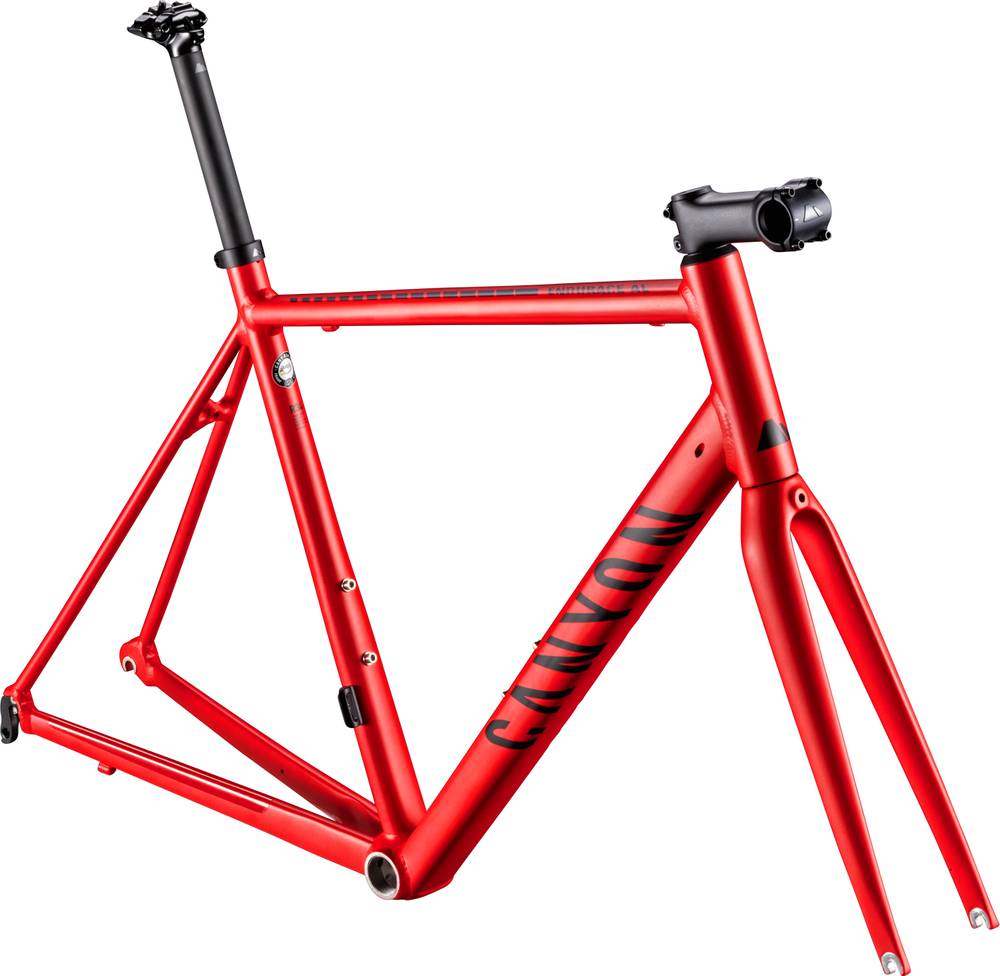

Canyon Endurace AL Frameset Mechanical 2018
2018 Road
Estimate price |
813$
Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Frame Aluminum -
Wheels 700c -
Suspension Rigid
Sizing
Recommended size guide.
XS
165cm - 173cm
SM
171cm - 178cm
MD
176cm - 183cm
LG
181cm - 188cm
XL
186cm - 193cm
XXL
191cm - 197cm
XXXL
204cm - 197cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Canyon Endurace AL, Material: Aluminium 6061, Axle Dimension: 9 x 130 mm, Brake Mount: Rim Brake
Suspension Fork
Canyon F25 CF, Material: Carbon, Steerer: 1 1/8", Axle Dimension: 9 x 100 mm, Brake Mount: Rim Brake
Cockpit
Stem
Canyon V15
Seat
Seatpost
Canyon S23 VCLS CF, Material: Carbon, Setback: 20 mm, Technology: VCLS, Weight: 230 g
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL | XXL | XXXL |
|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.52 mm | 1.54 mm | 1.55 mm | 1.59 mm | 1.58 mm | 1.6 mm | 1.58 mm |
| Bottom Bracket Height | 266 mm | 266 mm | 266 mm | 266 mm | 266 mm | 266 mm | 266 mm |
| Front Center | 579 mm | 583 mm | 584 mm | 593 mm | 606 mm | 617 mm | 639 mm |
| Rake | 42 mm | 42 mm | 42 mm | 51 mm | 42 mm | 42 mm | 41 mm |
| Trail | 74 mm | 69 mm | 63 mm | 49 mm | 58 mm | 58 mm | 59 mm |
| Stack | 548 mm | 563 mm | 578 mm | 595 mm | 616 mm | 633 mm | 651 mm |
| Reach | 360 mm | 366 mm | 372 mm | 374 mm | 390 mm | 396 mm | 413 mm |
| Top Tube Length | 523 mm | 534 mm | 544 mm | 551 mm | 573 mm | 584 mm | 607 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 465 mm | 505 mm | 537 mm | 563 mm | 585 mm | 610 mm | 635 mm |
| Head Tube Angle | 70.8 ° | 71.5 ° | 72.5 ° | 73.25 ° | 73.25 ° | 73.25 ° | 73.25 ° |
| Head Tube Length | 150 mm | 163 mm | 175 mm | 190 mm | 212 mm | 230 mm | 248 mm |
| Chainstay Length | 412 mm | 412 mm | 412 mm | 412 mm | 412 mm | 412 mm | 412 mm |
| Wheelbase | 981 mm | 985 mm | 986 mm | 995 mm | 1008 mm | 1019 mm | 1041 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 165 cm | 171 cm | 176 cm | 181 cm | 186 cm | 191 cm | 204 cm |
| Rider Max Height | 173 cm | 178 cm | 183 cm | 188 cm | 193 cm | 197 cm | 197 cm |
About this model
Endurace AL Frameset Mechanical is part of the Canyon Endurace model. Canyon released 171 frames variations of this model so far. You can get a glimpse at all models from 2018, by clicking on this link.
Model range prices
Canyon Endurace AL Frameset Mechanical 2018 is the cheapest frame model and costs 742$. Canyon Endurace CF SLX Disc Frameset Electrical 2018 is the most expensive one and costs 2760$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Endurance frames
According to our calculations, the average cost of an Endurance frame that is reliable is 1905$. However, even if your budget is less than the average, you might still be able to get a top-quality Endurance frame. In short, before purchasing your ideal frame do some research about its components, and also check for reviews online.
At the moment of the release date, Canyon Endurace AL Frameset Mechanical price was 742$. In conclusion, this frame price is 156.74% smaller than the price of the average Endurance frame.
Endurace AL Frameset Mechanical components
Fork material
The fork on this frame is made out of carbon, so, it won’t add up to much weight to your frame. However, the price you have to pay for a carbon fork is considerably higher.
Sizes
Canyon Endurace AL Frameset Mechanical frame has 7 sizes, in the range of 165 cm – 197 cm (5.41 ft – 6.46 ft). In conclusion, finding one for you shouldn’t be a problem.
