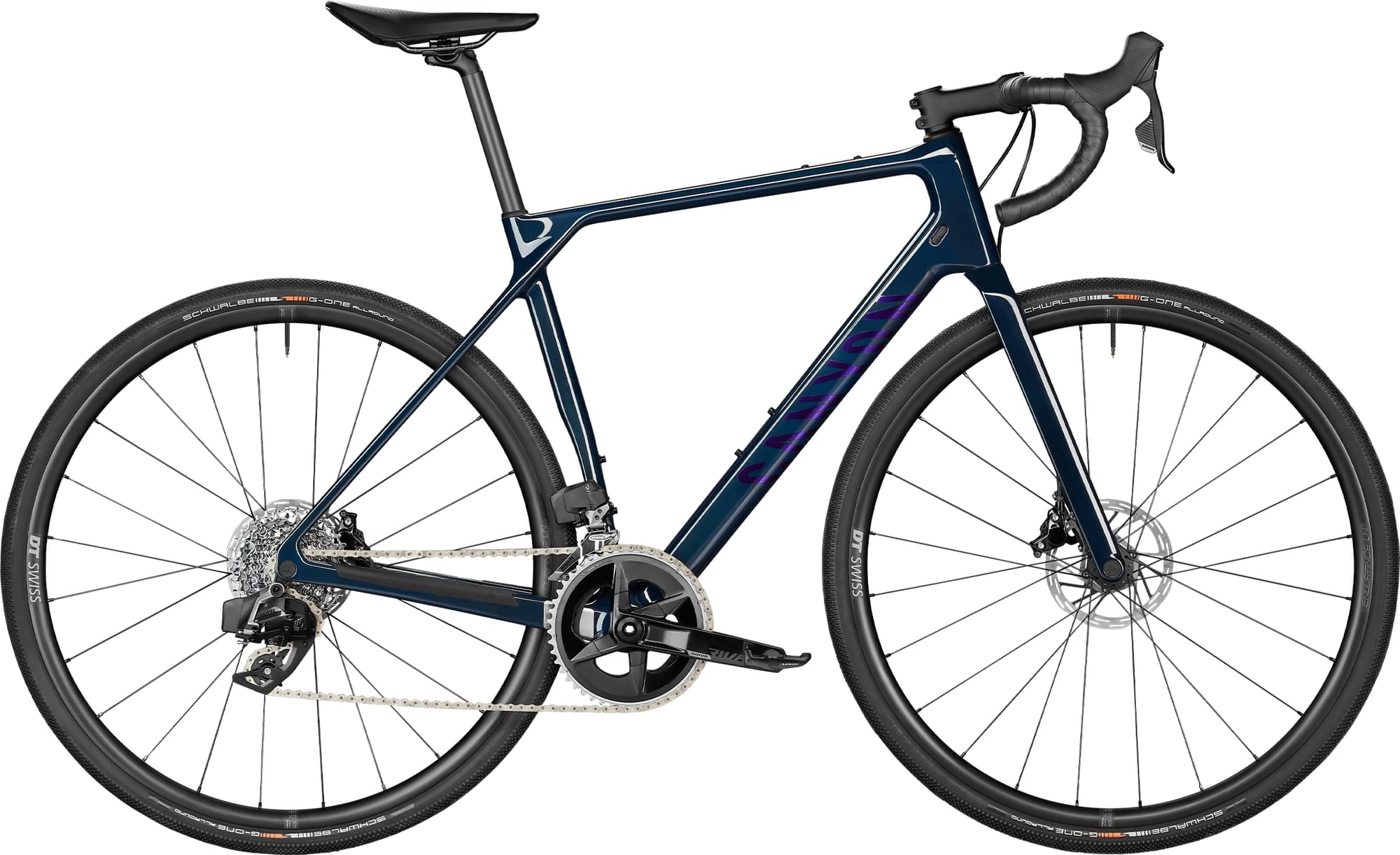

Canyon Endurace CF 7 All-Road 2022
2022 Road
Estimate price |
3,440$
Weight | 8.94 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Groupset Rival eTap -
Suspension Rigid -
Drivetrain 2 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XXS
157cm - 165cm
XS
163cm - 171cm
SM
169cm - 178cm
MD
176cm - 185cm
LG
183cm - 192cm
XL
190cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Canyon Endurace CF Disc, Carbon endurance road bike frame with striking design and aero-optimised tube forms. Proven comfortable-yet-agile Sport Geometry for fast long-distance riding., Material: carbon, Axle dimensions: 12 x 142 mm, Brake mount: flat mount, Material: Carbon (CF)
Suspension Fork
Canyon FK0089 CF Disc, Material: carbon, Steerer tube diameter: 1¼”, Axle dimensions: 12 x 100 mm, Brake mount: flat mount, Wheel size: 700C
Drivetrain
Rear Derailleur
SRAM Rival eTap AXS, Rear derailleur with wireless shifting. Featuring robust steel bearings and spring clutch for quiet, secure operation. Cage material: aluminium. Maximum cassette size: 36T.
Front Derailleur
SRAM Rival eTap AXS, Front derailleur with wireless shifting. Featuring Yaw technology, eliminating the need for derailleur trim. Mounting type: braze-on.
Shift Levers
SRAM Rival eTap AXS, 2-speed, Left-hand shifter with hood shape optimised to fit hands of all sizes, for comfortable and controlled braking from any position. With wireless shifting, contact point adjustment, reach adjust. | SRAM Rival eTap AXS 12s, Right-hand shifter with hood shape optimised to fit hands of all sizes, for comfortable and controlled braking from any position. With wireless shifting, contact point adjustment, reach adjust.
Cassette
SRAM Rival XG-1250, 12-speed, 10-36, With SRAM's premier X-Range gearing for a smoother progression over a greater gear range. Gear range: 10-36 T.
Crank
SRAM Rival DUB, Number of chainrings: 2
Bottom Bracket
SRAM Pressfit RED DUB, Pressfit BB86 road standard, compatible with SRAM DUB axles. Weight: 72 g
Chain
SRAM RIVAL D1 12-speed, 12-speed chain with flattop technology for narrower design, quieter operation, and increased strength and durability
Pedals
None included
Wheels
Rims
DT Swiss Endurance LN, Rotor Mount: Center Lock | DT Swiss Endurance LN XDR, Rotor Mount: Center Lock
Tires
Schwalbe G-One Allround, 35mm, Width: 35mm
Brakes
Brakes
hydraulicDisc
Brake Levers
SRAM Rival eTap AXS, 2-speed, Left-hand shifter with hood shape optimised to fit hands of all sizes, for comfortable and controlled braking from any position. With wireless shifting, contact point adjustment, reach adjust. | SRAM Rival eTap AXS 12s, Right-hand shifter with hood shape optimised to fit hands of all sizes, for comfortable and controlled braking from any position. With wireless shifting, contact point adjustment, reach adjust.
Disk Rotors
SRAM Paceline, Designed for optimal venting. With rounded edges for easier wheel installs. Disc mount: centerlock. Weight: 155 g.
Cockpit
Stem
Canyon V13, High-grade aluminium stem. With new handlebar clamp design for up to 40% more torsional stiffness., Clamp diameter: 31.8 mm, Head tube diameter: 1 1/4”
Handlebar
Canyon H17 Ergobar AL, Material: Aluminium, Shape: Ergo, Reach: 70 mm, Drop: 130 mm
Seat
Saddle
Fizik Argo Tempo R5, Endurance saddle with pressure-relieving short-nose design. With compliant carbon-reinforced nylon shell & robust s-alloy rails.
Seatpost
Canyon SP0057 VCLS, With vibration-absorbing design for top rear-end comfort. Material: Carbon. Setback: 20 mm.
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XXXS | XXS | XS | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.45 mm | 1.49 mm | 1.48 mm | 1.51 mm | 1.56 mm | 1.58 mm | 1.57 mm | 1.58 mm |
| Front Center | 560 mm | 561 mm | 585 mm | 587 mm | 586 mm | 602 mm | 625 mm | 640 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm | 43 mm | 44 mm | 44 mm | 44 mm |
| Trail | 67 mm | 61 mm | 70 mm | 64 mm | 59 mm | 58 mm | 56 mm | 56 mm |
| Stack | 512 mm | 531 mm | 550 mm | 570 mm | 592 mm | 613 mm | 639 mm | 658 mm |
| Reach | 352 mm | 356 mm | 372 mm | 377 mm | 380 mm | 389 mm | 407 mm | 416 mm |
| Top Tube Length | 493 mm | 503 mm | 524 mm | 535 mm | 545 mm | 560 mm | 586 mm | 601 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 402 mm | 432 mm | 462 mm | 492 mm | 522 mm | 552 mm | 582 mm | 612 mm |
| Head Tube Angle | 70.5 ° | 71.5 ° | 71 ° | 72 ° | 73 ° | 73 ° | 73.25 ° | 73.25 ° |
| Head Tube Length | 122 mm | 139 mm | 128 mm | 145 mm | 164 mm | 186 mm | 213 mm | 232 mm |
| Chainstay Length | 407 mm | 407 mm | 417 mm | 417 mm | 417 mm | 417 mm | 417 mm | 417 mm |
| Wheelbase | 959 mm | 960 mm | 991 mm | 993 mm | 992 mm | 1008 mm | 1031 mm | 1046 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 73 mm | 73 mm | 73 mm | 73 mm | 73 mm | 73 mm |
| Standover Height | 710 mm | 735 mm | 764 mm | 790 mm | 816 mm | 840 mm | 868 mm | 889 mm |
| Wheels | 650 | 650 | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Max Height | 159 cm | 165 cm | 171 cm | 178 cm | 185 cm | 192 cm | 198 cm | cm |
Model Overview
Endurace CF 7 All-Road is part of the Canyon Endurace model. 171 bikes variations carry this model name so far. Check out the entire range from 2022 of this model, by clicking this link.
Model range prices
Canyon Endurace 6 2022 is the cheapest bike model and costs 1061$. Canyon Endurace CF SLX 9 Disc eTap 2022 is the most expensive one and costs 8500$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Endurance bikes average price
Our math shows that the average cost of a dependable Endurance bike is 2346$. However, this doesn’t mean that if you spend less money on an Endurance bike, you couldn’t get a decent one. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
When Canyon released this model in 2022, its price was 3184$. In conclusion, this bike price is 35.72% higher than the price of the average Endurance bike.
Endurance bikes average weight
On a deeper look, we notice that the average weight of an Endurance bike is 8.2 kg (18.08 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
Endurace CF 7 All-Road weighs 8.94 kg (19.71 lbs) and is a bit heavier than the average. In conclusion, the average Endurance bike weighs 9.02% less than Endurace CF 7 All-Road.
Endurace CF 7 All-Road components
Fork material
Endurace CF 7 All-Road has a carbon fork, so, it won’t add up to much weight to your bike. However, the price you have to pay for a carbon fork is considerably higher.
Wheels
The wheels on Endurace CF 7 All-Road are the aluminum type. These wheels are less popular than 650b and 700c. However, 650c wheels have better acceleration, and can climb easier than 700c.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
