Canyon Endurace CF 8 Di2 2023
2023 Road
Estimate price |
4,357$
Weight | 8.42 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Groupset Ultegra Di2 -
Suspension Rigid -
Drivetrain 2 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XXS
157cm - 165cm
XS
163cm - 171cm
SM
169cm - 178cm
MD
176cm - 185cm
LG
183cm - 192cm
XL
190cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Canyon Endurace CF Disc, Carbon endurance road bike with proven comfortable-yet-agile Sport Geometry for long-distance riding., Axle dimension: 12x142 mm, Tyre Clearance: 35 mm, Material: Carbon (CF), Weight: 905 g
Suspension Fork

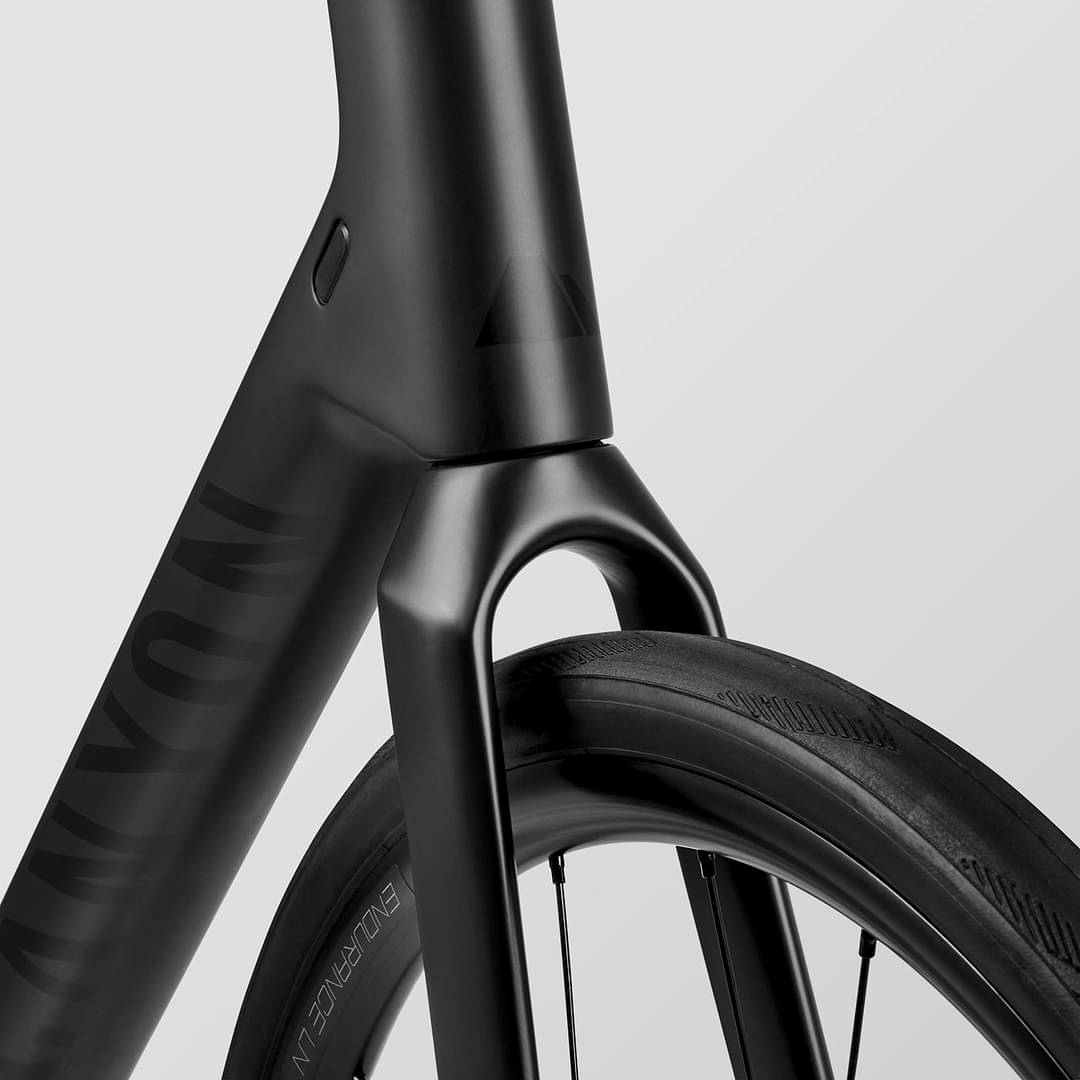

Canyon FK0110 CF Disc, Lightweight carbon fork engineered for high stiffness-to-weight and compliance., Axle dimension: 12x100 mm, Material: Carbon (CF)
Drivetrain
Rear Derailleur
Shimano Ultegra Di2 R8150, 12-speed
Front Derailleur
Shimano Ultegra Di2 R8150, 12-speed
Shift Levers
Shimano Ultegra Di2 R8170 2s, Number of pistons: 2 | Shimano Ultegra Di2 R8170 12s, Number of pistons: 2
Cassette
Shimano Ultegra R8100, 12-speed, 11-34T, Number of sprockets: 12 | Shimano CS-R8100 Ultegra 12-speed Cassette 11-34 | Shimano 105 CS-R7101 12-speed Cassette
Crank
Shimano Ultegra R8100 12speed, Number of chainrings: 2
Bottom Bracket
Shimano Pressfit BB72, Bottom bracket standard: PF 86,5, Weight: 40 g | Ceramicspeed BB86 Shimano PressFit Bottom Bracket | Shimano SM-BB72-41B II Press-Fit Bottom Bracket
Chain
Shimano CN-M8100 12s | Shimano SM-CN910 12-speed Quick-Link Chain Connector | Shimano CN-M8100 12-speed Chain 138 Links
Pedals
None included
Wheels
Rims
DT Swiss Endurance LN, Axle dimension: 12x100 mm, Rotor mount: Center Lock, Rim height: 22 mm, Rim material: Aluminium, Weight: 852 g | DT Swiss Endurance LN SH11, Axle dimension: 12x142 mm, Rotor mount: Center Lock, Rim height: 22 mm, Rim material: Aluminium, Weight: 999 g
Tires
Schwalbe One, 30mm, Width: 30mm | Schwalbe One, 32mm, Width: 32mm | Continental GP 5000S TR TL 27.5" & 28" Road Tyre | Continental GP 5000S TR TL 27.5" & 28" Road Tyre
Brakes
Brakes
Hydraulic Disc
Brake Levers
Shimano Ultegra Di2 R8170 2s, Number of pistons: 2 | Shimano Ultegra Di2 R8170 12s, Number of pistons: 2
Seat
Saddle
Fizik Argo Tempo R5, Gender: Unisex, Weight: 245 g
Seatpost

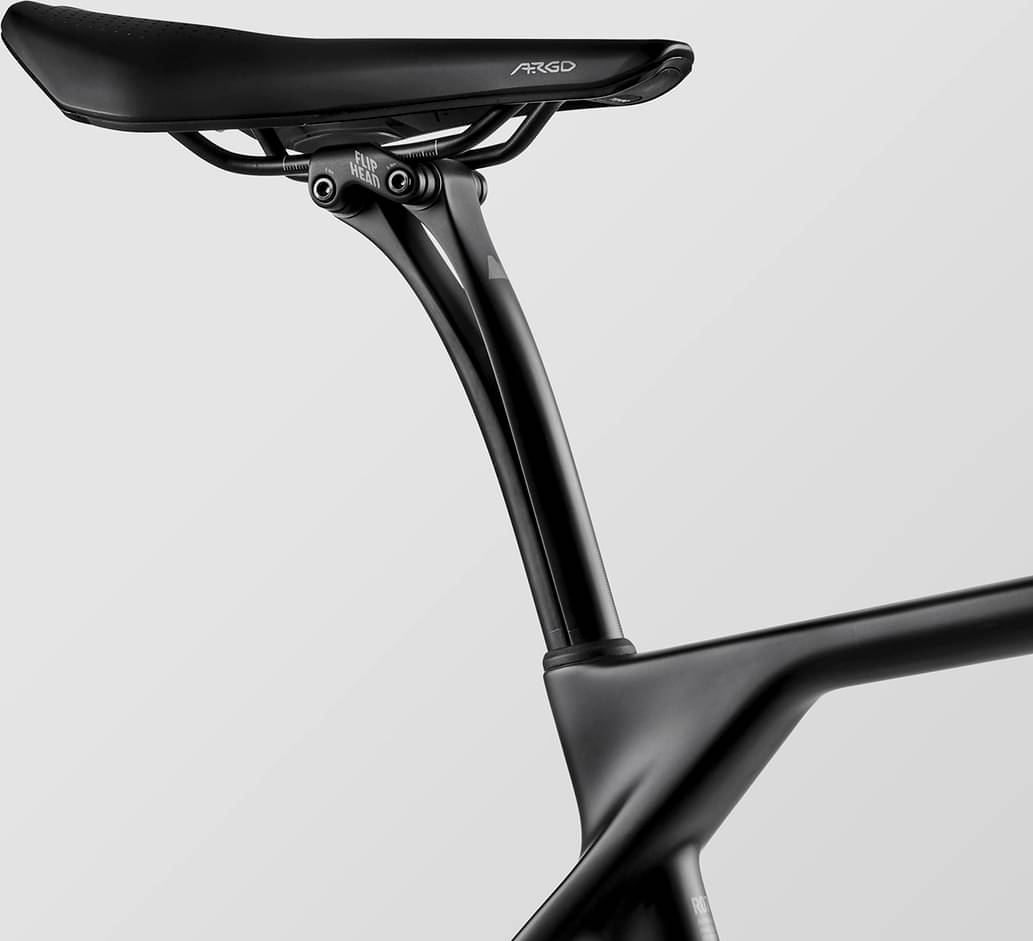

Canyon S15 VCLS 2.0 CF, Shock-absorbing carbon comfort seatpost delivering 20 mm of vertical travel in a lightweight package., Material: Carbon, Setback: 13 mm / 25 mm, Technology: VCLS 2.0 | Fliphead, Weight: 220 g
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XXXS | XXS | XS | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.45 mm | 1.49 mm | 1.48 mm | 1.51 mm | 1.56 mm | 1.58 mm | 1.57 mm | 1.58 mm |
| Front Center | 560 mm | 561 mm | 585 mm | 587 mm | 586 mm | 602 mm | 625 mm | 640 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm | 43 mm | 44 mm | 44 mm | 44 mm |
| Trail | 67 mm | 61 mm | 70 mm | 64 mm | 59 mm | 58 mm | 56 mm | 56 mm |
| Stack | 512 mm | 531 mm | 550 mm | 570 mm | 592 mm | 613 mm | 639 mm | 658 mm |
| Reach | 352 mm | 356 mm | 372 mm | 377 mm | 380 mm | 389 mm | 407 mm | 416 mm |
| Top Tube Length | 493 mm | 503 mm | 524 mm | 535 mm | 545 mm | 560 mm | 586 mm | 601 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 402 mm | 432 mm | 462 mm | 492 mm | 522 mm | 552 mm | 582 mm | 612 mm |
| Head Tube Angle | 70.5 ° | 71.5 ° | 71 ° | 72 ° | 73 ° | 73 ° | 73.25 ° | 73.25 ° |
| Head Tube Length | 122 mm | 139 mm | 128 mm | 145 mm | 164 mm | 186 mm | 213 mm | 232 mm |
| Chainstay Length | 407 mm | 407 mm | 417 mm | 417 mm | 417 mm | 417 mm | 417 mm | 417 mm |
| Wheelbase | 959 mm | 960 mm | 991 mm | 993 mm | 992 mm | 1008 mm | 1031 mm | 1046 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 73 mm | 73 mm | 73 mm | 73 mm | 73 mm | 73 mm |
| Standover Height | 710 mm | 735 mm | 764 mm | 790 mm | 816 mm | 840 mm | 868 mm | 889 mm |
| Wheels | 650 | 650 | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Max Height | 159 cm | 165 cm | 171 cm | 178 cm | 185 cm | 192 cm | 198 cm | cm |
About this model
Endurace CF 8 Di2 is a Canyon Endurace model. There are 189 bikes that carry this model name. Take a sneak peek at all Canyon Endurace bikes models from 2023, by clicking here.
Model range prices
Canyon Endurace 6 RB 2023 is the most affordable bike of this model and has a price of 1058$. On the other hand, Canyon Endurace CFR WRL 2023, is the most expensive and costs 10588$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Endurance bikes
According to our calculations, the average cost of an Endurance bike that is reliable is 2346$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Endurance bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 4023$. Doing a quick comparison, we notice that Endurace CF 8 Di2 price is 71.48% more expensive than the average cost of an Endurance bike.
Endurance bikes average weight
On a deeper look, we notice that the average weight of an Endurance bike is 8.2 kg (18.08 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
slightly heavier than average, Endurace CF 8 Di2 has a weight of 8.42 kg (18.56 lbs). To sum up, it’s 2.68% heavier than the average weight of Endurance bikes.
Overview of components
Fork material
Endurace CF 8 Di2 has a carbon fork, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels
As for the wheels, Canyon Endurace CF 8 Di2 2023, has a aluminum model. The 650c wheels are smaller in diameter than 700c. However, they are a little lighter than 700c wheels.
Brakes
Nothing is more important on a bike than its ability to brake properly. Canyon Endurace CF 8 Di2 is equipped with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
Dropper post
A dropper post is included with the Endurace CF 8 Di2. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
