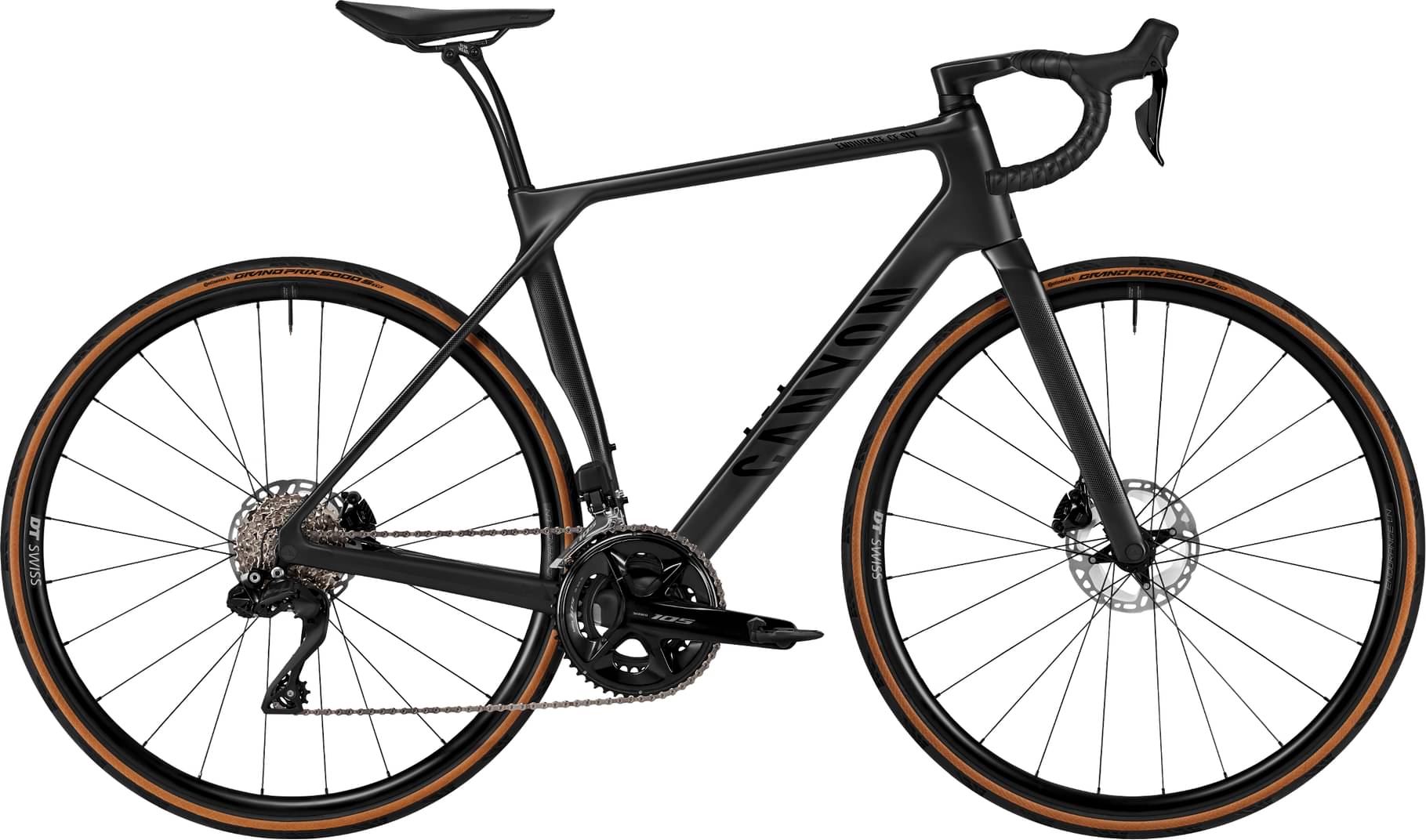

Canyon Endurace CF SLX 7 Di2 2023
2023 Road
Estimate price |
4,243$
Weight | 8.48 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Groupset 105 Di2 -
Suspension Rigid -
Drivetrain 2 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XXS
158cm - 166cm
XS
164cm - 172cm
SM
170cm - 179cm
MD
177cm - 186cm
LG
184cm - 193cm
XL
191cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame

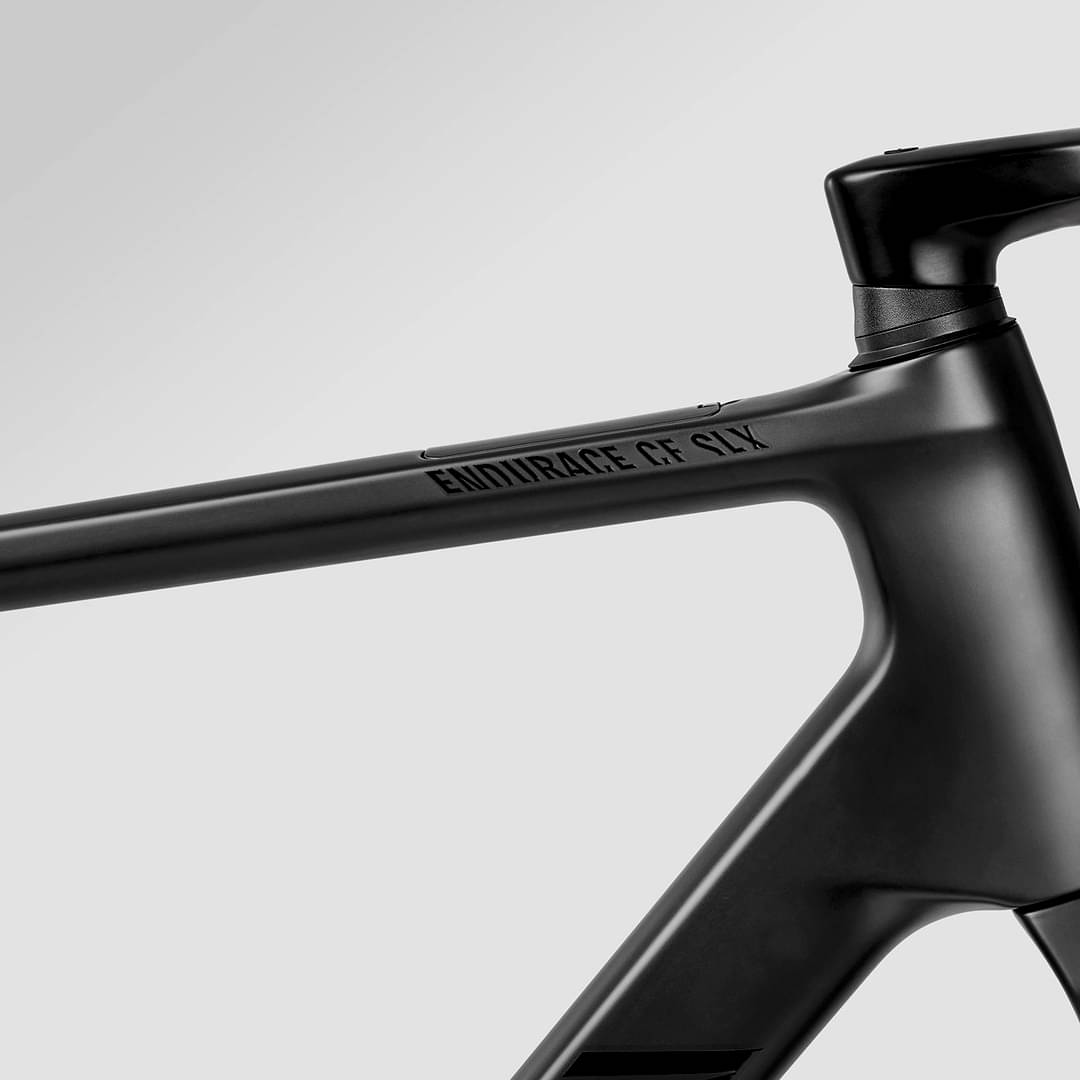

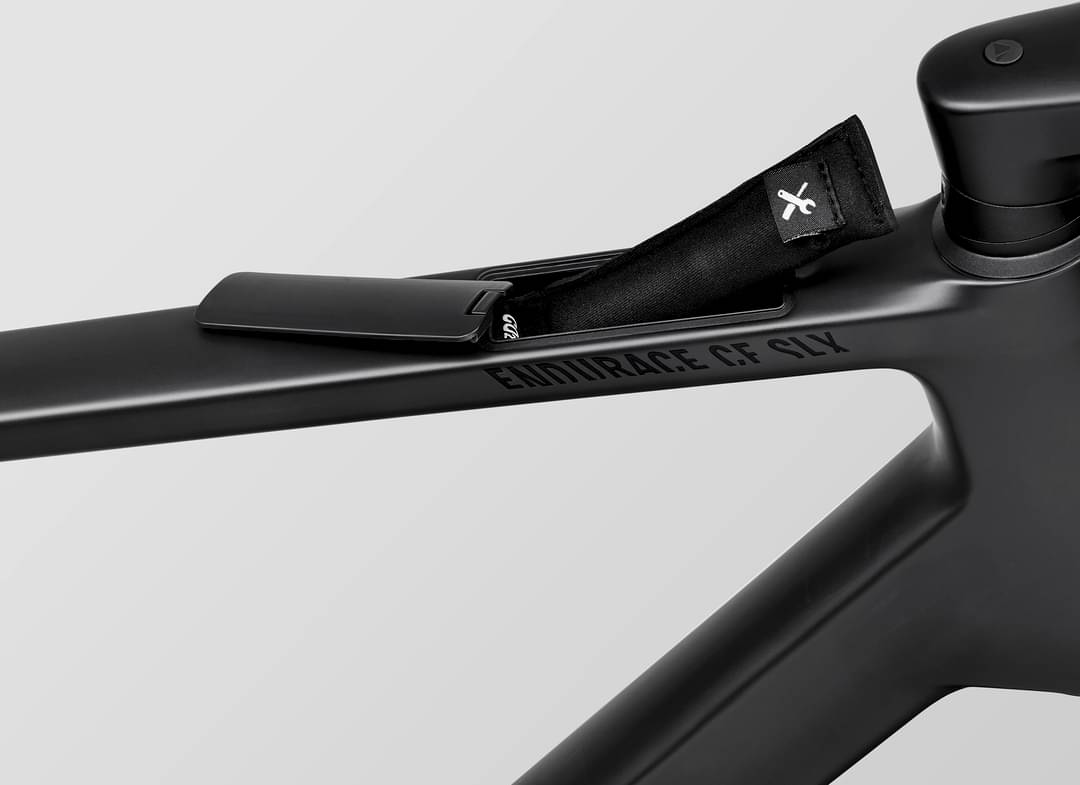

Canyon Endurace CF SLX, Lightweight endurance road bike frame manufactured from high-grade carbon. Featuring integrated storage solutions and aero-optimised tube forms., Axle dimension: 12x142 mm, Tyre Clearance: 35 mm, Material: Carbon (CF)
Suspension Fork
Canyon FK0129 CF Disc, Lightweight carbon fork with comfortable, vibration-damping design., Axle dimension: 12x100 mm, Material: Carbon (CF)
Drivetrain
Rear Derailleur
Shimano 105 Di2 R7100, 12-speed
Front Derailleur
Shimano 105 Di2 R7100, 12-speed
Shift Levers
Shimano 105 Di2 R7170, 2-speed | Shimano 105 Di2 R7170, 12-speed
Cassette
Shimano 105 R7100, 12-speed, 11-34T, Number of sprockets: 12
Crank
Shimano 105 Di2 R7100, Number of chainrings: 2
Bottom Bracket
Shimano Pressfit BB72, Bottom bracket standard: PF 86,5, Weight: 40 g
Chain
Shimano CN-M7100 12-speed Chain 138 Links | Shimano SM-CN910 12-speed Quick-Link Chain Connector
Pedals
None included
Wheels
Rims
DT Swiss Endurance LN, Axle dimension: 12x100 mm, Rotor mount: Center Lock, Rim height: 22 mm, Weight: 852 g | DT Swiss Endurance LN SH11, Axle dimension: 12x142 mm, Rotor mount: Center Lock, Rim height: 22 mm, Weight: 999 g
Tires
Continental Grand Prix 5000 S TR, 32 mm, Width: 32mm | Continental GP 5000S TR TL 27.5" & 28" Road Tyre | Continental GP 5000S TR TL 27.5" & 28" Road Tyre
Brakes
Brakes
Shimano Flat Mount Adapter +20mm
Brake Levers
Shimano 105 Di2 R7170, 2-speed | Shimano 105 Di2 R7170, 12-speed
Seat
Saddle
Fizik Argo Tempo R5, Gender: Unisex, Weight: 245 g
Seatpost

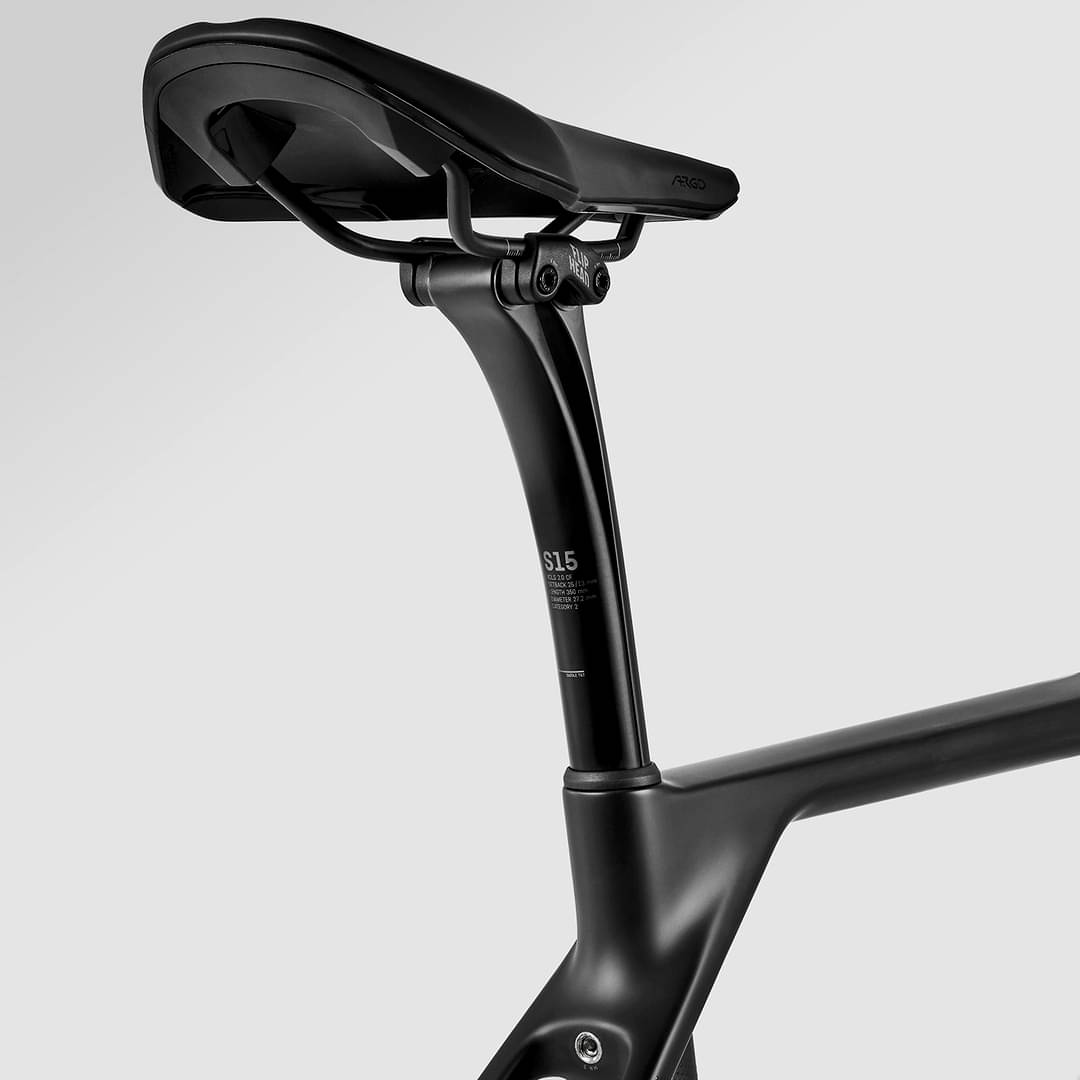

Canyon S15 VCLS 2.0 CF, Material: Carbon, Setback: 13 mm / 25 mm, Technology: VCLS 2.0 | Fliphead, Weight: 220 g
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XXXS | XXS | XS | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.45 mm | 1.49 mm | 1.48 mm | 1.51 mm | 1.56 mm | 1.58 mm | 1.57 mm | 1.58 mm |
| Front Center | 562 mm | 561 mm | 587 mm | 589 mm | 589 mm | 602 mm | 625 mm | 640 mm |
| Rake | 45 mm | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 67 mm | 61 mm | 71 mm | 65 mm | 59 mm | 58 mm | 56 mm | 56 mm |
| Stack | 512 mm | 531 mm | 550 mm | 570 mm | 592 mm | 613 mm | 639 mm | 658 mm |
| Reach | 352 mm | 356 mm | 372 mm | 377 mm | 380 mm | 389 mm | 407 mm | 417 mm |
| Top Tube Length | 511 mm | 521 mm | 542 mm | 553 mm | 563 mm | 578 mm | 604 mm | 619 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 402 mm | 432 mm | 462 mm | 492 mm | 522 mm | 552 mm | 582 mm | 612 mm |
| Head Tube Angle | 70.3 ° | 71.5 ° | 70.8 ° | 71.8 ° | 72.75 ° | 73 ° | 73.3 ° | 73.3 ° |
| Head Tube Length | 123 mm | 138 mm | 129 mm | 146 mm | 165 mm | 186 mm | 212 mm | 232 mm |
| Chainstay Length | 407 mm | 407 mm | 417 mm | 417 mm | 417 mm | 417 mm | 417 mm | 417 mm |
| Wheelbase | 961 mm | 960 mm | 993 mm | 995 mm | 995 mm | 1008 mm | 1031 mm | 1046 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 73 mm | 73 mm | 73 mm | 73 mm | 73 mm | 73 mm |
| Standover Height | 710 mm | 736 mm | 765 mm | 790 mm | 817 mm | 842 mm | 869 mm | 893 mm |
| Wheels | 650 | 650 | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Max Height | 160 cm | 166 cm | 172 cm | 179 cm | 186 cm | 193 cm | 199 cm | cm |
About this model
Endurace CF SLX 7 Di2 is part of the Canyon Endurace model. Canyon released 171 bikes variations of this model so far. You can easily view all of the Canyon Endurace bikes models from 2023, here.
Model range prices
The most economical model, the Canyon Endurace 6 RB 2023 has a starting price of 1061$. Canyon Endurace CFR WRL 2023 on the other hand is the most expensive at 10617$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Endurance bikes average price
According to our calculations, the average cost of an Endurance bike that is reliable is 2346$. However, this doesn’t mean that if you spend less money on an Endurance bike, you couldn’t get a decent one. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
This bike was released in 2023 and its price was 3928$. Comparing the average cost of an Endurance bike to this one, you will see that Endurace CF SLX 7 Di2 price is 67.43% more expensive.
Endurance bikes average weight
Endurance bikes weigh an average of 8.2 kg (18.08 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
With a weight of 8.48 kg (18.7 lbs), Canyon bike is slightly heavier than average. In short, the average Endurance bike weight is 3.41% lower than this one.
Overview of components
Fork material
Endurace CF SLX 7 Di2 has a carbon fork, so, it’s a great addition to the bike’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Wheels size
The wheels on Endurace CF SLX 7 Di2 are the aluminum type. These wheels are less popular than 650b and 700c. However, they are a little lighter than 700c wheels.
Brakes
Nothing is more important on a bike than its ability to brake properly. Canyon Endurace CF SLX 7 Di2 is equipped with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
