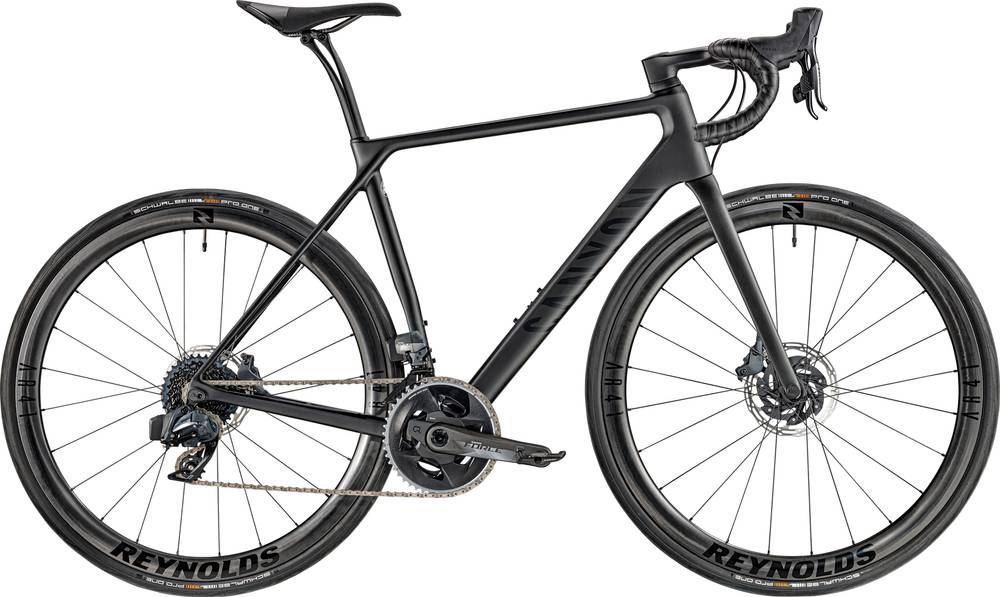

Canyon Endurace CF SLX Disc 8.0 eTap 2020
2020 Road
Estimate price |
6,299$
Weight | 7.7 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Force eTAP -
Suspension Rigid -
Drivetrain 2 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
165cm - 173cm
SM
171cm - 179cm
MD
177cm - 185cm
LG
183cm - 191cm
XL
189cm - 197cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Canyon Endurace CF SLX Disc, Material: Carbon, Axle Dimension: 12 x 142 mm, Brake Mount: Flat Mount, Weight: 820 g (M)
Suspension Fork
Canyon F38 CF Disc, Material: Carbon, Steerer: 1 1/4", Axle Dimension: 12 x 100 mm, Brake Mount: Flat Mount
Drivetrain
Rear Derailleur
SRAM Force eTap AXS, 12-speed, With wireless shifting, Orbit damper technology, and larger X-SYNC pulleys for improved durability, max. cassette size: 33T. Weight: 325 g
Front Derailleur
SRAM Force eTap AXS, With wireless shifting, for 2x12 drivetrains, mounting type: braze-on. Weight: 155 g
Shift Levers
SRAM Force eTap AXS HRD 2s, Left-hand shifter. With wireless shifting, contact point adjustment, reach adjust. | SRAM Force eTap AXS HRD 12s, Right-hand shifter. With wireless shifting, contact point adjustment, reach adjust.
Cassette
SRAM Force XG-1270 10-33 12s, With mini cluster construction for reduced weight and increased durability.
Crank
SRAM Force D1
Bottom Bracket
SRAM Pressfit RED DUB, Pressfit BB86 road standard, compatible with SRAM DUB axles. Weight: 72 g
Chain
SRAM FORCE D1 12-speed, With signature flat-top design for quieter operation and increased strength and durability.
Pedals
None included
Wheels
Rims
Reynolds AR41 DB, Rim Material: Carbon, Rim Height: 41 mm, Inner Width: 21 mm, Weight: 1630 g (set) | Reynolds AR41 DB XD-R, Modern, tubeless-ready deep-section aero wheelset., Rim Material: carbon, Rim Height: 41 mm, Inner Width: 21 mm, Weight: 1630 g (set)
Tires
Schwalbe Pro One Evo 30mm, Casing: MicroSkin, Compound: OneStar, Technology: Tubeless Easy, Weight: 275 g
Brakes
Brake Levers
SRAM Force eTap AXS HRD 2s, Left-hand shifter. With wireless shifting, contact point adjustment, reach adjust. | SRAM Force eTap AXS HRD 12s, Right-hand shifter. With wireless shifting, contact point adjustment, reach adjust.
Disk Rotors
SRAM Centerline X, Two-piece design centerlock brake rotor, rounded edges for easier wheel installs. Weight: 135 g
Seat
Saddle
Fizik Aliante R3
Seatpost
Canyon S15 VCLS 2.0 CF, Material: Carbon, Setback: 13 mm / 25 mm, Technology: VCLS 2.0 | Fliphead, Weight: 220 g
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XXS | XS | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.42 mm | 1.44 mm | 1.48 mm | 1.52 mm | 1.56 mm | 1.54 mm | 1.55 mm |
| Bottom Bracket Height | 261 mm | 261 mm | 263 mm | 263 mm | 263 mm | 263 mm | 263 mm |
| Front Center | 577 mm | 579 mm | 584 mm | 586 mm | 602 mm | 624 mm | 639 mm |
| Rake | 44 mm | 44 mm | 44 mm | 43 mm | 44 mm | 45 mm | 44 mm |
| Trail | 82 mm | 70 mm | 64 mm | 59 mm | 58 mm | 55 mm | 56 mm |
| Stack | 508 mm | 530 mm | 555 mm | 576 mm | 602 mm | 623 mm | 642 mm |
| Reach | 358 mm | 368 mm | 374 mm | 380 mm | 387 mm | 405 mm | 415 mm |
| Top Tube Length | 509 mm | 525 mm | 539 mm | 551 mm | 566 mm | 590 mm | 605 mm |
| Seat Tube Angle | 72.6 ° | 72.7 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 432 mm | 462 mm | 492 mm | 522 mm | 552 mm | 582 mm | 612 mm |
| Head Tube Angle | 69.2 ° | 71 ° | 72 ° | 73 ° | 73 ° | 73.3 ° | 73.3 ° |
| Head Tube Length | 98 mm | 115 mm | 139 mm | 158 mm | 184 mm | 206 mm | 225 mm |
| Chainstay Length | 413 mm | 413 mm | 413 mm | 413 mm | 413 mm | 413 mm | 413 mm |
| Wheelbase | 978 mm | 980 mm | 986 mm | 988 mm | 1004 mm | 1026 mm | 1041 mm |
| Bottom Bracket Drop | 75 mm | 75 mm | 73 mm | 73 mm | 73 mm | 73 mm | 73 mm |
| Standover Height | 722 mm | 748 mm | 778 mm | 804 mm | 830 mm | 855 mm | 879 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Max Height | 167 cm | 173 cm | 179 cm | 185 cm | 191 cm | 197 cm | cm |
About this model
Endurace CF SLX Disc 8.0 eTap is part of the Canyon Endurace model. Canyon launched 171 bikes of this model so far. Take a sneak peek at all Canyon Endurace bikes models from 2020, by clicking here.
Model range prices
Canyon Endurace WMN AL 6.0 2020 is the cheapest bike model and costs 1061$. Canyon Endurace CF SLX Disc 9.0 eTap 2020 is the most expensive one and costs 7999$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Endurance bikes
According to our calculations, the average cost of an Endurance bike that is reliable is 2346$. However, this doesn’t mean that if you spend less money on an Endurance bike, you couldn’t get a decent one. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
At the moment of the release date, Canyon Endurace CF SLX Disc 8.0 eTap price was 6299$. Comparing the average cost of an Endurance bike to this one, you will see that Endurace CF SLX Disc 8.0 eTap price is 168.5% more expensive.
Endurance bikes average weight
Endurance bikes have an average weight of 8.2 kg (18.08 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
a bit lighter than average, Endurace CF SLX Disc 8.0 eTap has a weight of 7.7 kg (16.98 lbs). To sum up, it’s 6.49% lighter than the average weight of Endurance bikes.
Overview of components
Fork material
The fork on this bike is made out of carbon, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels size
The Endurace CF SLX Disc 8.0 eTap 2020 bike is equipped with 700c carbon wheels when leaving the factory. These wheels are the most used kind for road bikes in general. However, these wheels don’t perform so well when passing over obstacles.
Brakes
For your safety, it is important to have quality breaks on your bike. Canyon Endurace CF SLX Disc 8.0 eTap has Hydraulic Disc brakes installed. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
