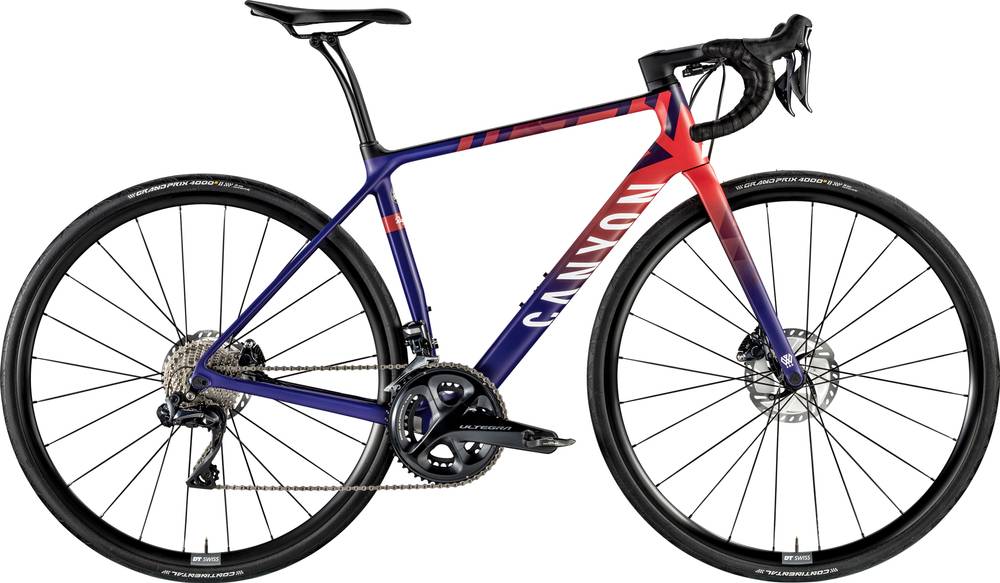

Canyon Endurace WMN CF SL Disc 8.0 LTD Di2 2019
2019 Road
Weight | 7.8 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 650c / 700c -
Groupset Ultegra Di2 -
Suspension Rigid -
Drivetrain 2 × 11 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XXS
159cm - 167cm
XS
165cm - 173cm
SM
171cm - 179cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Canyon Endurace WMN CF SL Disc, Material: Carbon, Axle Dimension: 12 x 142 mm, Brake Mount: Flat Mount
Suspension Fork
Canyon F38 CF Disc, Material: Carbon, Steerer: 1 1/4", Axle Dimension: 12 x 100 mm, Brake Mount: Flat Mount
Drivetrain
Rear Derailleur
Shimano Ultegra Di2 R8050 GS
Front Derailleur
Shimano Ultegra Di2 R8050
Shift Levers
Shimano Ultegra Di2 R8070 2s, Weight: 180 g | Shimano Ultegra Di2 R8070 11s, Weight: 180 g
Cassette
Shimano Ultegra HG800 11-34 11s
Crank
Shimano Ultegra R8000 50/34
Bottom Bracket
Shimano Pressfit BB72
Pedals
None included
Wheels
Rims
DT Swiss ER 1600 Spline db, Rim Material: Aluminium, Rim Height: 23 mm, Inner Width: 20 mm, Weight: 746 g | DT Swiss ER 1600 Spline db SH11, Rim Material: Aluminium, Rim Height: 23 mm, Inner Width: 20 mm, Weight: 892 g
Tires
Continental Grand Prix 5000 28 mm, Casing: Vectran Breaker, Compound: BlackChili, Technology: Foldable
Brakes
Brake Levers
Shimano Ultegra Di2 R8070 2s, Weight: 180 g | Shimano Ultegra Di2 R8070 11s, Weight: 180 g
Disk Rotors
Shimano RT800, Disc Mount: Centerlock
Seat
Saddle
Fizik Luce
Seatpost
Canyon S15 VCLS 2.0 CF, Material: Carbon, Setback: 13 mm / 25 mm, Technology: VCLS 2.0 | Fliphead, Weight: 220 g
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XXXS | XXS | XS | SM | MD |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.45 mm | 1.47 mm | 1.48 mm | 1.52 mm | 1.54 mm |
| Front Center | 554 mm | 558 mm | 580 mm | 586 mm | 593 mm |
| Rake | 42 mm | 46 mm | 44 mm | 47 mm | 47 mm |
| Trail | 72 mm | 63 mm | 75 mm | 64 mm | 58 mm |
| Stack | 504 mm | 517 mm | 540 mm | 563 mm | 586 mm |
| Reach | 348 mm | 351 mm | 364 mm | 371 mm | 380 mm |
| Top Tube Length | 494 mm | 504 mm | 524 mm | 539 mm | 553 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 402 mm | 432 mm | 462 mm | 492 mm | 522 mm |
| Head Tube Angle | 70 ° | 70.8 ° | 70.25 ° | 71.5 ° | 72.5 ° |
| Head Tube Length | 109 mm | 129 mm | 124 mm | 143 mm | 164 mm |
| Chainstay Length | 417 mm | 417 mm | 417 mm | 417 mm | 417 mm |
| Wheelbase | 963 mm | 967 mm | 985 mm | 991 mm | 998 mm |
| Bottom Bracket Drop | 63 mm | 63 mm | 75 mm | 75 mm | 75 mm |
| Standover Height | 687 mm | 713 mm | 748 mm | 776 mm | 803 mm |
| Wheels | 650 | 650 | 700 | 700 | 700 |
| Rider Max Height | 161 cm | 167 cm | 173 cm | 179 cm | cm |
Model Overview
Endurace WMN CF SL Disc 8.0 LTD Di2 belongs to the Canyon Endurace model. 171 bikes variations carry this model name so far. Take a sneak peek at all Canyon Endurace bikes models from 2019, by clicking here.
Model range prices
Canyon Endurace AL 6.0 2019 is the most affordable bike of this model and has a price of 848$. On the other hand, Canyon Endurace CF SLX Disc 9.0 Di2 2019, is the most expensive and costs 7000$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Endurance bikes average price
According to our math, the average price for a trustworthy Endurance bike is 2346$. However, even if your budget is less than the average, you might still be able to get a top-quality Endurance bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Endurance bikes average weight
Endurance bikes weigh an average of 8.2 kg (18.08 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
With a weight of 7.8 kg (17.2 lbs), Canyon bike is a bit lighter than average. In other words, this model is 5.13% lighter than the average Endurance bike.
Endurace WMN CF SL Disc 8.0 LTD Di2 components
Fork material
The fork on this bike is made out of carbon, so, it won’t add up to much weight to your bike. However, the price you have to pay for a carbon fork is considerably higher.
Wheels size
The Endurace WMN CF SL Disc 8.0 LTD Di2 2019 bike is equipped with aluminum wheels when leaving the factory. The 650c wheels are smaller in diameter than 700c. However, they are a little lighter than 700c wheels.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
